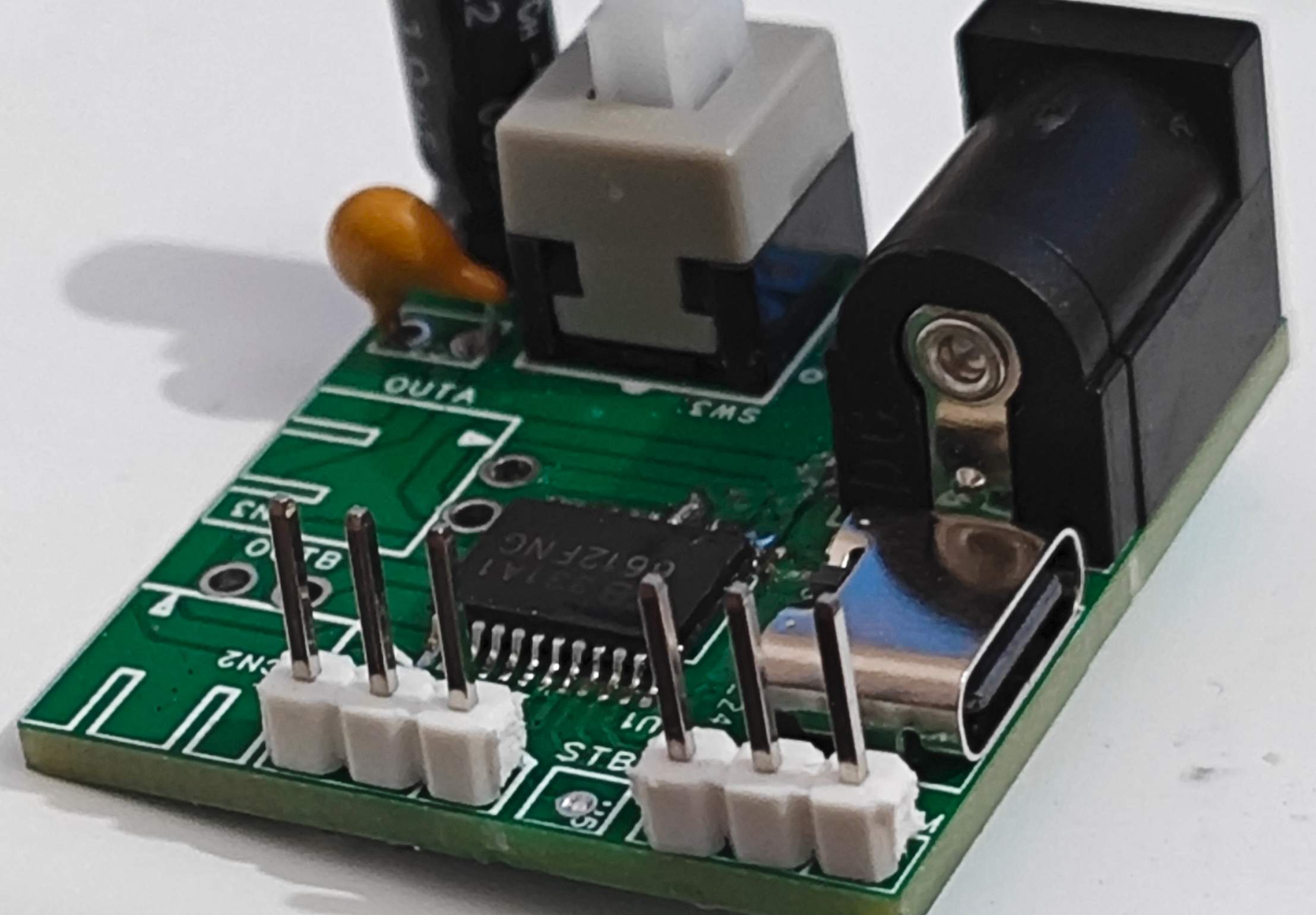

TB6612 motor drive module

The TB6612FNG motor drive module is a high-efficiency motor drive solution based on the TB6612FNG integrated circuit (IC), specifically designed for controlling small DC motors and stepper motors.
Engineering Principles:
The TB6612FNG module primarily relies on its internal H-bridge circuitry to control the motor. An H-bridge is a circuit configuration that allows current to flow in either direction, enabling forward and reverse rotation control of the motor. The TB6612FNG contains two such H-bridges, allowing it to drive two DC motors or one bipolar stepper motor simultaneously.
The module uses low-resistance MOSFETs as switching elements, significantly reducing power consumption and improving efficiency. Furthermore, the TB6612FNG integrates over-temperature protection and undervoltage lockout functions to protect the circuitry from damage.
Function :
The main function of the TB6612FNG motor drive module is to control the motor's start, stop, forward and reverse rotation, and speed regulation. It can be used in various applications requiring motor control, such as robots, automated equipment, and toy cars.
Operating Conditions

: Power Supply Voltage: The TB6612FNG can operate from a power supply voltage of 4.5V to 13.5V, adapting to projects with different voltage requirements.
Output Current: Each channel can provide a maximum continuous drive current of 1.2A and withstand peak currents up to 3.2A.
Temperature: The operating temperature range is typically -20℃ to 85℃, meeting the requirements of most environments.
