The 14th Blue Bridge Cup National EDA Design and Development Project Exam Questions

Overview

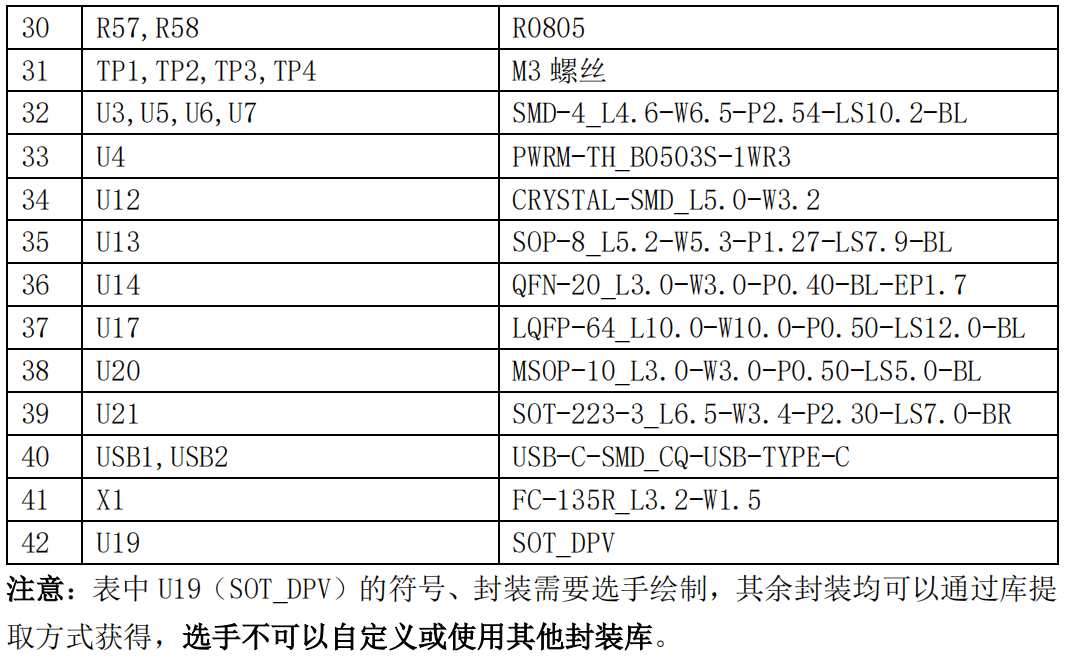

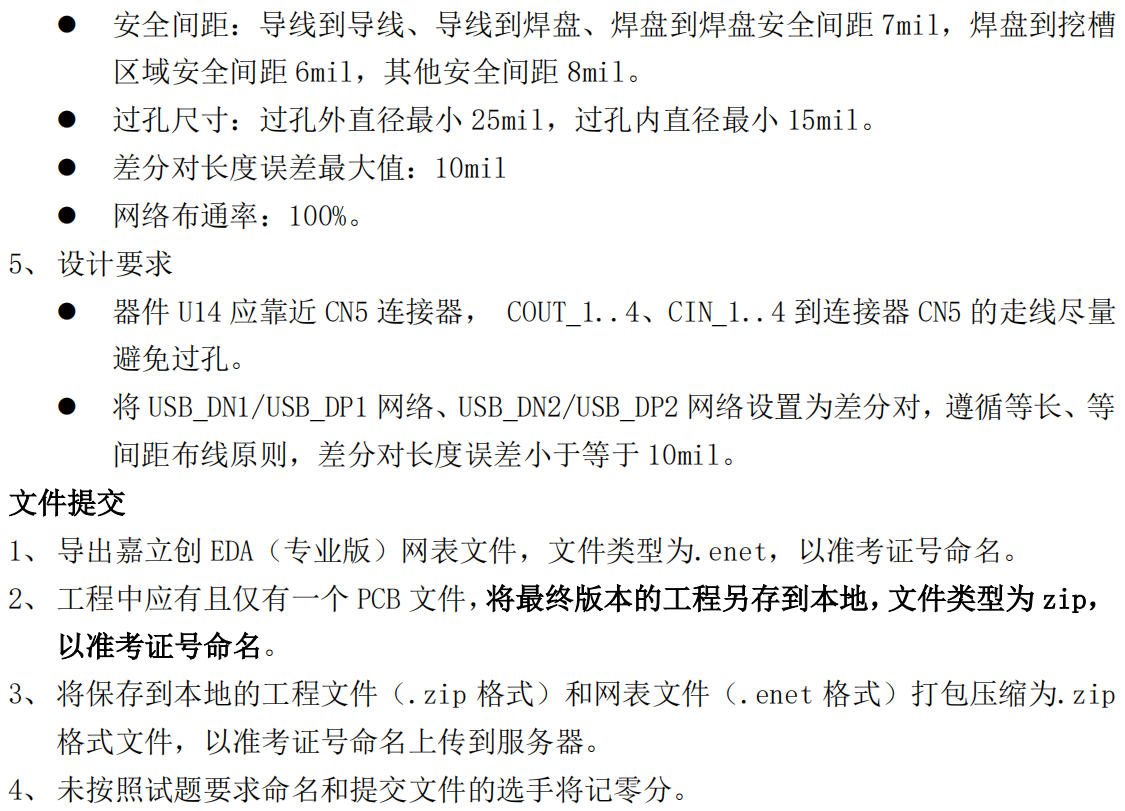

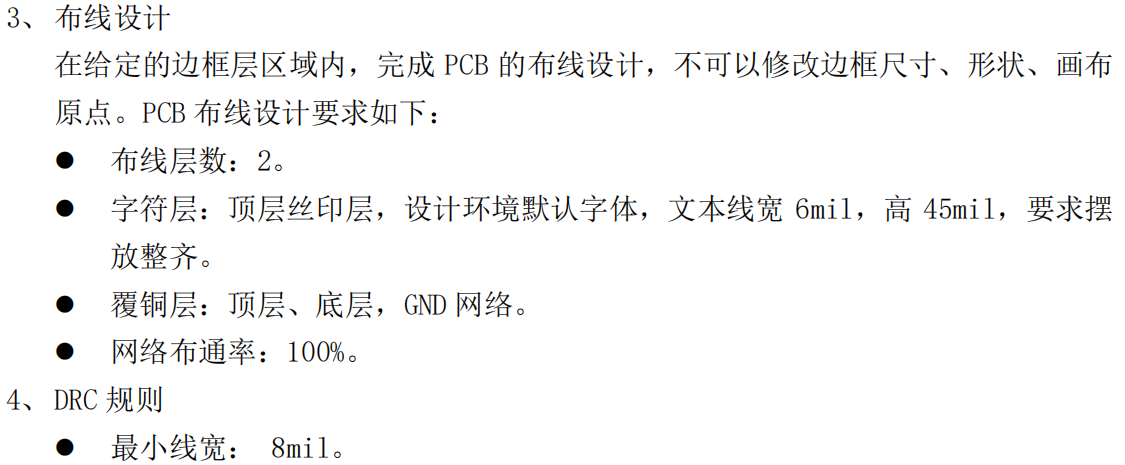

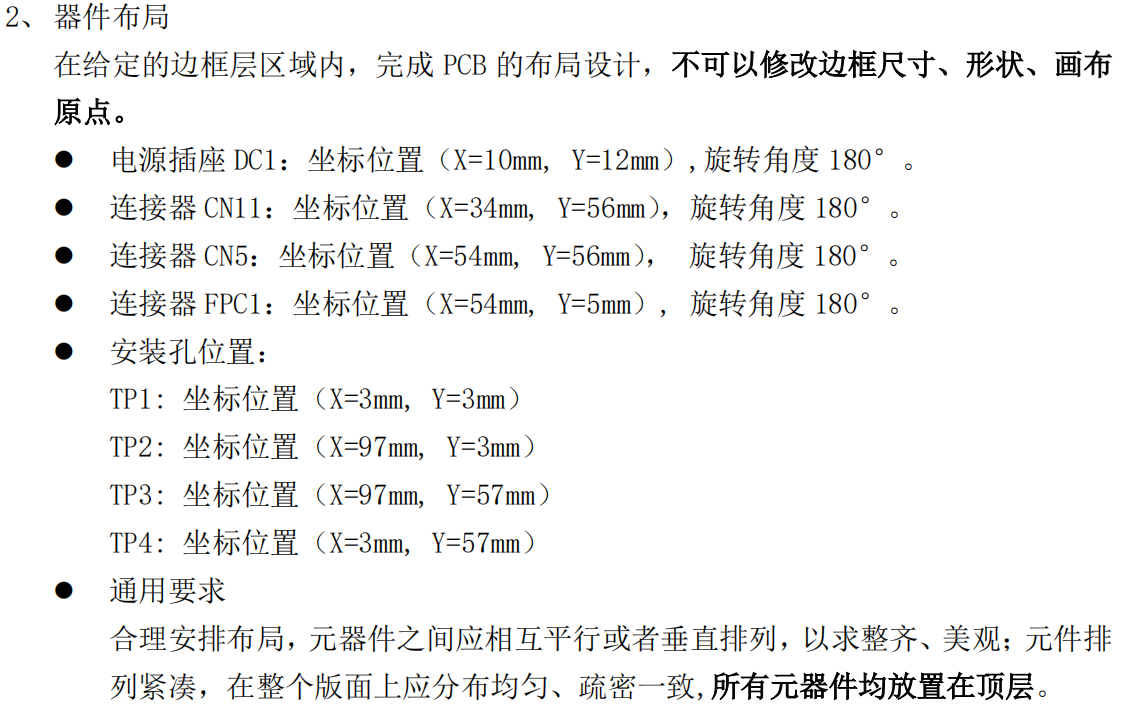

I. Exam Details

II. Drawing Process
Based on the 14th Blue Bridge Cup EDA Design and Development National Competition questions, complete the drawing and binding of DPV device symbols and packages according to the requirements of the questions, import the data package to complete the schematic circuit drawing and printed circuit board design.

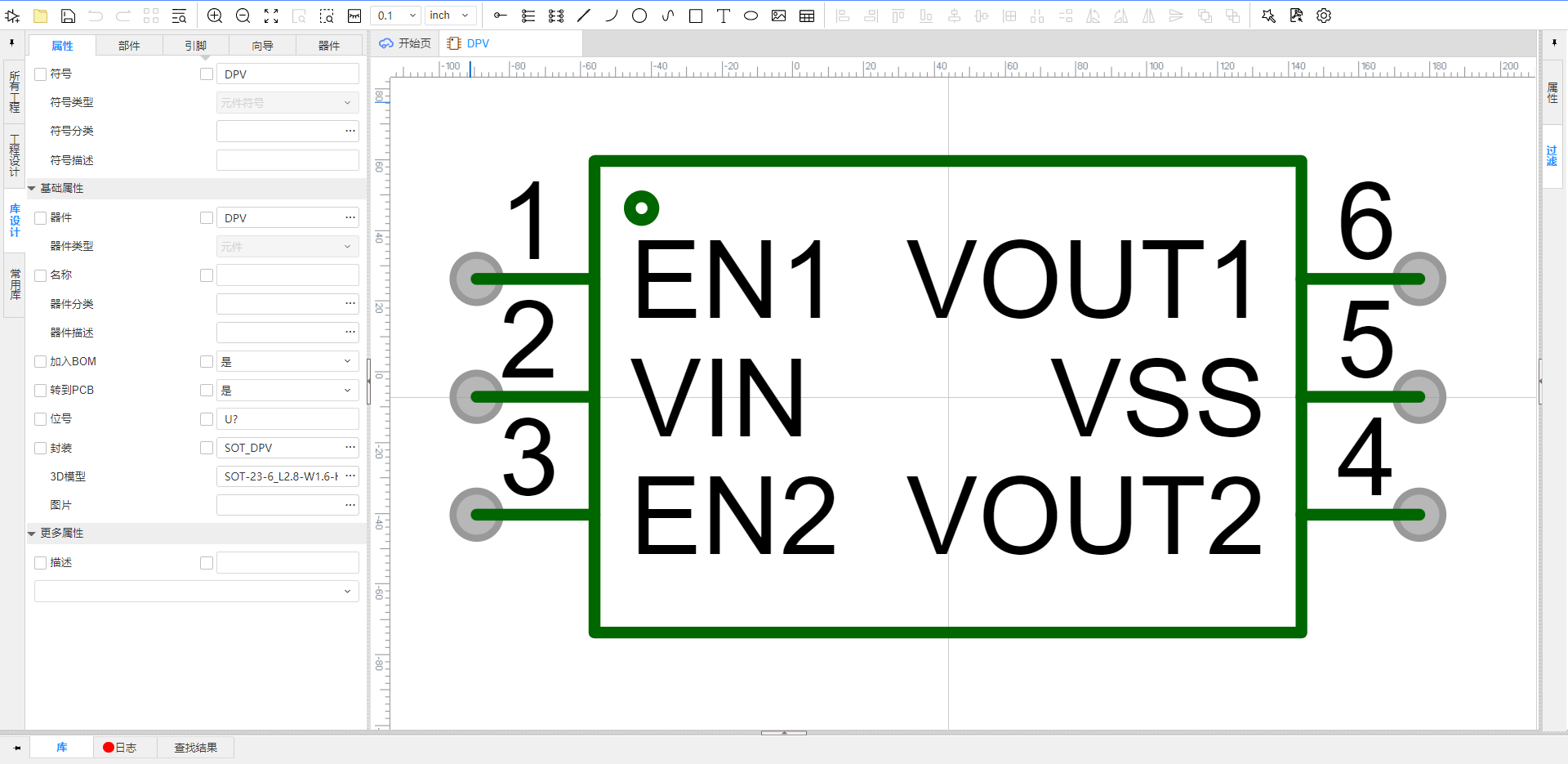

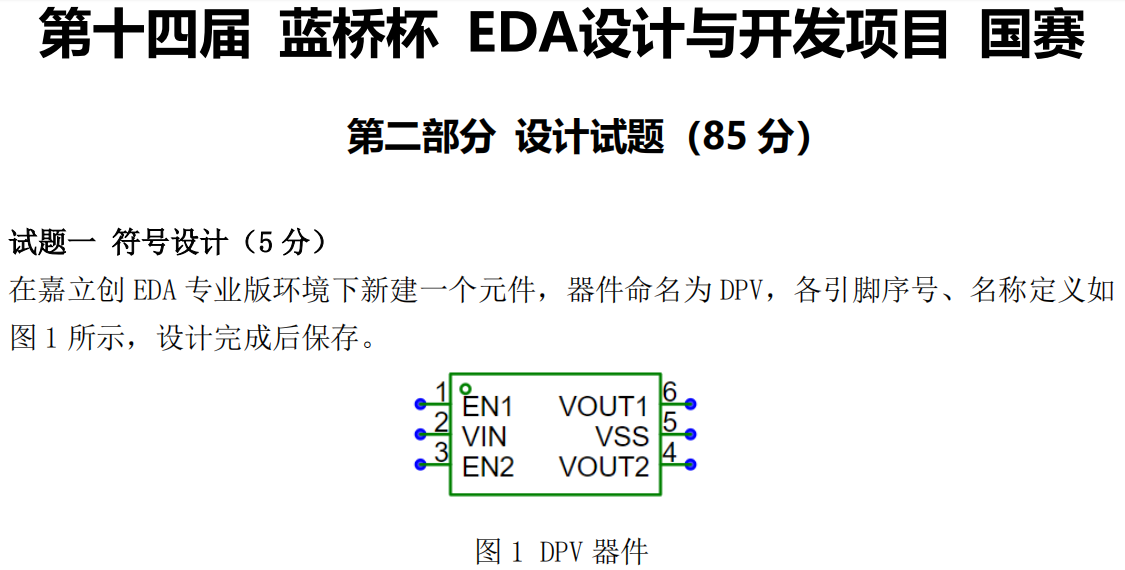

Figure 2-1: Drawing DPV Device Symbol

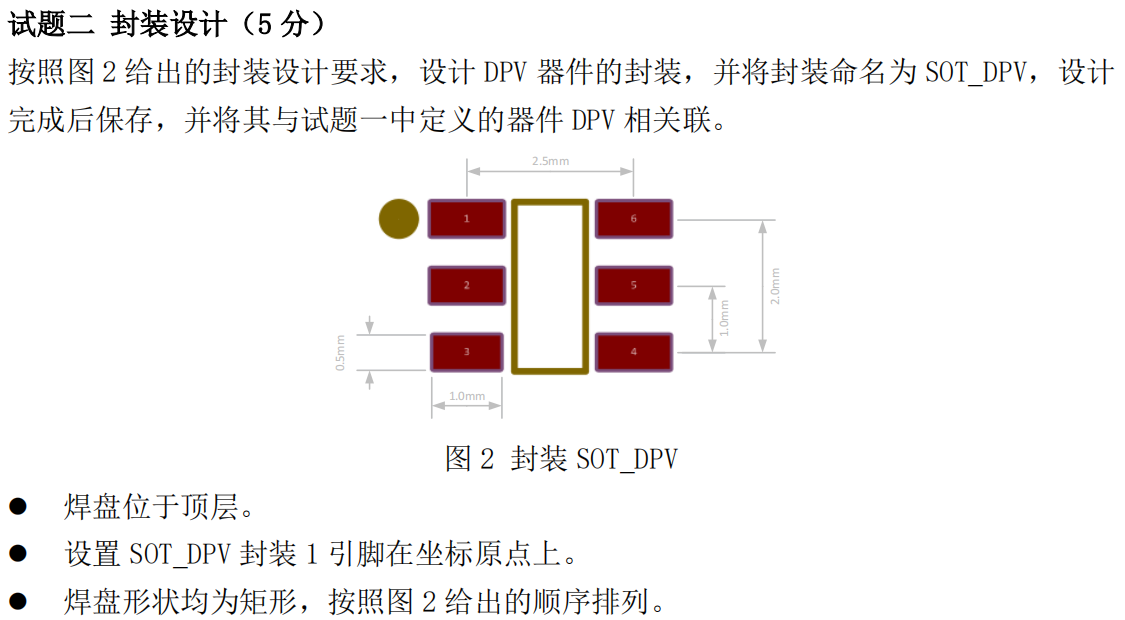

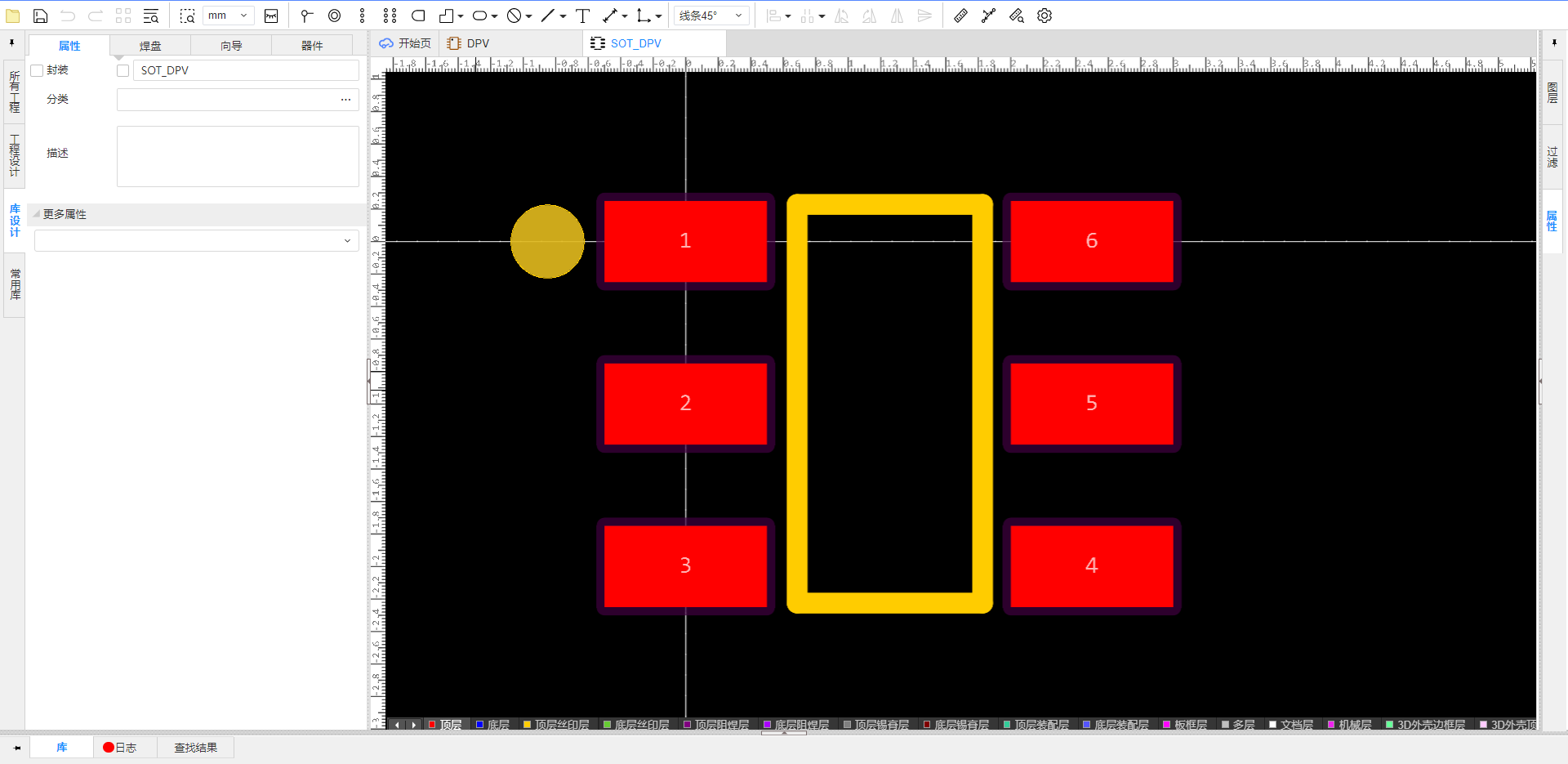

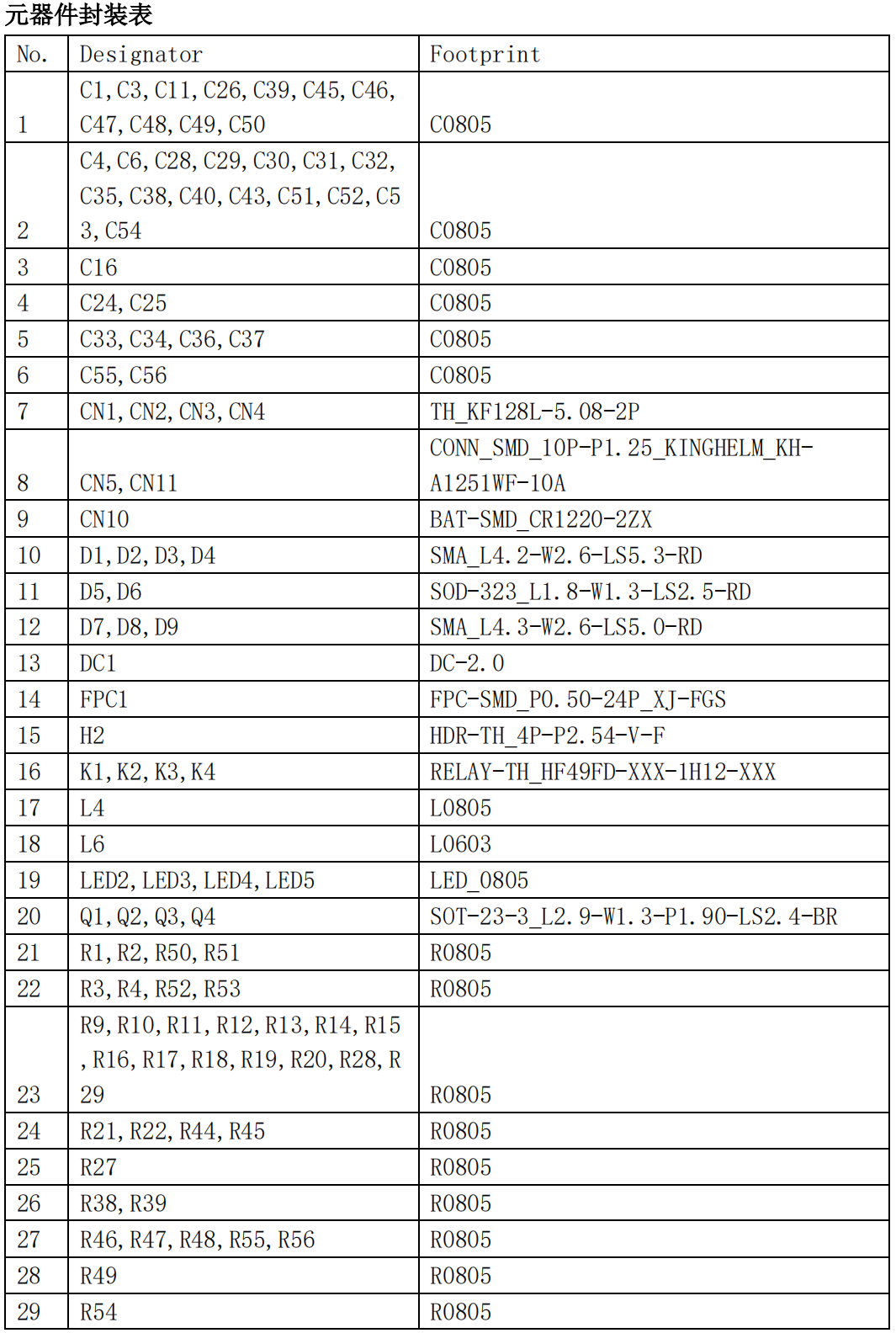

Figure 2-2: Drawing DPV Device Package

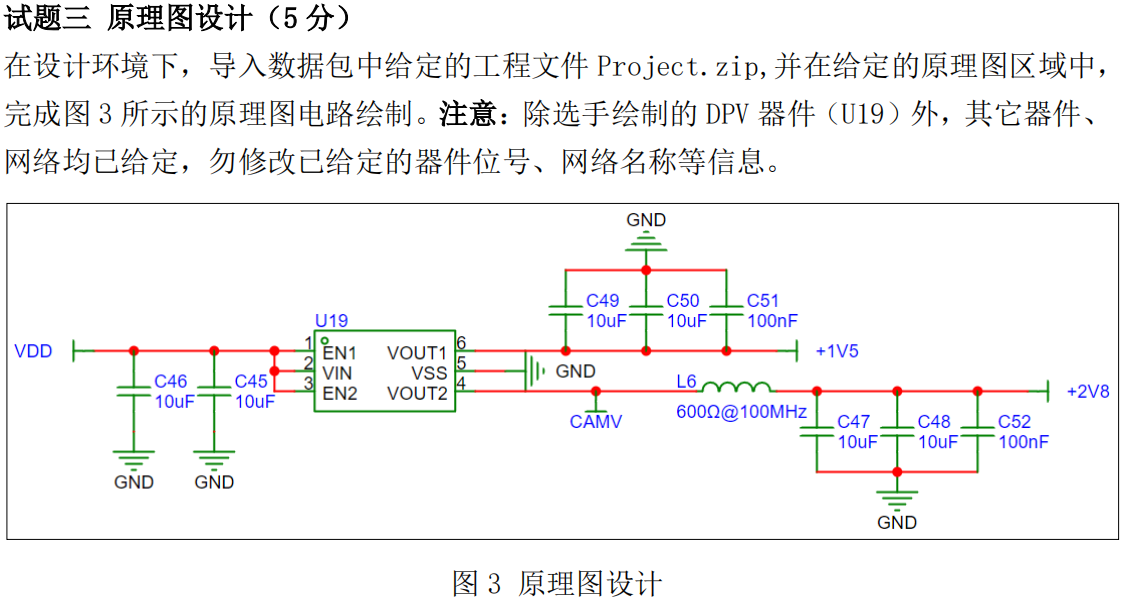

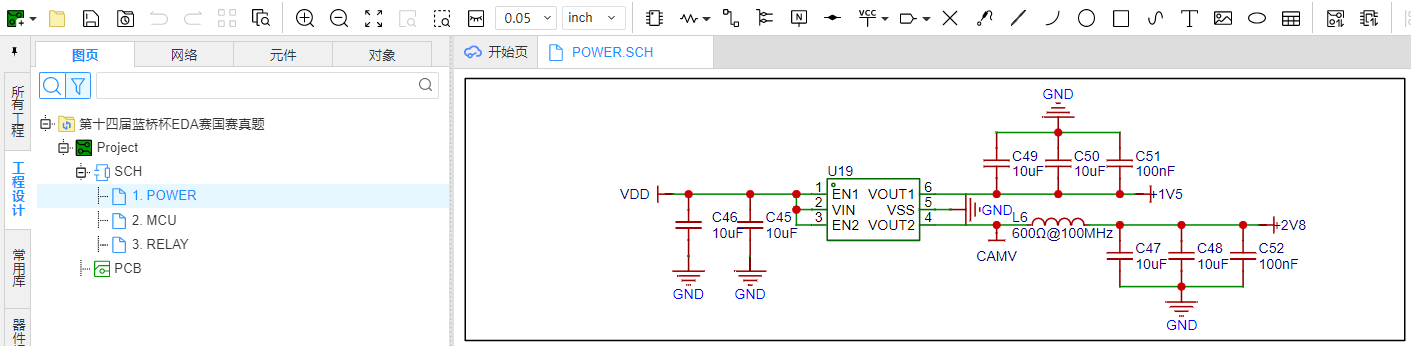

Figure 2-3: Importing Data Package to Complete Schematic Circuit Drawing in the Given Area

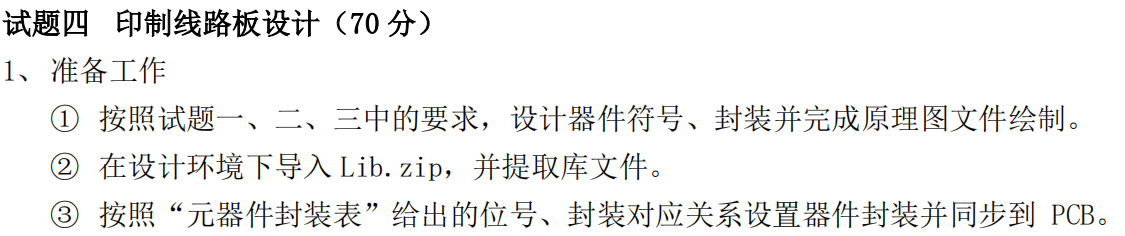

Figure 2-4: PCB Printed Circuit Board Design

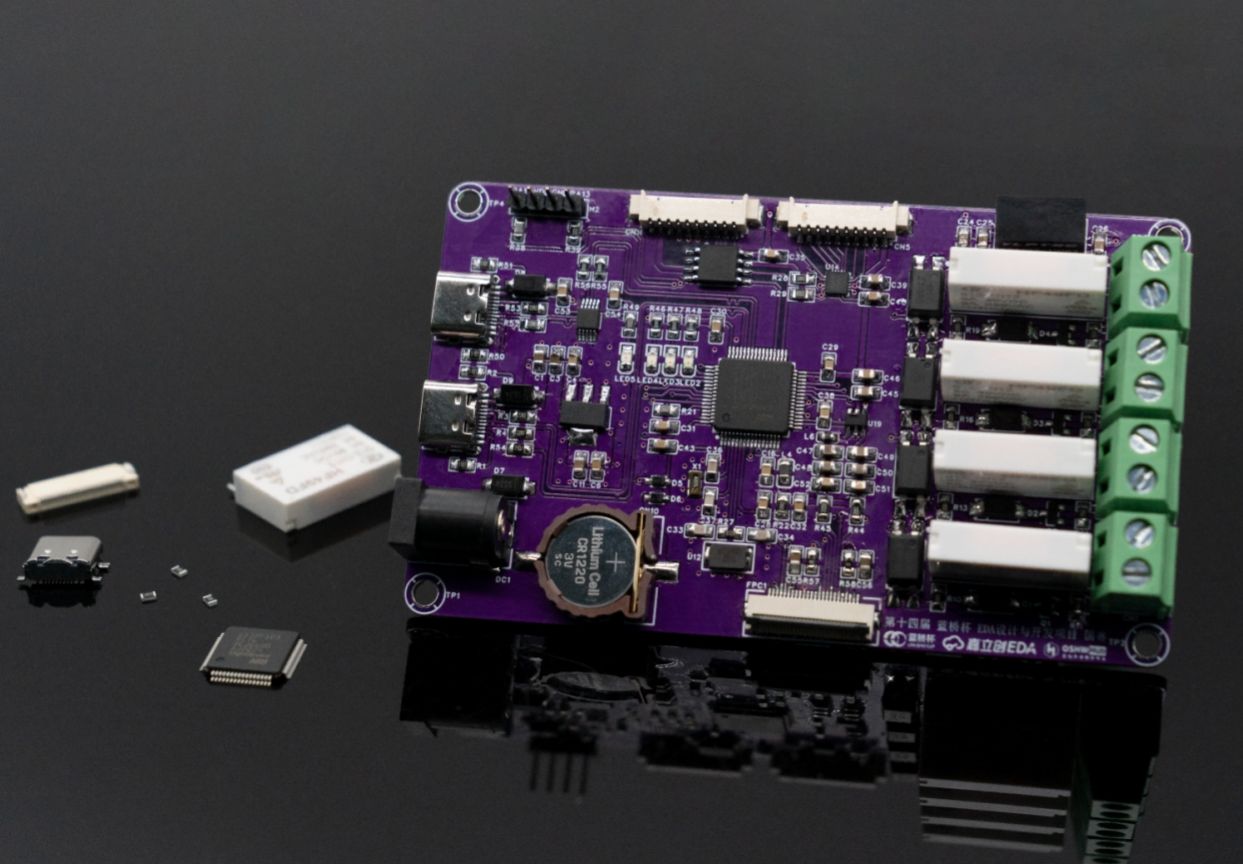

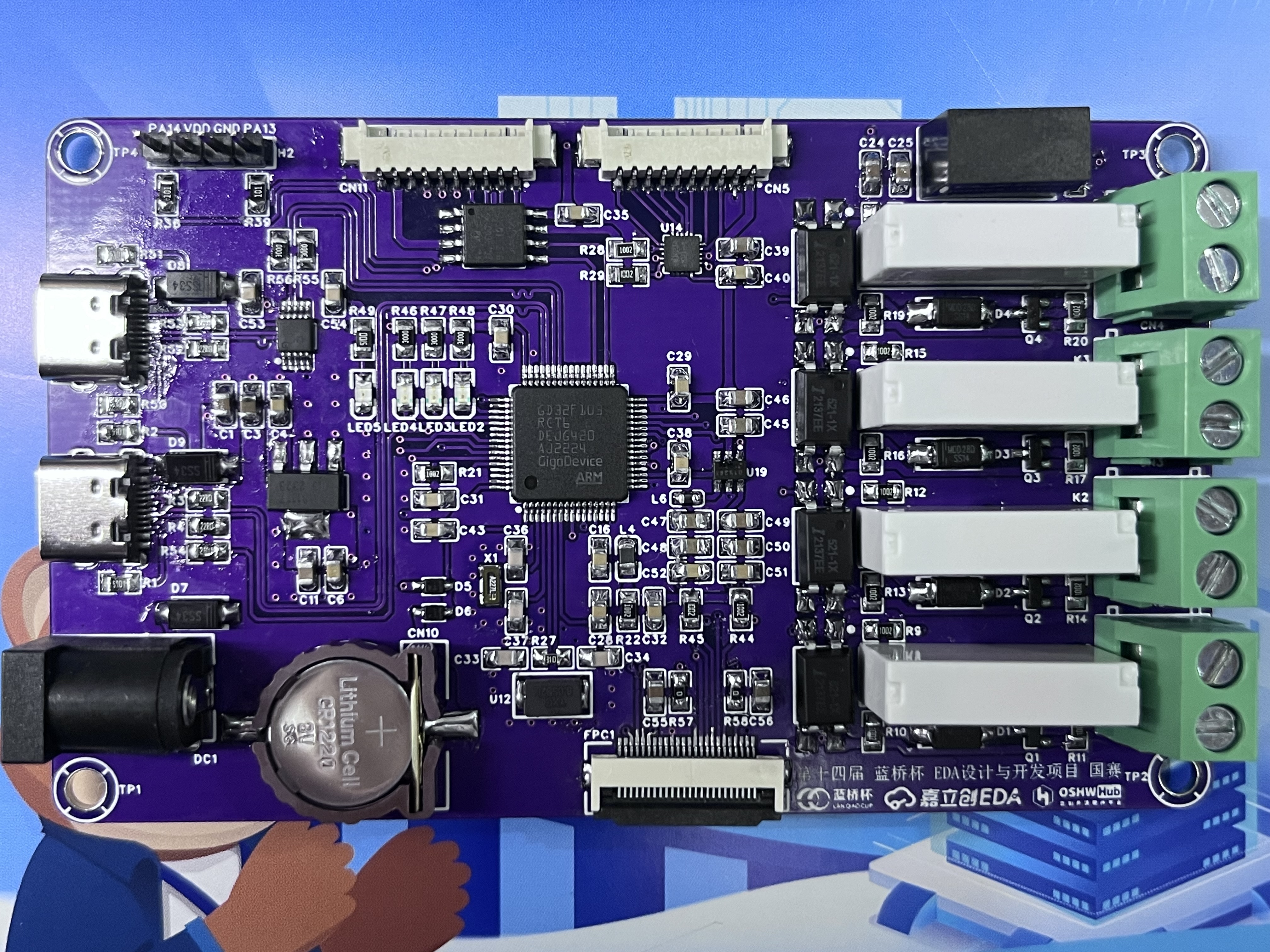

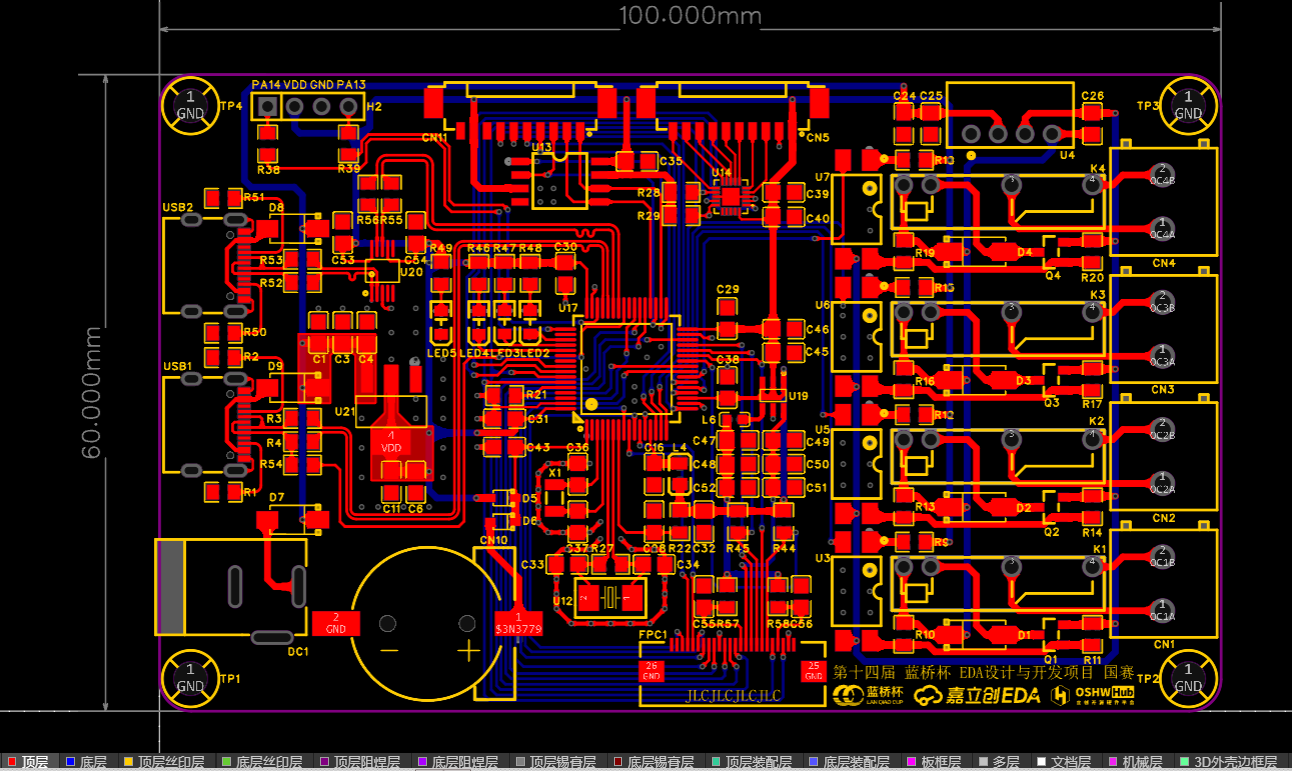

Figure 2-5: Physical Image of the 14th Blue Bridge Cup EDA Design and Development National Competition
III. Training Videos

15th Blue Bridge Cup EDA Design and Development Competition - JLCPCB EDA Training Videos
