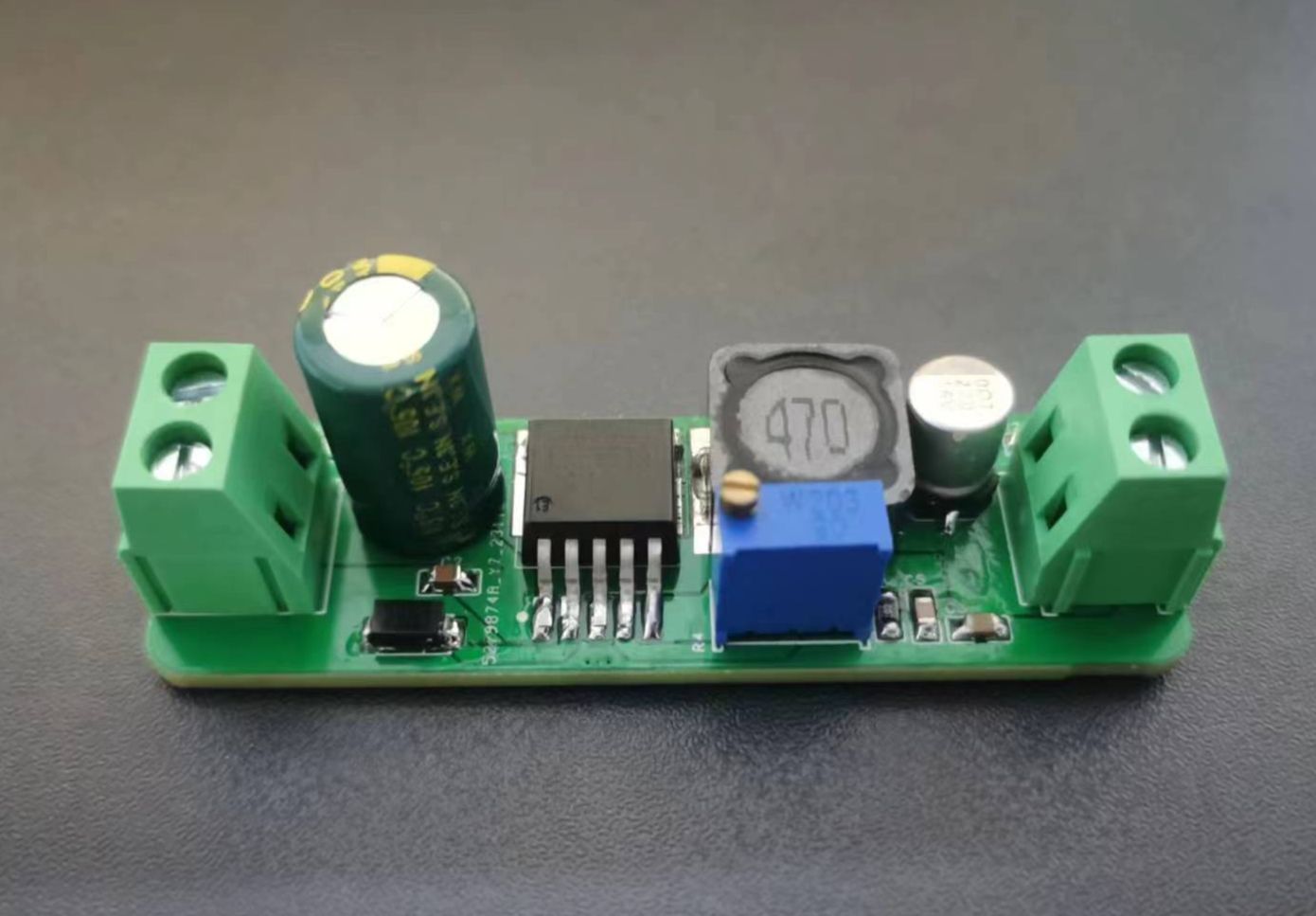

LM2596S_ADJ Adjustable Power Module

Overview

An adjustable step-down converter based on the LM2596S_ADJ chip, theoretically adjustable from 1.2V to Vin.
Actual measurements show
adjustable voltage from 1.23V to 4.57V at 5V
and from 1.24V to 11.36V at 12V.
