PD Adjustable Power Supply

Overview

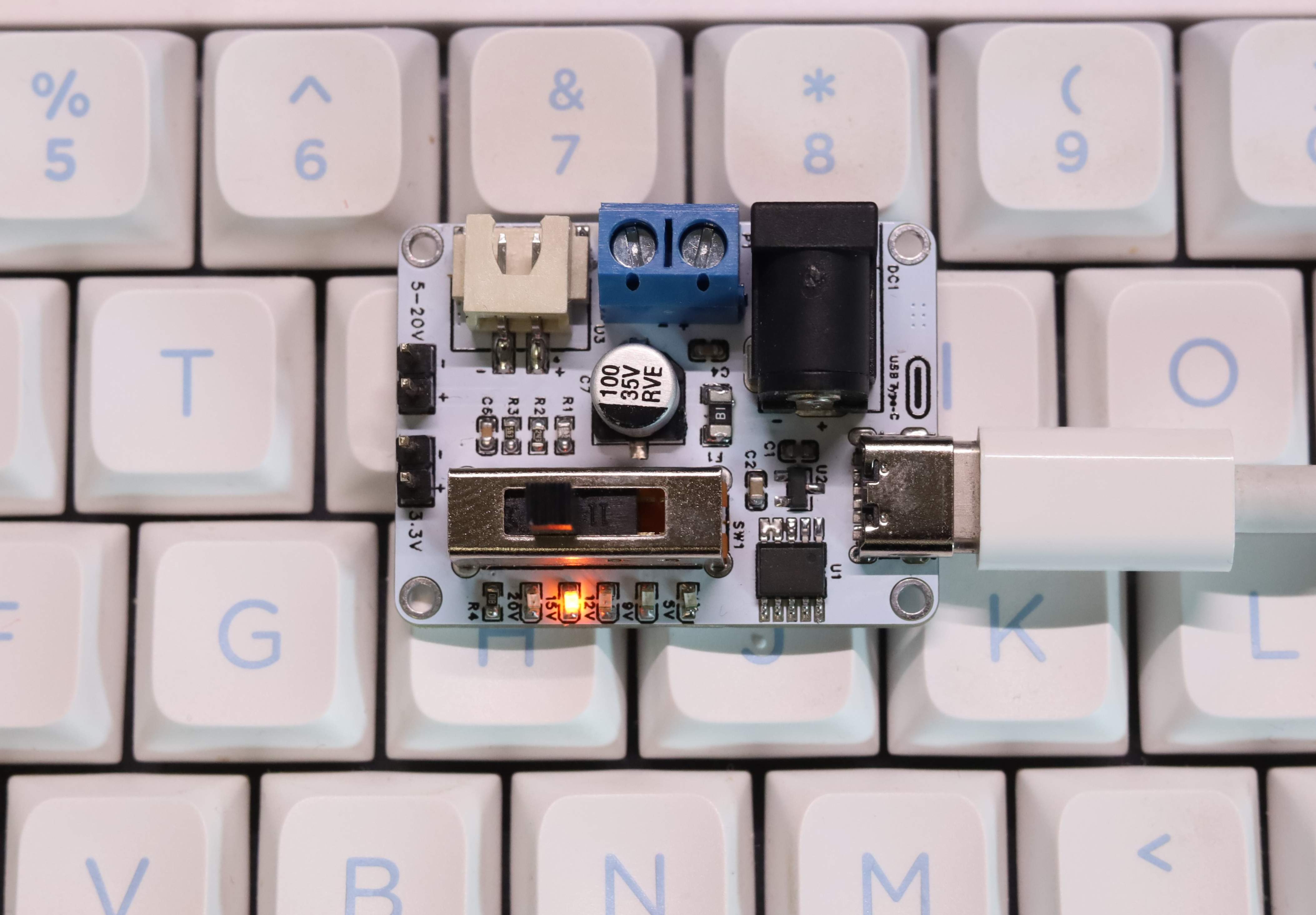

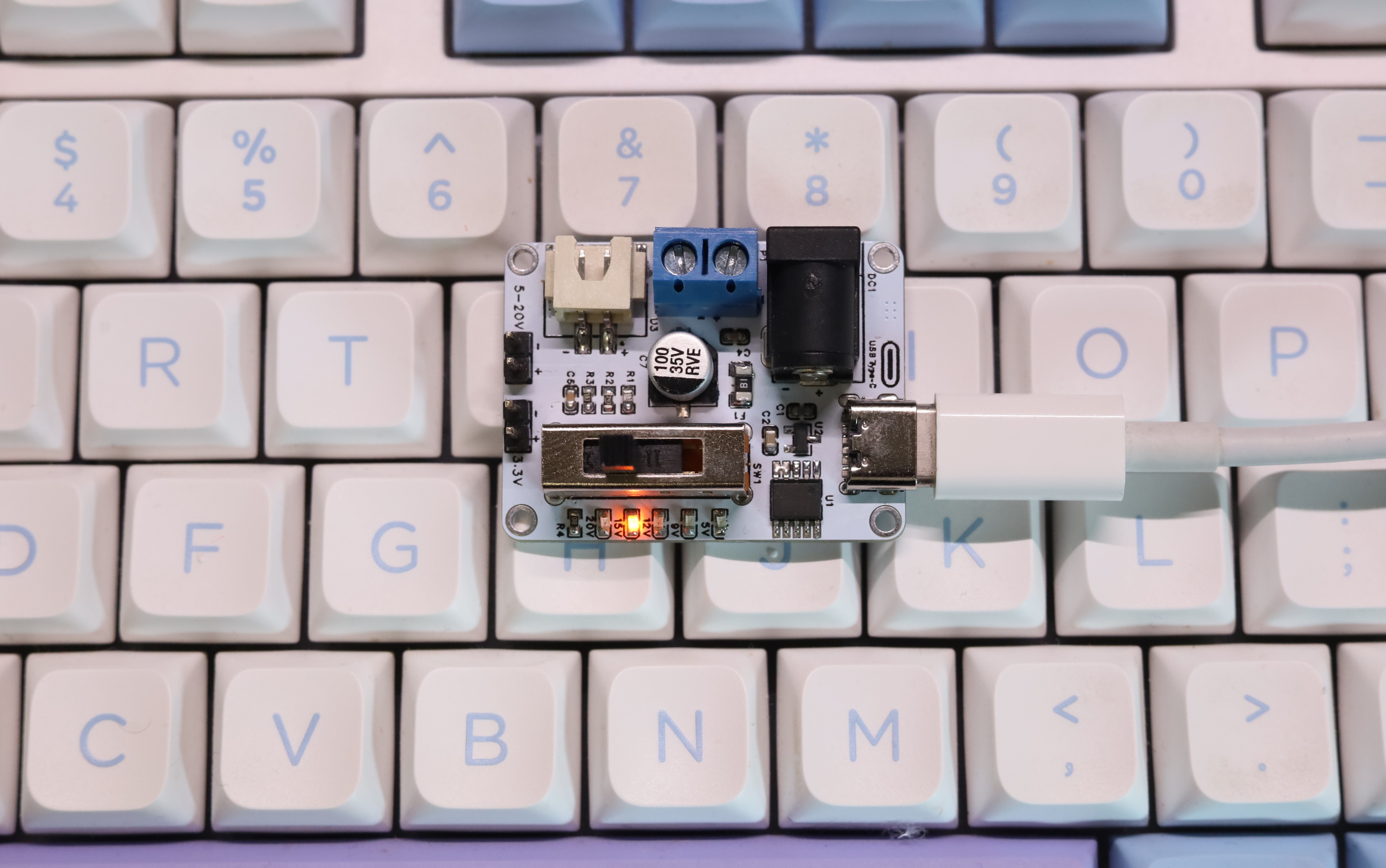

This PD decoy with adjustable voltage levels, based on the CH224K, is compact and

supports 3.3V (low current), 5V, 9V, 12V, 15V, and 20V outputs. Output levels
can be selected via a DIP switch, with
an LED indicator for the output level.
Multiple connection terminals are supported,

and components can be reduced or removed as needed.

PDF_PD Adjustable Power Supply.zip

Altium_PD Adjustable Power Supply.zip

PADS_PD Adjustable Power Supply.zip

BOM_PD Adjustable Power Supply.xlsx

96536

DAPLINK to Type-C connector (for bicycle breathing light project)

Connectors for the bicycle breathing light project

Connecting the Type-C D+ and D- pins to SWD and SCK allows for the creation of a debugging interface via Type-C, suitable for debugging in narrow or inconvenient areas. (Supported for bicycle breathing light project)

Note: Board thickness 0.8-1.0mm.

Project link: https://oshwhub.com/ghgjkh/hu-xi-deng-v2

PDF_DAPLINK to Type-C Connector (for bicycle breathing light project). zip

Altium_DAPLINK to Type-C connector (for bicycle breathing light project). zip

PADS_DAPLINK to Type-C connector (for bicycle breathing light project). zip

BOM_DAPLINK to Type-C Connector (for bicycle breathing light project).xlsx

96537
