miniwiggler-new

⚠️Note that
this project uses KiCad for design, so there is no unconditional free PCB fabrication without lceda. The schematic preview is at the bottom, please take note.
If you want to fabricate a PCB, please use Gerber below. The PCB in lceda is imported and is for preview only. The BOM is also below. Please do not use the automatically exported version.

This project was first released on Hardcore Innovation Community. You can go to Hardcore Innovation Community to support me.

I. Product Introduction

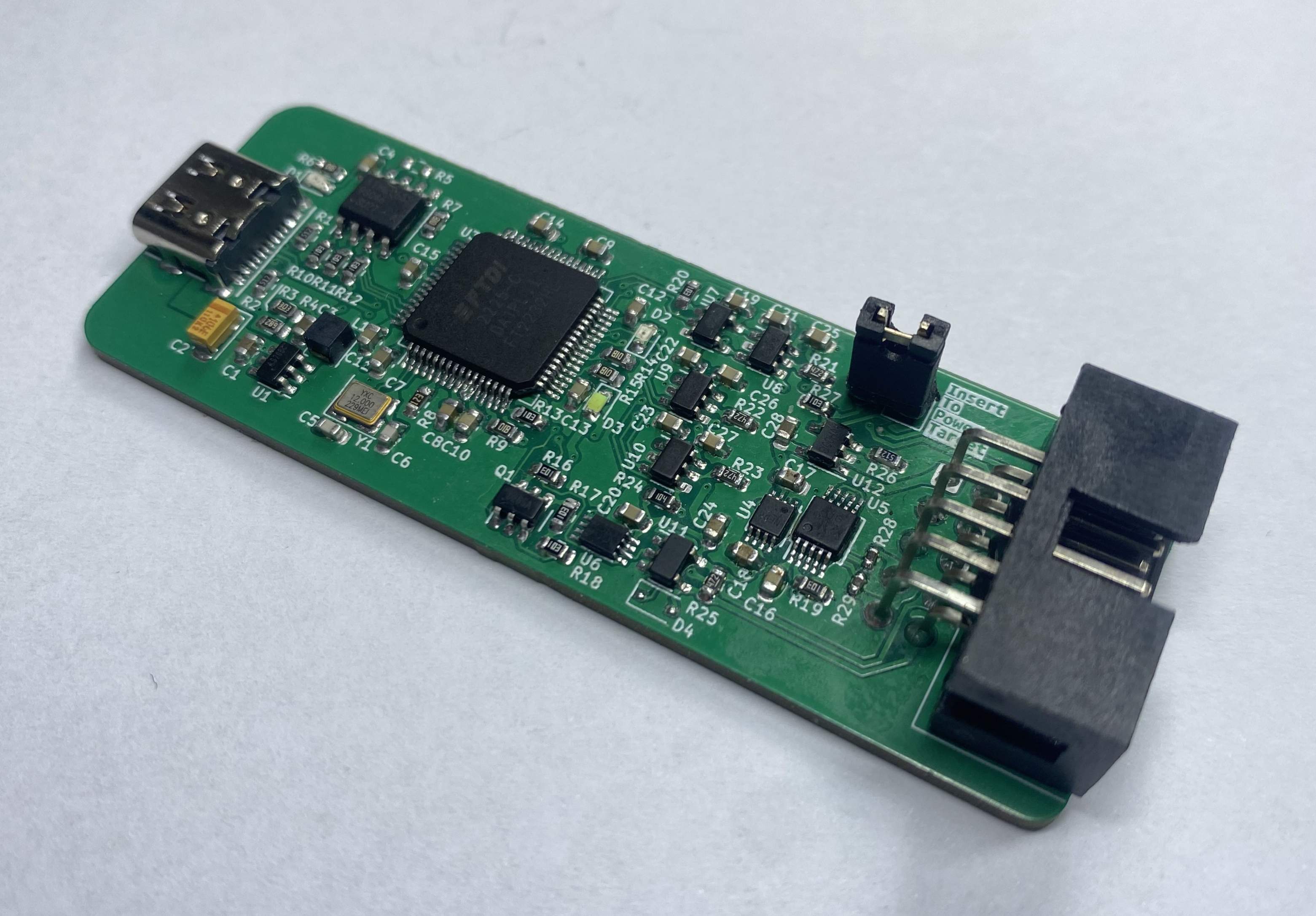

This project is based on the FT2232HL chip and uses miniWiggler for downloading and debugging Infineon series microcontrollers.
II. Application Scenarios

The miniWiggler emulator is a high-performance, low-cost, and high-efficiency debugging tool;
miniWiggler is currently the mainstream development tool for Infineon microcontrollers.
miniWiggler is suitable for use in Infineon's intelligent vehicle related groups .

III. Product Overview

This emulator uses the FT2232HL chip.
The emulator supports AURIX Development Studio/Memtools;

IV. Product Parameters

: Main control chip: FT2232HL;
Supports USB 2.0 Type-C high-speed communication interface;
Supports USB hot-swapping and DAP hot-swapping;
Only supports 10-pin DAP interface;
Has a serial port;

Two-layer PCB design, approximate size: 69mm*24mm;
V. Instructions for Use:
Connect the Type-C data cable to the computer, and connect the DAP pins to the development board as needed for program downloading.
VI. Notes:
This programmer requires driver and firmware downloads; see attachments for details.
VII. Schematic Diagram/Test Video
