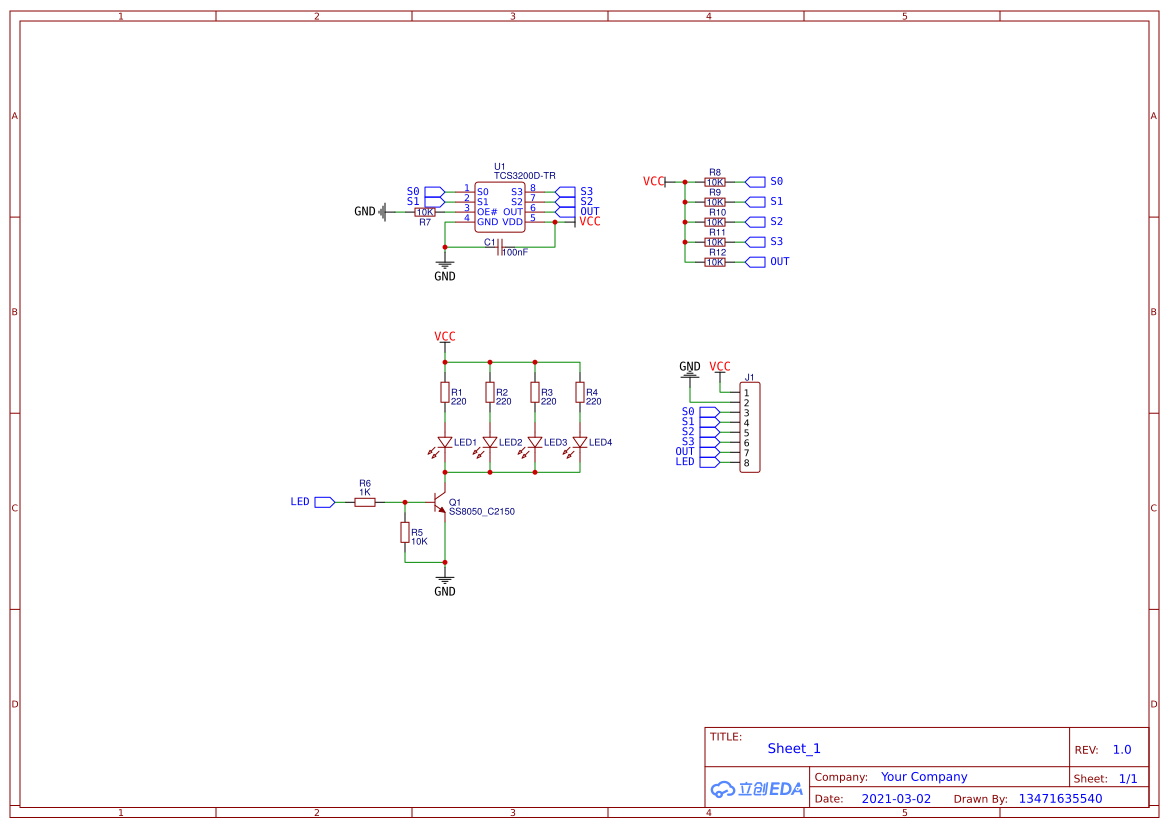

TCS3200 is a full-color color detector that can detect and measure almost all visible light within a certain range. The principle is to convert colored light into frequency signals. When the red, green, and blue light reflected by the object being measured passes through the corresponding filter and reaches the TCS3200 sensor chip, its built-in oscillator will output a square wave. The frequency of the wave is proportional to the intensity of the light being sensed. The stronger the light, the higher the square wave frequency of the built-in oscillator.
