0.87-inch OLED screen substrate

Overview

0.87-inch OLED screen substrate
and compatible screen: Zhongjingyuan 0.87-inch OLED screen
supplier number: ZJY087-2832TSWZG02
Bus interface: I2C
This project is used for the verification of the screen driver circuit scheme and as a backup for future projects (^-^).
The screen test firmware and PCB board are both on Github:
https://github.com/MengBowen-328p/0.81OLED_DevBoard
This project is designed using KICAD. If you need to use it, please download the contents of the attachment!
(The editor is full of iced tea dripping water.

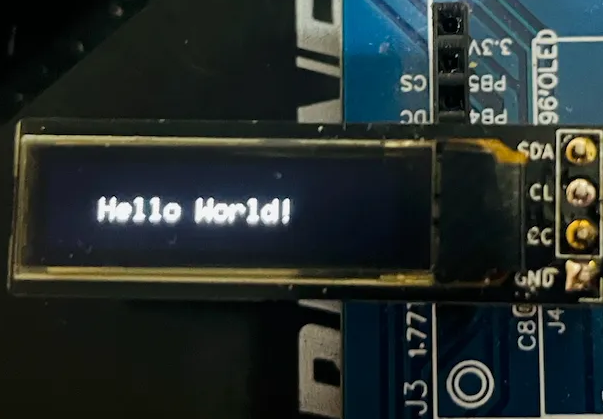

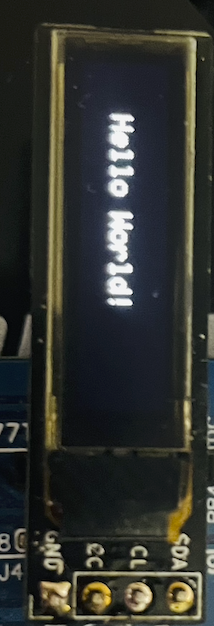

The final picture is the actual product.)

0.81OLED_DevBoard.zip

PDF_0.87-inch OLED screen substrate.zip

Altium_0.87-inch OLED screen substrate.zip

PADS_0.87-inch OLED screen substrate.zip

BOM_0.87-inch OLED screen substrate.xlsx
