[LCSC Development Board] NES Game Console

Overview

Participated in the JLCPCB game console project, using the LCPCB Liangshanpai development board to complete the game console design.
I. Project Description:
Driven by a desire to learn and enhance professional skills, hoping to transition to hardware engineering, I participated in the LCPCB Liangshanpai game console project. (Subsequently, it was discovered that hardware engineering was not a suitable fit for me, and this project has been indefinitely postponed.)
II. Hardware Description:

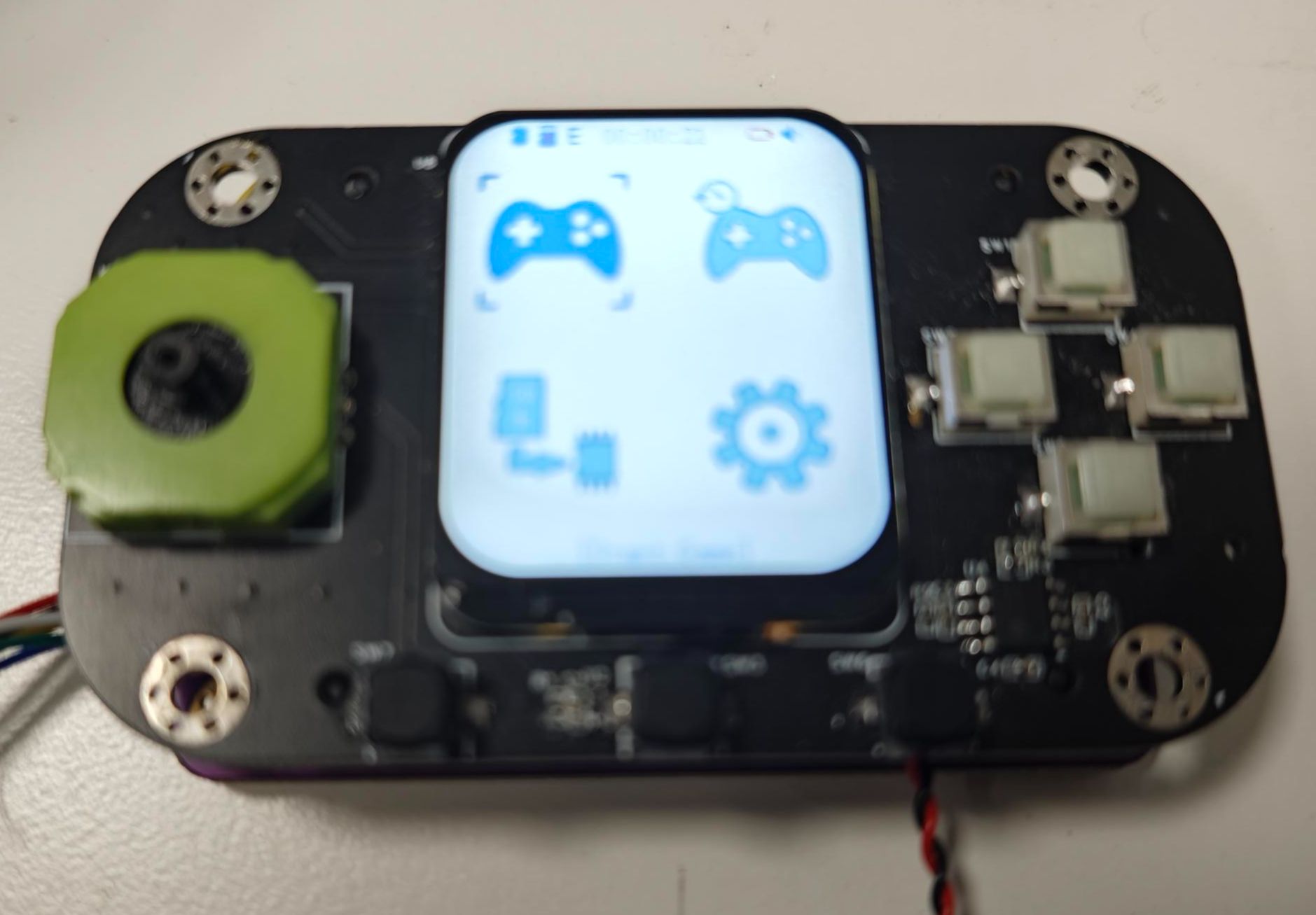

Liangshanpai development board
: 1.69-inch screen, 240×280 resolution, SPI interface, ST7789V
8002A driver chip,
AT24C02 EEPROM chip
, 1 joystick button, 6 regular buttons
. III. Airplane Battle Demo

Design Files
