Multifunctional test pen

Overview

I. Existing Functionality

: Continuity measurement, threshold resistance
diode measurement, conduction voltage measurement, and a diode that smokes (true).
PWM output,
PWM input
, DC output, outputting a specified voltage.

II. Remaining Issue:
In the diode continuity measurement function, one diode and MOSFET smoke, while other functions work normally. The reason is unclear; the voltage is normal.
I forgot to provide pads for the battery pins when designing the board, so I had to use other pads.
III. Component Replacement Ideas:
Due to the high price and shipping costs of the probe pins and connector, and a lack of funds, I used long header pins instead (surprisingly, they worked well). I used an alligator clip for the connector, which is very convenient (another DuPont wire could be added).

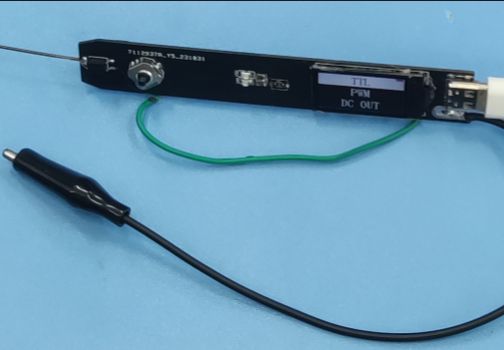

Illustration:

VID_20231127_121131.mp4

PDF_Multifunctional Test Pen.zip

Altium Multi-functional Test Pen.zip

PADS_Multifunctional Test Pen.zip

BOM_Multifunctional Testing Pen.xlsx
