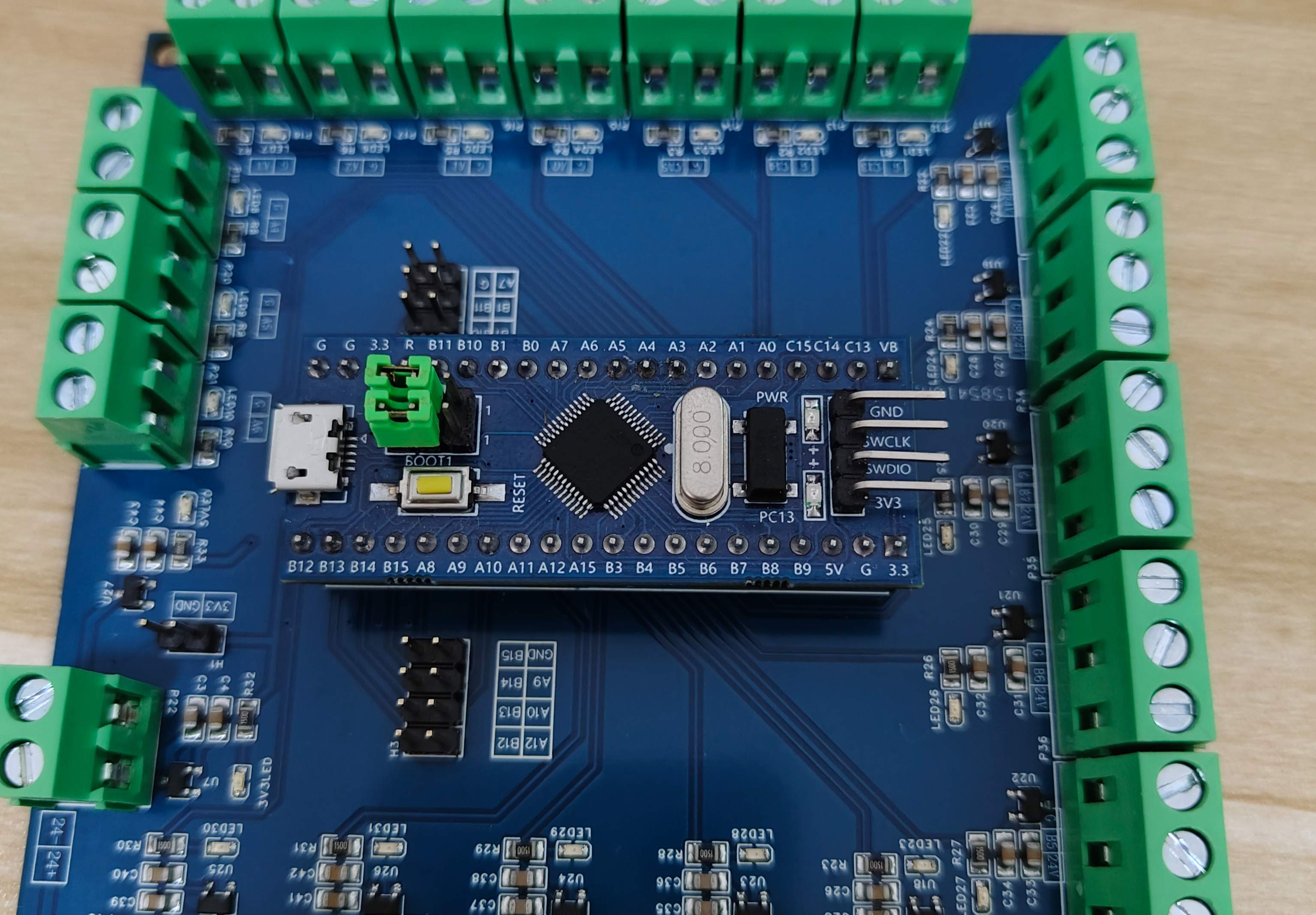

STM32F103C8T6 Industrial Control Expansion Board

Overview

A minimum system board with STM36F103C8T6
power supply,
10 inputs, and 10 outputs is required. Other pins should be connected via headers.
The maximum input signal voltage is 24V,
and the output is 3.3V.
