AiPi-UNO-ET485

I. Appearance Rendering:

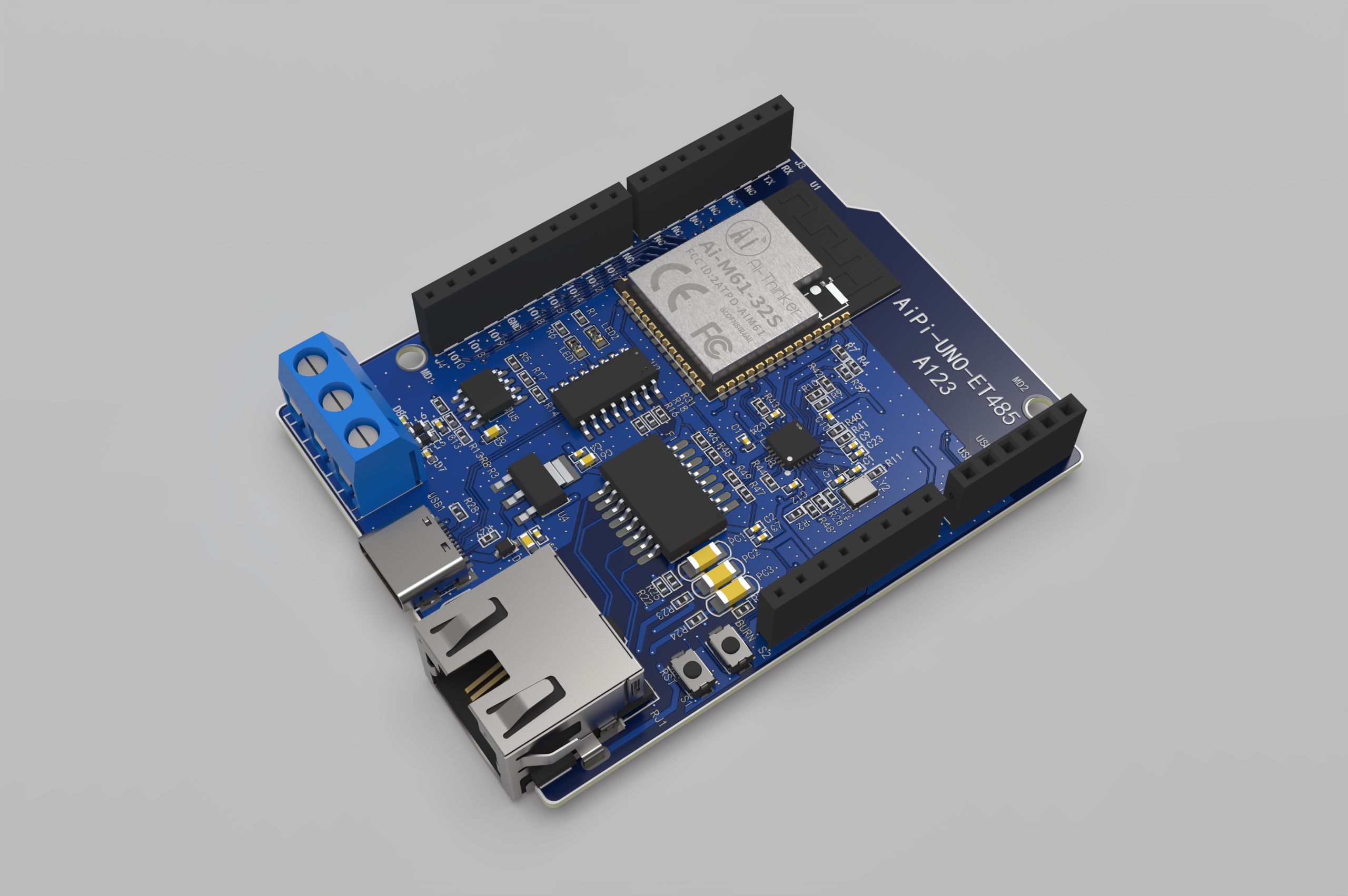

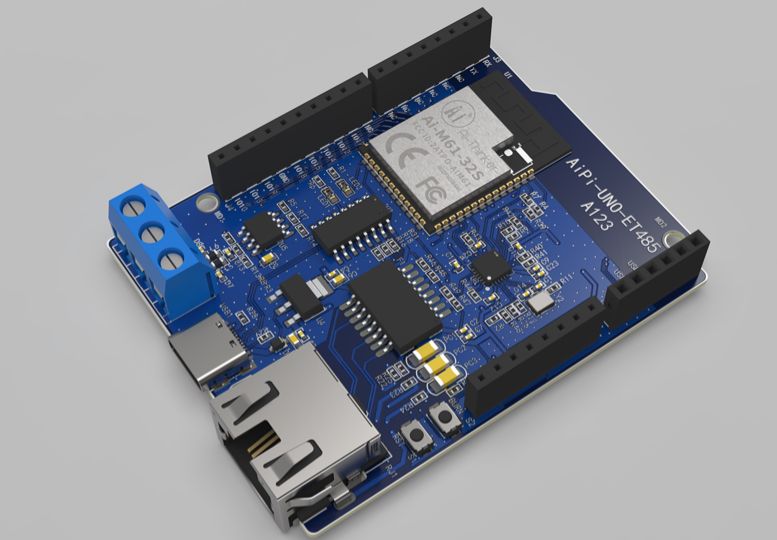

The Xiao An Pai-UNO-ET485 Arduino development board adopts the classic Arduino UNO form factor design, and the header also maintains the classic shape. It includes an Ethernet port, which is not found on other Xiao An Pai boards.
The main control module remains the Ai-M61-32S WiFi6 module, bringing out all available GPIOs for easy expansion.
II. Peripheral Description:

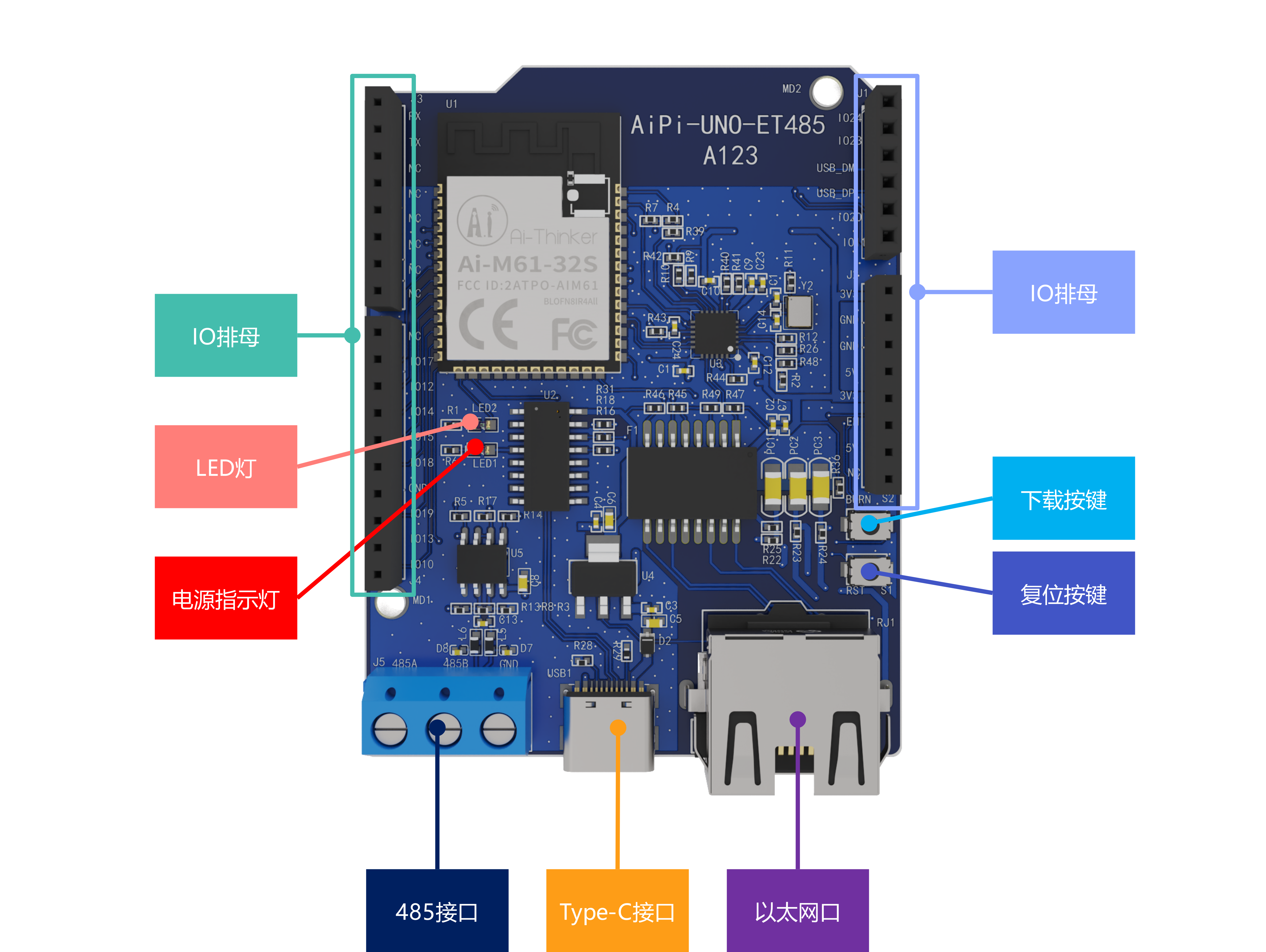

To maintain compatibility with the classic UNO form factor, the PCB cannot be expanded. Audio circuitry, screen driver circuitry, etc., cannot be integrated onto the board. However, this can be achieved using expansion boards.

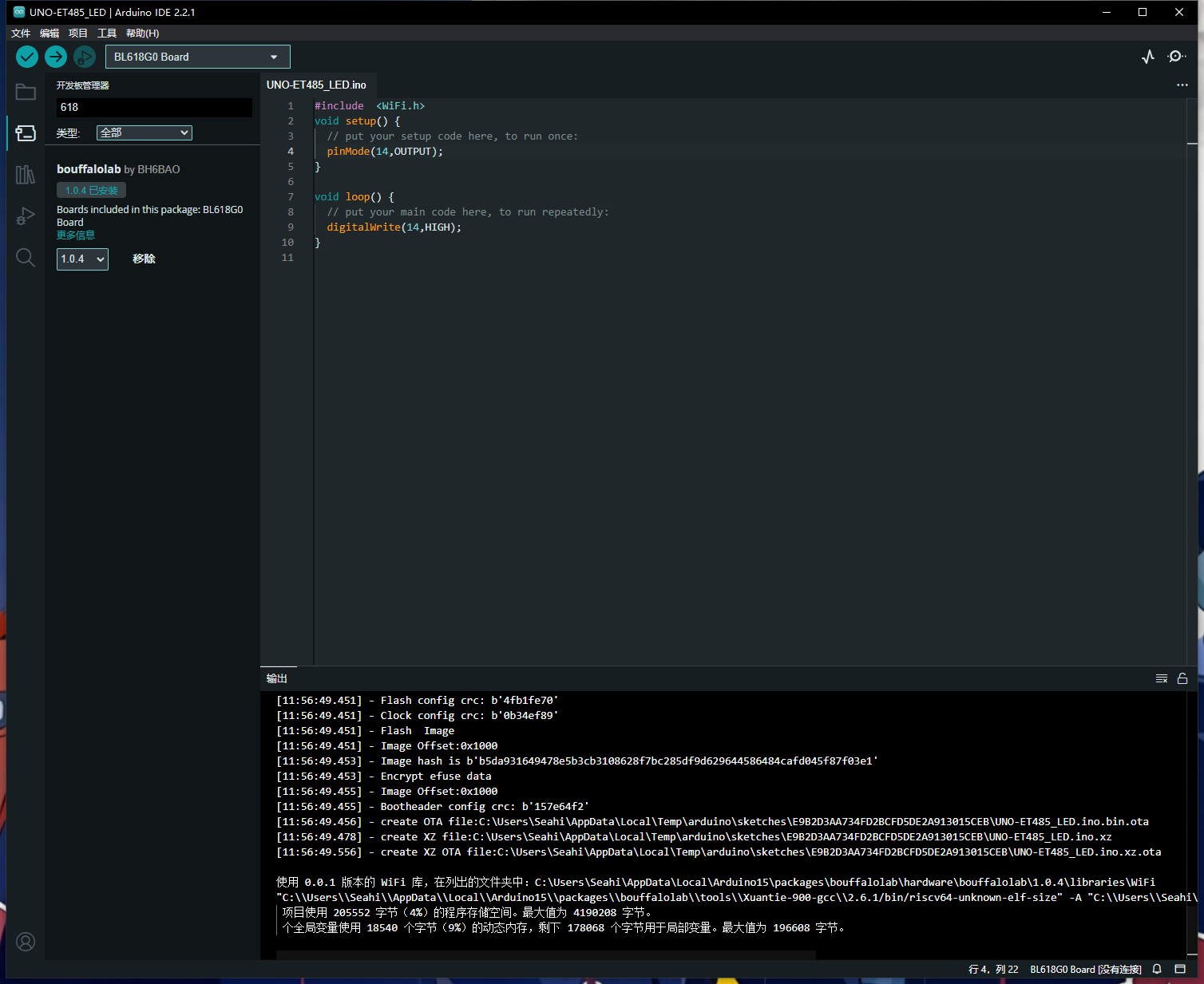

III. Arduino IDE Compilation Screenshots

Other AI-thinker IDEs also support Arduino development. Many experienced developers have already written posts about setting up Arduino on the AI-thinker forum. You can search for them on the forum:
http://bbs.ai-thinker.com/forum.php
IV

. Available GPIO List




GPIO Pin Name
GPIO Name
GPIO Other Functions


Rx
GPIO22
Default Programming and Log Port //SPI_MOSI/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0


TX
GPIO21
Default Programming and Log Port //GPIO21/SPI_SCLK/I2S_FS/I2C_SDA/PWM0


IO17
GPIO17
SPI_SCLK/I2S_FS/I2C_SDA/XTAL_32K_OUT/PWM0


IO12
GPIO12
SPI_SS/SDH_CLK/SF3_D0/I2S_BCLK/I2C_SCL/PWM0/ADC_CH6


IO14
GPIO14
SPI_MOSI/SPI_MISO/SDH_DAT3/SF3_D1/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0/ADC_CH4


IO15
GPIO15
SPI_MOSI/SDH_DAT2/SF3_CS/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0


IO18
GPIO18
SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0


IO19
GPIO19
SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0/ADC_CH1


IO13
GPIO13
SPI_SCLK/SDH_CMD/SF3_D2/I2S_FS/I2C_SDA/PWM0/ADC_CH5


IO10
GPIO10
SPI_MISO/SDH_DAT1/SF2_D3/I2S_DI/I2S_RCLK_O/I2C_SCLPWM0/ADC_CH7


IO11
GPIO11
SPI_MOSI/SDH_DAT0/SF3_CLK/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0


IO20
GPIO20
SPI_SS/I2S_BCLK/I2C_SCL/PWM0/ADC_CH0


USB_DP
USB_DP
/


USB_DM
USB_DM
/


IO23
GPIO23
/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0


IO24,
GPIO24
, SPI_SS/I2S_BCLK/I2C_SCL/PWM0




, and other IOs are occupied by Ethernet and RS-485 and cannot be used.

V. Arduino Function List

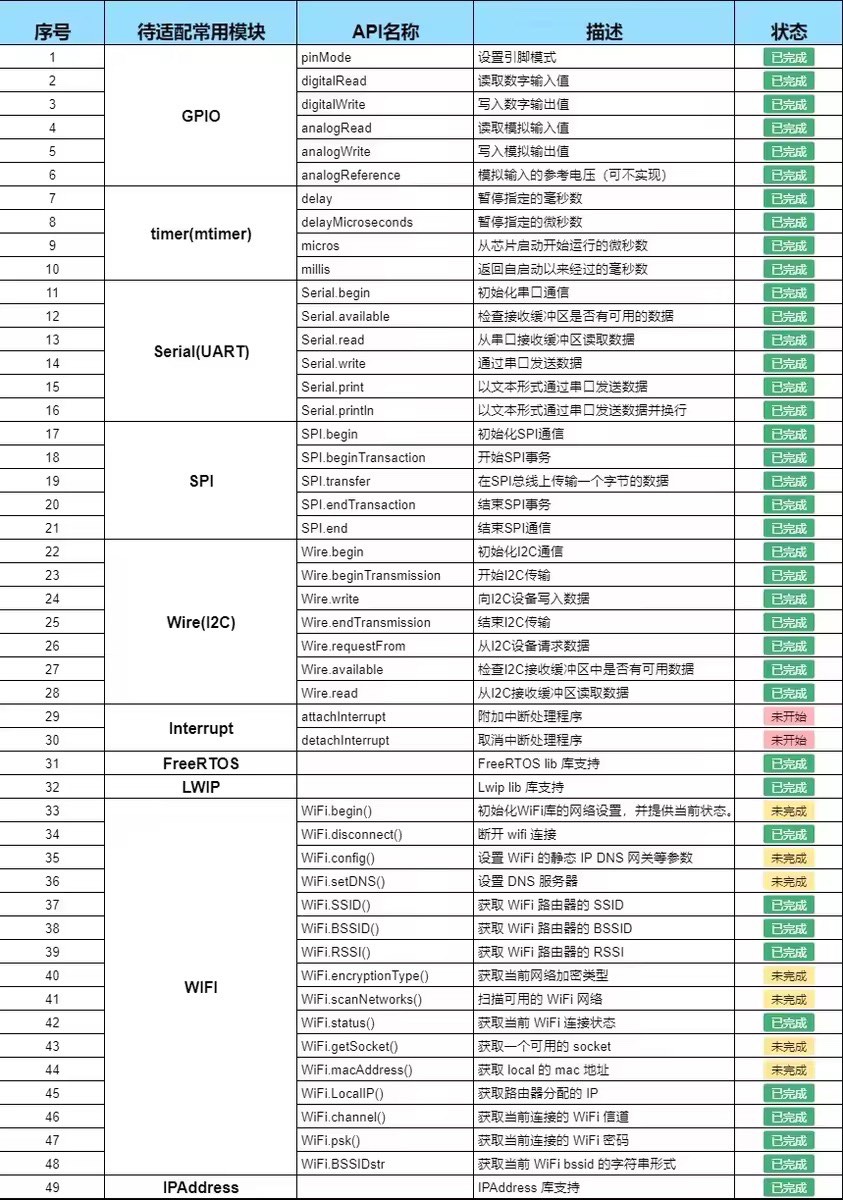

Currently, the Arduino functions used on this board are not yet complete. The specific supported list is as follows:
This is currently being continuously updated.
VI. Other Resources
Ai-Thinker official documentation: https://docs.ai-thinker.com/welcome
