Multifunctional test pen

Overview

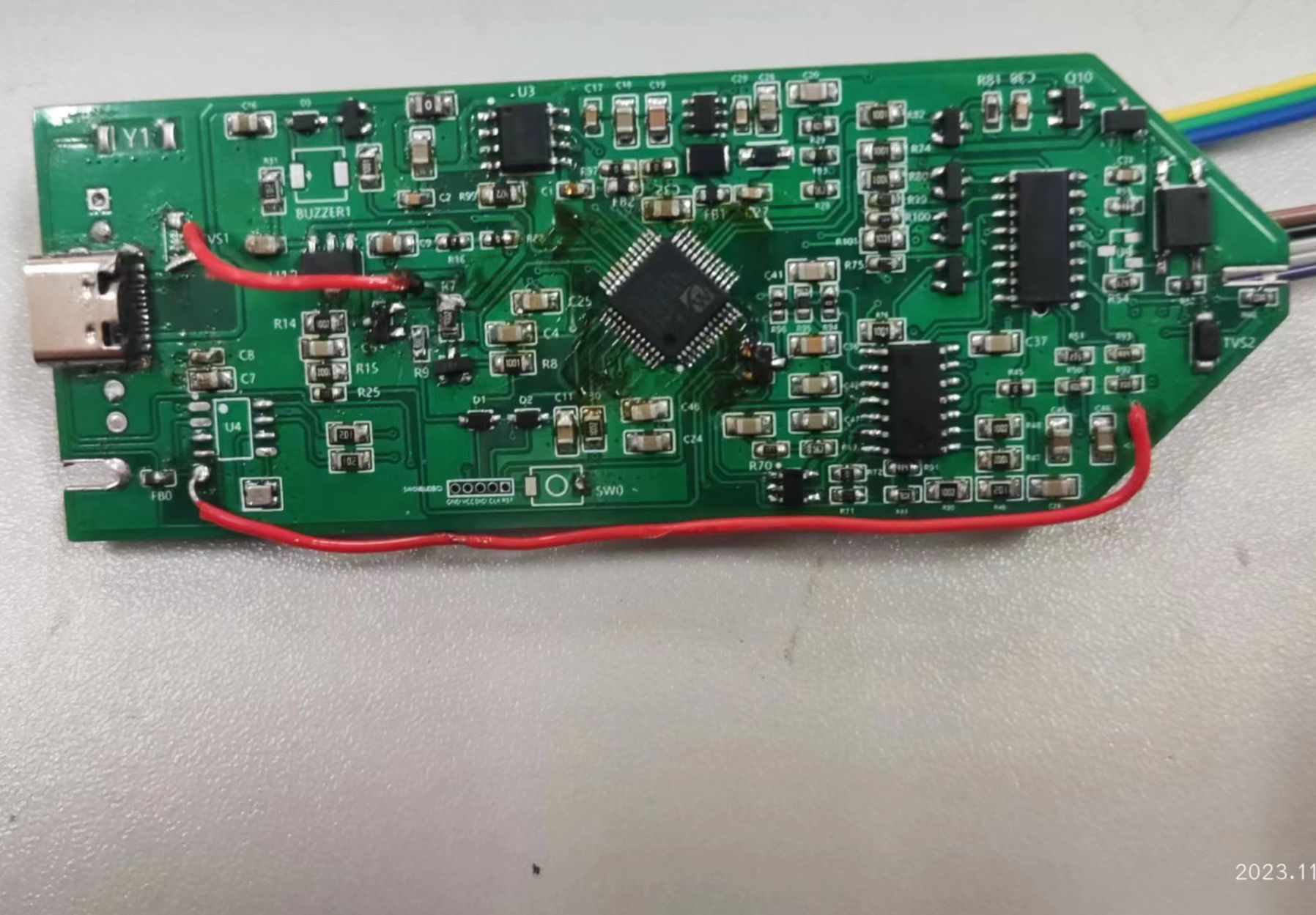

A portable multi-functional test pen with voltage measurement, continuity measurement, diode detection, and signal output functions was built based on the CW32F030.
This pen is a minor modification of the official design.
1. Main controller: CW32F030C8T6

; 2. Charging circuit:

This multi-functional pen uses a TP4056 power management chip to charge the battery (the official solution uses TP4057)
. Since there are many TP4056 power management chips available, the TP4057 was not used;
3. Power supply for the analog section;

4. Schematic diagram

(front and

back) .

Gerber_PCB1_2023-11-17.zip

CW32 Pen Schematic Diagram.pdf

PDF_Multifunctional Test Pen.zip

Altium Multi-functional Test Pen.zip

PADS_Multifunctional Test Pen.zip

BOM_Multifunctional Testing Pen.xlsx
