Photosensitive

Version Description
Version Name: Photosensitive Module V1.0
Release Date: 2023/11/15
I. Function Introduction
Project Introduction Video

This photosensitive module is an analog output
module with an elegant 3D shell
design. The design incorporates elements from several excellent online products. II. Renderings

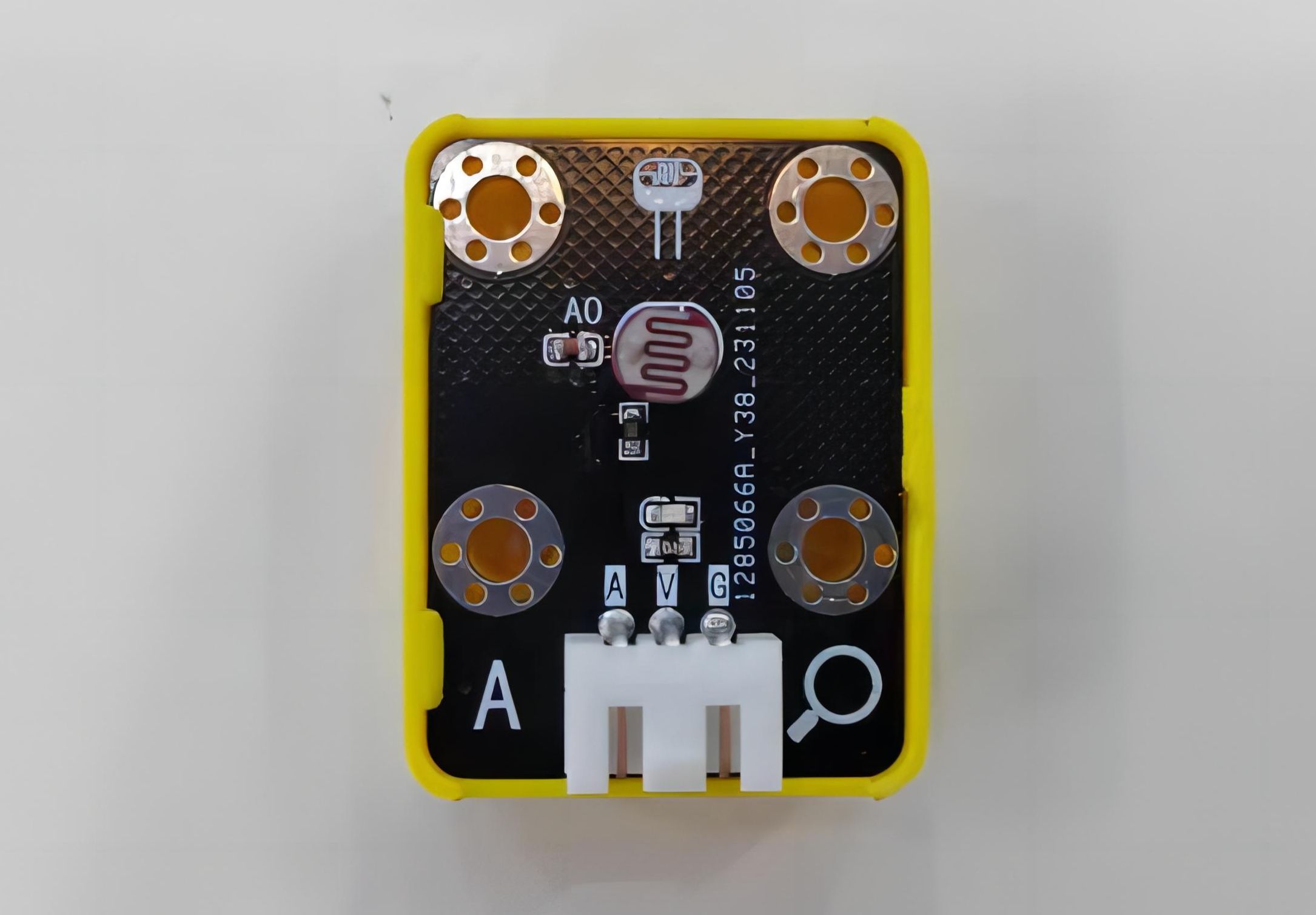

III. Functional Modules
1. Power Indicator
This is a power indicator light; the brightness can be controlled by adjusting the resistance of R1.
2. Photosensitive Sensor
This photosensitive module is an analog output module. The photosensitive sensor is essentially a variable resistor affected by light intensity. Here, the light intensity is determined using the principle of voltage division. C1 is a filter capacitor to stabilize the signal.
3. Screw Holes
Four screw holes are provided for easy installation.
IV. Remarks

This project will be continuously improved and updated.
Update Time: 15th or the last day of each month.
