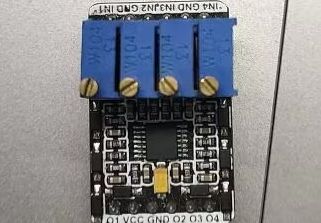

OPA4377 op-amp module

Overview

Performance Overview: 1. Rail-to-rail operational amplifier; 2. 4-channel operational amplifier; 3. Power supply voltage: 2.5V-5.5V; (It is strongly recommended that the op-amp power supply voltage be consistent with the MCU power supply voltage) 4. Bandwidth: 14MHz; 5. Slew rate: 10V/µs; 6. Noise level: 5.5nV/hat10KHz; Function Overview: The module uses an RS824 4-channel operational amplifier chip, with an adjustable amplification range of 1-101 times. The module has a built-in rectifier circuit and outputs a DC voltage signal. The output voltage can be detected using the MCU's ADC function to determine the distance change between the electromagnetic tracking sensor and the track's electromagnetic signal line.
