Seven-way answer buzzer

Overview

Function Description:
This system uses seven digital tubes to display the scores of seven contestants, one digital tube to display the contestant who successfully answered, and two digital tubes for the countdown timer.

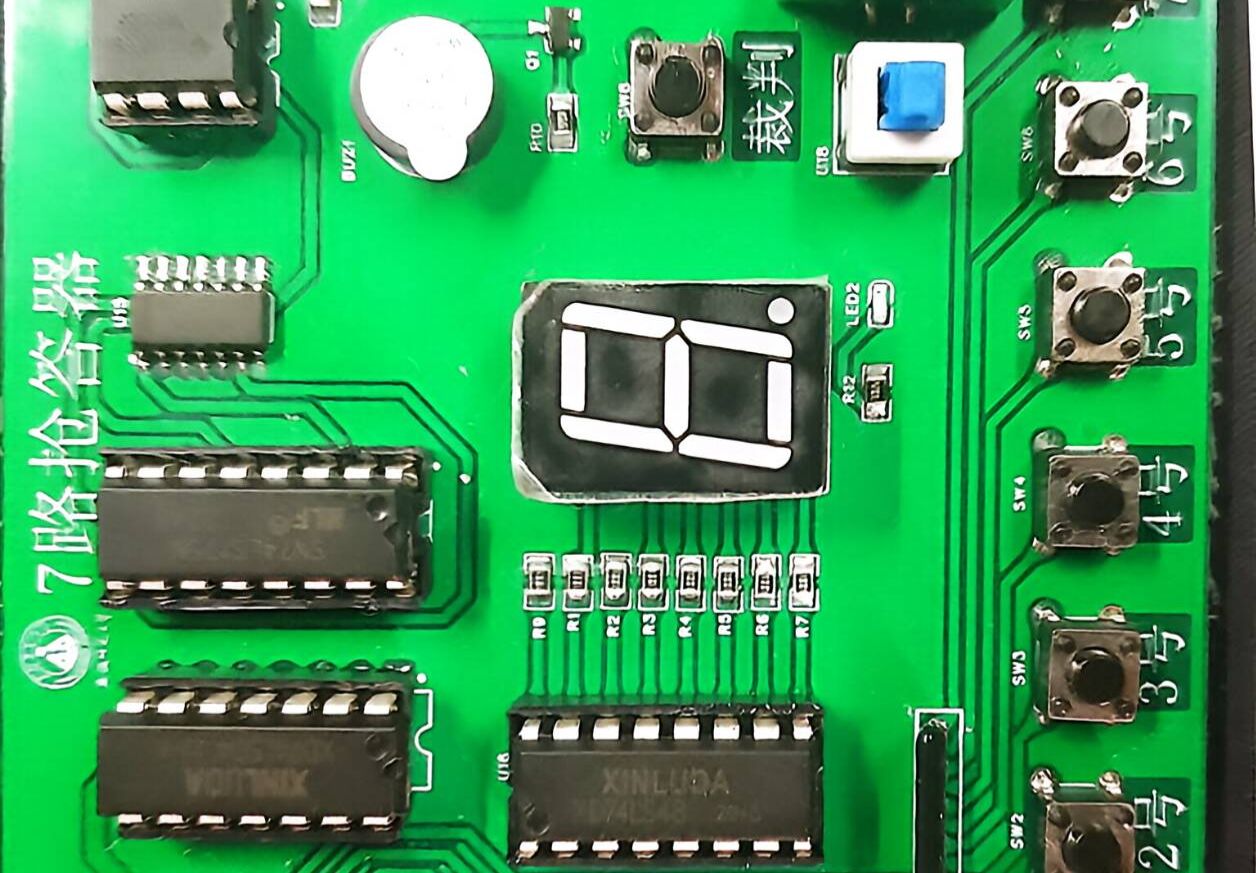

Seven buttons simulate seven contestants. A 74LS373 latch chip and a 74LS148 encoder chip are used to detect who answered first.
