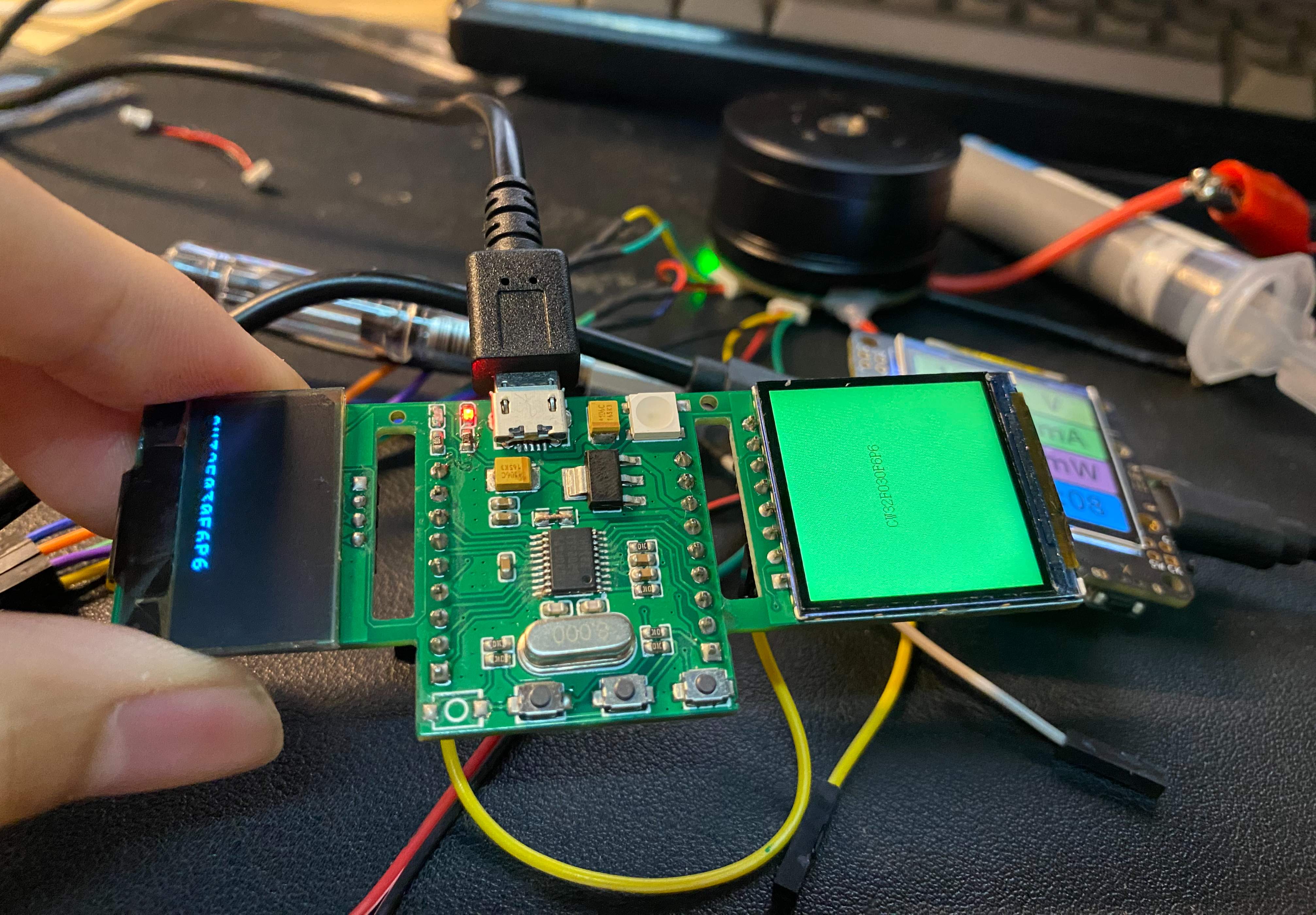

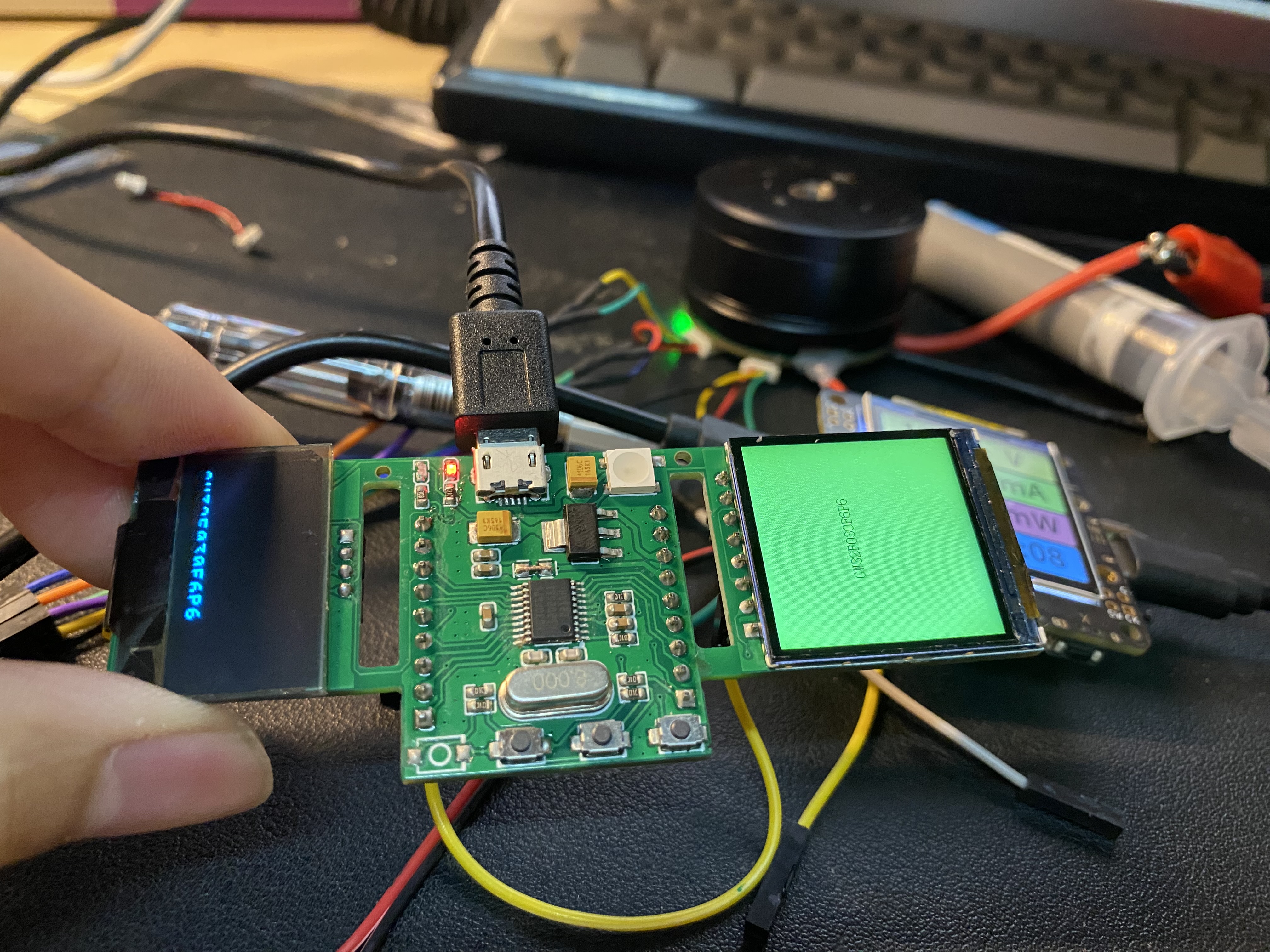

The CW32F030F6P6 is a minimum system with a 0.96-inch OLED and a 1.4-inch LCD.

IMG_5100.mp4

PDF_cw32f030f6p6 Minimal System with 0.96-inch OLED and 1.4-inch LCD.zip

Altium_cw32f030f6p6 minimum system with 0.96-inch OLED and 1.4-inch LCD.zip

PADS_cw32f030f6p6 minimum system, with 0.96-inch OLED and 1.4-inch LCD.zip

BOM_cw32f030f6p6 minimum system, with 0.96-inch OLED and 1.4-inch LCD.xlsx

97393

Low cost, 5-inch portable touchscreen with HDMI resolution of 485x840, button control, and lighting effects.

Low cost, 5-inch portable screen with touch HDMI, 485x840 resolution, button control, and lighting effects.

1. Demo video: https://www.bilibili.com/video/BV1eH4y1Q7CA/?spm_id_from=333.999.0.0
2. Actual effect:

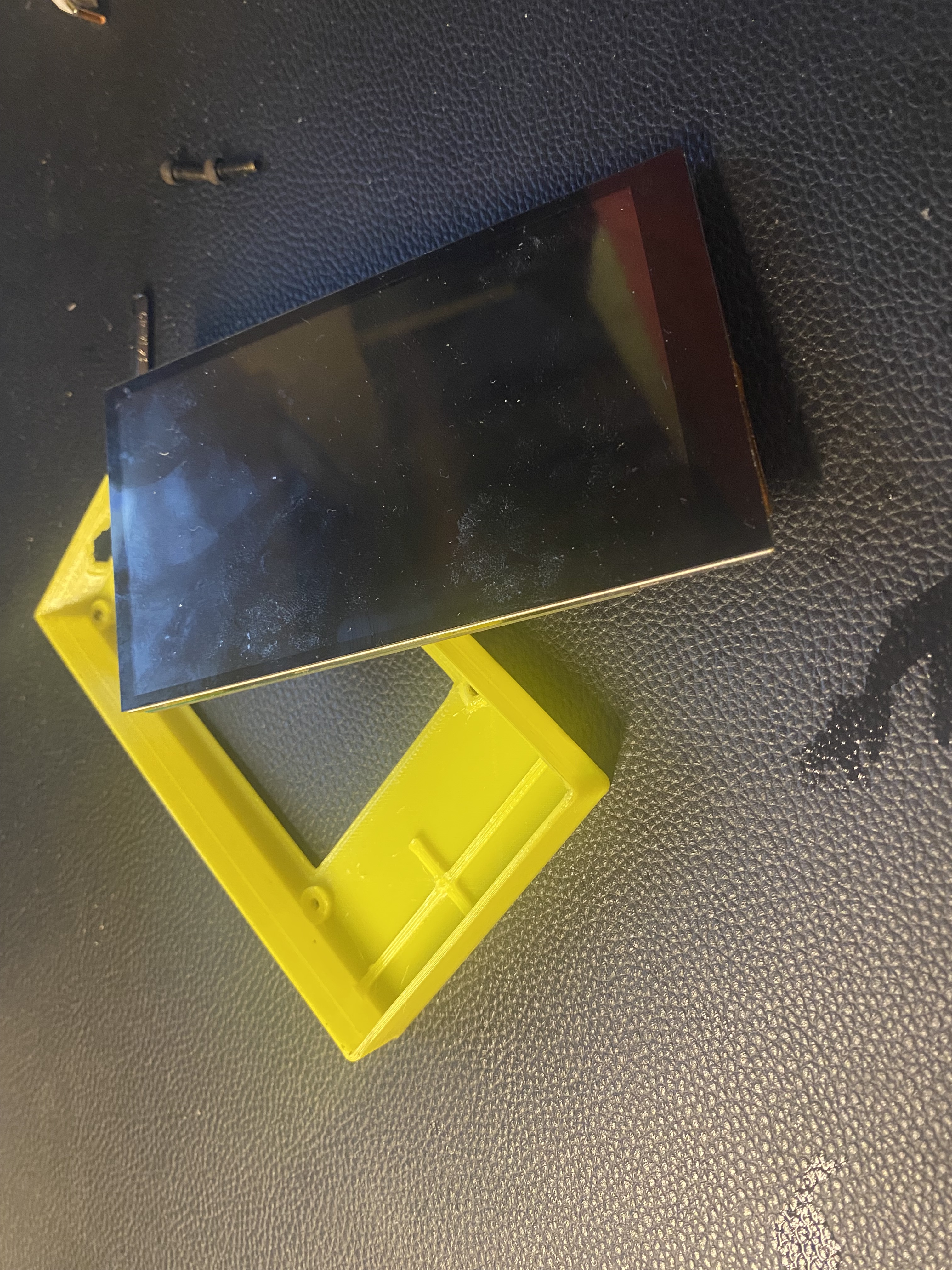

3. I'm not very good at drawing the shell, so it just covers the screen. I've open-sourced the project, so everyone can modify it themselves.

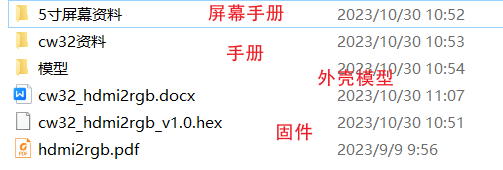

4. Open source materials
5. Also open source a minimal F6P6 system with OLED and a 1.4-inch LCD screen.
I. Hardware Overview

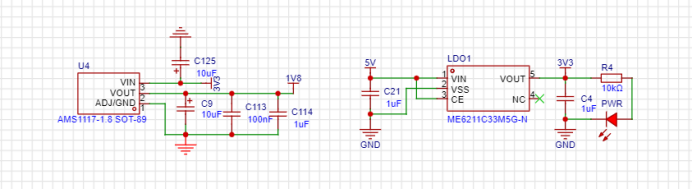

1. Power supply: 5V->3V3->1V8

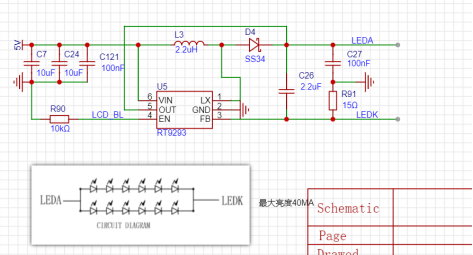

2. LCD backlight driver circuit

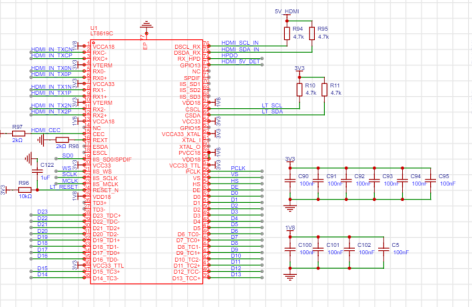

3. LTC8619C peripheral driver circuit

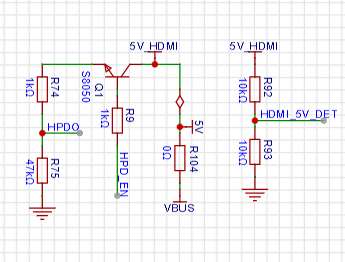

4. HPD insertion detection circuit

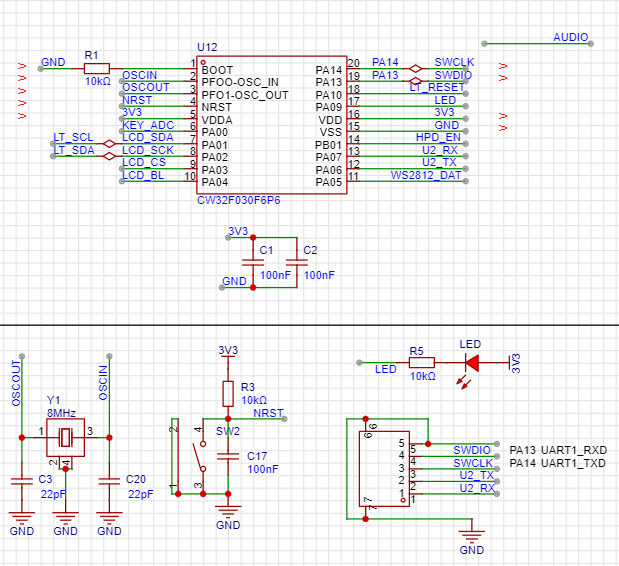

5. CW32 peripheral circuit

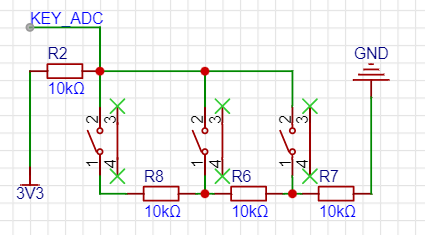

6. Button control circuit

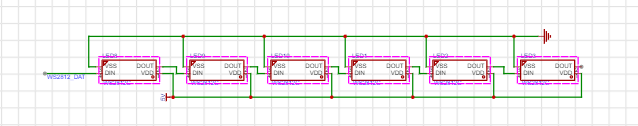

7. W2812 lighting control circuit

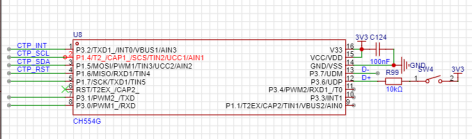

8. Ch554G touch to USB circuit
II. Software Overview

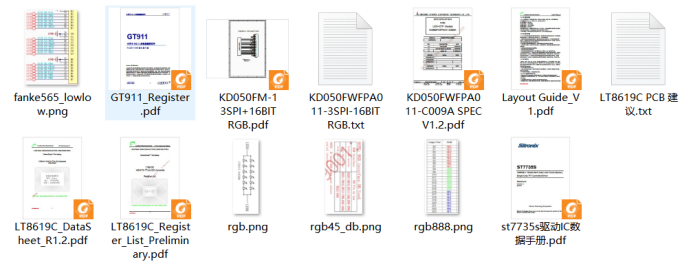

1. Consult the LCD driver, GT911, and LTC8619C datasheets to understand key communication timings, register configuration details, and register configuration methods. 2.

RGB working modes: RGB666, RGB888, etc. The LTC8619C and LCD configurations must be identical; different modes have different pins. Carefully check the datasheets before hardware design.

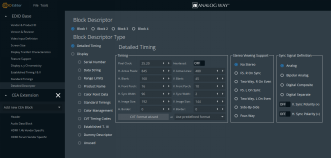

3. LTC8619C EDID parameter configuration involves using EDID configuration tools and EDID reading software to configure various parameters suitable for driving the LCD, such as clock frequency, RGB timing, I2S audio configuration,

etc.





Open source materials.rar

PDF_Low-cost, 5-inch portable touchscreen with HDMI HDMI display, 485x840 resolution, button controls, lighting effects.zip

Altium - Low-cost, 5-inch portable touchscreen with HDMI output, 485x840 resolution, button controls, lighting effects.zip

PADS - Low-cost, 5-inch portable touchscreen with HDMI display, 485x840 resolution, button control, lighting effects.zip

BOM: Low cost, 5-inch portable touchscreen HDMI display, 485x840 resolution, button controls, lighting effects.xlsx

97394

ESP32-C3 displays weather, time, and class schedule; 0.96-inch OLED screen.

This project, based on the ESP32-C3 core board, displays the local weather, current time, and today's class schedule. It uses a 0.96-inch OLED IIC driver. The PCB is very small, easily fitting in a pocket, effectively solving the problem of having to take out a phone to check which class is being held before class.

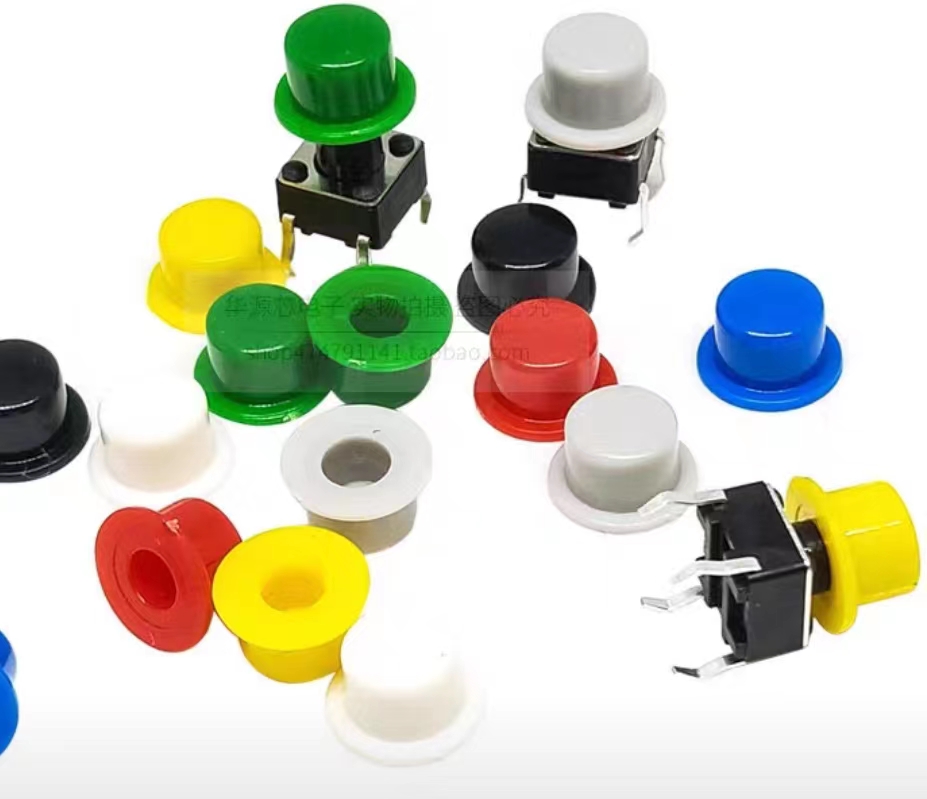

The battery uses a 3.7V lithium battery. The connecting studs are 2.5mm in diameter, and three screws are used with lengths of 4mm and 10mm (depending on the battery size). The keycaps need to be of this type.

Front and rear panel CAD drawings and program source code links will be sent after someone comments.

PDF_esp32-c3 displays weather, time, and class schedules; 0.96-inch OLED.zip

Altium_esp32-c3 displays weather, time, and class schedule; 0.96-inch OLED.zip

PADS_esp32-c3 displays weather, time, and class schedule; 0.96-inch OLED.zip

BOM_esp32-c3 displays weather, time, and class schedule; 0.96-inch OLED.xlsx

97395

51 Heart-shaped Flowing Lights

Implementing a running light effect using a 51 microcontroller

A simple project for the school uses the numerous I/O ports of a 51 microcontroller to control LEDs, and a running light effect is achieved through programming.

QQ image 20231027220542.jpg

QQ Video 20231027220524.mp4

project.hex

PDF_51 Heart-Shaped Flowing Lights.zip

Altium_51 Heart-Shaped Flowing Light.zip

PADS_51 Heart-Shaped Flowing Light.zip

BOM_51 Heart-shaped Flowing Light.xlsx

97397
