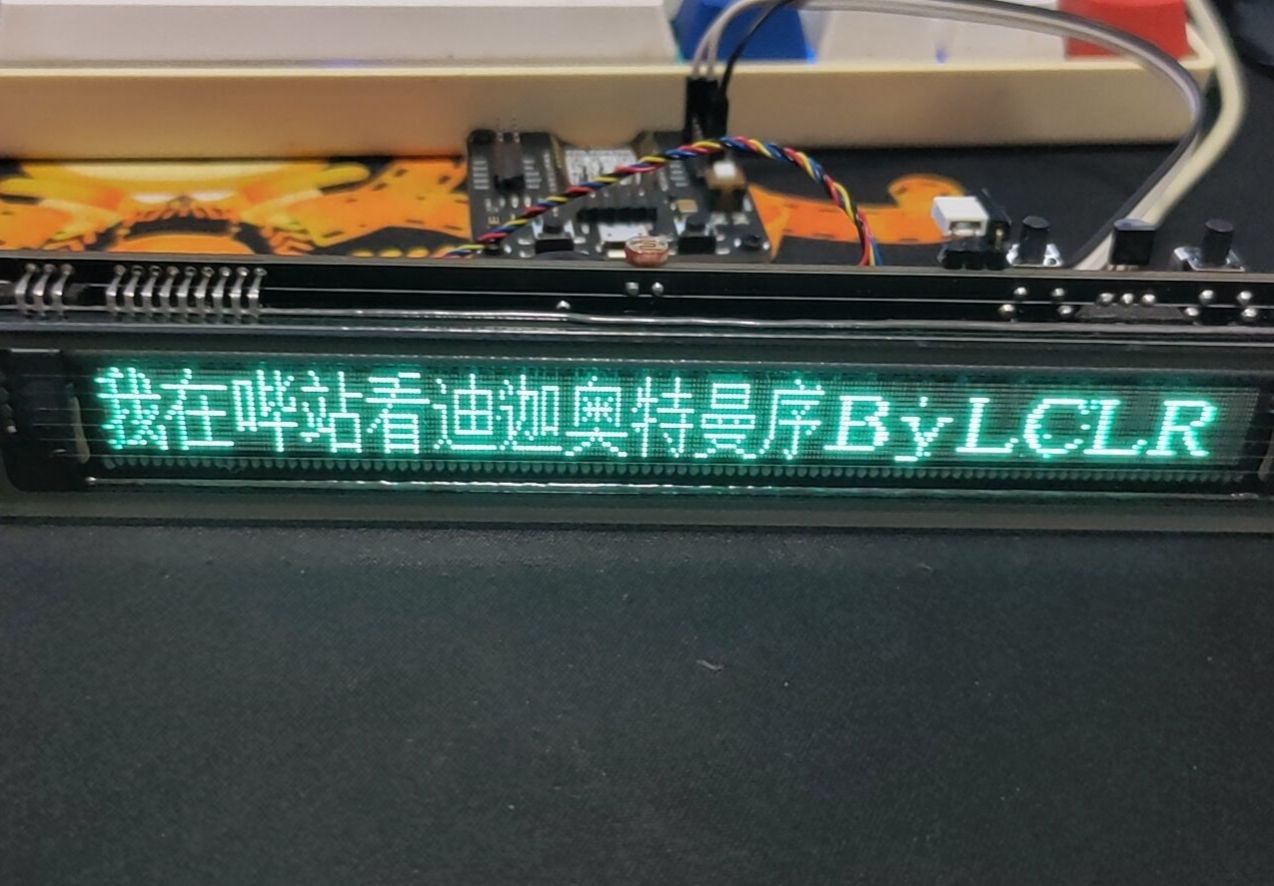

VFD28016 fluorescent screen clock

Overview

The power supply part is a Royer circuit boost and rectifier, which outputs AC filament and DC 50 high voltage. The control uses an SPI-like protocol and is controlled by an STM32 microcontroller.
