#8th LCSC Electronics Design Contest# Renesas-based electronic clock

Overview

1. Project Function Introduction:

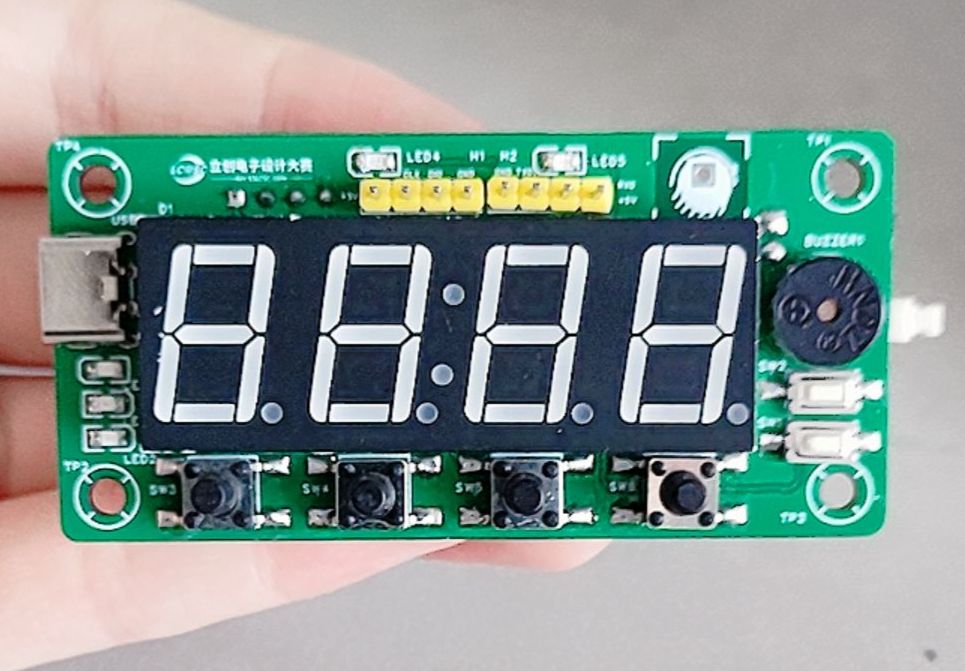

This project is designed based on the LCSC Summer Training Camp, but it was created late, around September 20th.
Functions include:

clock display,
alarm clock,
temperature and humidity display,
and date display.

2. Circuit Analysis:

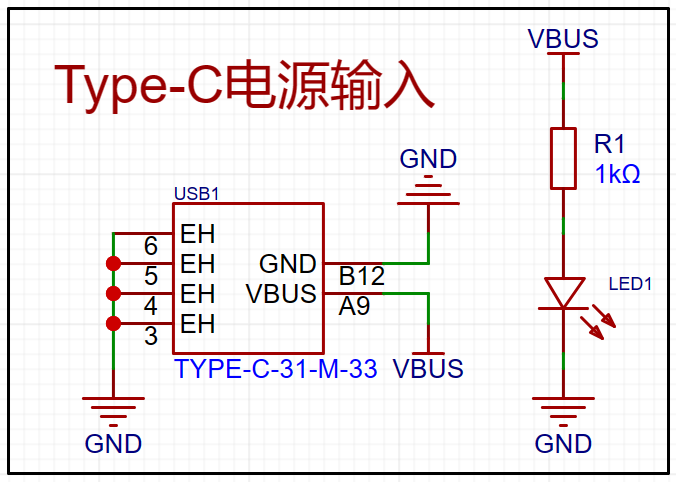

Power and charging are handled via Type-C.
This device has few pins, making it easy for beginners.
An LED is added to the power input for charging indication. When power is input, the LED lights up.
