STM32-KLIPPER-Toolboard

Overview

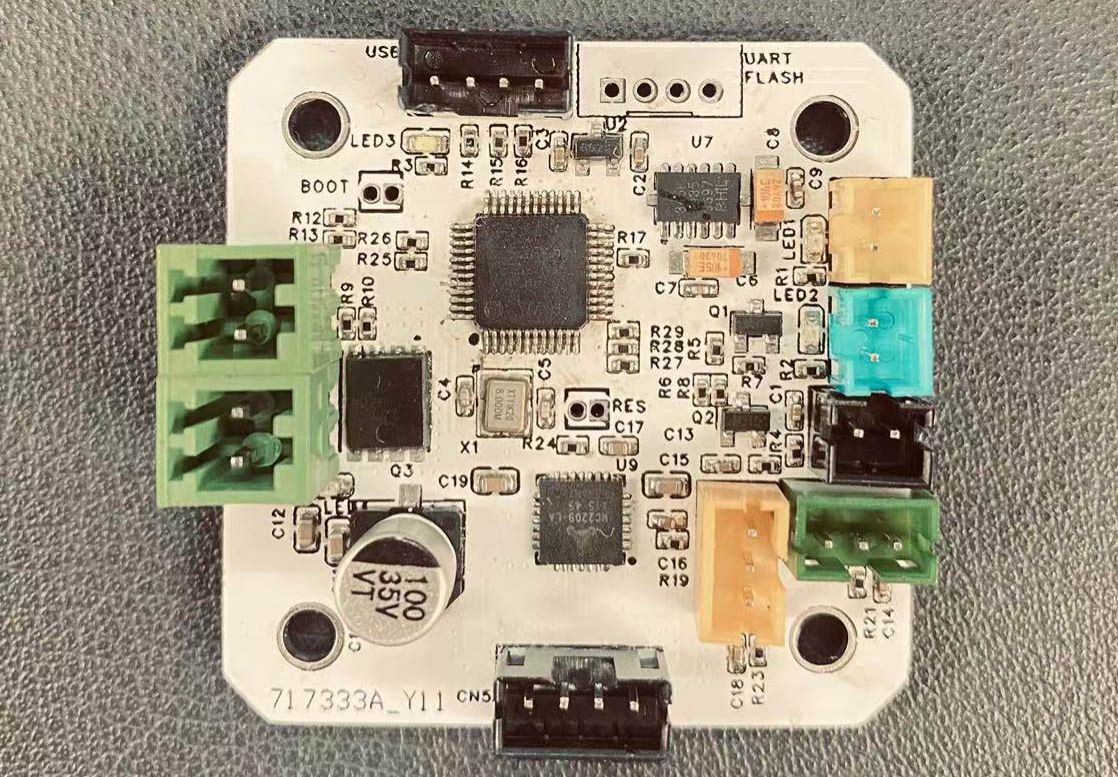

A Klipper printhead toolboard using STM32F103, 42 motor size, with ADXL345, TMC2209, two controllable fans, one set of heating head and NTC temperature measurement, two sets of limit switches, and three-wire optional 3.3V/5V touch connector.
