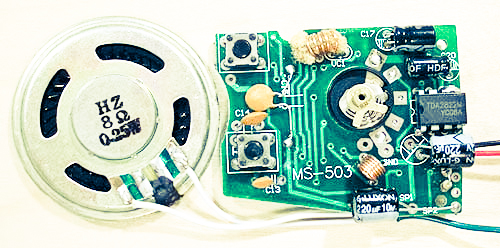

TDA7012 Single-chip FM receiver

The TDA7012T FM radio receiver integrated circuit is very simple, yet this FM receiver offers good sensitivity and selectivity. The single-chip TDA7012T FM receiver can be built with only a few additional components. The features included in the TDA7012T FM receiver integrated circuit are quite attractive for FM receivers. These include a micro-sensitivity arrangement (MTS) for low-voltage applications, a frequency-locked loop (PLL) to 76 kHz range, and FM receiver selectivity using an RC filter.

Parts list

R1 = 8.2kΩ

R2 = 10kΩ

R3 = 390Ω

C1,C3 = 10nF

C2, C6, C9, C16 = 100nF

C4 = 33pF

C5 = 25pF trimmer capacitor

C7,C10 = 1.5nF

C8 = 820pF, C11 = 1nF

C12 = 68pF

C13 = 220pF

C14 = 47μF 10V

C15 = 3.3nF

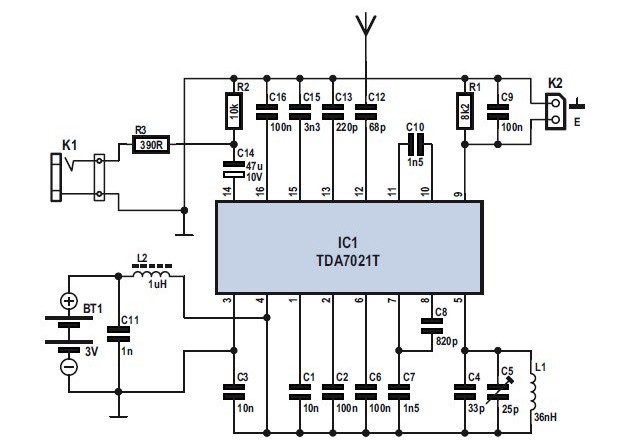

L1 = 36nH

L2 = 1μH

IC1 = TDA7021T
