DR0810-153L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DR0810-153L

DR0810-153L: DescriptionHeaders u0026 Wire Housings 2P HEADER; CategoryPassive components inductor; File Size214KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DR0810-153L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DR0810-153L	-	-	View	Buy Now

DR0810-153L Overview

Headers u0026 Wire Housings 2P HEADER

DR0810-153L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Cylindrical
core material	FERRITE
DC Resistance	0.035 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Lead diameter	0.6 mm
Lead length	4 mm
lead spacing	5 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package diameter	10.5 mm
Package length	12 mm
Package form	Radial
method of packing	Tray
Maximum rated current	5.3 A
self resonant frequency	18 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 275-3

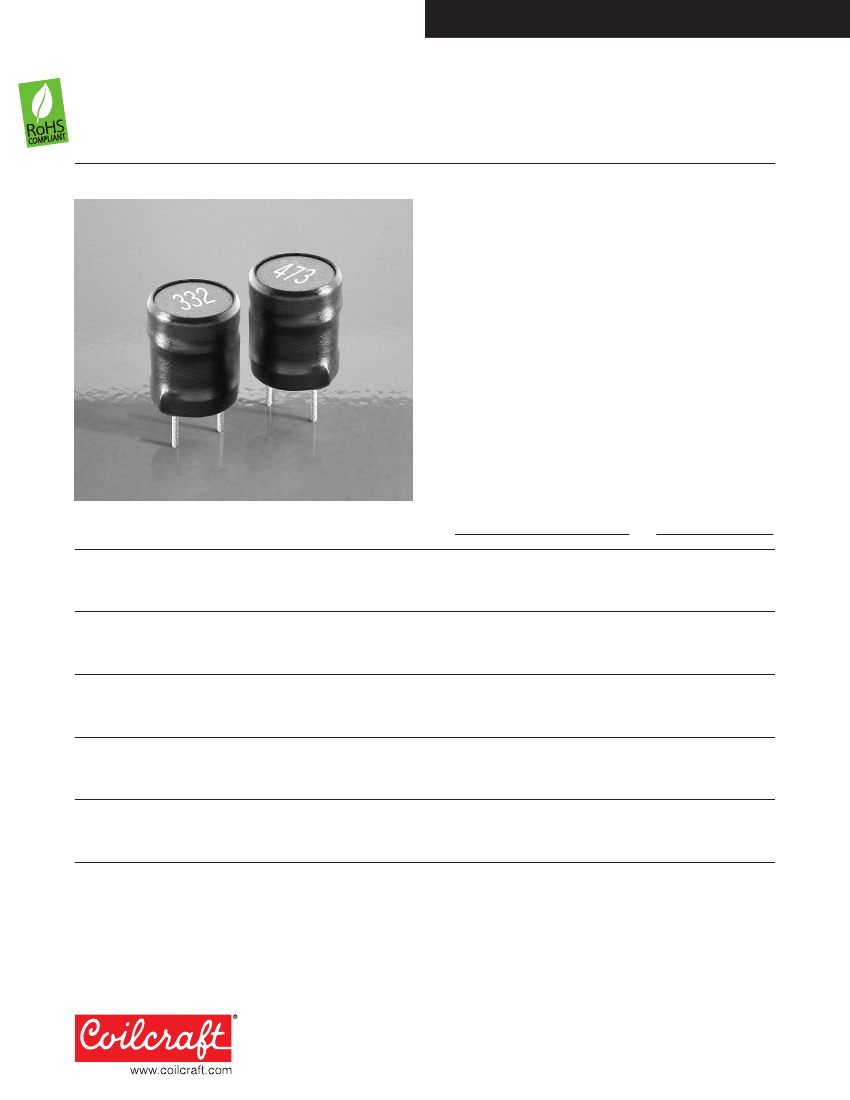

Power Inductors – DR0810 Series

• Small footprint power inductors designed for maximum efficiency

and low cost.

• Ideal for noise filtering in power amplifiers, power supplies and

speaker crossover networks.

• Inductance values from 3.3 to 1000 µH, most at 10% tolerance

• Current ratings up to 7.5 Amps with only 0.010 Ohms DCR

• Industry-standard pin spacings; protective PVC sleeve

Core material

Ferrite

Terminations

RoHS compliant tin-silver over copper

Weight:

2.0 – 2.7 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tray packaging: –40°C to +80°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

300 parts per tray; 800 parts in optional fan-fold tape

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf

Part number

DR0810-332L

DR0810-472L

DR0810-562L

DR0810-682L

DR0810-822L

DR0810-103L

DR0810-123L

DR0810-153L

DR0810-183L

DR0810-223L

DR0810-273L

DR0810-333L

DR0810-393L

DR0810-473L

DR0810-563L

DR0810-683L

DR0810-823L

DR0810-104L

DR0810-124L

DR0810-154L

DR0810-184L

DR0810-224L

DR0810-274L

DR0810-334L

DR0810-394L

DR0810-474L

DR0810-564L

DR0810-684L

DR0810-824L

DR0810-105L

Inductance

(µH)

3.3 ±20%

4.7 ±20%

5.6 ±20%

6.8 ±20%

8.2 ±20%

10 ±10%

12 ±10%

15 ±10%

18 ±10%

22 ±10%

27 ±10%

33 ±10%

39 ±10%

47 ±10%

56 ±10%

68 ±10%

82 ±10%

100 ±10%

120 ±10%

150 ±10%

180 ±10%

220 ±10%

270 ±10%

330 ±10%

390 ±10%

470 ±10%

560 ±10%

680 ±10%

820 ±10%

1000 ±10%

DCR max

(Ohms)

0.010

0.012

0.017

0.018

0.019

0.026

0.030

0.035

0.038

0.046

0.070

0.080

0.088

0.10

0.15

0.17

0.20

0.22

0.29

0.34

0.38

0.44

0.62

0.70

0.88

1.00

1.11

1.45

1.70

2.20

SRF typ

(MHz)

9.5

8.0

7.0

6.0

5.0

4.5

4.0

3.8

3.6

3.0

2.7

2.5

2.1

10% drop

8.9

7.4

6.2

5.6

5.2

5.1

4.0

3.8

3.5

3.4

3.1

2.9

2.5

2.3

1.9

2.0

1.7

1.5

1.2

1.1

1.0

0.90

0.88

0.86

0.78

0.72

0.62

0.54

0.50

Isat

(A)

20% drop 30% drop

10.2

11.0

8.5

9.3

7.4

8.2

6.7

7.4

6.2

6.8

6.1

6.6

4.6

5.1

4.5

5.0

4.1

4.5

4.0

4.4

3.7

4.0

3.4

3.7

2.9

3.2

2.7

3.0

2.2

2.5

2.3

2.5

2.0

2.2

1.8

2.0

1.5

1.6

1.4

1.5

1.3

1.4

1.2

1.3

1.1

1.2

1.0

1.1

0.98

1.0

0.90

0.99

0.85

0.93

0.72

0.79

0.67

0.72

0.63

0.69

Irms

(A)

20°C rise 40°C rise

7.0

9.5

6.4

8.8

5.8

8.1

5.2

7.4

4.6

6.7

4.0

6.0

3.8

5.7

3.5

5.3

3.3

5.0

3.1

4.6

2.8

4.3

2.6

3.9

2.4

3.6

2.1

3.2

1.9

2.9

1.7

2.5

1.4

2.2

1.2

1.8

1.1

1.7

1.1

1.6

1.0

1.5

0.93

1.40

0.86

1.28

0.80

1.20

0.73

1.10

0.66

0.97

0.60

0.86

0.53

0.76

0.46

0.66

0.40

0.55

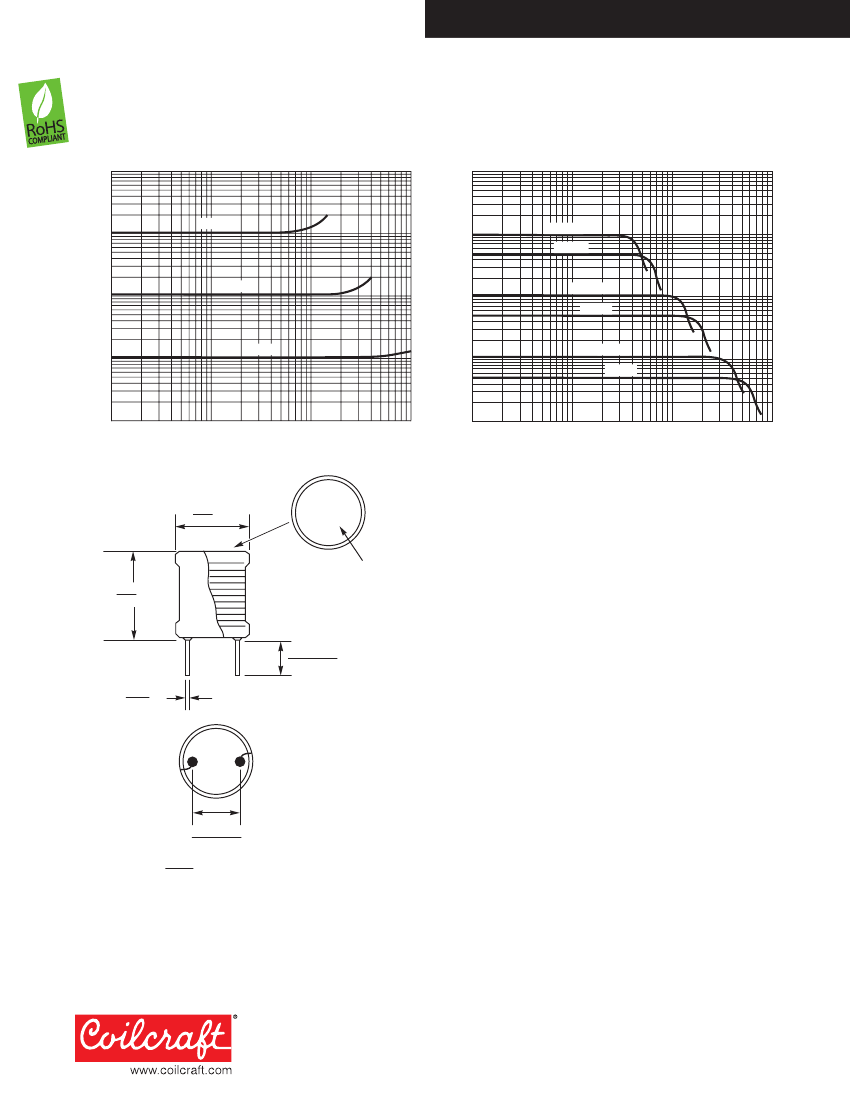

1. To order parts packaged in optional fanfold tape (800 parts per box), add the

letter “F” at the end of the part number, e.g. DR0810-824LF

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR-

meter or equivalent.

3. SRF measured using an Agilent/HP 4191A or equilvalent.

4. DC current at which the inductance drops the specified amount from its value

without current

5. Current that causes the specified temperature rise from 25°C ambient.

6. Electrical specifications at 25°C.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 275-3

Revised 05/07/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

DR0810-153L Related Products

	DR0810-153L	DR0810-124L	DR0810-223L	DR0810-823L	DR0810-564L	FP60ER-2180-CT50Q	DR0810-184L
Description	Headers u0026 Wire Housings 2P HEADER	Fixed Inductors DR0810 Pwr Inductor 100kHz 0.29mOhms	Multilayer Ceramic Capacitors MLCC - SMD/SMT 0805 100uF 4volts *Derate Voltage/Temp	Fixed Inductors DR0810 Pwr Inductor 100kHz 0.2mOhms	Fixed Inductors DR0810 Pwr Inductor 100kHz 1.11mOhms	Fixed Resistor, Metal Film, 0.5W, 218ohm, 350V, 0.25% +/-Tol, 50ppm/Cel,	Precision Amplifiers Low Noise CMOS RRIO Prec Quad
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	incompatible	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Flameproof	Cylindrical
JESD-609 code	e2	e2	e2	e2	e2	e0	e2
Lead diameter	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.6 mm	0.65 mm	0.6 mm
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	160 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C
Package diameter	10.5 mm	10.5 mm	10.5 mm	10.5 mm	10.5 mm	3.5 mm	10.5 mm
Package length	12 mm	12 mm	12 mm	12 mm	12 mm	9 mm	12 mm
Package form	Radial	Radial	Radial	Radial	Radial	Axial	Radial
method of packing	Tray	Tray	Tray	Tray	Tray	TR	Tray
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Lead (Sn/Pb)	TIN SILVER
Tolerance	10%	10%	10%	10%	10%	0.25%	10%
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free
Maker	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	-	COILCRAFT
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	-	Ferrite
DC Resistance	0.035 Ω	0.29 Ω	0.046 Ω	0.2 Ω	1.11 Ω	-	0.38 Ω
Nominal inductance(L)	15 µH	120 µH	22 µH	82 µH	560 µH	-	180 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
Lead length	4 mm	4 mm	4 mm	4 mm	4 mm	-	4 mm
lead spacing	5 mm	5 mm	5 mm	5 mm	5 mm	-	5 mm
Number of functions	1	1	1	1	1	-	1
Maximum rated current	5.3 A	1.7 A	4.6 A	2.2 A	0.86 A	-	1.5 A
self resonant frequency	18 MHz	5 MHz	14 MHz	7 MHz	2.5 MHz	-	4 MHz
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	-	NO
surface mount	NO	NO	NO	NO	NO	-	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	-	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	-	WIRE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	-	0.1 MHz
