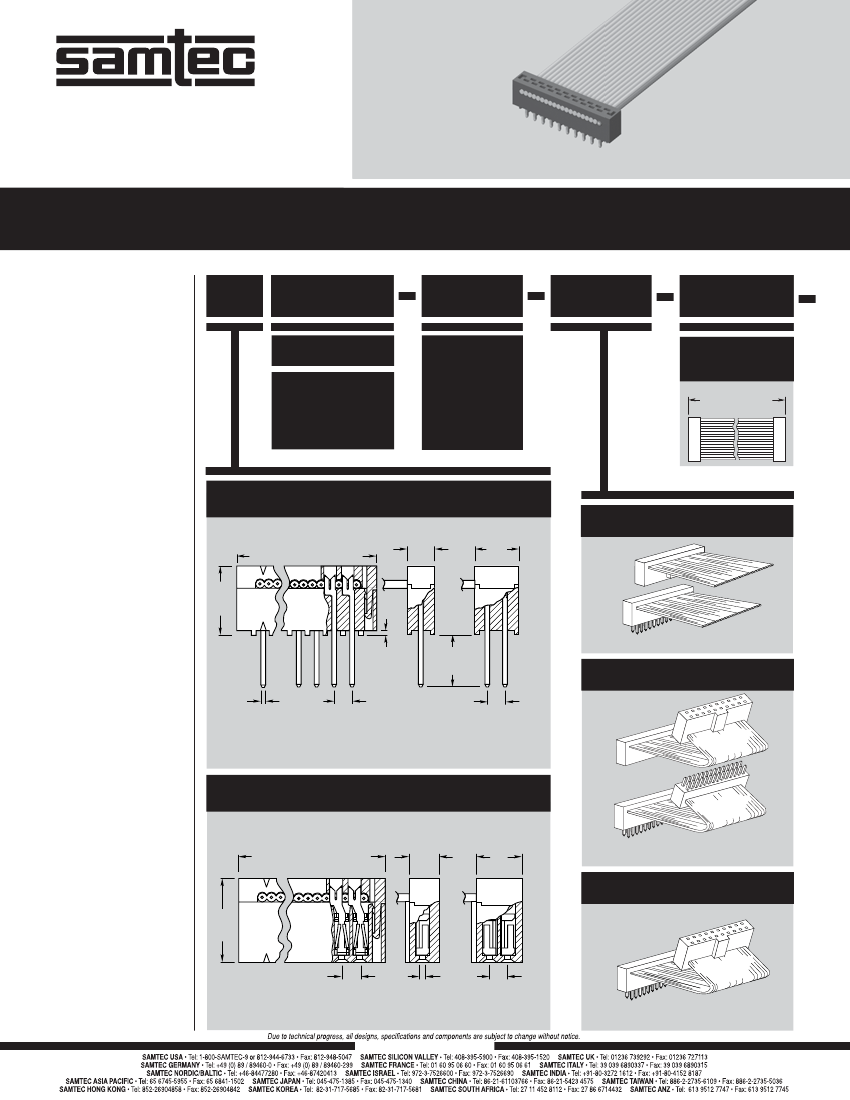

F-209 SUPPLEMENT
HCMD–10–S–03.00–01–T
.100" IDC CABLE STRIPS
Mates with:
TSW, MTSW, TST, EW,
BST, LCW, ZST, MTLW,
TSM
Specifications:
HCSD, HCSS
Insulator Material:
Black Liquid Crystal Polymer
Flammability Rating:
UL 94V-O
Insulation Resistance:
5000 MΩ
Temperature Range:
-20°C to +105°C
(Rainbow Cable)
-40°C to +105°C (Gray Cable)
Withstanding Voltage:
1000 VRMS @ 60 Hz
Contact:
Phosphor Bronze
Plating:
10µ" (0,25µm) on contact
area, 150µ" (3,81µm)
Sn on balance over
50µ" (1,27µm) Ni.
Current Rating:
1A
Contact Resistance:
10 mΩ max
Lead Size Range:
.024" (0,61mm) SQ to
.026" (0,66mm) SQ
Lead Insertion Depth:
.185" (4,70mm) to .250"
(6,35mm)
Insertion Force:
6 oz avg (1,67N) average with
.025" (0,64mm) SQ probe
Withdrawal Force:
3 oz avg (0,83N) average with
.025" (0,64mm) SQ probe
Wire:
28 AWG 7/36 stranded
Tinned Copper
RoHS Compliant:
Yes
Specifications:
HCMD, HCMS
Insulator Material:
Black Liquid Crystal Polymer
Flammability Rating:
UL 94V-O
Insulation Resistance:
5000 MΩ
Temperature Range:
-55°C to +80°C
Withstanding Voltage:
1000 VRMS @ 60 Hz
Terminal: Phosphor Bronze
Plating:
Sn over 50µ" (1,27µm) Ni
Current Rating:
1A
Wire:
28 AWG 7/36 stranded
Tinned Copper
RoHS Compliant:
Yes
Note:
IDC assemblies are
non-standard, non-returnable.
;;
;
;;
TYPE
STRIP
ROW
OPTION
NO. PINS
PER ROW
END
ASSEMBLY
HCMD, HCMS,
HCSD, HCSS, CB
ASSEMBLED
LENGTH
S
= Single
= Double
(Color coded cable
N/A for 31 thru 36
pins/row. See
–G option.)
D
–05, –08,
–10, –12,
–13, –15,
–17, –20,
–25, –36
–“XX.XX”
= Assembled Length
Assembled Length in
INCHES (±1/8")
2 inches minimum
HCM
= Male Strip
(3,30)
.130
–S
= Single End
No. of Positions x .100 (2,54)
+ .180 (4,57)
(5,08)
.200
(7,87)
.310
REF
Socket or Male Plug on one end
(0,51)
.020
(3,05)
.120
–D
= Double End
(0,64)
.025
SQ
TYP
(2,54)
.100
Single
(HCMS)
Double
(HCMD)
(2,54)
.100
Also Available (5,84mm) .230" tail length
specify Lead Style –02 instead of –01
HCS
= Socket Strip
(3,30)
.130
No. of Positions x .100 (2,54)
+ .180 (4,57)
(5,08)
.200
Socket or Male Plug on each end
–T
= Transfer End
(9,53)
.375
REF
(2,54)
.100
(0,76)
.030
SQ. TYP.
Single
(HCSS)
(2,54)
.100
Double
(HCSD)
Male Plug on one end with socket on other.
Begin part number with HCM.
WWW.SAMTEC.COM

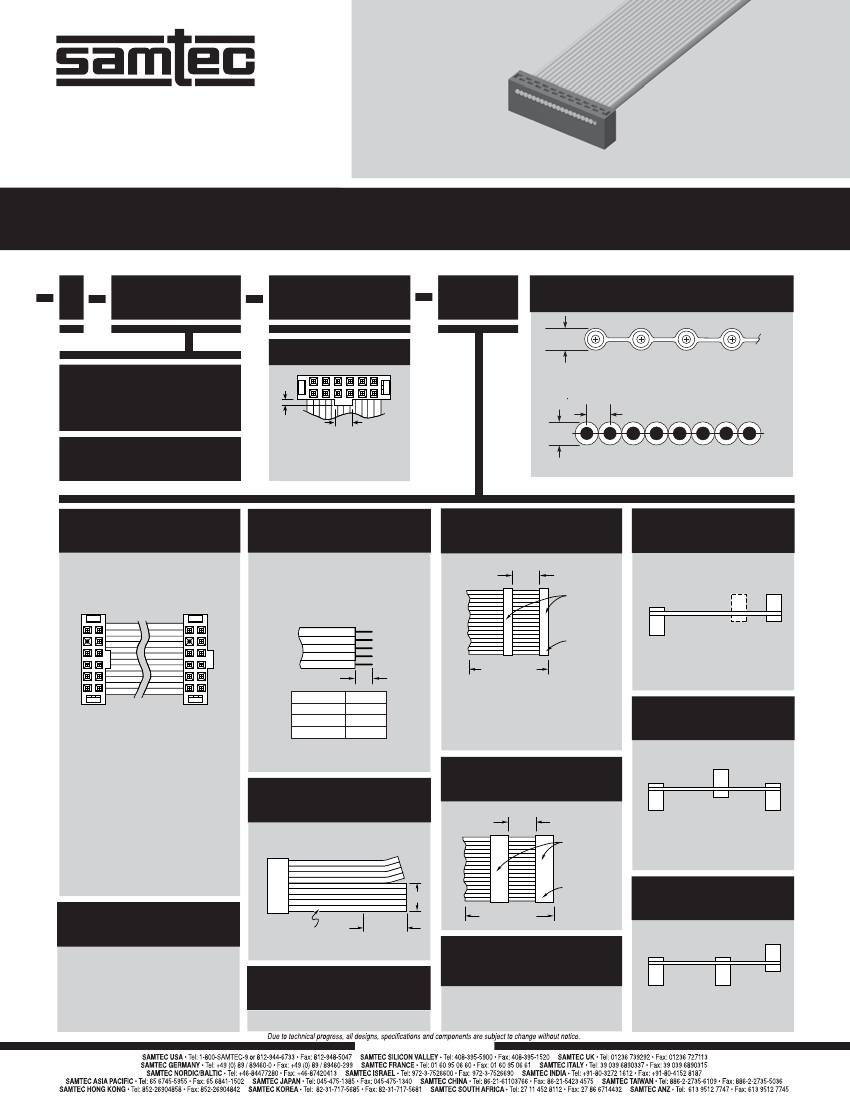

F-209 SUPPLEMENT
HCSD–10–S–03.00–01–T
.100" IDC CABLE STRIPS
01
PLATING
OPTION
NOTCH
POLARIZATION
OTHER
OPTIONS
(1,19)
.047 NOM
HCMD, HCMS
HCSD, HCSS, CB
BULK IDC
FLAT CABLE
–N
= Notch Polarization
–S
10µ" (0,25µm)
Gold on contact area or tail,
= Tin on balance
(Standard on HCSS & HCSD.
Leave blank)
Tin
(Standard on HCMS & HCMD.
Leave blank)
(1,27)
.050
02
01
CB-36-28-
7
/
36
-100-C
= 36 Conductor/Color Coded
CB-36-28-
7
/
36
-100-G
= 36 Conductor/Gray
(1,27)
.050
(0,99)
.039
(3,81) .150
– T
=
Required for HCSS and HCSD.
(Not available on HCMS or
HCMD, unless Transfer, then
only the socket is polarized.)
CB-72-28-
7
/
36
-050-C=
72 Conductor/Color Coded
– P “XX”
= Position Polarization
– ST “X”
= Stripped & Tinned
Specify Suffix from table. All
dimensions are ±
1
/
16
"
(1,59mm)
. Not
available in 28 positions and higher.
–S “XX”
= Daisy Chain Single
(50,80)
2.00
min.
–R
= Reversed
1
“XX”
±
/
8
" (3,18)
Single Row
Connectors
02
04
01
03
02
04
01
03
Outer Most
(End of
Assembly)
Single
Double
–ST8
–ST4
–ST2
–ST3
1
/
8
"
(3,18)
1
/
4
"
(6,35)
1
/
2
"
(12,70)
3
/
8
"
(9,53)
(101,60)
4.00 minimum
When mating double row connector
with two single row connectors, the
outer most single will be connected
to Conductor #1 and the inside single
to Conductor #2.
3
7
–M
= Middle Reversed
6
Specify “XX” as position. For Double
the same position will be polarized
on both ends. (Not available on
HCM, unless Transfer, then only the
socket is polarized)
– D “XX”
= Daisy Chain, Double
(50,80)
2.00
min.
– B “XX”
= Breakout
Specify “XX” as number of
conducts to be broken out.
“XX”
±
1
/
8
" (3,18)
Double Row
Strips
Requires –SXX, –WXX or –DXX
7
1
“XX”
Outer Most
(End of
Assembly)
–O
= Outside Reversed
6
–G
= Gray Cable
Breakout starts with Number 1
lead indicated by brown wire or
red stripe. Shown on top side.
(127,00)
5.00 max.
(50,80)
2.00 min.
(101,60)
4.00 minimum
4
–W “XX”
= Wiring Reversed
Daisy Chain, Single
Same as –S “XX” except outer strip
connected to conductor #2 and inside
strip connected to conductor #1.
Requires –SXX, –WXX or –DXX
7
Standard cable is color coded. Specify
–G for Gray cable with one red edge.
2
–RW
= Reversed Wiring
#1 wire opposite position #1
5
6
