HDSP-Fxxx Series
10 mm (0.40 inch) Seven Segment Displays
Data Sheet
HDSP-F15x/F16x Series
HDSP-F20x/F30x/F40x/F50x Series
Description
The 10 mm (0.40 inch) LED seven segment displays
are Avago’s most space-efficient character size. They
are designed for viewing distances up to 4.5 metres
(15 feet). These devices use an industry standard size
package and pinout. The dual numeric, single numeric,
and ±1. overflow devices feature a right hand deci-
mal point. All devices are available as either common
anode or common cathode.
Typical applications include instruments, point of sale
terminals, and appliances.
Features (Cont.)
•
Excellent appearance
Evenly lit segments
Mitered segment corners
Gray package provides optimum contrast
Black surface and color tinted epoxy*
*(HDSP-F161 only)
±50° viewing angle
•
Design flexibility|
Common anode or common cathode
Single and dual digits
Right hand decimal point
±1. overflow character
•
Categorized for luminous intensity
Yellow and Green categorized for color
Use of like categories yields a uniform display
•
High light output
•
High peak current
•
Excellent for long digit string multiplexing
•
Intensity and color selection option
•
Sunlight viewable AlGaAs
Features
•
Industry standard size
•
Industry standard pinout
7.6 mm (0.3 inch) DIP single
15.24 mm (0.6 inch) DIP dual
Leads on 2.54 mm (0.1 inch) centers
•
Choice of colors
AlGaAs Red, High Efficiency Red, Orange, Yellow,
Green
Devices
AlGaAs
Red
[1]
HDSP-
F151
F161
F153
F157
F158
F203
F207
F208
F403
F303
F503
HER
HDSP-
F201
Orange
HDSP-
F401
Yellow
HDSP-
F301
Green
HDSP-
F501
Description
Common Anode Right Hand Decimal
Common Anode Right Hand Decimal
Common Cathode Right Hand Decimal
Common Anode ±1. Overflow
Common Cathode ±1. Overflow
Package
Drawing
A
A
B
C
D
Note:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-F10X data sheet for low current operation.
Part Numbering System
5 0 8 2 - x xx x - x x x xx
HDSP - x xx x - x x x xx
Mechanical Options
[1]
00: No mechanical option
16: Special dimensional tolerances
Color Bin Options
[1,2]
0: No color bin limitation
Maximum Intensity Bin
[1,2]
Minimum Intensity Bin
[1,2]
0: No maximum intensity bin limitation
0: No minimum intensity bin limitation
Device Configuration/Color
[1]
1: Common Anode
3: Common Cathode
Refer to respective data sheet
Device Specific Configuration
[1]
Package
[1]
F: 10 mm (0.4 inch) Single Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective data sheet or contact your nearest Avago representative for details.
2. Bin options refer to shippable bins for a part-number. Color and Intensity Bins are typically restricted to 1 bin per tube (exceptions may apply).
Please refer to respective data sheet for specific bin limit information.

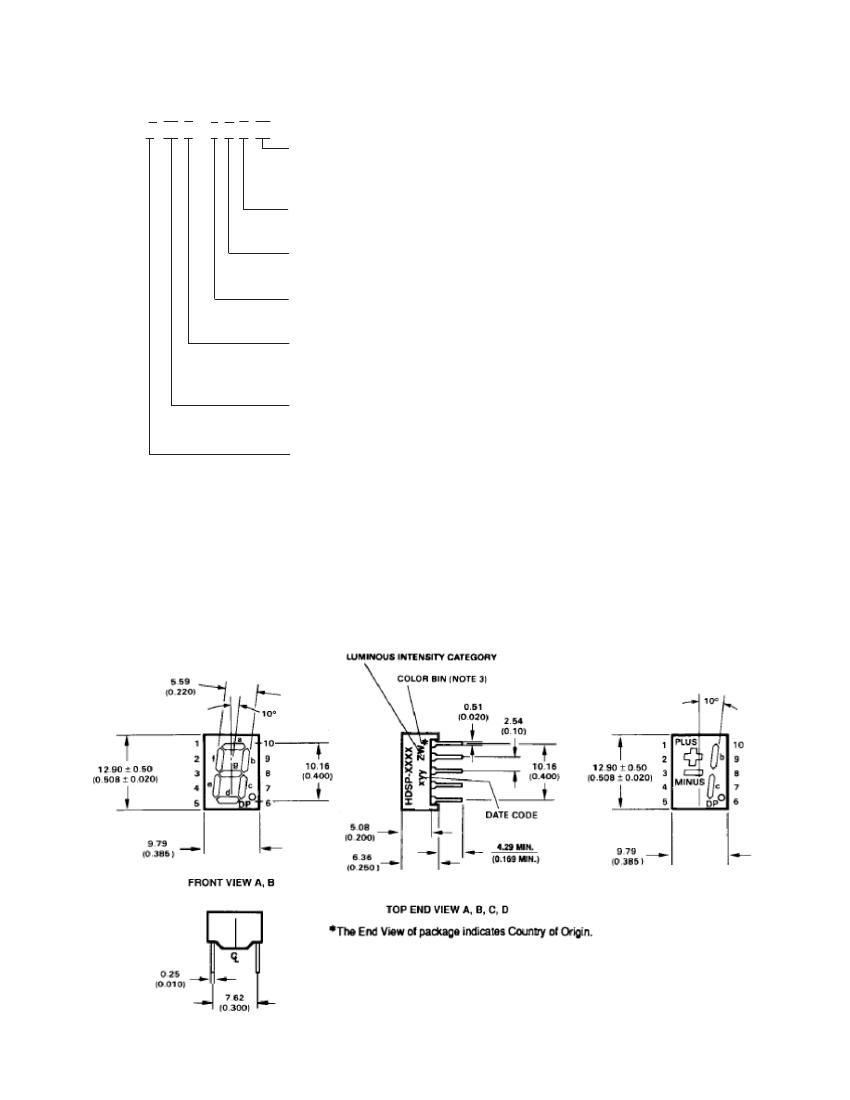

Package Dimensions
2
Internal Circuit Diagram
FUNCTION
PIN
1
2
3
4
5
6
7
8
9
10
A
ANODE
[1]
CATHODE f
CATHODE g
CATHODE e
CATHODE d
ANODE
[1]
CATHODE DP
CATHODE c
CATHODE b
CATHODE a
B
CATHODE
[2]
ANODE f
ANODE g
ANODE e
ANODE d
CATHODE
[2]
ANODE DP
ANODE c
ANODE b
ANODE a
C
ANODE
[1]
CATHODE PLUS
CATHODE MINUS
NC
NC
ANODE
[1]
CATHODE DP
CATHODE c
CATHODE b
NC
D
CATHODE
[2]
ANODE PLUS
ANODE MINUS
NC
NC
CATHODE
[2]
ANODE DP
ANODE c
ANODE b
NC
NOTES:
1. REDUNDANT ANODES
2. REDUNDANT CATHODES
3
Absolute Maximum Ratings
AlGaAs Red
HDSP-F15x/F16x
Series
96
160
[1]
40
[2]
–20 to +100
[9]
3.0
Description
Average Power per Segment or DP
Peak Forward Current per Segment or DP
DC Forward Current per Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per Segment or DP
(*reverse voltage is for LED testing pur-
pose and not recommended to be used
as application condition)
Wavesoldering Temperature for 3 Sec-
onds (1.59 mm [0.063 in.] below body)
HER/Orange
HDSP-F20x
Series
105
90
[3]
30
[4]
Yellow
HDSP-F30x
Series
80
60
[5]
20
[6]
–40 to +100
Green
HDSP-F50x
Series
105
90
[7]
30
[8]
Units
mW
mA
mA
°C
°C
V
–55 to +100
250
°C
Notes:
1. See Figure 1 to establish pulsed conditions.
2. Derate above 46°C at 0.54 mA/°C.
3. See Figure 6 to establish pulsed conditions.
4. Derate above 53°C at 0.45 mA/°C.
5. See Figure 7 to establish pulsed conditions.
6. Derate above 81°C at 0.52 mA/°C.
7. See Figure 8 to establish pulsed conditions.
8. Derate above 39°C at 0.37 mA/°C.
9. For operation below -20°C, contact your local Avago components sales office or an authorized distributor.
Electrical/Optical Characteristics at T
A
= 25°C
AlGaAs Red
Device
Series
HDSP-
F15x/
F16x
Parameter
Luminous Intensity/Segment
[1, 2,5]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
l
PEAK
l
d
V
R
ΔV
F
/°C
Rq
J-PIN
Min.
7.5
Typ.
15.0
1.8
645
637
Max.
2.2
Units
mcd
V
nm
nm
V
mV/°C
°C/W/Seg
Test
Conditions
I
F
= 20 mA
I
F
= 20 mA
3.0
15
-2
320
I
R
= 100 µA
High Efficiency Red
Device
Series
HDSP-
F20x
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
l
PEAK
l
d
V
R
ΔV
F
/°C
Rq
J-PIN
Min.
420
Typ.
1200
2.0
635
626
Max.
2.5
Units
µcd
V
nm
nm
V
mV/°C
°C/W/Seg
Test
Conditions
I
F
= 5 mA
I
F
= 20 mA
3.0
30
-2
320
I
R
= 100 µA
4
Electrical/Optical Characteristics at T
A
= 25°C, continued
Orange
Device
Series
HDSP-
F40x
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
l
PEAK
l
d
V
R
ΔV
F
/°C
Rl\q
J-PIN
Min.
420
Typ.
1200
2.0
600
603
Max.
2.5
Units
µcd
V
nm
nm
V
mV/°C
°C/W/Seg
Test
Conditions
I
F
= 5 mA
I
F
= 20 mA
3.0
30
-2
320
I
R
= 100 µA
Yellow
Device
Series
HDSP-
F30x
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3,6]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
l
PEAK
l
d
V
R
ΔV
F
/°C
Rq
J-PIN
Min.
290
Typ.
800
2.2
583
Max.
2.5
592.5
Units
µcd
V
nm
nm
V
mV/°C
°C/W/Seg
Test
Conditions
I
F
= 5 mA
I
F
= 20 mA
581.5
3.0
586
40
-2
320
I
R
= 100 µA
High Performance Green
Device
Series
HDSP-
F50x
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3,6]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/Segment or DP
Thermal Resistance LED Junction-to-Pin
Symbol
I
V
V
F
l
PEAK
l
d
V
R
ΔV
F
/°C
Rq
J-PIN
Min.
1030
Typ.
3500
2.1
566
571
Max.
2.5
577
Units
µcd
V
nm
nm
V
mV/°C
°C/W/Seg
Test
Conditions
I
F
= 10 mA
I
F
= 10 mA
3.0
50
-2
320
I
R
= 100 µA
Notes:
1. Case temperature of device immediately prior to the intensity measurement is 25°C.
2. The digits are categorized for luminous intensity. The intensity category is designated by a letter on the side of the package.
3. The dominant wavelength,
l
d
, is derived from the CIE chromaticity diagram and is that single wavelength which defines the color of the
device.
4. Typical specification for reference only. Do not exceed absolute maximum ratings.
5. For low current operation, the AlGaAs HDSP-F10X series displays are recommended. They are tested at 1 mA
dc/segment and are pin for pin compatible with the HDSP-F15X/F16x series.
6. The Yellow (HDSP-F30X) series and Green (HDSP-F50X) series displays are categorized for dominant wavelength. The category is designated by
a number adjacent to the luminous intensity category letter.
5
