HYB3164165T: Description4M x 16-Bit Dynamic RAM; File Size396KB，30 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Compare View All

HYB3164165T Overview

4M x 16-Bit Dynamic RAM

Preview

Download Datasheet

View All

4M x 16-Bit Dynamic RAM

(4k & 8k Refresh, EDO-version)

HYB 3164165T(L) -50/-60

HYB 3165165T(L) -50/-60

Preliminary Information

•

4 194 304 words by 16-bit organization

0 to 70 ˚C operating temperature

Fast access and cycle time

RAS access time:

50 ns (-50 version)

60 ns (-60 version)

Cycle time:

84 ns (-50 version)

104 ns (-60 version)

CAS access time:

13 ns ( -50 version)

15 ns ( -60 version)

Hyper page mode (EDO) cycle time

20 ns (-50 version)

25 ns (-60 version)

Single + 3.3 V (± 0.3V) power supply

Low power dissipation

max. 396 active mW ( HYB 3164165T(L)-50)

max. 360 active mW ( HYB 3164165T(L)-60)

max. 504 active mW ( HYB 3165165T(L)-50)

max. 432 active mW ( HYB 3165165T(L)-60)

7.2 mW standby (TTL)

720 W standby (MOS)

14.4 mW Self Refresh (L-version only)

Read, write, read-modify-write, CAS-before-RAS refresh (CBR),

RAS-only refresh, hidden refresh and self refresh modes

Hyper page mode (EDO) capability

2 CAS / 1 WE byte control

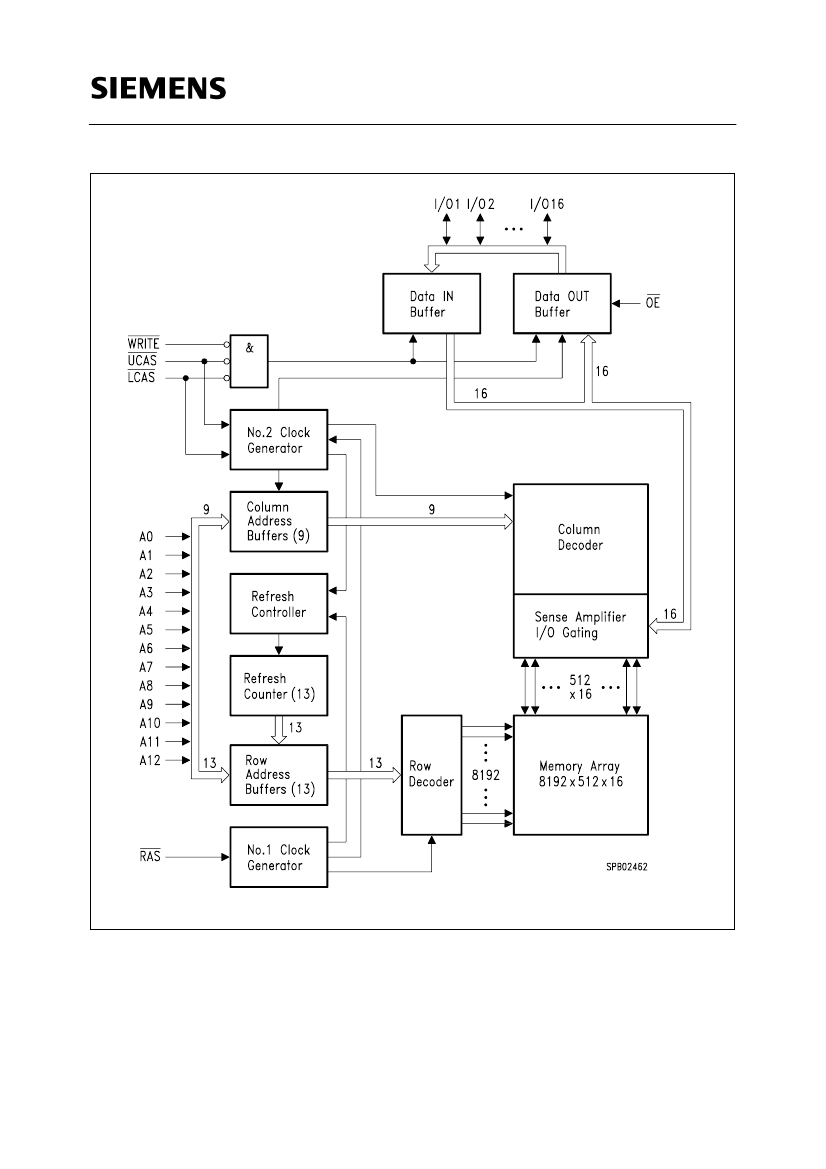

8192 refresh cycles/128 ms , 13 R/ 9C addresses (HYB 3164165T(L))

4096 refresh cycles/ 64 ms , 12 R/ 10C addresses (HYB 3165165T(L))

Plastic Package:

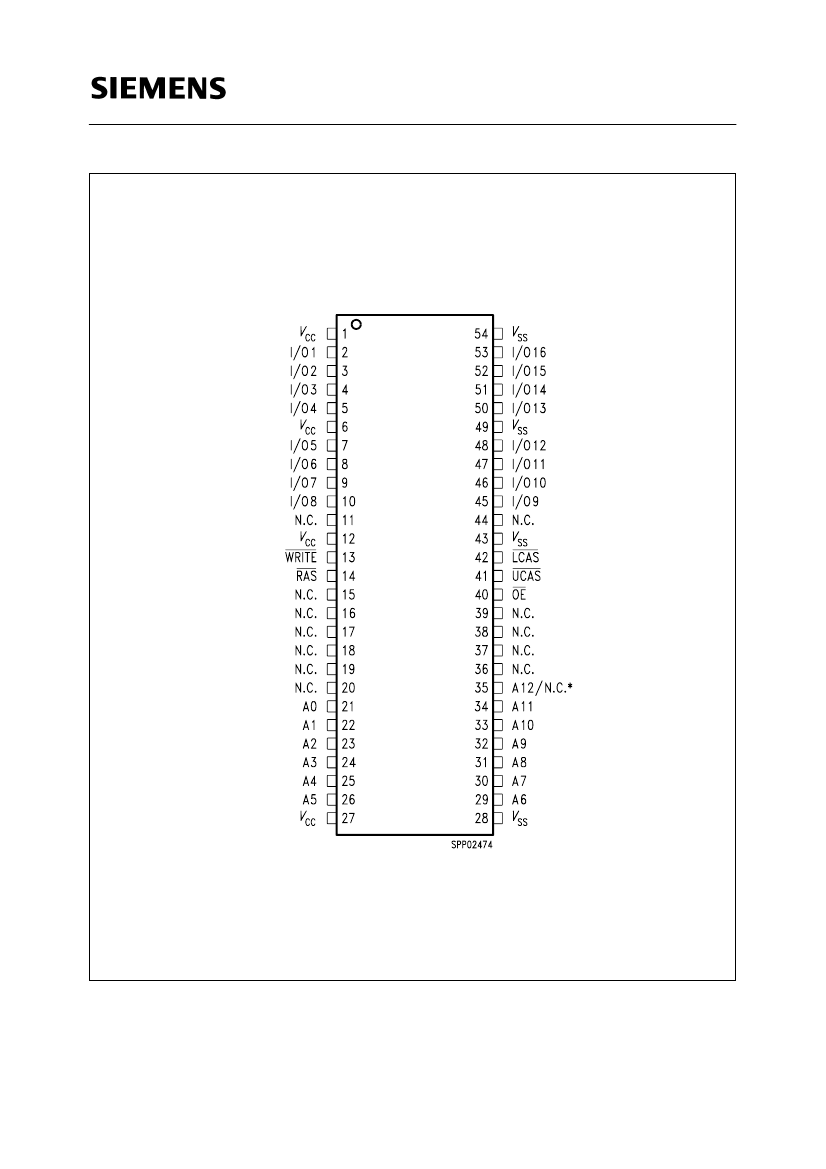

P-TSOPII-54-1 500 mil

HYB 3164(5)165T(L)

Semiconductor Group

HYB3164165T Related Products

	HYB3164165T	HYB3164165T-50	HYB3164165TL-50	HYB3164165TL-60	HYB3164165T-60	HYB3165165T-50	HYB3165165TL-60	HYB3165165T-60	HYB3165165TL-50
Description	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM	4M x 16-Bit Dynamic RAM
Maker	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	-	SIEMENS
Reach Compliance Code	-	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	-	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	-	50 ns	50 ns	60 ns	60 ns	50 ns	60 ns	60 ns	50 ns
Other features	-	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	-	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54
memory density	-	67108864 bi	67108864 bi	67108864 bi	67108864 bi	67108864 bi	67108864 bi	67108864 bi	67108864 bi
Memory IC Type	-	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	-	16	16	16	16	16	16	16	16
Number of functions	-	1	1	1	1	1	1	1	1
Number of ports	-	1	1	1	1	1	1	1	1
Number of terminals	-	54	54	54	54	54	54	54	54
word count	-	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	-	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	-	4MX16	4MX16	4MX16	4MX16	4MX16	4MX16	4MX16	4MX16
Output characteristics	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	-	8192	8192	8192	8192	4096	4096	4096	4096
self refresh	-	YES	YES	YES	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	-	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	-	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	-	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	-	YES	YES	YES	YES	YES	YES	YES	YES
technology	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
