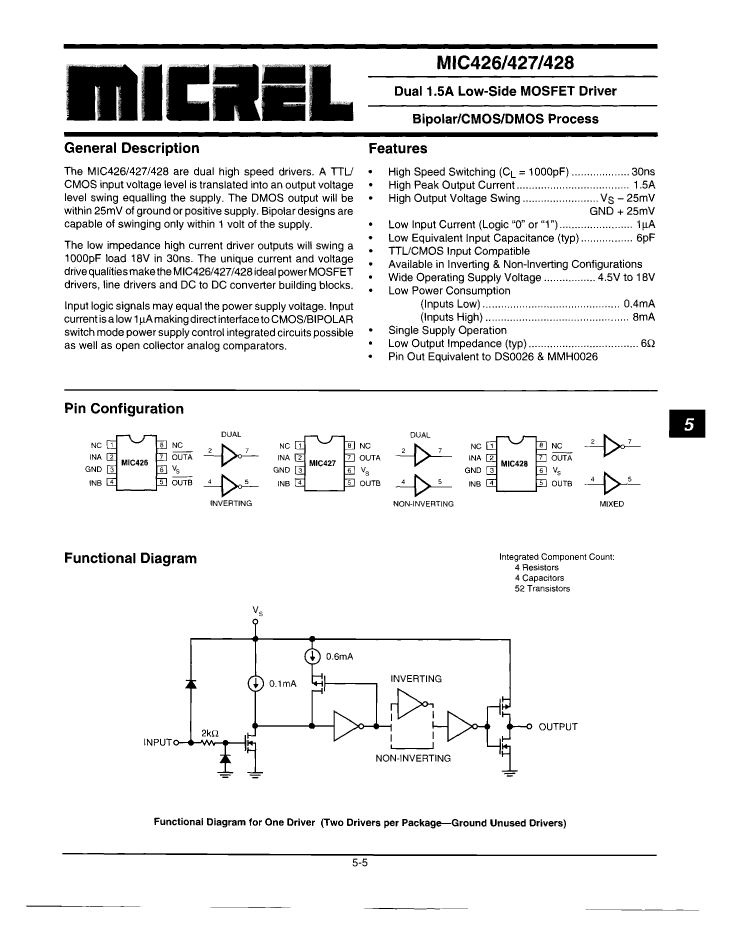

Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS

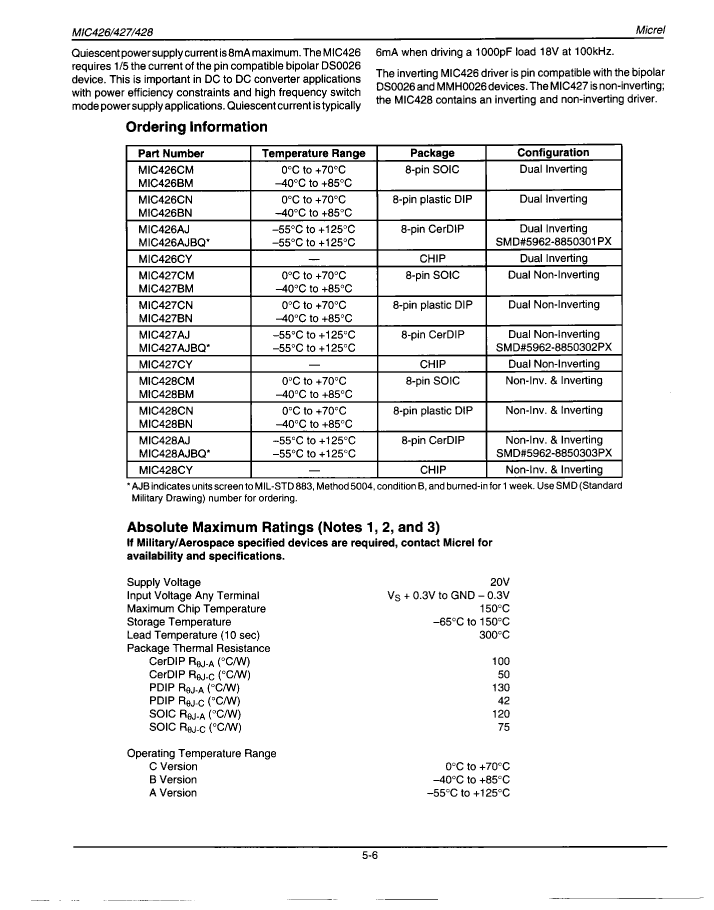

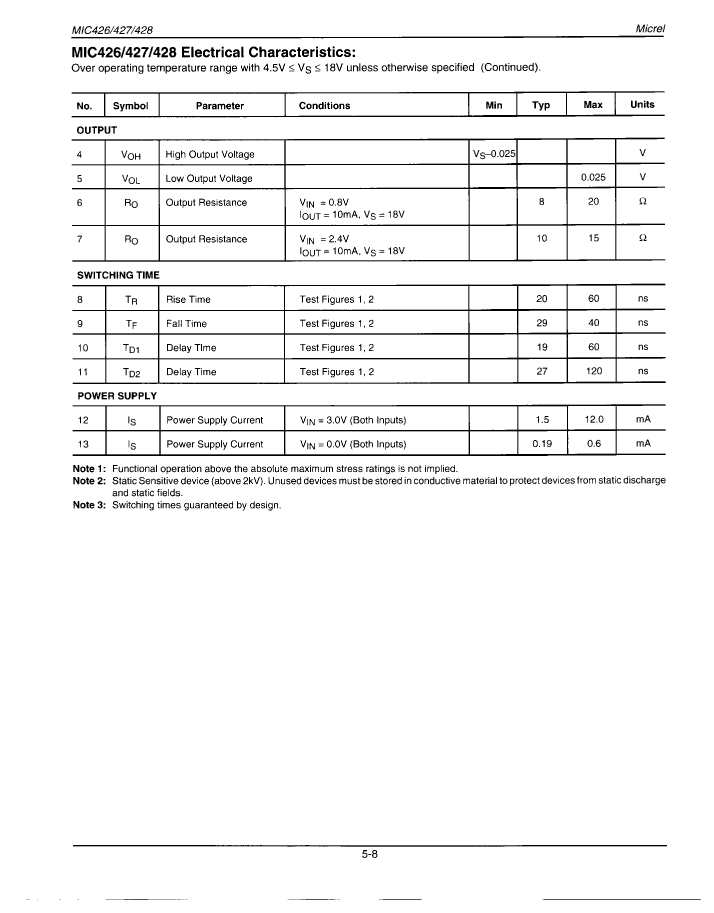

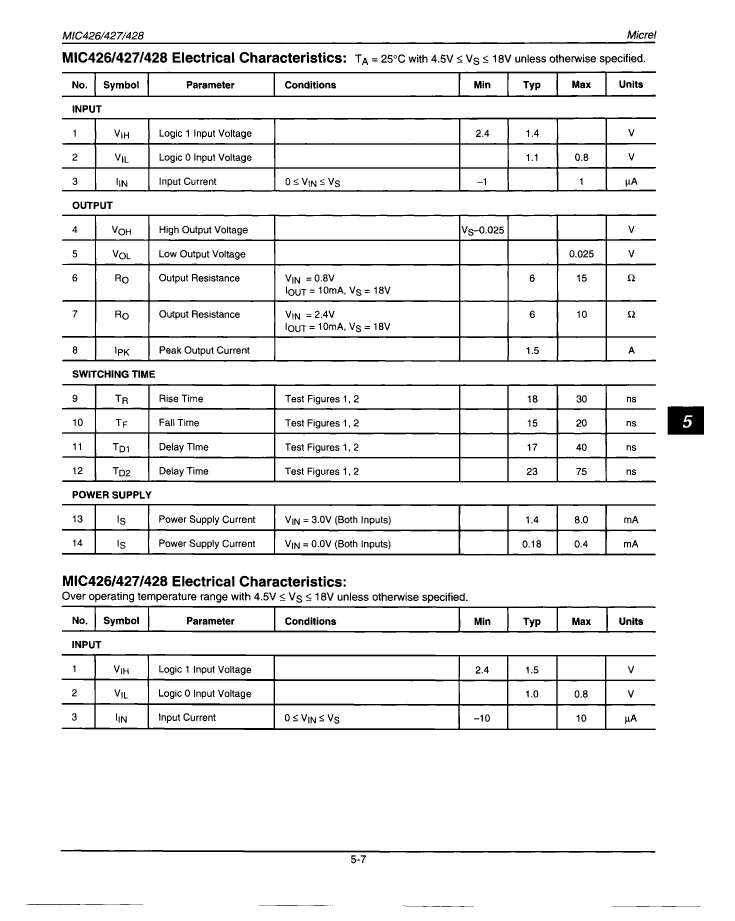

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Micrel ( Microchip ) |
| package instruction | DIE, DIE OR CHIP |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| high side driver | NO |
| Input properties | STANDARD |
| Interface integrated circuit type | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 code | X-XUUC-N6 |
| JESD-609 code | e0 |
| Number of functions | 2 |
| Number of terminals | 6 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | TOTEM-POLE |
| Nominal output peak current | 1.5 A |
| Output polarity | TRUE AND INVERTED |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Encapsulate equivalent code | DIE OR CHIP |
| Package shape | UNSPECIFIED |
| Package form | UNCASED CHIP |
| Peak Reflow Temperature (Celsius) | 240 |
| power supply | 4.5/18 V |
| Certification status | Not Qualified |
| Maximum slew rate | 8 mA |
| Maximum supply voltage | 18 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | BICMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Disconnect time | 0.075 µs |
| connection time | 0.075 µs |
| MIC428CY | MIC427CY | MIC426CY | |
|---|---|---|---|
| Description | Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS | Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS | Buffer/Inverter Based MOSFET Driver, 1.5A, BICMOS |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Micrel ( Microchip ) | Micrel ( Microchip ) | Micrel ( Microchip ) |
| package instruction | DIE, DIE OR CHIP | DIE, DIE OR CHIP | DIE, DIE OR CHIP |
| Reach Compliance Code | unknow | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| high side driver | NO | NO | NO |
| Input properties | STANDARD | STANDARD | STANDARD |
| Interface integrated circuit type | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER | BUFFER OR INVERTER BASED MOSFET DRIVER |
| JESD-30 code | X-XUUC-N6 | X-XUUC-N6 | X-XUUC-N6 |
| JESD-609 code | e0 | e0 | e0 |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 6 | 6 | 6 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C |
| Output characteristics | TOTEM-POLE | TOTEM-POLE | TOTEM-POLE |
| Nominal output peak current | 1.5 A | 1.5 A | 1.5 A |
| Output polarity | TRUE AND INVERTED | TRUE | INVERTED |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIE | DIE | DIE |
| Encapsulate equivalent code | DIE OR CHIP | DIE OR CHIP | DIE OR CHIP |
| Package shape | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED |
| Package form | UNCASED CHIP | UNCASED CHIP | UNCASED CHIP |
| Peak Reflow Temperature (Celsius) | 240 | 240 | 240 |
| power supply | 4.5/18 V | 4.5/18 V | 4.5/18 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 8 mA | 8 mA | 8 mA |
| Maximum supply voltage | 18 V | 18 V | 18 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES |
| technology | BICMOS | BICMOS | BICMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | NO LEAD | NO LEAD |
| Terminal location | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Disconnect time | 0.075 µs | 0.075 µs | 0.04 µs |
| connection time | 0.075 µs | 0.04 µs | 0.075 µs |
