5103R10KL.5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 5103R10KL.5

Preview

5103R10KL.5: DescriptionPOTENTIOMETER; CategoryPassive components; File Size699KB，4 Pages; ManufacturerTT Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

5103R10KL.5 Overview

POTENTIOMETER

5103R10KL.5 Parametric

Parameter Name	Attribute value
cone	Linear
Resistance (ohms)	10k
Tolerance	±5%
Number of sets	1
Built-in switch	none
Power (W)	0.75W，3/4W
Temperature Coefficient	±20ppm/°C
Number of turns	1
rotate	continuous
Adjustment type	Custom
Resistive materials	Winding
Terminal type	welding turret
Actuator type	round
Actuator length	0.500"（12.70mm）
Actuator diameter	0.125"（3.18mm）
Bushing thread	-
Installation type	Servo installation

Preview

Download Datasheet

View All

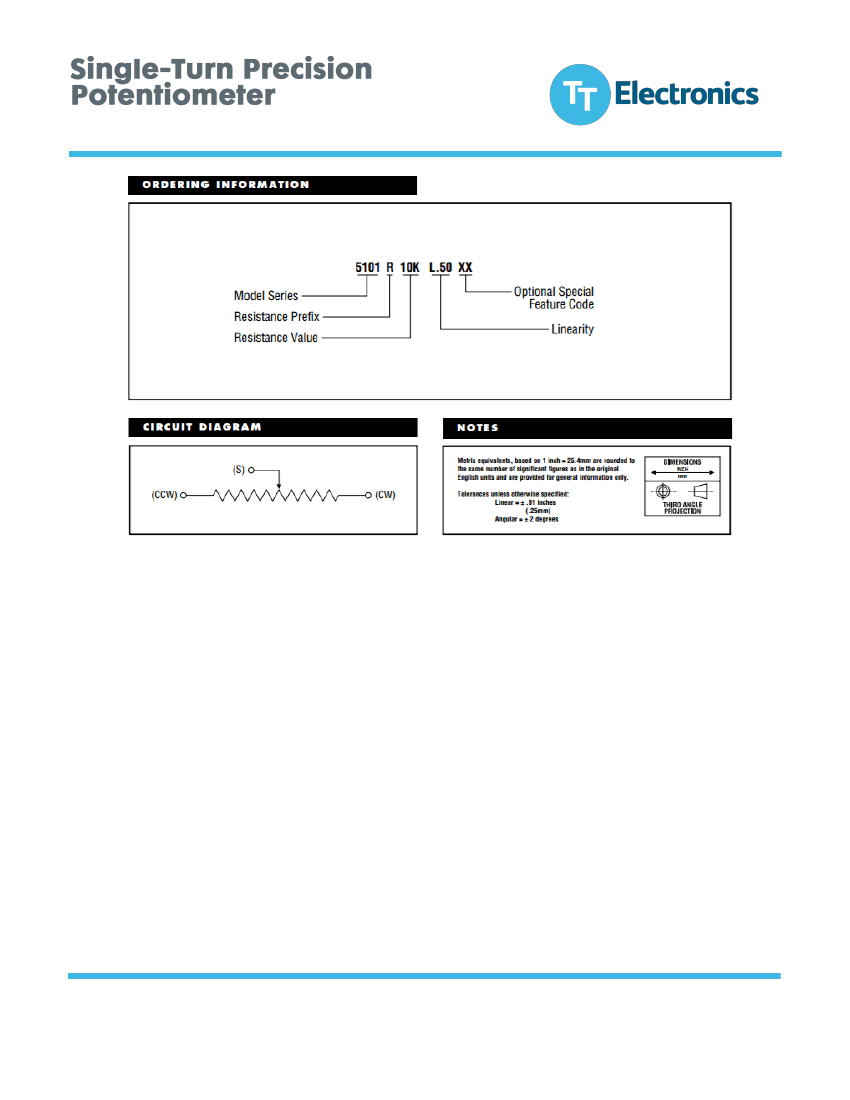

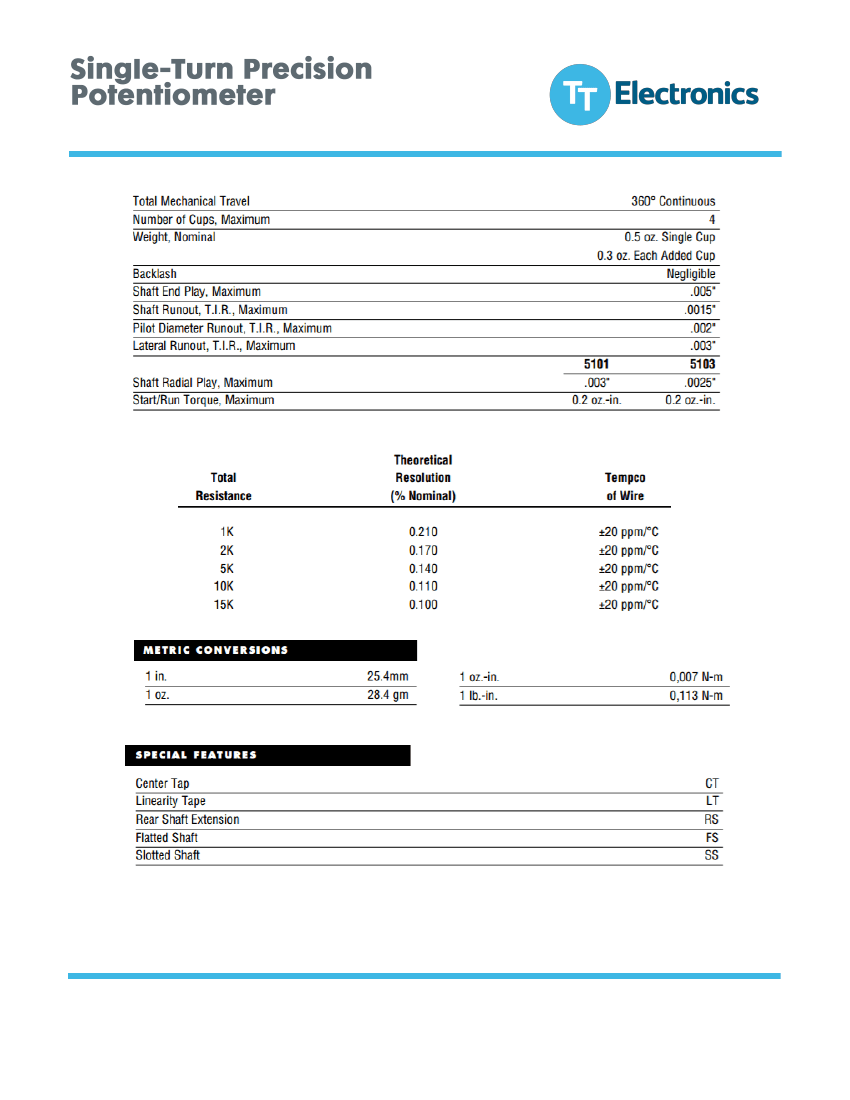

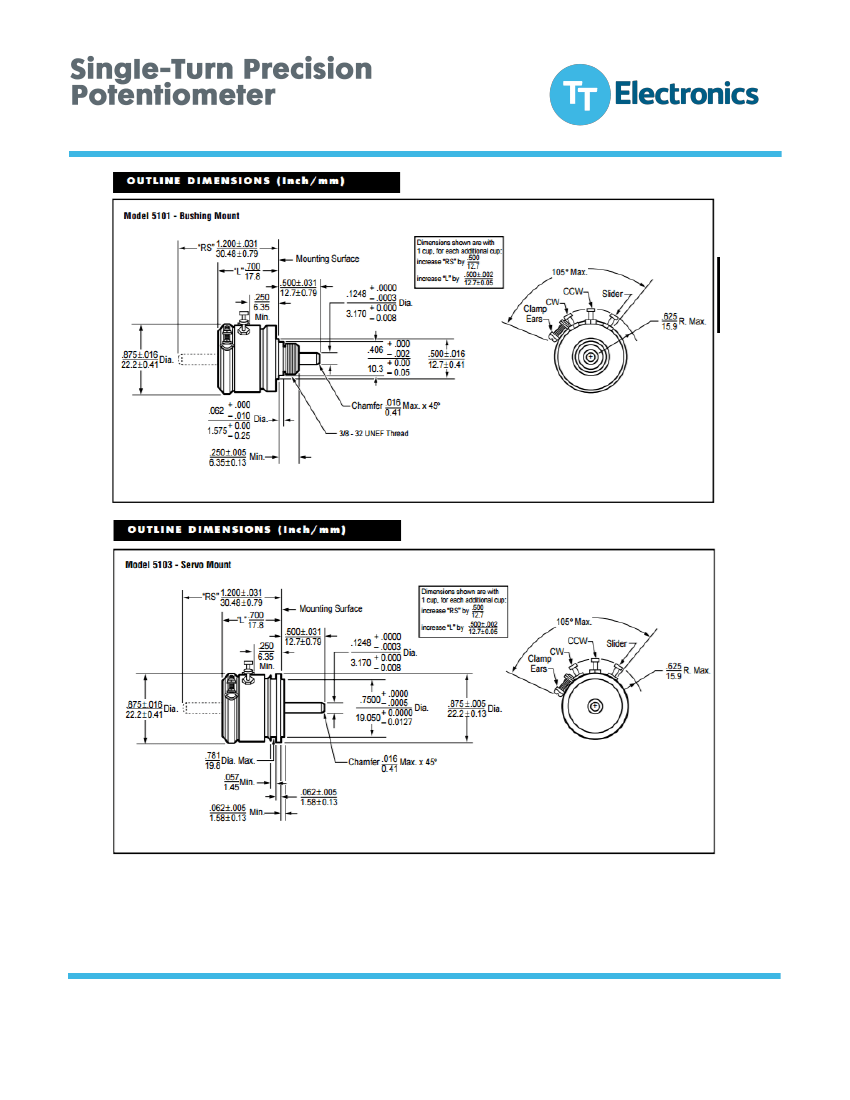

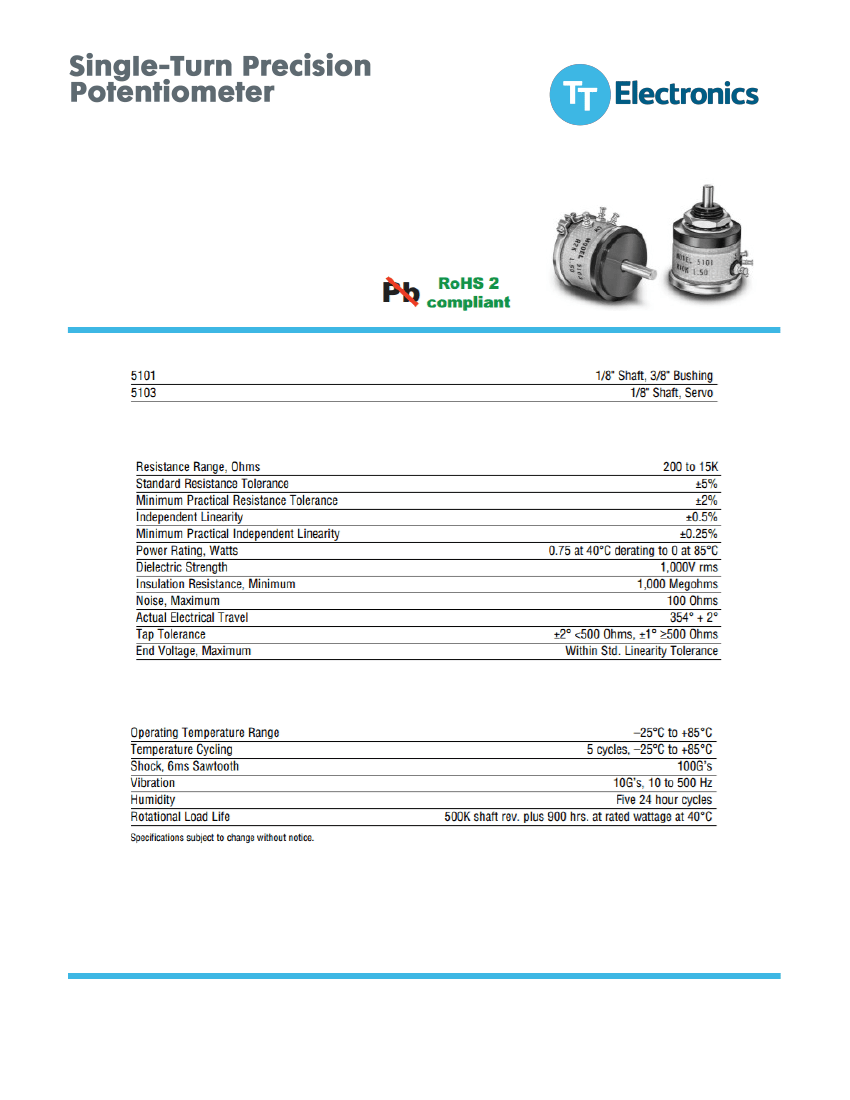

Model 5100 Series

Features:



7/8” diameter



Wirewound

Models Available

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

BI Technologies

4200 Bonita Place, Fullerton, CA 92835 |Ph: +1 714 447 2300

www.bitechnologies.com | www.ttelectronics.com

Issue B

02/2015

Page 1

5103R10KL.5 Related Products

	5103R10KL.5	5101R1KL.5	5101R10KT3L.5	5103R10KL.53G	5103R5KL.5	5103R1KL.5	5103R5KL.5RS	5101R1KL.5SS	5101R1KL.5CTRS
Description	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
cone	Linear	Linear	Linear	Linear	Linear	Linear	Linear	Linear	Linear
Resistance (ohms)	10k	1k	10k	10k	5k	1k	5k	1k	1k
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Number of sets	1	1	1	1	1	1	1	1	1
Built-in switch	none	none	none	none	none	none	none	none	none
Power (W)	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W	0.75W，3/4W
Temperature Coefficient	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C	±20ppm/°C
Number of turns	1	1	1	1	1	1	1	1	1
rotate	continuous	continuous	continuous	continuous	continuous	continuous	continuous	continuous	continuous
Adjustment type	Custom	Custom	Custom	Custom	Custom	Custom	Custom	Custom	Custom
Resistive materials	Winding	Winding	Winding	Winding	Winding	Winding	Winding	Winding	Winding
Terminal type	welding turret	welding turret	welding turret	welding turret	welding turret	welding turret	welding turret	welding turret	welding turret
Actuator type	round	round	round	round	round	round	round	Slotted type	round
Actuator length	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）	0.500"（12.70mm）
Actuator diameter	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）	0.125"（3.18mm）
Installation type	Servo installation	Panel mounting	Panel mounting	Servo installation	Servo installation	Servo installation	Servo installation	Panel mounting	Panel mounting
