Features
■
Low noise termination for CMOS
■
Combined resistors and capacitors in SIP
■
■
■
■
*R
oH
S
CO
M
This series is currently available but
not recommended for new designs.
package saves space
Reduced insertion time
Insulation resistance testing for reliability
Pin counts from 4 to 16 available
RoHS compliant*
For information on RC Terminators,
download Bourns’ RC Terminator Networks
Application Note.

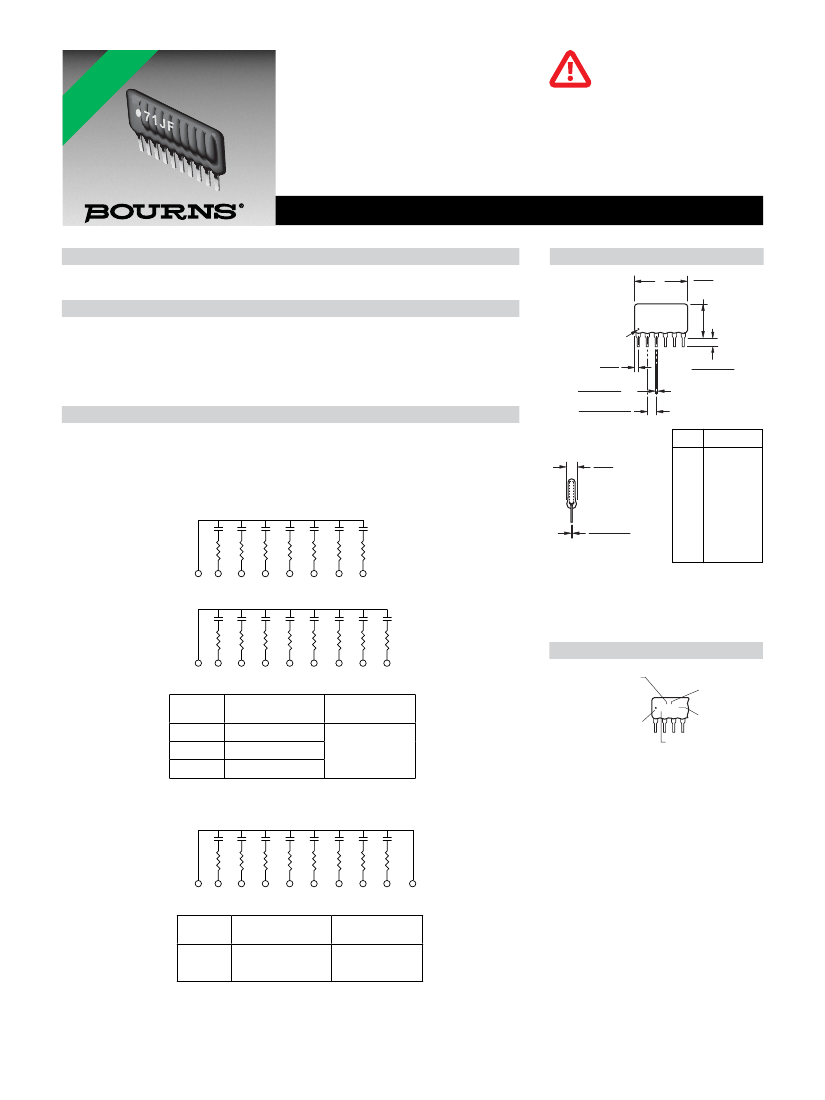

700 Series - RC Terminator Networks
Electrical Characteristics - Resistors
Standard Resistance Range, ±5 % Tolerance ............................. 22 ohms to 470K ohms
Operating Voltage ................................................................................ 50 volts maximum
Electrical Characteristics - Capacitors
Capacitance Range ........................................................................... 39 pF to 47,000 pF
Capacitance Range ................................................................. 470 pF to 47,000 pF X7R
Capacitance Range ........................................................................ 39 pF to 470 pF NPO
Capacitance Tolerance ........................................................................................... ±20 %
Operating Temperature........................................................................... -30 °C to +85 °C
Voltage Rating ...................................................................................................... 50 volts
Physical Characteristics
Flammability ...................................................................................Conforms to UL94V-0
Lead Frame Material ..................................................................... Copper, solder coated
Body Material............................................................................................ Conformal coat
Product Dimensions
A
MAXIMUM
8.5
(.335)
MAX.
PIN #1
REF.
MAX. 1.24
BOTH ENDS (.049)
.508
±
.050
TYP.
(.020
±
.002)
2.54
±
.07
(.100
±
.003** )
TYP. NON-ACCUM.
Pin
Count
4
5
6
7
8
9
10
11
12
13
14
15
16
A Maximum
mm (Inches)
10.11 (.398)
12.65 (.498)
15.19 (.598)
17.73 (.698)
20.27 (.798)
22.81 (.898)
25.35 (.998)
27.89 (1.098)
30.43 (1.198)
32.97 (1.298)
35.51 (1.398)
38.04 (1.498)
40.59 (1.598)
3.0 ~ 3.8
(.118 ~ 0.15)
3.81
MAX.
(.150)
701
.254
±
.050
TYP.
(.010
±
.002)
1
8
Governing dimensions are metric. Dimensions in parentheses
are inches and are approximate.
**Terminal centerline to centerline measurements made at point of
emergence of the lead from the body.
Typical Part Marking
1
9
ELECTRICAL
CONFIGURATION
• 1 = Single Termination
• 2 = Double Termination
PIN ONE
INDICATOR
RESISTANCE
CODE***
71JF
NO. OF
LINES
7
8
9
BOURNS P/N
4608H-701-RC/CCL
4609H-701-RC/CCL
4610H-701-RC/CCL
PACKAGE
High Profile
Conformal
SIP
CAPACITANCE
CODE***
MODEL
• 7 = 700 Series
***See Standard Marking, Values and Codes tables.
702
1
10
NO. OF
LINES
8
BOURNS P/N
4610H-702-RC/CCL
PACKAGE
High Profile
Conformal
SIP
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Additional Features
■
Prevents bus lines and control signals from
■
Minimizes space and routing problems, and
floating to undefined logic levels.
■
Optimizes signal transmission in high
performance systems through proper
termination.
■
Eliminates overshoot and ringing, increases
noise immunity, minimizes signal distortion,
and lowers EMI/RFI radiation.
reduces manufacturing cost per installed
resistive function.
■
Increases board yields and reliability by
reducing component count.
700 Series - RC Terminator Networks
Standard Resistance Values And Codes
Resistance
(Ohms)
Marking
Code
Resistance
Code
Resistance
(Ohms)
Marking
Code
Resistance
Code
Standard Capacitance Values And Codes
Capacitance
Marking
Code
Capacitance Capacitance
Code
Marking
Code
Capacitance
Code
22
27
33
39
47
50
56
68
75
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
1,800
2,000
2,200
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
A2
220
270
330
390
470
500
560
680
750
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
202
222
2,700
3,300
3,900
5,600
6,800
8,200
10,000
12,000
15,000
18,000
20,000
22,000
27,000
33,000
39,000
47,000
56,000
68,000
82,000
100,000
120,000
150,000
180,000
220,000
270,000
330,000
390,000
470,000
A3
A4
A5
A6
A7
A8
A9
B1
B2
B3
B4
B5
B6
B7
B8
B9
C1
C2
C3
C4
C5
C6
C7
C8
C9
D1
D2
D3
272
332
392
562
682
822
103
123
153
183
203
223
273
333
393
473
563
683
823
104
124
154
184
224
274
334
394
474
39pF
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
1000 pF
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
.010 µF
.012
.015
.018
.022
.027
.033
.039
.047
R
S
T
U
V
W
X
Y
Z
A1
A2
A3
A4
A5
A6
A7
A8
A9
B1
B2
B3
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
Values not appearing in above tables are available to optimize system
performance. Contact Bourns Networks to inquire.
How To Order RC Terminator Networks
46 08 H - 701 - RC/CC L
Model
(46 = Conformal
SIP)
Number of Pins
• 4 to 16
Terminations
L = Lead free
(Sn/Ag/Cu-plated)
Resistance/
Capacitance Code
• First 2 digits are
significant
• Third digit
represents the
number of zeros
to follow
Physical
Configuration
(H = High Profile)
Electrical Configuration
• 701 = Single Termination
• 702 = Double Termination
REV. 12/15
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
