M76DW52003BA90ZT datasheet, PDF

Datasheet> All Categories > storage> storage> M76DW52003BA90ZT

M76DW52003BA90ZT: Description32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product; Categorystorage storage; File Size150KB，27 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

M76DW52003BA90ZT Overview

32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product

M76DW52003BA90ZT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	BGA
package instruction	8 X 11.60 MM, 0.80 MM PITCH, LFBGA-73
Contacts	73
Reach Compliance Code	compli
Maximum access time	90 ns
Other features	STATIC RAM IS ORGANIZED AS 256K X 16; FLASH MEMORY IS ALSO ORGANIZED AS 4M X 8
JESD-30 code	R-PBGA-B73
JESD-609 code	e0
length	11.6 mm
memory density	33554432 bi
Memory IC Type	MEMORY CIRCUIT
memory width	16
Mixed memory types	FLASH+SRAM
Number of functions	1
Number of terminals	73
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2MX16
Package body material	PLASTIC/EPOXY
encapsulated code	LFBGA
Encapsulate equivalent code	BGA73,10X12,32
Package shape	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3,3/3.3 V
Certification status	Not Qualified
Maximum seat height	1.4 mm
Maximum standby current	0.0001 A
Maximum slew rate	0.02 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	BALL
Terminal pitch	0.8 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm

Preview

Download Datasheet

View All

M76DW52003TA

M76DW52003BA

32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory

and 4Mbit (256Kb x16) SRAM, Multiple Memory Product

PRELIMINARY DATA

FEATURES SUMMARY

■

MULTIPLE MEMORY PRODUCT

– 32 Mbit (4Mb x8 or 2Mb x16), Dual Bank, Boot

Block, Flash Memory

– 4 Mbit (256Kb x 16) SRAM

■

SUPPLY VOLTAGE

– V

CCF

= 2.7V to 3.3V

– V

CCS

= 2.7V to 3.3V

– V

PPF

= 12V for Fast Program (optional)

■

Figure 1. Package

FBGA

ACCESS TIME: 70, 90ns

LOW POWER CONSUMPTION

ELECTRONIC SIGNATURE

– Manufacturer Code: 0020h

– Top Device Code, M76DW52003TA: 225Eh

– Bottom Device Code, M76DW52003BA:

225Fh

LFBGA73 (ZA)

8 x 11.6 mm

FLASH MEMORY

■

PROGRAMMING TIME

– 10µs per Byte/Word typical

– Double Word/ Quadruple Byte Program

■

EXTENDED MEMORY BLOCK

– Extra block used as security block or to store

additional information

MEMORY BLOCKS

– Dual Bank Memory Array: 8Mbit+24Mbit

– Parameter Blocks (Top or Bottom Location)

■

100,000 PROGRAM/ERASE CYCLES per

BLOCK

■

DUAL OPERATIONS

– Read in one bank while Program or Erase in

other

SRAM

■

4 Mbit (256Kb x 16)

■

ACCESS TIME: 70ns

LOW V

CCS

DATA RETENTION: 1.5V

POWER DOWN FEATURES USING TWO

CHIP ENABLE INPUTS

■

ERASE SUSPEND and RESUME MODES

– Read and Program another Block during

Erase Suspend

■

UNLOCK BYPASS PROGRAM COMMAND

– Faster Production/Batch Programming

/WP PIN for FAST PROGRAM and WRITE

PROTECT

TEMPORARY BLOCK UNPROTECTION

MODE

COMMON FLASH INTERFACE

– 64 bit Security Code

■

September 2003

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

1/27

M76DW52003TA, M76DW52003BA

TABLE OF CONTENTS

SUMMARY DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 2. Logic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Table 1. Signal Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Figure 3. LFBGA Connections (Top view through package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SIGNAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Address Inputs (A0-A17). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Address Inputs (A18-A20). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Data Inputs/Outputs (DQ0-DQ7). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Data Inputs/Outputs (DQ8-DQ14). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Data Input/Output or Address Input (DQ15A–1).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Flash Chip Enable (EF). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Output Enable (G). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Write Enable (W). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PP/

Write Protect (V

PP/

WP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Reset/Block Temporary Unprotect (RPF). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Ready/Busy Output (RB). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Byte/Word Organization Select (BYTE). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SRAM Chip Enable (E1S, E2S). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SRAM Upper Byte Enable (UBS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SRAM Lower Byte Enable (LBS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CCF

Supply Voltage (2.7V to 3.3V). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CCS

Supply Voltage (2.7V to 3.3V).. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Ground.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 4. Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table 2. Main Operation Modes, BYTE = VIH(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FLASH MEMORY DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SRAM DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 5. SRAM Logic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SRAM OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Read . . . . . . . . . . . . . . . . . . . . . . .

Write . . . . . . . . . . . . . . . . . . . . . . .

Standby/Power-Down . . . . . . . . . .

Data Retention. . . . . . . . . . . . . . . .

Output Disable . . . . . . . . . . . . . . . .

.......

......

.......

......

.......

......

. . . . 11

FLASH MEMORY DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 3. Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2/27

M76DW52003TA, M76DW52003BA

DC AND AC PARAMETERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 4. Operating and AC Measurement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 6. AC Measurement I/O Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 7. AC Measurement Load Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 5. Device Capacitance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 6. Flash DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 7. SRAM DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 8. SRAM Read Mode AC Waveforms, Address Controlled . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 9. SRAM Read AC Waveforms, G Controlled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 10. SRAM Standby AC Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table 8. SRAM Read AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 11. SRAM Write AC Waveforms, W Controlled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 12. SRAM Write AC Waveforms, E1S Controlled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 13. SRAM Write AC Waveforms, W Controlled with G Low . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 14. SRAM Write Cycle Waveform, UBS and LBS Controlled, G Low . . . . . . . . . . . . . . . . . 20

Table 9. SRAM Write AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 15. SRAM Low V

CCS

Data Retention AC Waveforms, E1

or UB

/ LB

Controlled. . . . . . 22

Table 10. SRAM Low V

CCS

Data Retention Characteristic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

SRAM Read Mode AC Waveforms, Address Controlled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

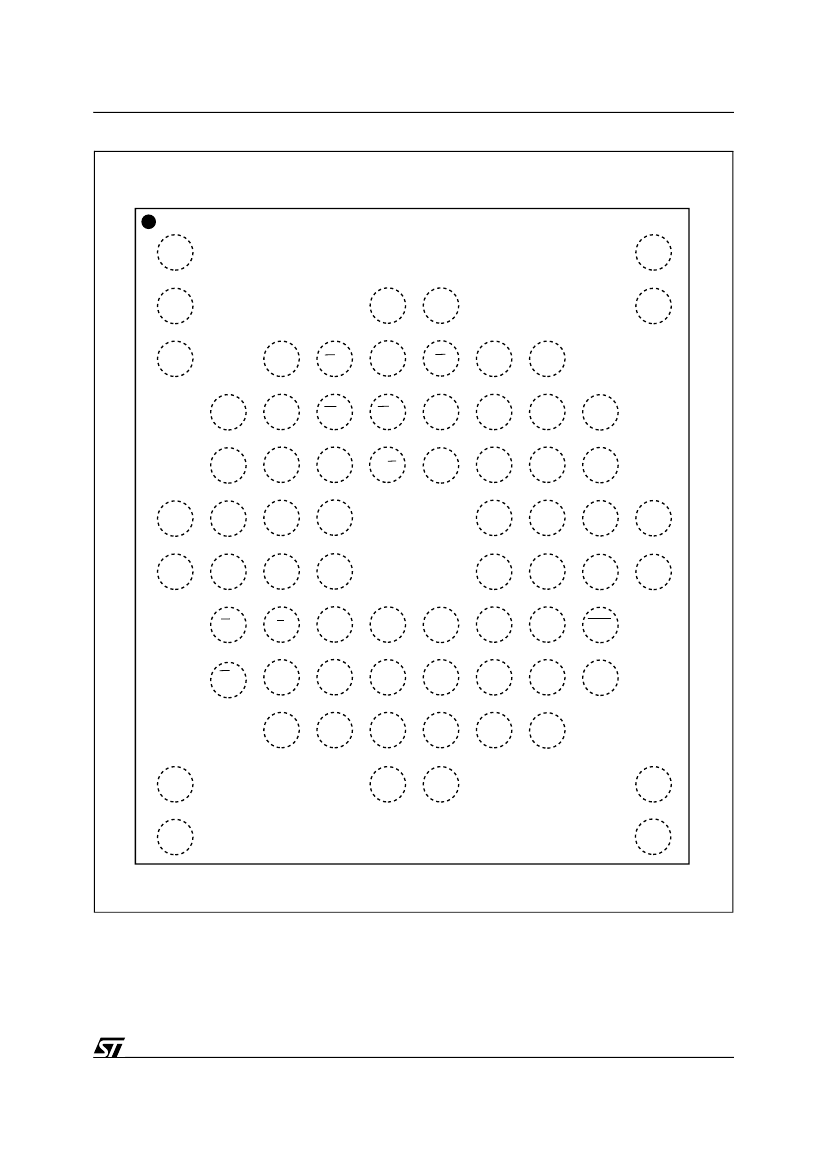

Figure 16. Stacked LFBGA73 8x11.6mm, 10x12 array, 0.8mm pitch, Bottom View Package Outline

Table 11. Stacked LFBGA73 8x11.6mm, 10x12 array, 0.8mm pitch, Package Mechanical Data. . 24

PART NUMBERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 12. Ordering Information Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

REVISION HISTORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 13. Document Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3/27

M76DW52003BA90ZT Related Products

	M76DW52003BA90ZT	M76DW52003BA	M76DW52003BA70ZT	M76DW52003TA70ZT	M76DW52003TA	M76DW52003TA90ZT
Description	32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product	32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product	32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product	32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product	32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product	32Mbit (4Mb x8/ 2Mb x16, Dual Bank, Boot Block) Flash Memory and 4Mbit (256Kb x16) SRAM, Multiple Memory Product
Is it Rohs certified?	incompatible	-	incompatible	incompatible	-	incompatible
Parts packaging code	BGA	-	BGA	BGA	-	BGA
package instruction	8 X 11.60 MM, 0.80 MM PITCH, LFBGA-73	-	8 X 11.60 MM, 0.80 MM PITCH, LFBGA-73	8 X 11.60 MM, 0.80 MM PITCH, LFBGA-73	-	8 X 11.60 MM, 0.80 MM PITCH, LFBGA-73
Contacts	73	-	73	73	-	73
Reach Compliance Code	compli	-	compli	compli	-	compli
Maximum access time	90 ns	-	70 ns	70 ns	-	90 ns
Other features	STATIC RAM IS ORGANIZED AS 256K X 16; FLASH MEMORY IS ALSO ORGANIZED AS 4M X 8	-	STATIC RAM IS ORGANIZED AS 256K X 16; FLASH MEMORY IS ALSO ORGANIZED AS 4M X 8	STATIC RAM IS ORGANIZED AS 256K X 16; FLASH MEMORY IS ALSO ORGANIZED AS 4M X 8	-	STATIC RAM IS ORGANIZED AS 256K X 16; FLASH MEMORY IS ALSO ORGANIZED AS 4M X 8
JESD-30 code	R-PBGA-B73	-	R-PBGA-B73	R-PBGA-B73	-	R-PBGA-B73
JESD-609 code	e0	-	e0	e0	-	e0
length	11.6 mm	-	11.6 mm	11.6 mm	-	11.6 mm
memory density	33554432 bi	-	33554432 bi	33554432 bi	-	33554432 bi
Memory IC Type	MEMORY CIRCUIT	-	MEMORY CIRCUIT	MEMORY CIRCUIT	-	MEMORY CIRCUIT
memory width	16	-	16	16	-	16
Mixed memory types	FLASH+SRAM	-	FLASH+SRAM	FLASH+SRAM	-	FLASH+SRAM
Number of functions	1	-	1	1	-	1
Number of terminals	73	-	73	73	-	73
word count	2097152 words	-	2097152 words	2097152 words	-	2097152 words
character code	2000000	-	2000000	2000000	-	2000000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS
Maximum operating temperature	85 °C	-	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-	-40 °C
organize	2MX16	-	2MX16	2MX16	-	2MX16
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	LFBGA	-	LFBGA	LFBGA	-	LFBGA
Encapsulate equivalent code	BGA73,10X12,32	-	BGA73,10X12,32	BGA73,10X12,32	-	BGA73,10X12,32
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	GRID ARRAY, LOW PROFILE, FINE PITCH	-	GRID ARRAY, LOW PROFILE, FINE PITCH	GRID ARRAY, LOW PROFILE, FINE PITCH	-	GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	3,3/3.3 V	-	3,3/3.3 V	3,3/3.3 V	-	3,3/3.3 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	1.4 mm	-	1.4 mm	1.4 mm	-	1.4 mm
Maximum standby current	0.0001 A	-	0.0001 A	0.0001 A	-	0.0001 A
Maximum slew rate	0.02 mA	-	0.02 mA	0.02 mA	-	0.02 mA
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	2.7 V	-	2.7 V	2.7 V	-	2.7 V
Nominal supply voltage (Vsup)	3 V	-	3 V	3 V	-	3 V
surface mount	YES	-	YES	YES	-	YES
technology	CMOS	-	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	TIN LEAD	-	TIN LEAD	TIN LEAD	-	TIN LEAD
Terminal form	BALL	-	BALL	BALL	-	BALL
Terminal pitch	0.8 mm	-	0.8 mm	0.8 mm	-	0.8 mm
Terminal location	BOTTOM	-	BOTTOM	BOTTOM	-	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	8 mm	-	8 mm	8 mm	-	8 mm

Recommended Resources

Karaoke singing sound elimination circuit

STK465 audio IC circuit diagram

Temperature centralized controller circuit

TA7344P (universal) remote control receiving preamplifier circuit

Bridge integrated power amplifier circuit

Computer motherboard circuit diagram 810 4_14

I need help from kind people. Graduation project: Graphics acquisition and system design based on spce061a and ov7620: With the microcontroller as the core, a COMS camera is used to design a measurement and testing system for the outline dimensions of thin transparent objects. Requirements: (1) Graphic display (2) Mea...; 6049 MCU

dfa: [font=宋体] From the above two formulas, we can know that in order to reduce the overturning force, the only feasible way is to reduce v, [font=宋体] and [/font]F2[font=宋体]∝[/font]v2 [font=宋体]. According ...; tigar_chen FPGA/CPLD

What is equivalent noise charge?: What does equivalent noise charge (ENC) mean? What does it mean when ENC reaches 3100 rms electrons? What does rms mean? Thanks for your help...; hemiao Analog electronics

[Evaluation of EC-01F-Kit, the NB-IoT development board of Anxinke] + Try to connect the serial port assistant to Alibaba Cloud: This article is to make up for the previous review, which I forgot to continue. Today, I will continue to test our Alibaba Cloud connection. For more information, please refer to the previous review, ...; 流行科技 RF/Wirelessly

GSM: Has anyone used minisTM32 to connect with GSM module? Please tell me how to connect the module and the board. Thank you....; 笑话不冷 stm32/stm8

RF circuit layout principles (reposted): 1.Sirf reference typical four or six layer board, standard FR4 material 2.All components should be surface mounted as much as possible 3.When placing the connector, try to avoid introducing noise into...; JasonYoo RF/Wirelessly

Design of CATV-based intelligent campus broadcasting/examination system

Traditional broadcasting systems generally need to be operated manually at a fixed time, and can only realize one-way broadcasting with few functions. Traditional bell ringing equipment has a singl...[Details]
Homemade healthy and energy-saving water dispenser

1. Circuit composition The whole circuit consists of two parts: 1. Power saving control circuit As shown in the figure below. Including delay circuit and drive circuit. (1) Delay ci...[Details]
The Future of Power Supply Design for Portable Applications

Today, with the increasing integration of functions, mobile phones can also be used as portable media players (PMP), digital cameras, handheld computers (PDAs), and even global positioning systems ...[Details]
Research on parking guidance system based on ultrasonic detection

1. Introduction With the growth of parking demand, the scale of parking lots is becoming larger and larger. A lot of research has been done on intelligent parking lots in China, but most of th...[Details]
Next-generation automotive lighting power supplies

introduction Throughout the history of automotive lighting, power has always played an important role. Initially, cars only needed headlights to see the road in the dark. Later, other light so...[Details]
How Blackfin Convergent Processors Win with Scalability

Converged processors meet scalability requirements In current embedded system design, solutions based on MCU, DSP, FPGA and ASIC account for more than 90% of the market share. These solutions ...[Details]
How to judge the quality of laptop battery

When choosing a laptop battery, you should consider several factors, such as power, appearance, and quality. Regarding power, we often see that a manufacturer uses values such as the number ...[Details]
51 single chip microcomputer + dot matrix 8*8 up, down, left, right shift display C program

I've been studying dot matrix recently. It looks simple, but it takes a while to master it completely! The 8*8 dot matrix hardware circuit I'm making now is like this. The row is driven by 74HC138 + t...[Details]
How to measure capacitance using the 7011-S card

Capacitance Measurement Used to verify that capacitors meet the manufacturer's specifications. For quality control, a group of capacitors may be placed in an environmental chamber and the cap...[Details]
Advantages of Using PolySwitch™ PPTC Devices for Automotive Wiring Protection

Introduction Automakers are working to reduce vehicle weight to reduce CO2 emissions and improve fuel efficiency. Designers are therefore seeking new technologies and design techniques that can...[Details]
Design and implementation of intelligent control system for shortwave transmitter

0 Introduction In order to improve the automation control of shortwave transmitters, so that they can automatically process from far to near, the technicians here use the ICS system to complete the ...[Details]
New evolution of automobile energy: a complete analysis of mainstream hybrid technology

The invention of the steam engine ushered in the first conversion of internal energy and mechanical energy for mankind, and the birth of the internal combustion engine at the end of the 19th centur...[Details]
Button battery introduction example

Button cells (also called button cells) are those batteries with equal or larger diameter and height. The current size range of alkaline button cells is specified as follows: diameter 4.8mm-11.4mm,...[Details]
EMC Confidential

1. Electromagnetic compatibility design Electromagnetic compatibility refers to the ability of electronic equipment to work in a coordinated and effective manner in various electromagnetic env...[Details]
Design of digital intelligent charger

Modern communication equipment, portable electronic products, laptops, electric vehicles, small satellites, etc. generally use batteries as power sources and are widely used. However, the batteries...[Details]

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
