AT27C020-20JI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AT27C020-20JI

AT27C020-20JI: DescriptionOTP ROM, 256KX8, 200ns, CMOS, PQCC32; Categorystorage storage; File Size483KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

AT27C020-20JI Overview

OTP ROM, 256KX8, 200ns, CMOS, PQCC32

AT27C020-20JI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PLASTIC, LCC-32
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum access time	200 ns
I/O type	COMMON
JESD-30 code	R-PQCC-J32
JESD-609 code	e0
length	13.97 mm
memory density	2097152 bit
Memory IC Type	OTP ROM
memory width	8
Humidity sensitivity level	2
Number of functions	1
Number of terminals	32
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.55 mm
Maximum standby current	0.0001 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	11.43 mm
Base Number Matches	1

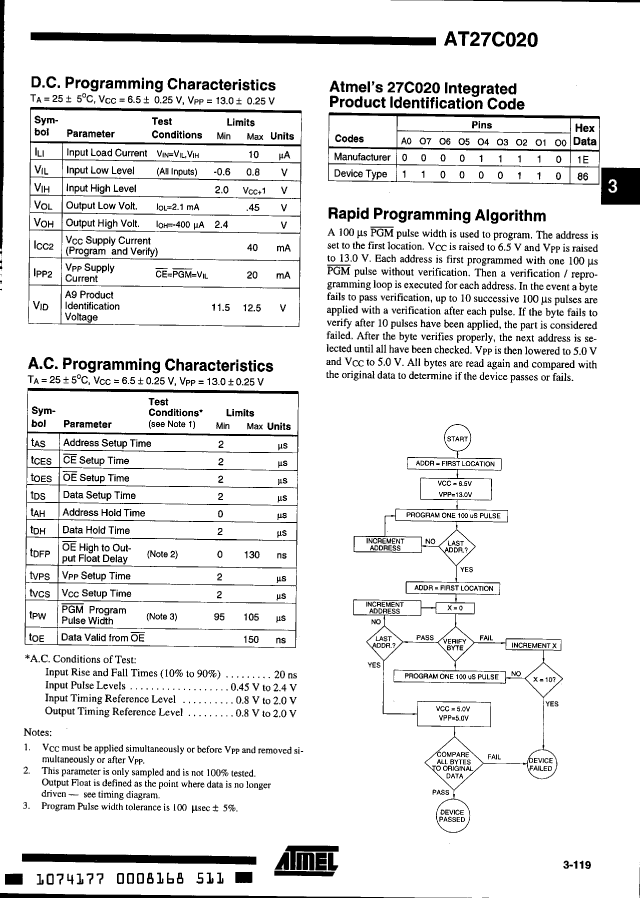

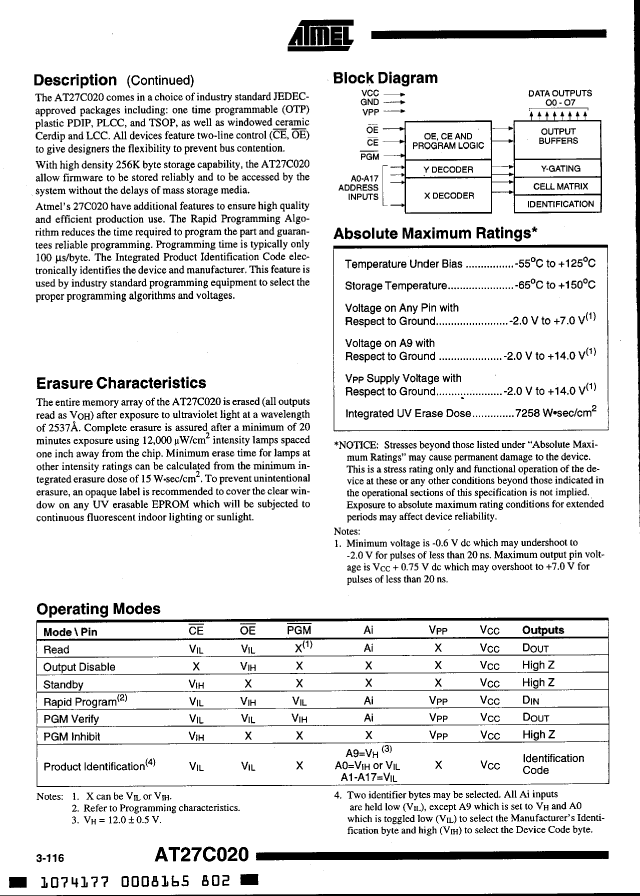

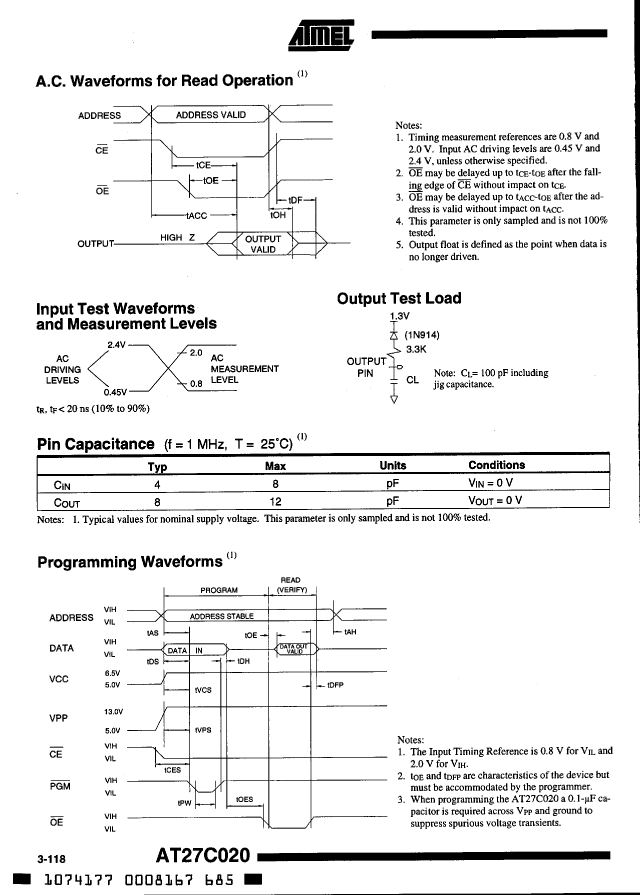

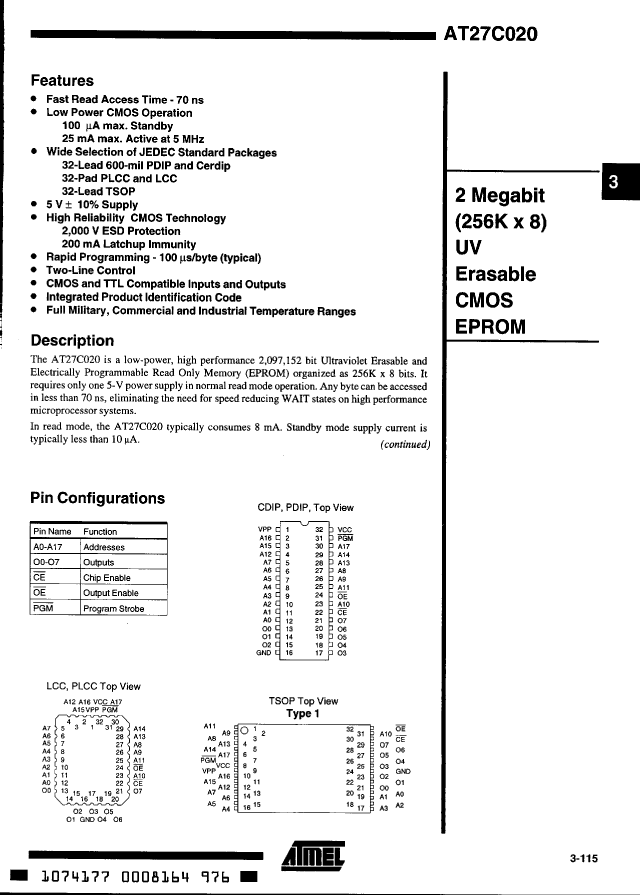

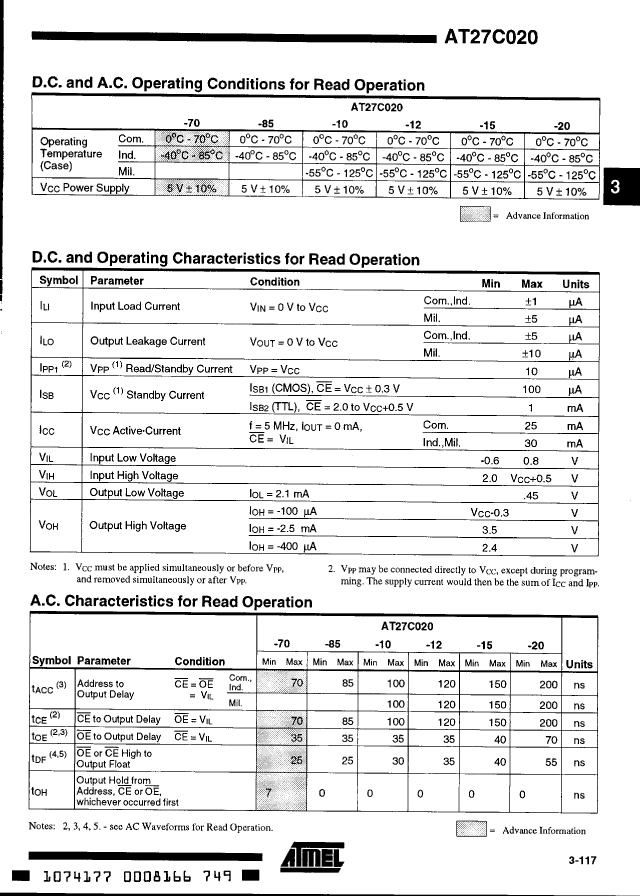

Preview

Download Datasheet

View All

AT27C020-20JI Related Products

	AT27C020-20JI	AT27C020-20PC	AT27C020-20PI	AT27C020-20JC
Description	OTP ROM, 256KX8, 200ns, CMOS, PQCC32	OTP ROM, 256KX8, 200ns, CMOS, PDIP32	OTP ROM, 256KX8, 200ns, CMOS, PDIP32	OTP ROM, 256KX8, 200ns, CMOS, PQCC32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, LCC-32	0.600 INCH, PLASTIC, DIP-32	0.600 INCH, PLASTIC, DIP-32	PLASTIC, LCC-32
Reach Compliance Code	not_compliant	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	200 ns	200 ns	200 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PQCC-J32	R-PDIP-T32	R-PDIP-T32	R-PQCC-J32
JESD-609 code	e0	e0	e0	e0
length	13.97 mm	42.05 mm	42.05 mm	13.97 mm
memory density	2097152 bit	2097152 bi	2097152 bit	2097152 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	32	32	32	32
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	DIP	QCCJ
Encapsulate equivalent code	LDCC32,.5X.6	DIP32,.6	DIP32,.6	LDCC32,.5X.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	NOT SPECIFIED	225
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.55 mm	5.59 mm	5.59 mm	3.55 mm
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.03 mA	0.025 mA	0.03 mA	0.025 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	30
width	11.43 mm	15.24 mm	15.24 mm	11.43 mm
Maker	-	Microchip	Microchip	Microchip
