CD40105BD/3W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CD40105BD/3W

CD40105BD/3W: DescriptionFIFO, 16X4, Asynchronous, CMOS, CDIP16; Categorystorage storage; File Size409KB，5 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD40105BD/3W Overview

FIFO, 16X4, Asynchronous, CMOS, CDIP16

CD40105BD/3W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Memory IC Type	OTHER FIFO
memory width	4
Number of terminals	16
word count	16 words
character code	16
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	16X4
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

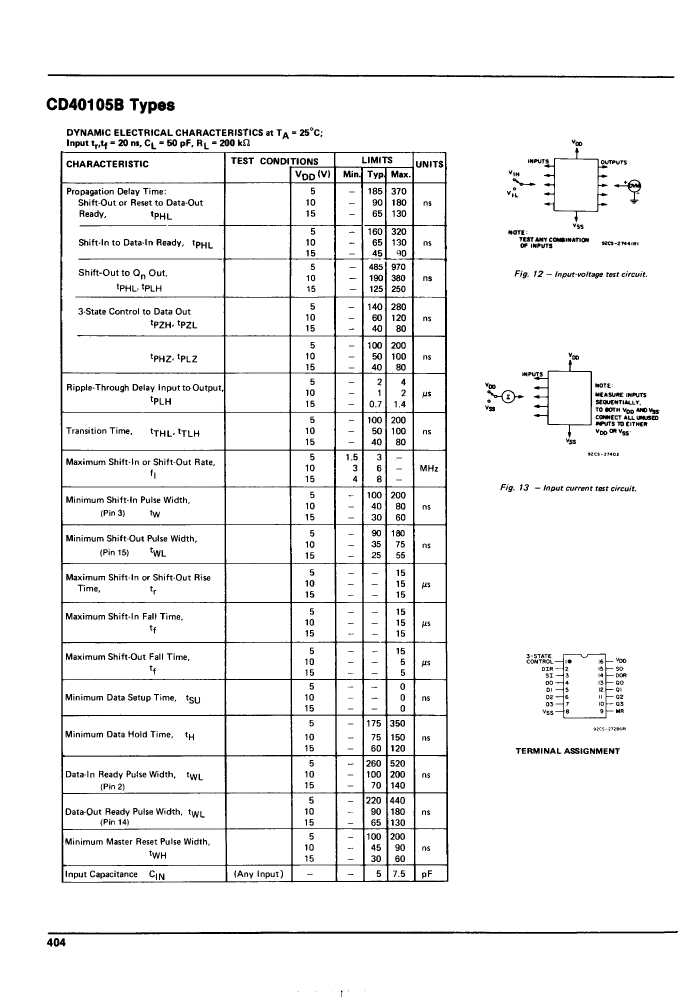

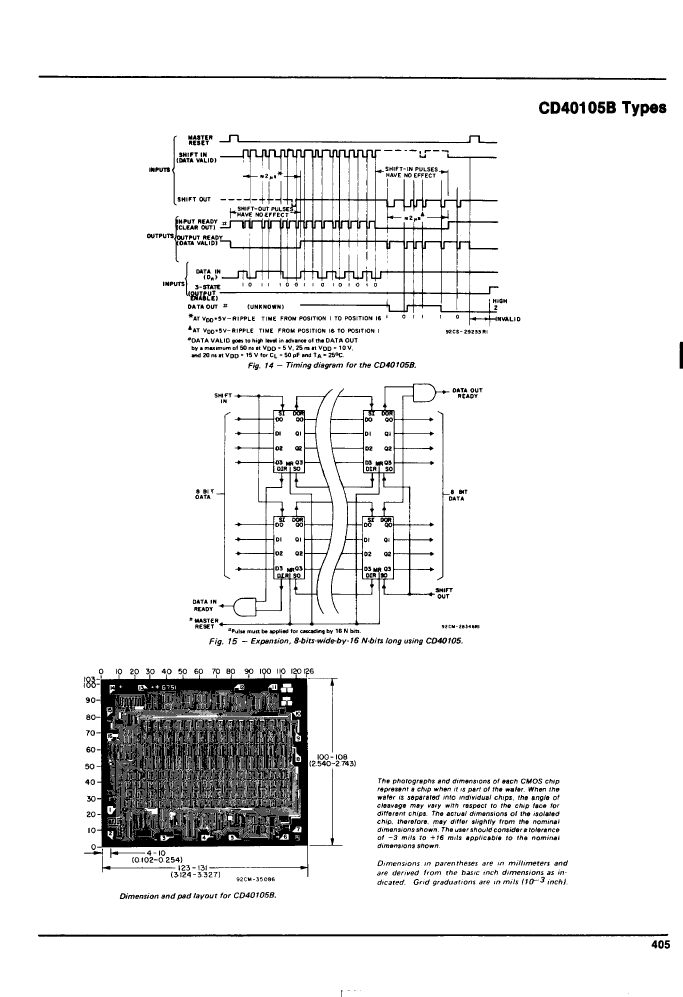

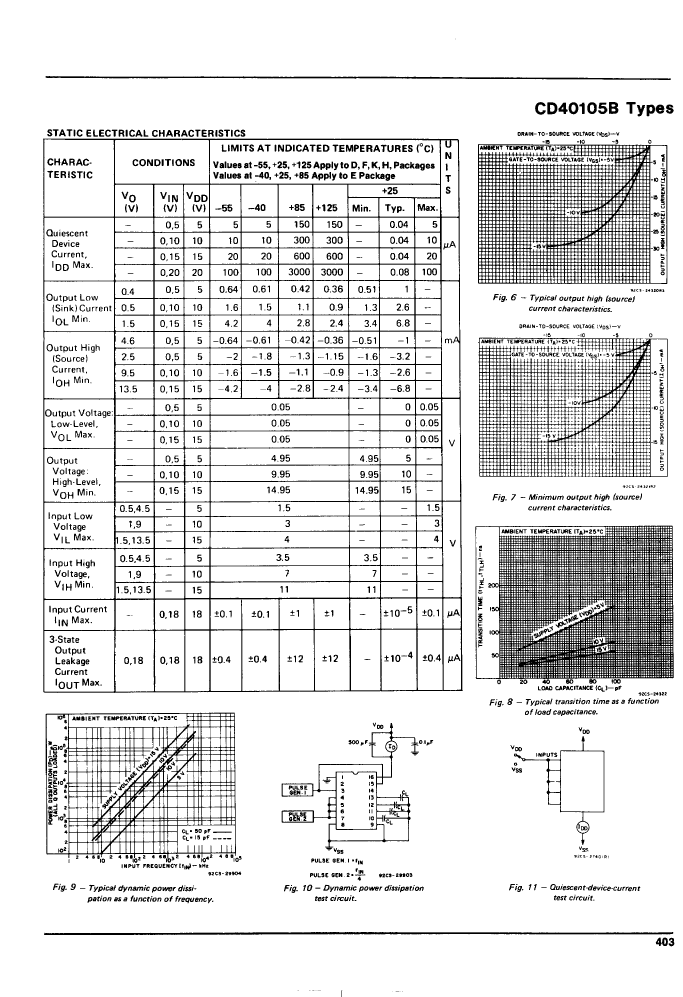

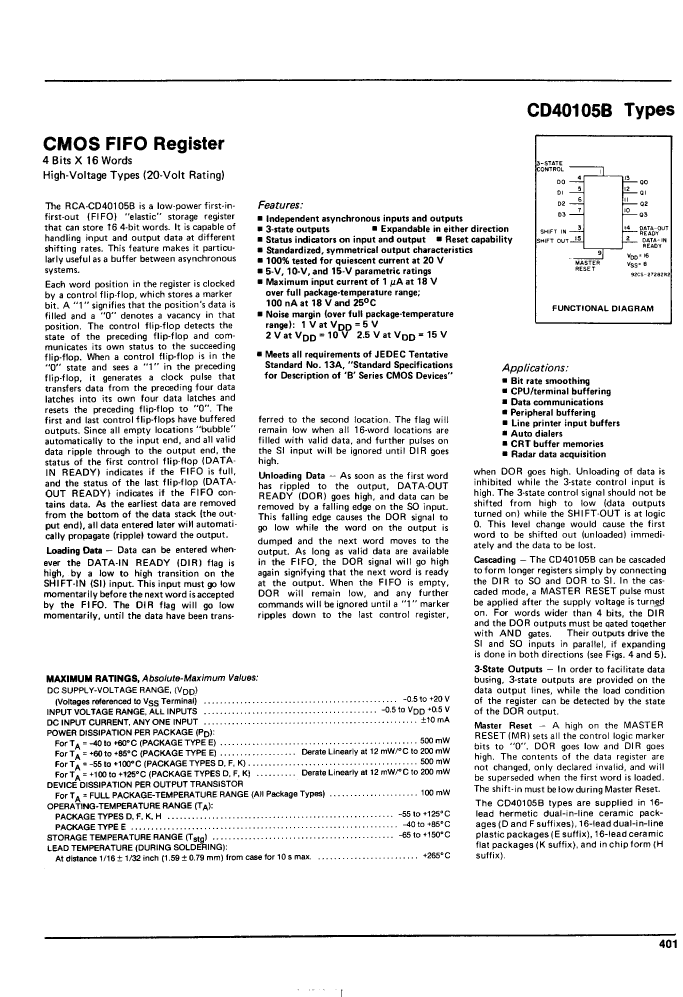

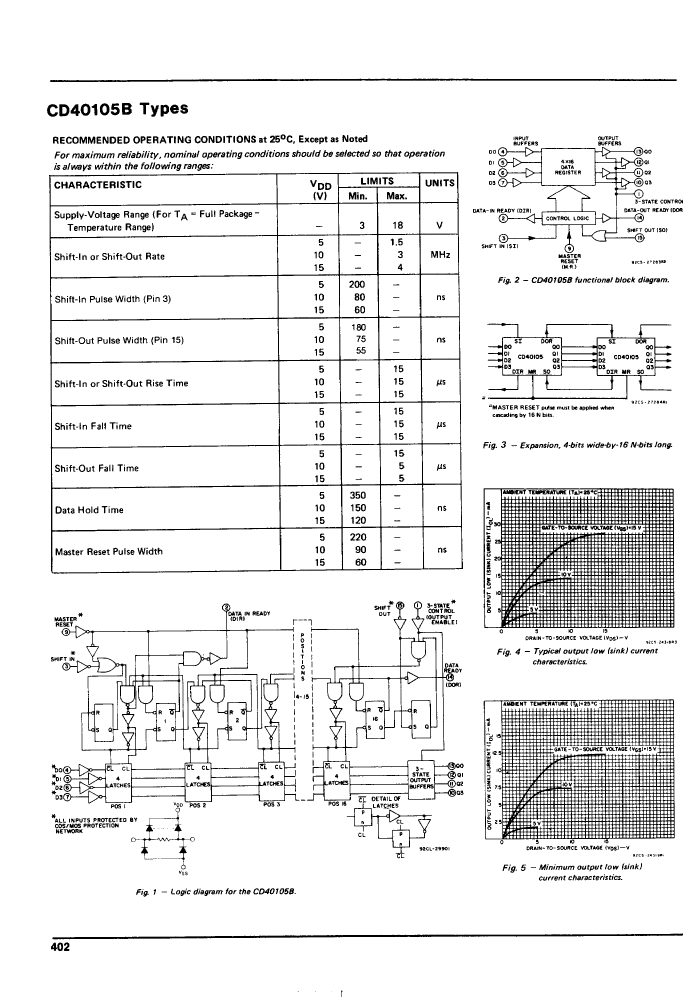

Preview

Download Datasheet

View All

CD40105BD/3W Related Products

	CD40105BD/3W	CD40105BF	CD40105BF/3A	CD40105BK/3	CD40105BD	CD40105BH	CD40105BEX98	CD40105BEX	CD40105BD/3	CD40105BFX
Description	FIFO, 16X4, Asynchronous, CMOS, CDIP16	FIFO, 16X4, Asynchronous, CMOS, CDIP16,	FIFO, 16X4, Asynchronous, CMOS, CDIP16	FIFO, 16X4, Asynchronous, CMOS, CDFP16	FIFO, 16X4, Asynchronous, CMOS, CDIP16,	FIFO, 16X4, Asynchronous, CMOS,	FIFO, 16X4, Asynchronous, CMOS, PDIP16,	FIFO, 16X4, Asynchronous, CMOS, PDIP16,	FIFO, 16X4, Asynchronous, CMOS, CDIP16	FIFO, 16X4, Asynchronous, CMOS, CDIP16,
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	, DIE OR CHIP	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Memory IC Type	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO	OTHER FIFO
memory width	4	4	4	4	4	4	4	4	4	4
word count	16 words	16 words	16 words	16 words	16 words	16 words	16 words	16 words	16 words	16 words
character code	16	16	16	16	16	16	16	16	16	16
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C
organize	16X4	16X4	16X4	16X4	16X4	16X4	16X4	16X4	16X4	16X4
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIE OR CHIP	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDFP-F16	R-XDIP-T16	-	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0	e0	e0
Number of terminals	16	16	16	16	16	-	16	16	16	16
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	-	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DFP	DIP	-	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	-
surface mount	NO	NO	NO	YES	NO	-	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	-	-	-	-
Maker	-	RCA	-	RCA	-	-	RCA	RCA	RCA	RCA
