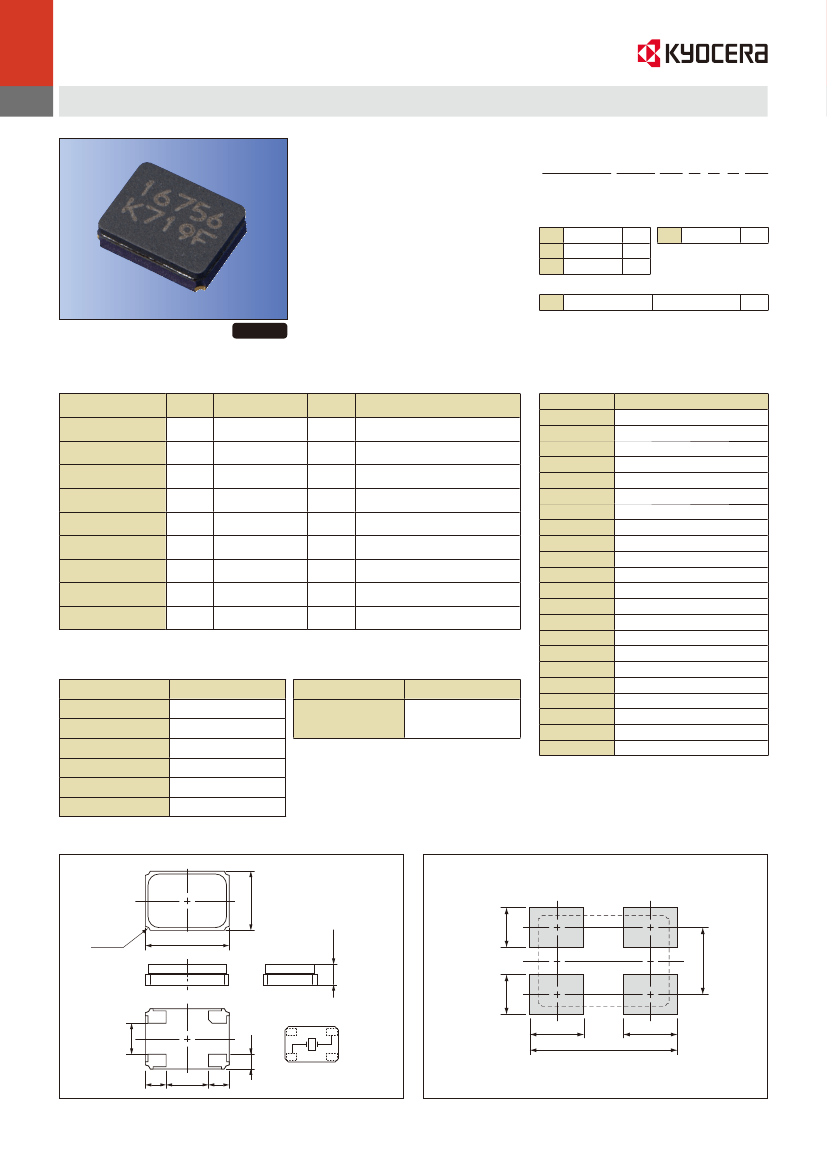

Crystal Units
Surface Mount Type CX3225GB
3.2×2.5mm for Consumer Products
Features
• Crystal unit for Consumer Products
• Small and low profile 0.9mm max.
(3.2×2.5×0.8mm)
• Ceramic package
• Product with lead free terminations
• Reflow compatible
How to Order
CX3225GB 27000
□□ □ □ □ □□
①
②
③ ④⑤⑥ ⑦
②
Frequency
④
Frequency Stability
H
±20×10
−
6
Std.
①
Series
③
Load Capacitance
B0
D0
F0
EQ
6 pF
8 pF
10 pF
—
Std.
—
Applications
• Digital Electronics
• Consumer Products
⑤
Operating Temp. Range
⑥
Frequency Temp. Stability
−10
to
+70°C
±30×10
−
6
Std.
RoHS Compliant
⑦
Individual Specification
Packaging (Tape & Reel 3000/ 1000 pcs./ reel)
Specifications
Item
Frequency Range
Overtone Order
Load Capacitance
Frequency Stability
Motional Series Resistance
Drive Level
Operating Temp. Range
Storage Temp. Range
Frequency Temp. Characteristics
Symbol
f
_nom
OT
CL
f
_tol
R1
DL
T
_use
T
_stg
f
_tem
Specification
9800 to 54000
Fundamental
8
±20
Table 1
Table 2
−10
to
+70
−40
to
+85
±30
Units
kHz
―
pF
×10
−
6
ohm
μW
°C
°C
×10
−
6
Freq. deviation from the value at 25°C
25°C±3°C
Remarks
Typical Frequencies and Part Numbers
Frequency (kHz)
10000.000
12000.000
13560.000
14318.180
14745.600
16000.000
18432.000
19200.000
20000.000
22579.200
24000.000
24576.000
25000.000
27000.000
27120.000
30000.000
32000.000
33333.000
38400.000
40000.000
48000.000
54000.000
Part Number
CX3225GB10000D0HEQZ1
CX3225GB12000D0HEQZ1
CX3225GB13560D0HEQZ1
CX3225GB14318D0HEQZ1
CX3225GB14745D0HEQZ1
CX3225GB16000D0HEQZ1
CX3225GB18432D0HEQZ1
CX3225GB19200D0HEQZ1
CX3225GB20000D0HEQZ1
CX3225GB22579D0HEQZ1
CX3225GB24000D0HEQZ1
CX3225GB24576D0HEQZ1
CX3225GB25000D0HEQZ1
CX3225GB27000D0HEQZ1
CX3225GB27120D0HEQZ1
CX3225GB30000D0HEQZ1
CX3225GB32000D0HEQZ1
CX3225GB33333D0HEQZ1
CX3225GB38400D0HEQZ1
CX3225GB40000D0HEQZ1
CX3225GB48000D0HEQZ1
CX3225GB54000D0HEQZ1
∗
Please contact us for other specifications.
Table1 Motional Series Resistance Table2 Level of Drive
Frequency Range
9800 to 11999kHz
12000 to 13999kHz
14000 to 15999kHz
16000 to 19999kHz
20000 to 26999kHz
27000 to 54000kHz
Motional Series Resistance
300Ω max.
250Ω max.
100Ω max.
80Ω max.
60Ω max.
50Ω max.
(Unit: mm)
Frequency Range
9800 to 54000kHz
Level of Drive
10μW (100μW max.)
Dimensions
Recommended Land Pattern
(Unit: mm)
1.05
1.05
1.3
3.6
1.3
1.85
