ASTC-01-3-MT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> ASTC-01-3-MT

Preview

ASTC-01-3-MT: DescriptionData Line Filter, 2 Function(s), 4.5A, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size148KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTC-01-3-MT Overview

Data Line Filter, 2 Function(s), 4.5A, ROHS COMPLIANT PACKAGE-4

ASTC-01-3-MT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BOX
Maximum DC resistance	0.008 Ω
filter type	DATA LINE FILTER
high	4.7 mm
inductance	1.07 µH
length	11.43 mm
Installation type	SURFACE MOUNT
Number of functions	2
method of packing	TAPE AND REEL
physical size	L11.43XB8.89XH4.7 (mm)/L0.45XB0.35XH0.185 (inch)
Rated current	4.5 A
width	8.89 mm

Preview

Download Datasheet

View All

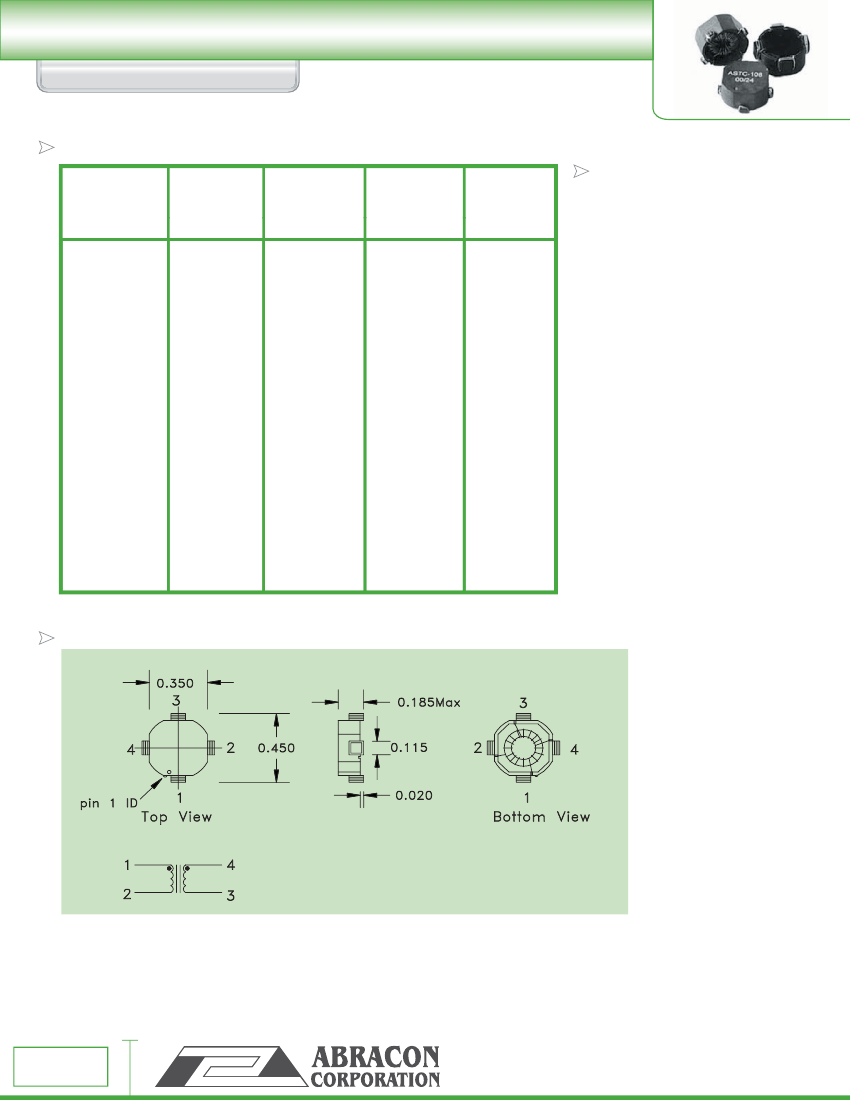

SMT TOROID INDUCTOR

ASTC-01 SERIES

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

Part

Number

ASTC-01-1

ASTC-01-2

ASTC-01-3

ASTC-01-4

ASTC-01-5

ASTC-01-6

ASTC-01-7

ASTC-01-8

ASTC-01-9

ASTC-01-10

ASTC-01-11

ASTC-01-12

ASTC-01-13

ASTC-01-14

ASTC-01-15

ASTC-01-16

ASTC-01-17

L (µH)

± 20%

0.42

0.60

1.07

2.02

4.83

8.08

9.62

15.03

20.46

25.40

32.33

50.52

68.40

99.01

150.72

198.41

299.87

Full load

Inductance

(µH) Min

0.31

0.43

0.73

1.36

3.37

5.31

6.23

9.62

14.12

17.07

22.27

33.57

43.65

63.64

96.64

130.79

190.05

DCR Max

Parallel

(m

Ω

)

6

7

8

14

41

52

57

87

159

177

251

316

373

557

844

1208

1525

DC Bias

Parallel

(A)

5.50

5.10

4.50

3.40

2.00

1.80

1.70

1.40

1.00

0.96

0.80

0.70

0.66

0.54

0.44

0.36

0.32

TECHNICAL INFORMATION:

• Inductance tolerance: add -M for ±20%

• L for ±15% (Optional)

• T for Tape & Reel

RoHS compliance effective 0526,

label on reel and box

PHYSICAL CHARACTERISTICS:

Dimension: inch

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev1.1-9/06

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com
