CD4052BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> CD4052BE

CD4052BE: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size341KB，7 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4052BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD4052BE	-	-	View	Buy Now

CD4052BE Overview

Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16,

CD4052BE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of channels	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

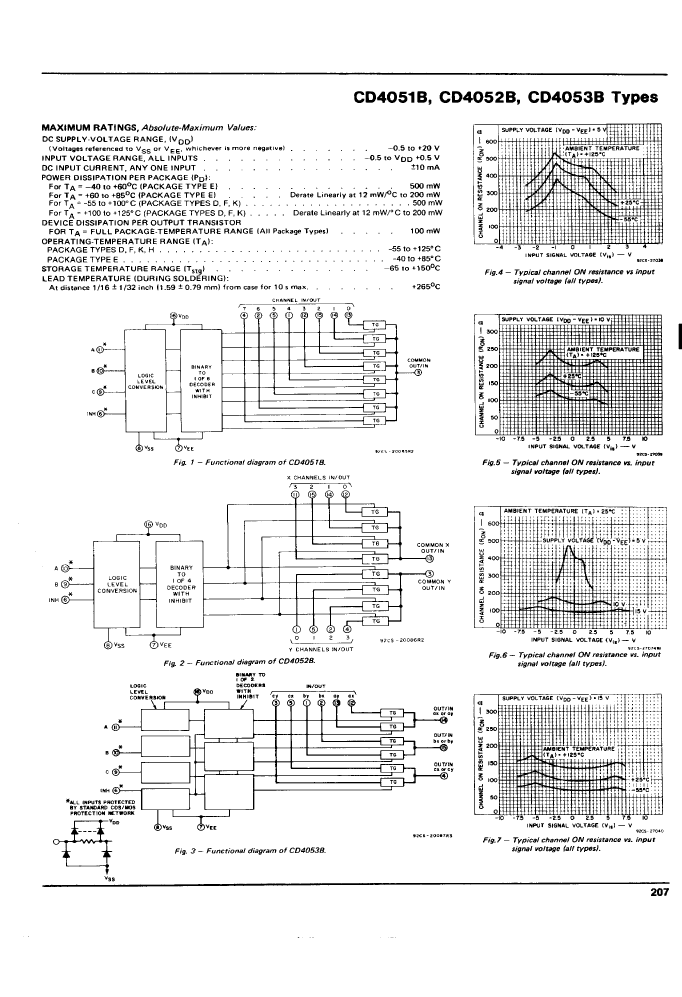

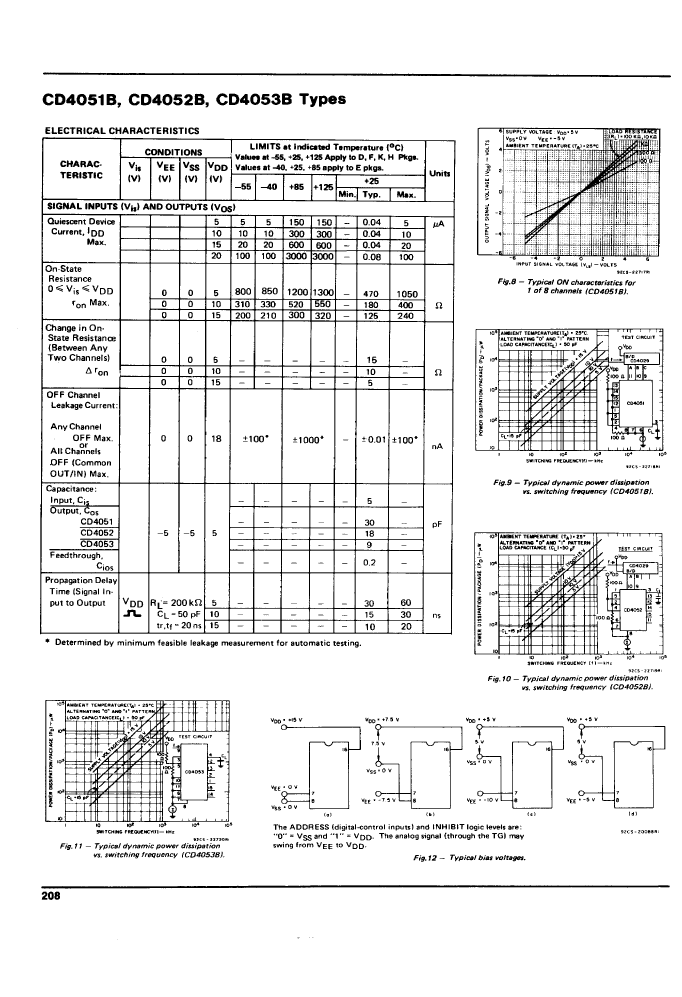

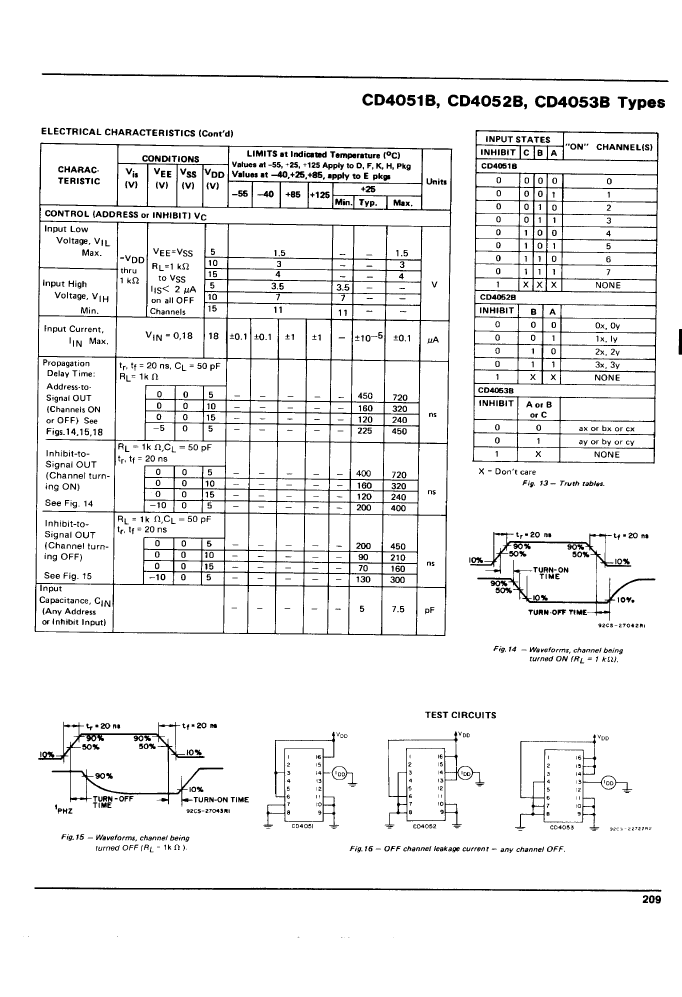

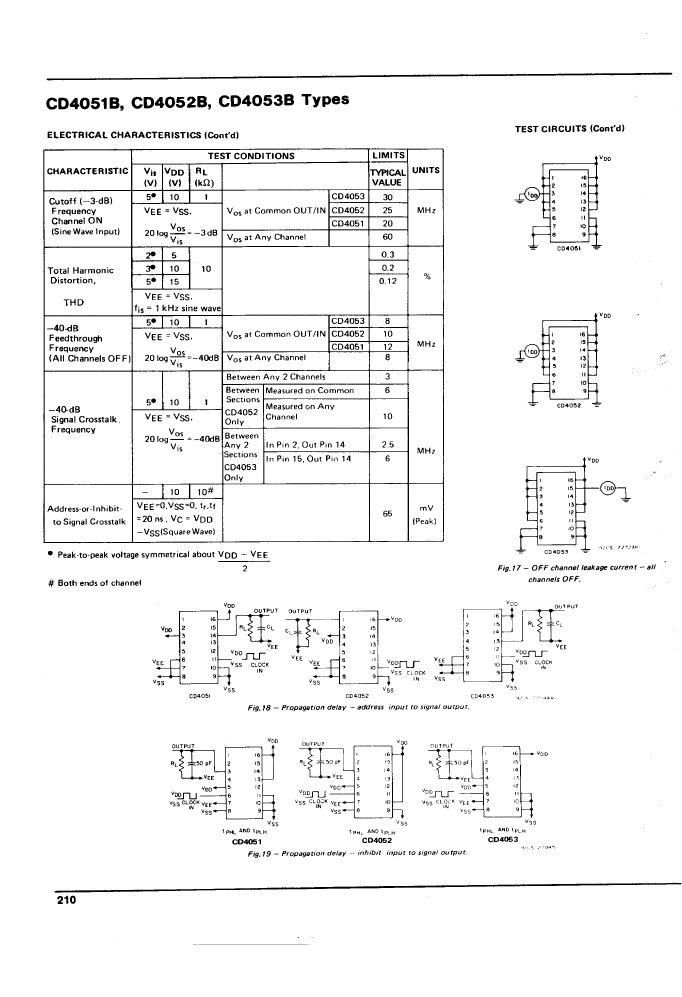

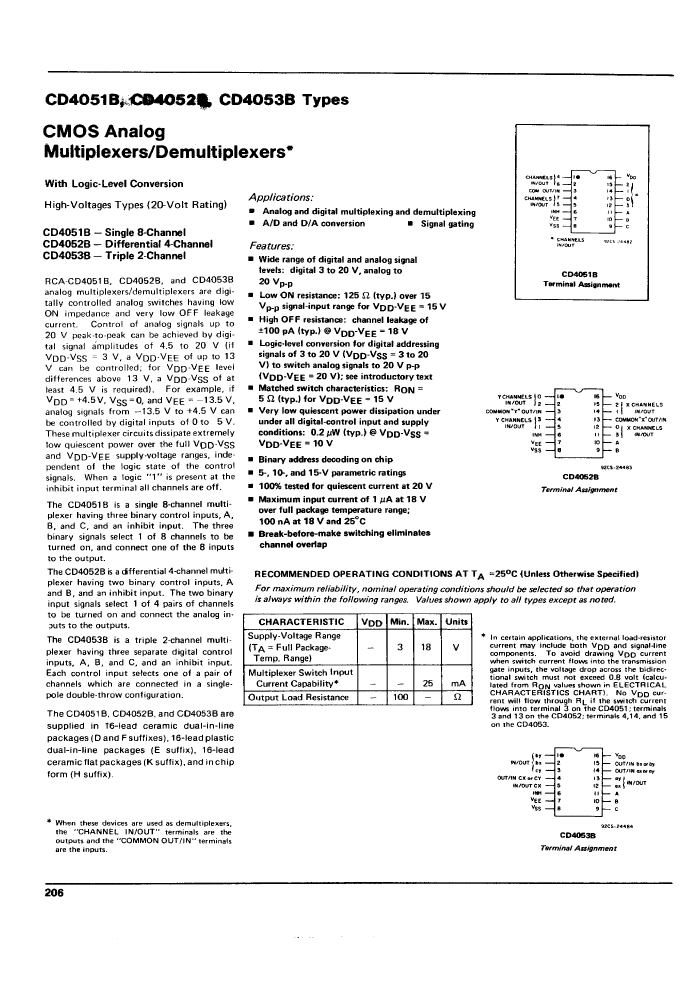

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CD4052BE Related Products

	CD4052BE	CD4051BF	CD4052BF	CD4051BE	CD4051BD	CD4052BD	CD4053BF	CD4053BE	CD4053BD	CD4052BK
Description	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16,	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, MOS, CDIP16, CERAMIC, DIP-16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16,	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, CDIP16,	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, CDIP16,	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDFP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-GDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of channels	4	8	4	8	8	4	2	2	2	4
Number of functions	1	1	1	1	1	1	3	3	3	1
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DFP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	YES
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	MOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
