2N1776A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> 2N1776A

2N1776A: DescriptionSilicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SEALED PACKAGE-2; CategoryAnalog mixed-signal IC Trigger device; File Size222KB，6 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx; Related ProductsFound18parts with similar functions to 2N1776A

Download Datasheet Parametric Compare View All

2N1776A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N1776A	-	-	View	Buy Now

2N1776A Overview

Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SEALED PACKAGE-2

2N1776A Parametric

Parameter Name	Attribute value
Parts packaging code	TO-64
package instruction	POST/STUD MOUNT, O-MUPM-D2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	15 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JEDEC-95 code	TO-64
JESD-30 code	O-MUPM-D2
Maximum leakage current	4 mA
On-state non-repetitive peak current	60 A
Number of components	1
Number of terminals	2
Maximum on-state current	4700 A
Maximum operating temperature	155 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	7.4 A
Off-state repetitive peak voltage	300 V
Repeated peak reverse voltage	300 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1

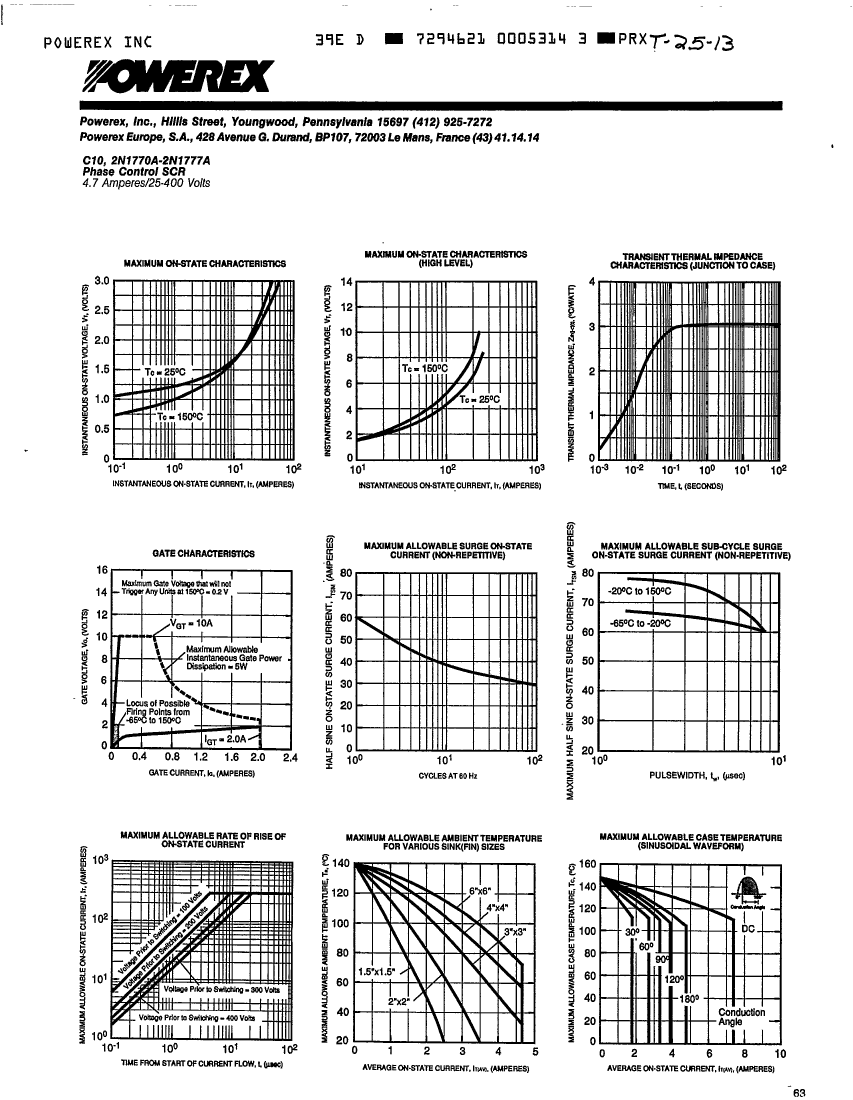

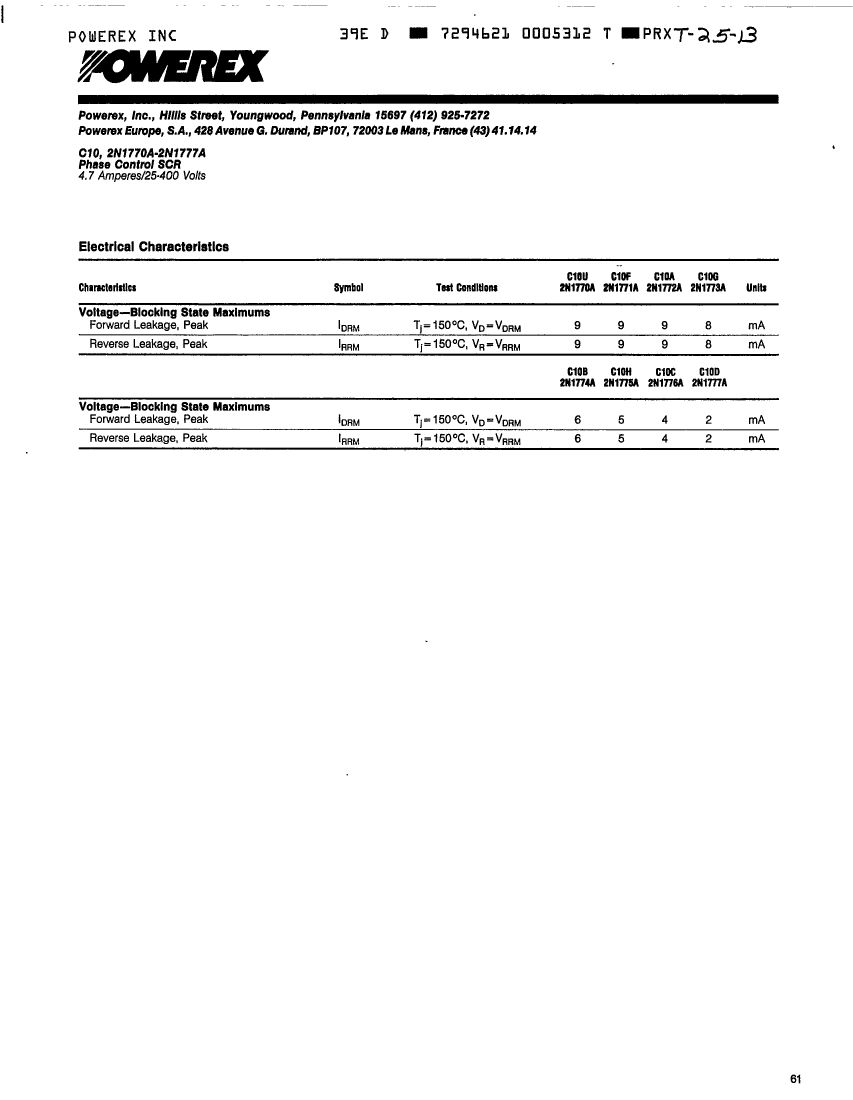

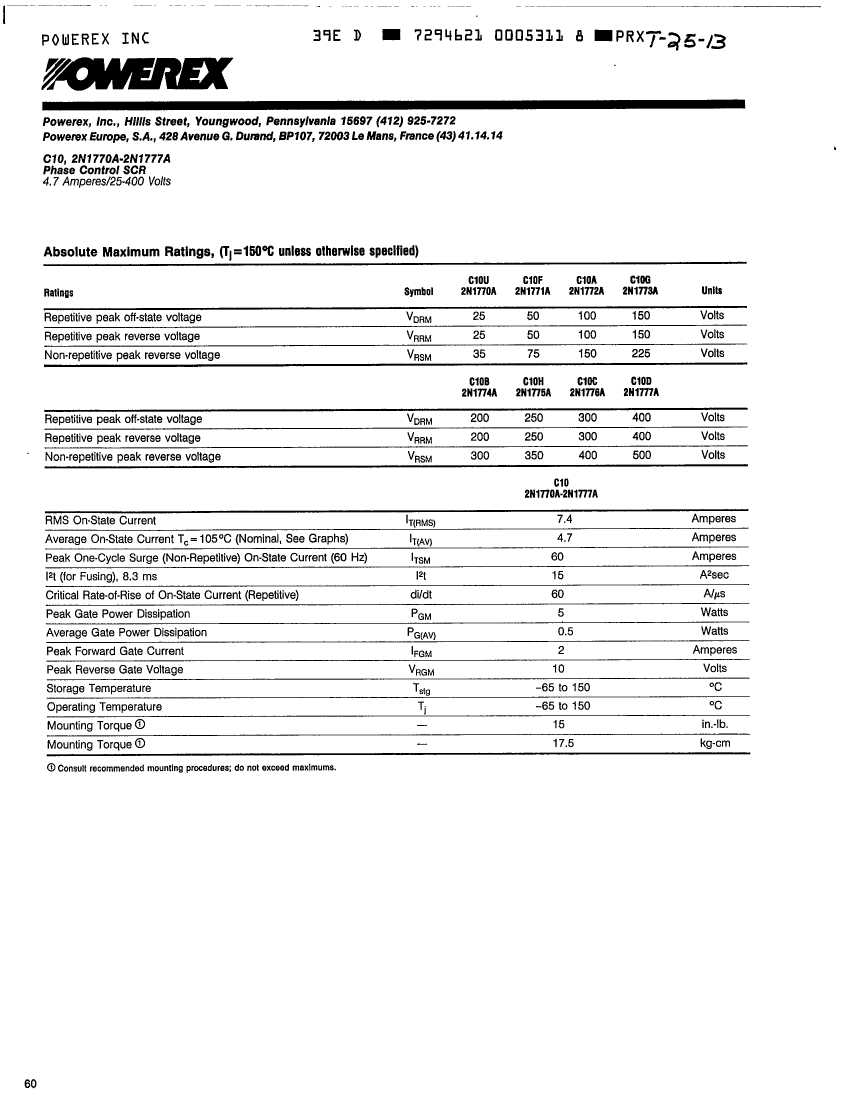

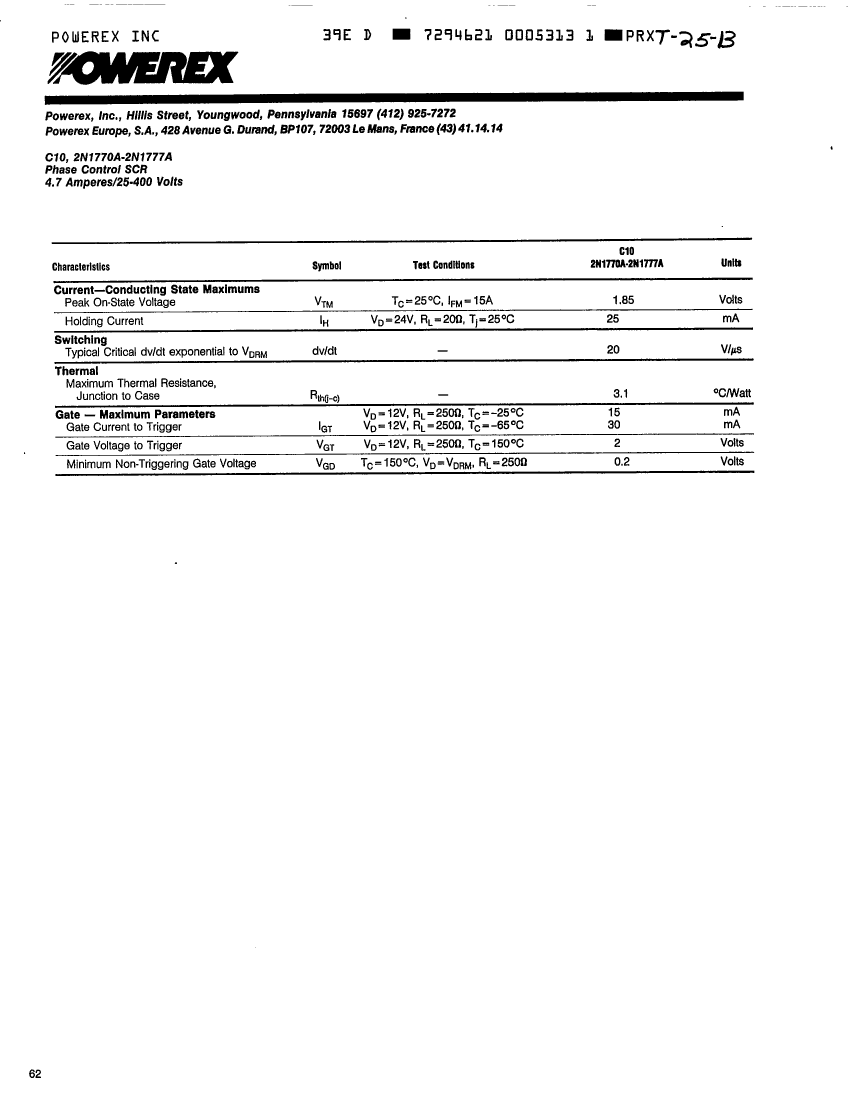

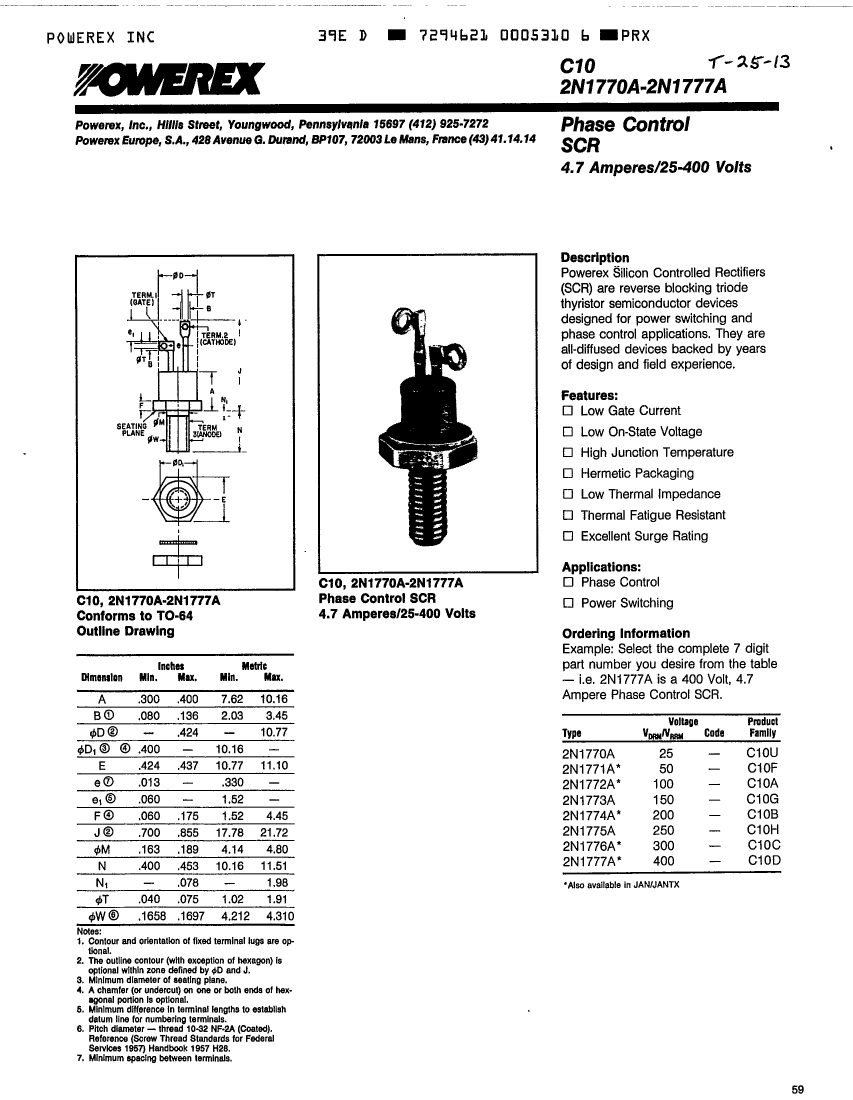

Preview

Download Datasheet

View All

2N1776A Related Products

	2N1776A	2N1773A	2N1774A	2N1777A	2N1770A	2N1775A
Description	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 300V V(DRM), 300V V(RRM), 1 Element, TO-64, HERMETIC SEALED PACKAGE-2	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 150V V(DRM), 150V V(RRM), 1 Element, TO-64	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 200V V(DRM), 200V V(RRM), 1 Element, TO-64	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, TO-64	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 25V V(DRM), 25V V(RRM), 1 Element, TO-64	Silicon Controlled Rectifier, 7.4A I(T)RMS, 4700mA I(T), 250V V(DRM), 250V V(RRM), 1 Element, TO-64
package instruction	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC gate trigger current	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
Maximum leakage current	4 mA	8 mA	6 mA	2 mA	9 mA	5 mA
On-state non-repetitive peak current	60 A	60 A	60 A	60 A	60 A	60 A
Maximum on-state current	4700 A	4700 A	4700 A	4700 A	4700 A	4700 A
Maximum operating temperature	155 °C	155 °C	155 °C	150 °C	155 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Off-state repetitive peak voltage	300 V	150 V	200 V	400 V	25 V	250 V
surface mount	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	-	-
