C2R-27NM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> C2R-27NM

C2R-27NM: DescriptionGeneral Purpose Inductor, 0.027uH, 20%, 1 Element, Air-Core, SMD; CategoryPassive components inductor; File Size35KB，2 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric View All

C2R-27NM Overview

General Purpose Inductor, 0.027uH, 20%, 1 Element, Air-Core, SMD

C2R-27NM Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
core material	AIR
DC Resistance	0.15 Ω
Nominal inductance(L)	0.027 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.71 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	NO LEAD
Test frequency	100 MHz
Tolerance	20%

Preview

Download Datasheet

View All

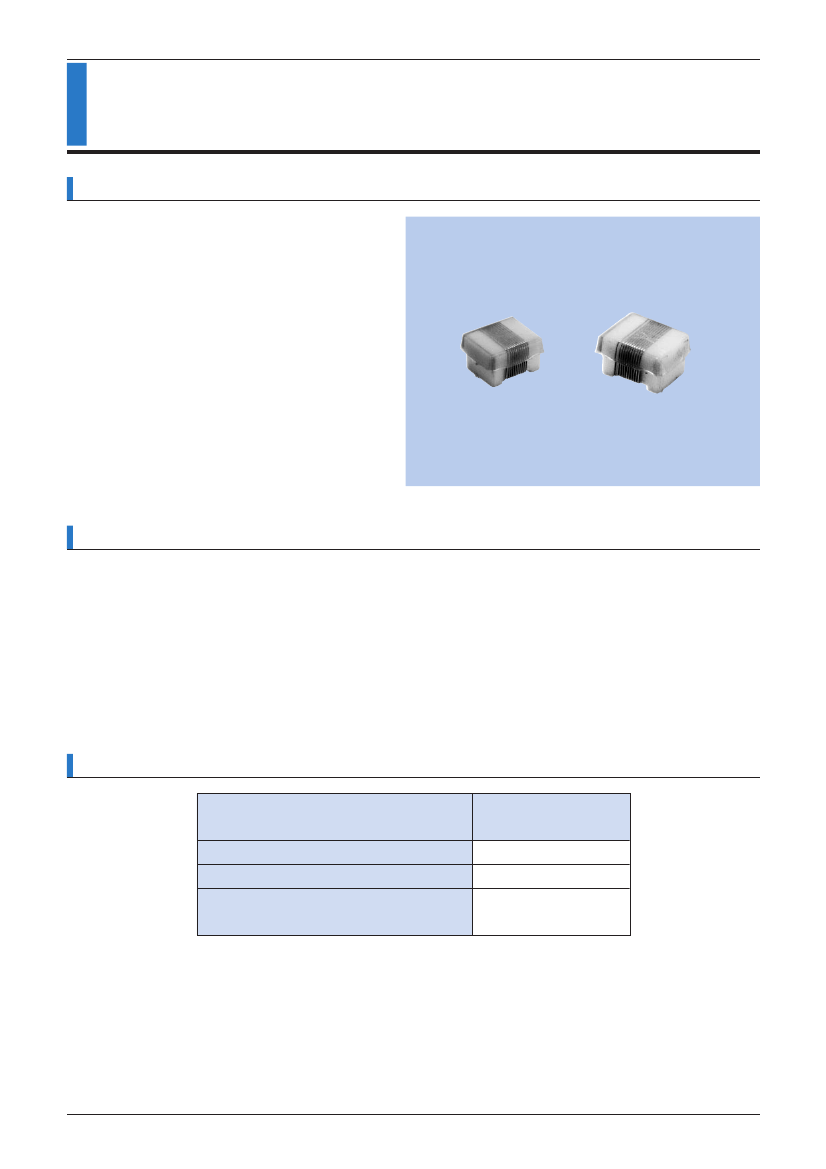

MITSUMI

High Frequency Chip Inductor For Mobile Communication Unit

C2-R

Coils, Filters

OUTLINE

This air-cored chip inductor is manufactured by

winding on a small aluminum core, and it is

suitable for high-frequency circuits of portable

telephones, PHS, pagers, and other mobile

communication units.

FEATURES

1. Small and lightweight surface mounting type.

2. High Q at high frequencies.

High self-resonance frequency.

3. Appplicable to 100MHz~2GHz.

SPECIFICATIONS

Item

Inductance Range

Approximate Q Value

Self-Resonance Frequency (Approximate)

Specifications

11~820nH

30~50 (at 100MHz)

400MHz~4GHz
