XR88C192CP: DescriptionSerial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，33 Pages; ManufacturerExar; Related ProductsFound20parts with similar functions to XR88C192CP

Download Datasheet Parametric Compare View All

XR88C192CP Overview

Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PDIP40, PLASTIC, DIP-40

XR88C192CP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Other features	OPERATES AT 3.3V SUPPLY AT 8MHZ
Address bus width	4
boundary scan	NO
maximum clock frequency	24 MHz
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	51.75 mm
low power mode	YES
Number of serial I/Os	2
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

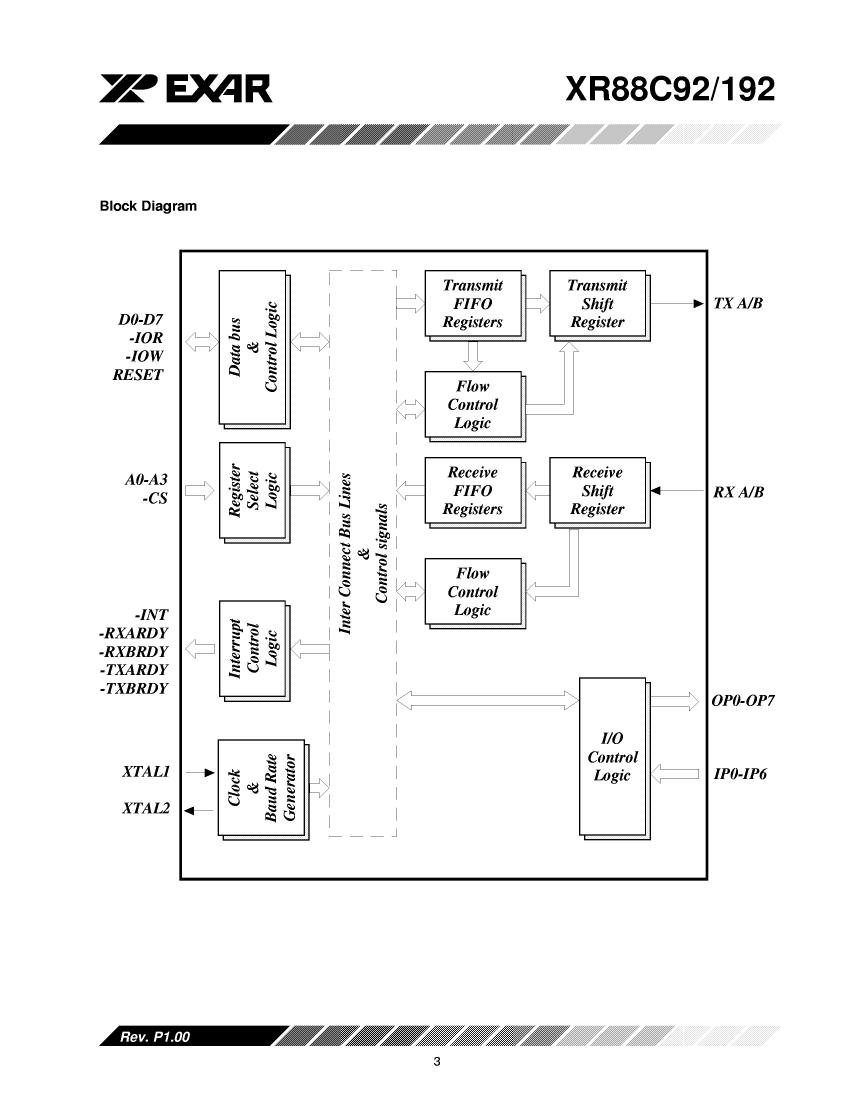

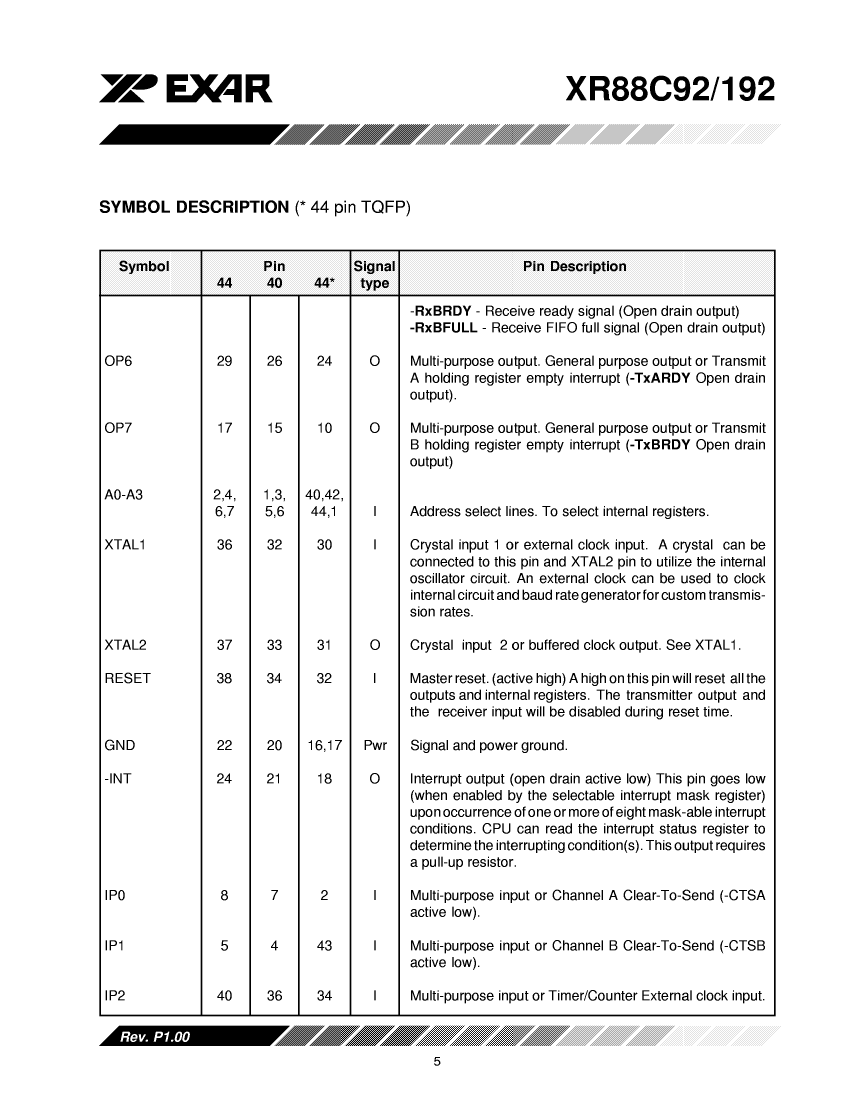

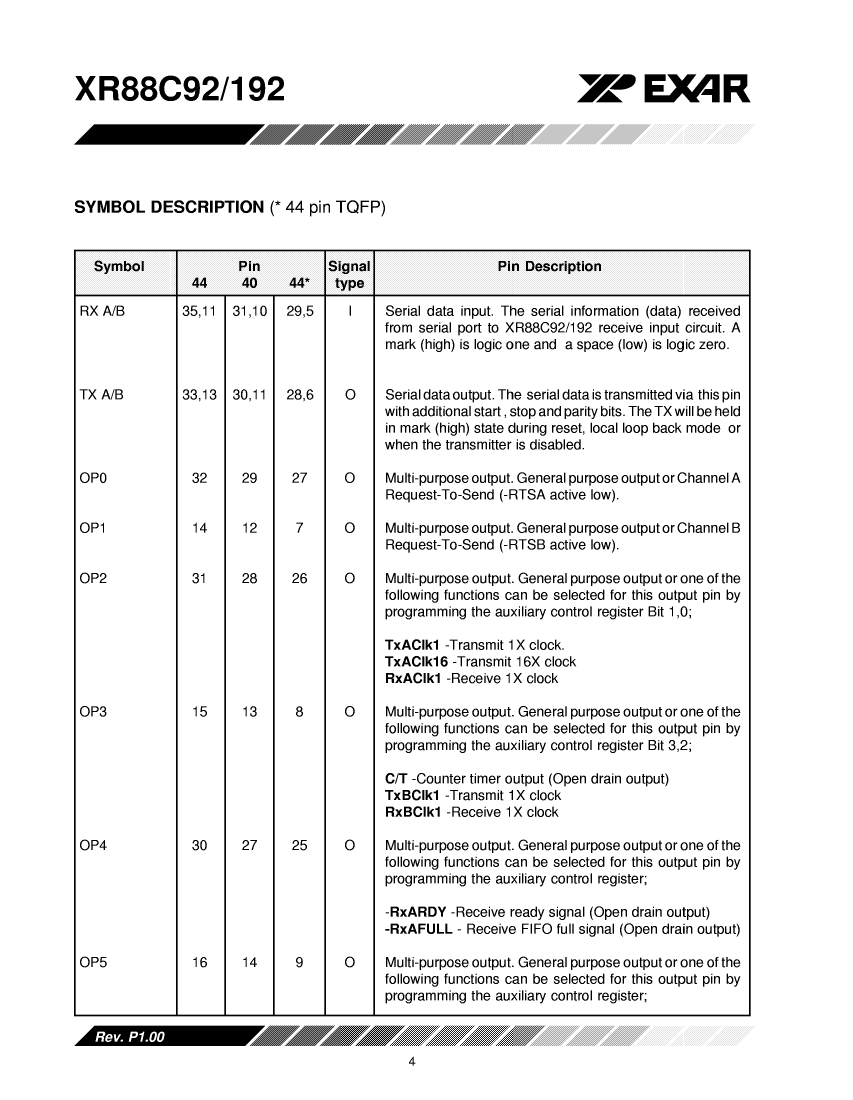

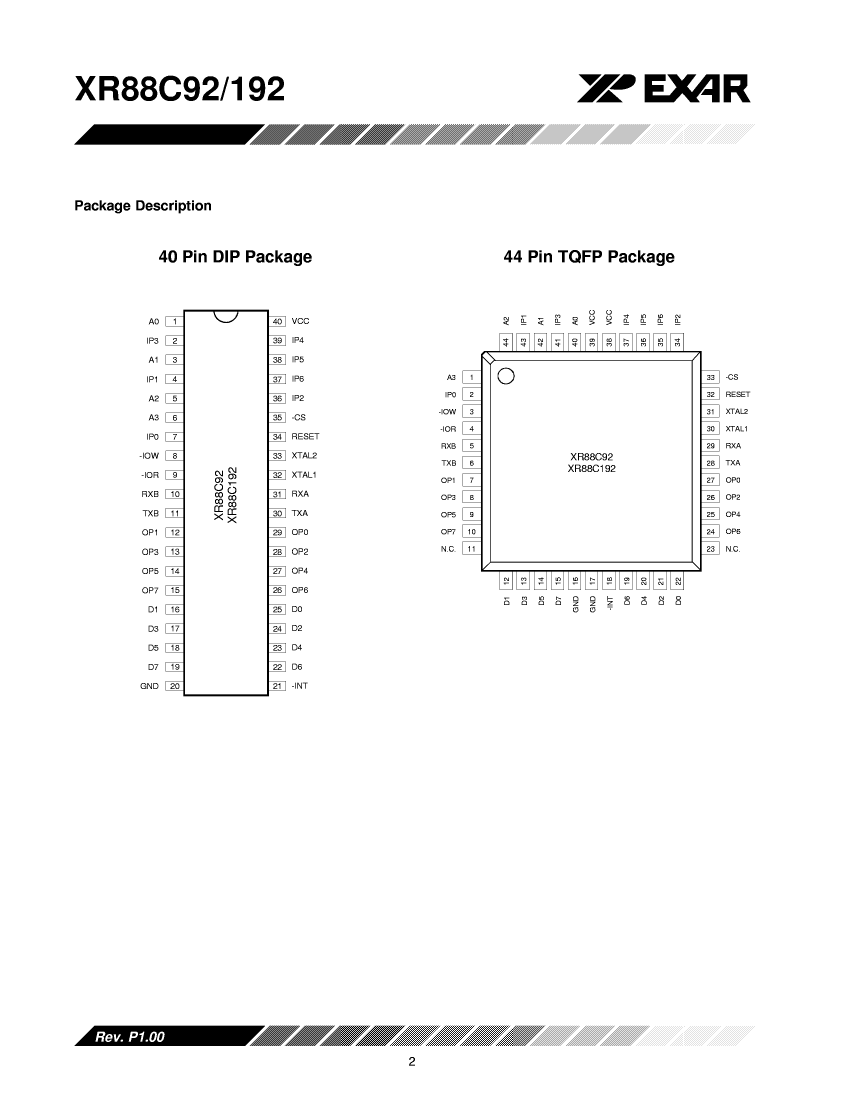

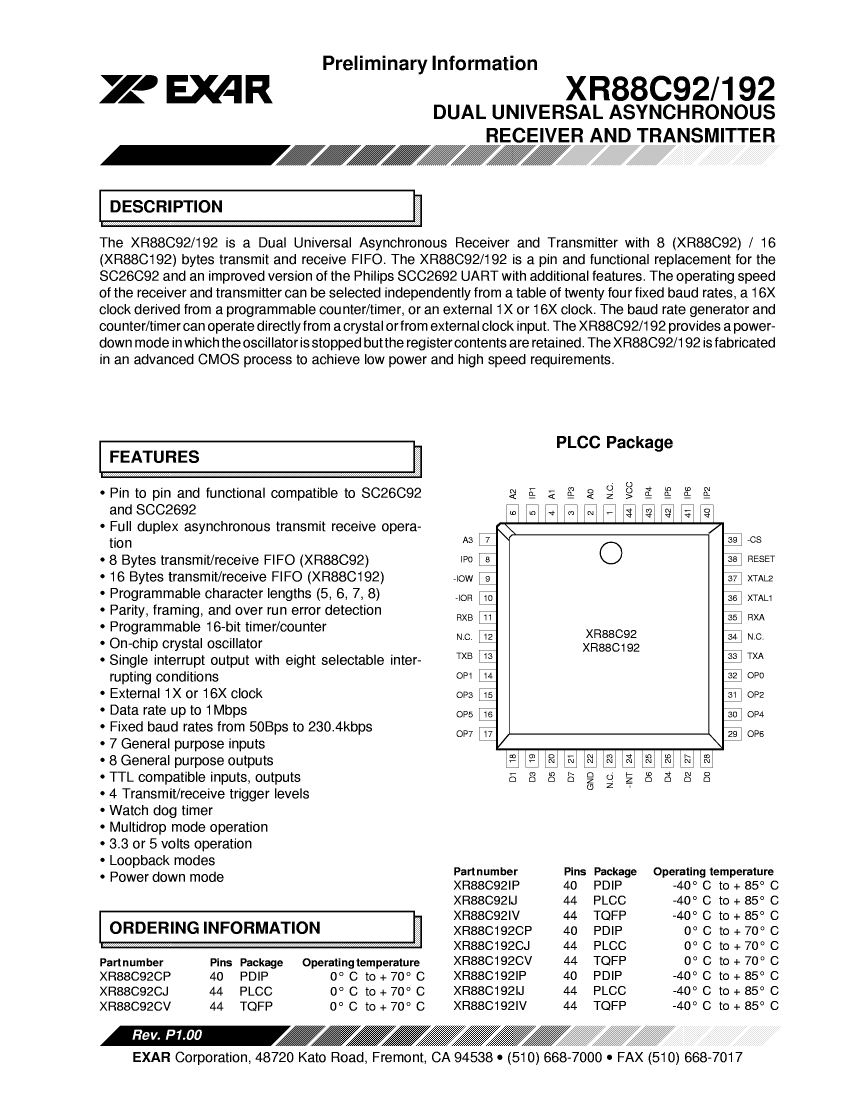

Preview

Download Datasheet

View All

XR88C192CP Related Products

	XR88C192CP	XR88C192IV	XR88C192CJ	XR88C92CP	XR88C192IP	XR88C92CV
Description	Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PQFP44, TQFP-44	Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 2 Channel(s), 0.125MBps, CMOS, PQFP44, TQFP-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	QFP	LCC	DIP	DIP	QFP
package instruction	DIP, DIP40,.6	LQFP, QFP44,.47SQ,32	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	DIP, DIP40,.6	LQFP, QFP44,.47SQ,32
Contacts	40	44	44	40	40	44
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	compliant
Other features	OPERATES AT 3.3V SUPPLY AT 8MHZ	ALSO OPERATES AT 3.3V SUPPLY AT 8MHZ	ALSO OPERATES AT 3.3V SUPPLY AT 8MHZ	OPERATES AT 3.3V SUPPLY AT 8MHZ	OPERATES AT 3.3V SUPPLY AT 8MHZ	ALSO OPERATES AT 3.3V SUPPLY AT 8MHZ
Address bus width	4	4	4	4	4	4
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz	24 MHz
letter of agreement	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	8	8	8	8	8	8
JESD-30 code	R-PDIP-T40	S-PQFP-G44	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	S-PQFP-G44
JESD-609 code	e0	e0	e0	e0	e0	e0
length	51.75 mm	10 mm	16.585 mm	51.75 mm	51.75 mm	10 mm
low power mode	YES	YES	YES	YES	YES	YES
Number of serial I/Os	2	2	2	2	2	2
Number of terminals	40	44	44	40	40	44
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	85 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	LQFP	QCCJ	DIP	DIP	LQFP
Encapsulate equivalent code	DIP40,.6	QFP44,.47SQ,32	LDCC44,.7SQ	DIP40,.6	DIP40,.6	QFP44,.47SQ,32
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK, LOW PROFILE	CHIP CARRIER	IN-LINE	IN-LINE	FLATPACK, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	240	240	NOT SPECIFIED	NOT SPECIFIED	240
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	6.35 mm	1.6 mm	4.57 mm	6.35 mm	6.35 mm	1.6 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	J BEND	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	0.8 mm	1.27 mm	2.54 mm	2.54 mm	0.8 mm
Terminal location	DUAL	QUAD	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	30	30	NOT SPECIFIED	NOT SPECIFIED	30
width	15.24 mm	10 mm	16.585 mm	15.24 mm	15.24 mm	10 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Maker	Exar	-	-	Exar	Exar	Exar
