MC74HC4078DR2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74HC4078DR2

MC74HC4078DR2: DescriptionIC,LOGIC GATE,8-INPUT OR/NOR,HC-CMOS,SOP,14PIN,PLASTIC; Categorylogic logic; File Size241KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74HC4078DR2 Overview

IC,LOGIC GATE,8-INPUT OR/NOR,HC-CMOS,SOP,14PIN,PLASTIC

MC74HC4078DR2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
Objectid	105396984
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
compound_id	178541480
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	OR/NOR GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	5 V
Prop。Delay @ Nom-Sup	42 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

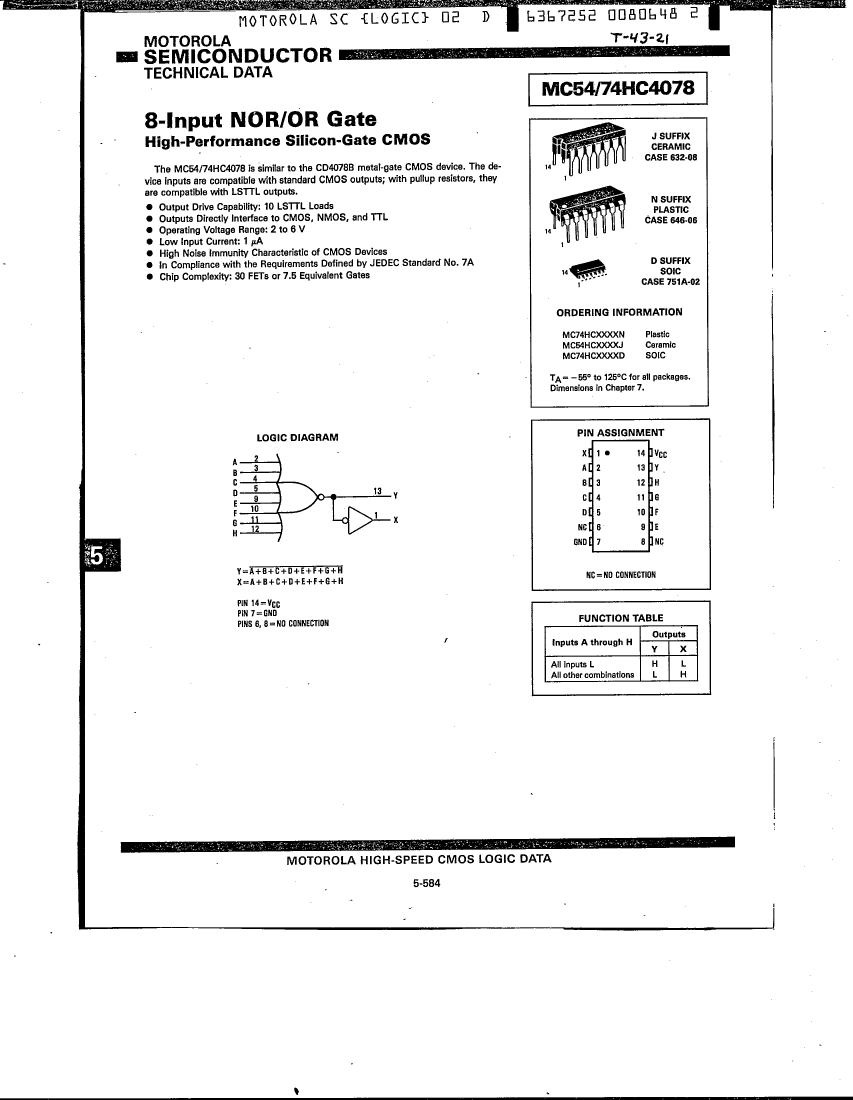

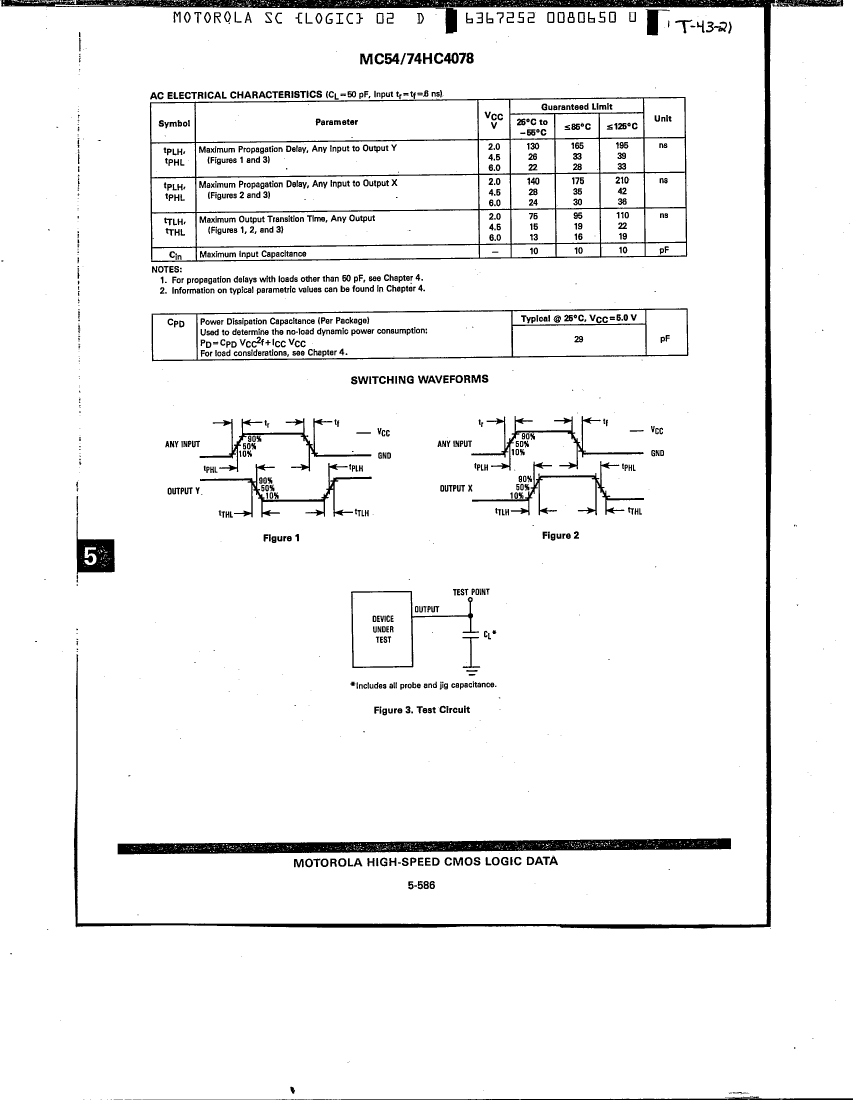

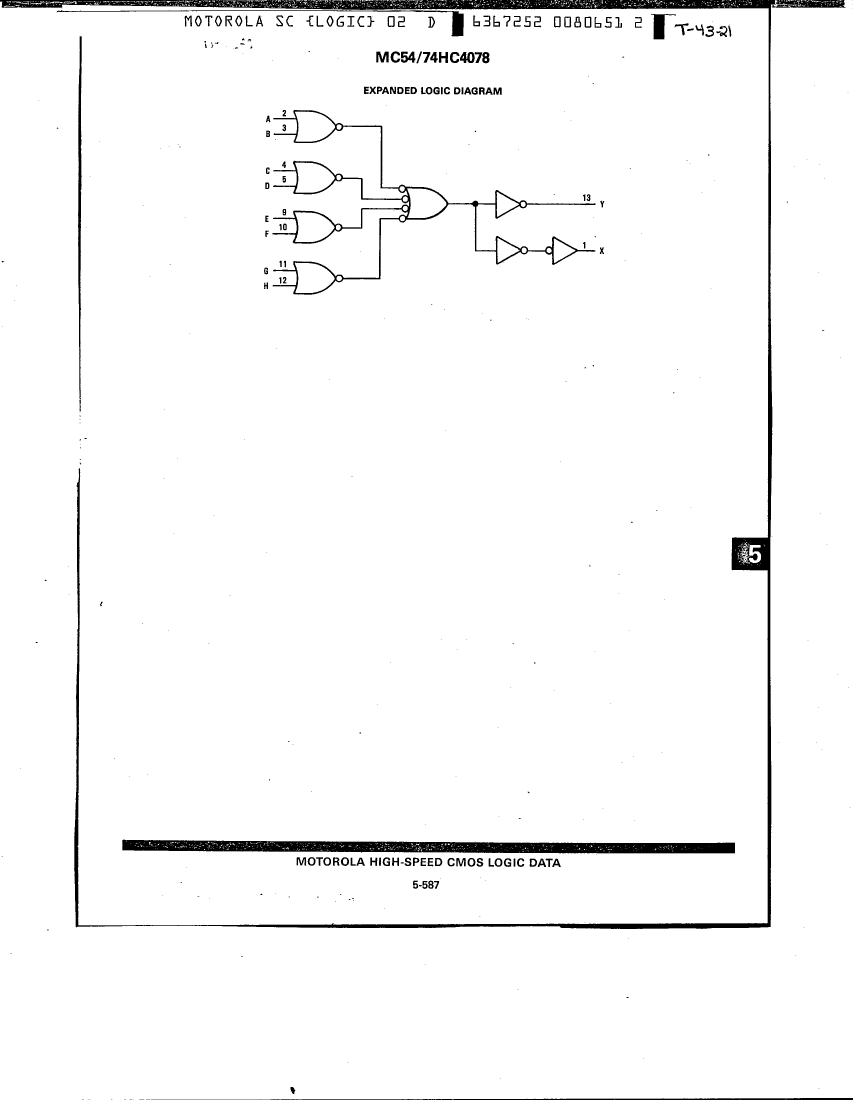

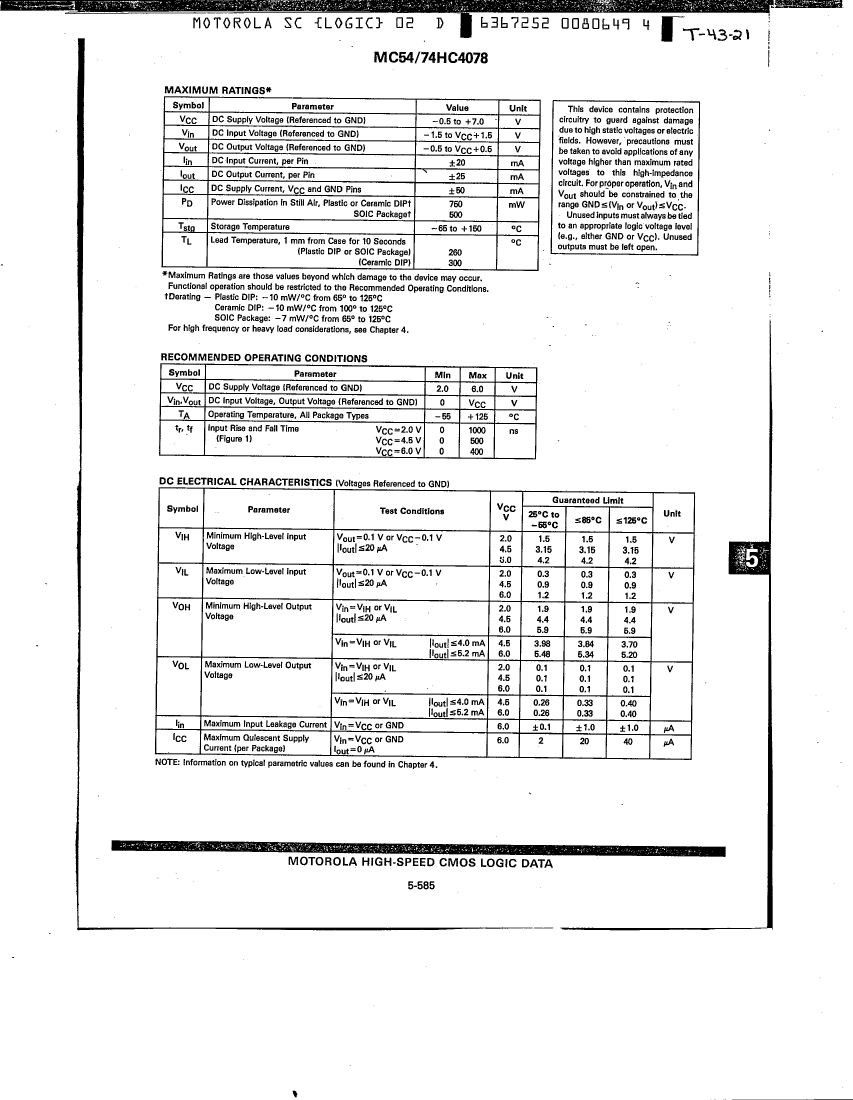

MC74HC4078DR2 Preview
