CDR34BX104AKWS

Description
CAPACITOR, CERAMIC, MULTILAYER, 500 V, 0.0000003 uF, SURFACE MOUNT, 1111
CategoryPassive components
File Size430KB,15 Pages
ManufacturerFREESCALE (NXP)
Download Datasheet Parametric Compare View All

CDR34BX104AKWS Overview

CAPACITOR, CERAMIC, MULTILAYER, 500 V, 0.0000003 uF, SURFACE MOUNT, 1111

CDR34BX104AKWS Parametric

Parameter NameAttribute value
negative deviation33.33 %
Minimum operating temperature-55 Cel
Maximum operating temperature175 Cel
positive deviation33.33 %
Rated DC voltage urdc500 V
Processing package descriptionCHIP, ROHS COMPLIANT
each_compliYes
EU RoHS regulationsYes
stateActive
Capacitor typeCERAMIC CAPACITOR
capacitance3.00E-7 µF
dielectric materialsCERAMIC
jesd_609_codee3
Manufacturer SeriesATC100B
Installation featuresSURFACE MOUNT
multi-layer1
packaging shapeRECTANGULAR PACKAGE
Package SizeSMT
cking_methodTR
eference_standardMIL-PRF-55681
series100B(CHIP)
size code1111
Temperature characteristic codeBG
Temperature Coefficient90+/-20ppm/Cel
terminal coatingTIN OVER NICKEL
Terminal shapeWRAPAROUND
heigh2.59 mm
length2.79 mm
width2.79 mm
dditional_featureSTANDARDS: MIL-PRF-123, MIL-PRF-55681
Freescale Semiconductor
Technical Data
Document Number: AFT21S230S_232S
Rev. 1, 11/2012

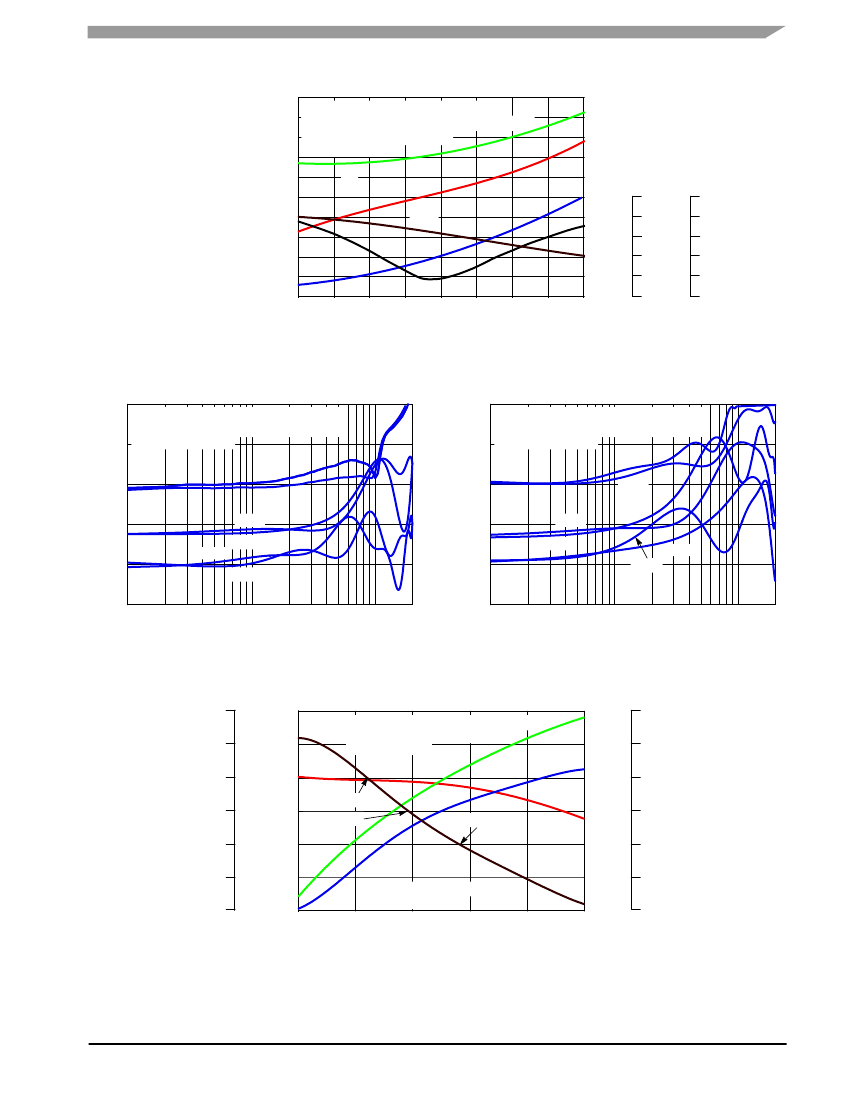

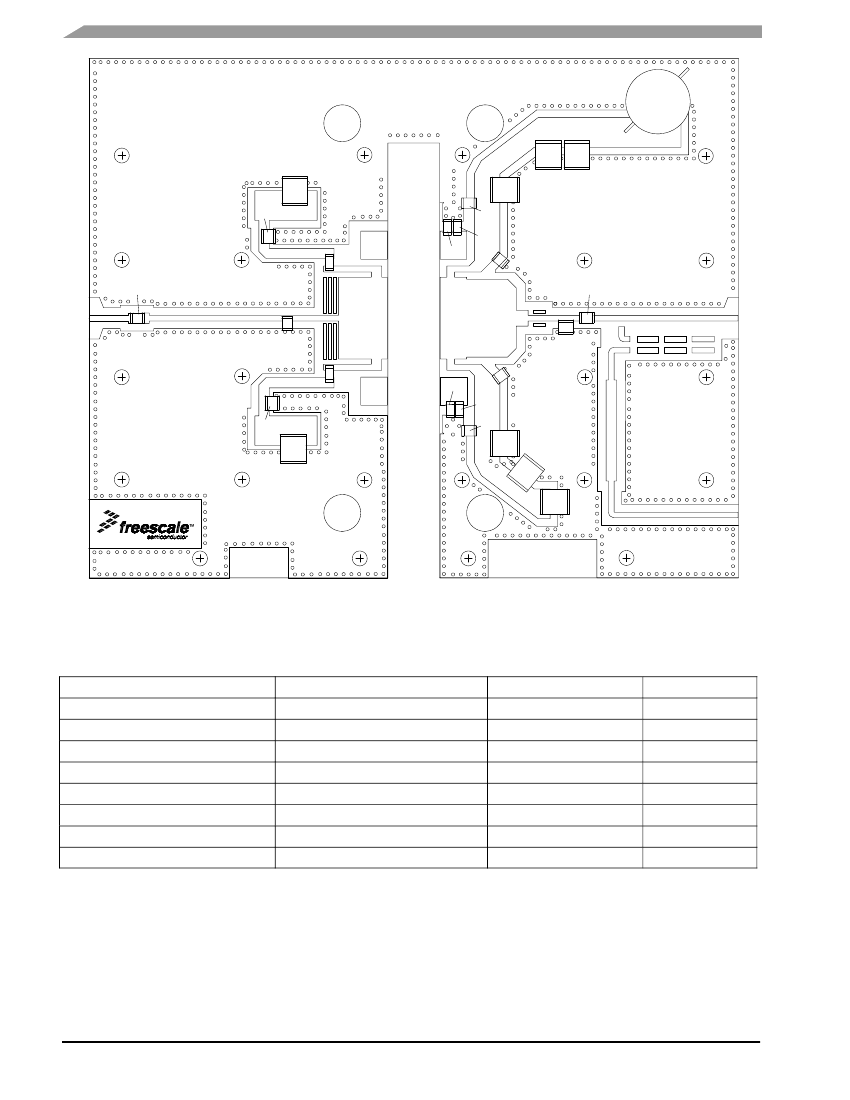

RF Power LDMOS Transistors
N--Channel Enhancement--Mode Lateral MOSFETs
These 50 watt RF power LDMOS transistors are designed for cellular base
station applications covering the frequency range of 2110 to 2170 MHz.
Typical Single--Carrier W--CDMA Performance: V
DD
= 28 Volts,
I
DQ
= 1500 mA, P
out
= 50 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01%
Probability on CCDF.
Frequency
2110 MHz
2140 MHz
2170 MHz
G
ps
(dB)
16.7
17.0
17.2
D
(%)
30.5
31.0
31.8
Output PAR
(dB)
7.2
7.1
7.0
ACPR
(dBc)
--35.7
--35.4
--34.8
IRL
(dB)
--19
--20
--15
AFT21S230SR3
AFT21S232SR3
2110-
-2170 MHz, 50 W AVG., 28 V
Features
Greater Negative Gate--Source Voltage Range for Improved Class C Operation
Designed for Digital Predistortion Error Correction Systems
Optimized for Doherty Applications
NI--780S--6: R3 Suffix = 250 Units, 44 mm Tape Width, 13 inch Reel.
NI--780S--2: R3 Suffix = 250 Units, 56 mm Tape Width, 13 inch Reel.
For R5 Tape and Reel options, see p. 18.
N.C. 1
6 VBW
RF
in
/V
GS
2
5 RF
out
/V
DS
N.C. 3
(Top View)
4 VBW
NI-
-780S-
-6
AFT21S230S
Figure 1. Pin Connections
RF
in
/V
GS
2
1 RF
out
/V
DS
(Top View)
NI-
-780S-
-2
AFT21S232S
Figure 2. Pin Connections
Freescale Semiconductor, Inc., 2012. All rights reserved.
AFT21S230SR3 AFT21S232SR3
1
RF Device Data
Freescale Semiconductor, Inc.
