4660-7405 datasheet, PDF - EEWORLD Datasheet

4660-7405: DescriptionHEADER CONNECTOR,CABLE MNT,RECEPT,60 CONTACTS,PIN,0.1 PITCH,IDC TERMINAL,LATCH & EJECT,GRAY; CategoryThe connector The connector; File Size280KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

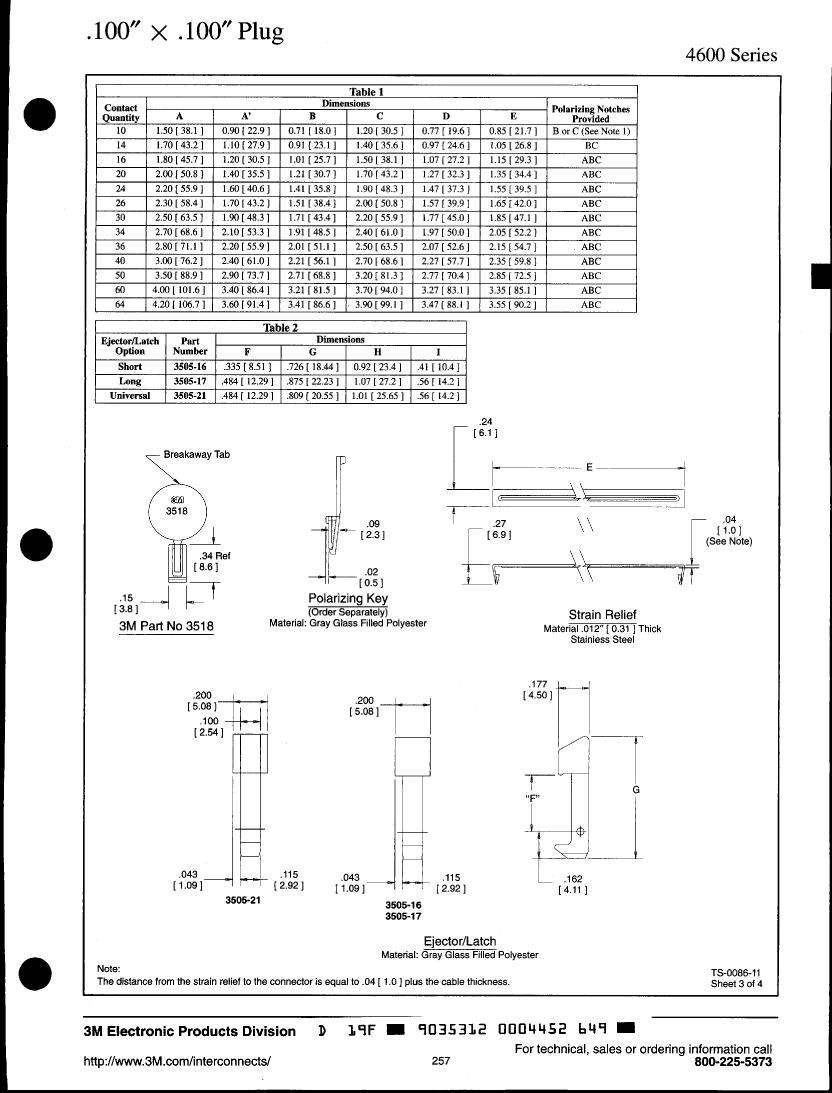

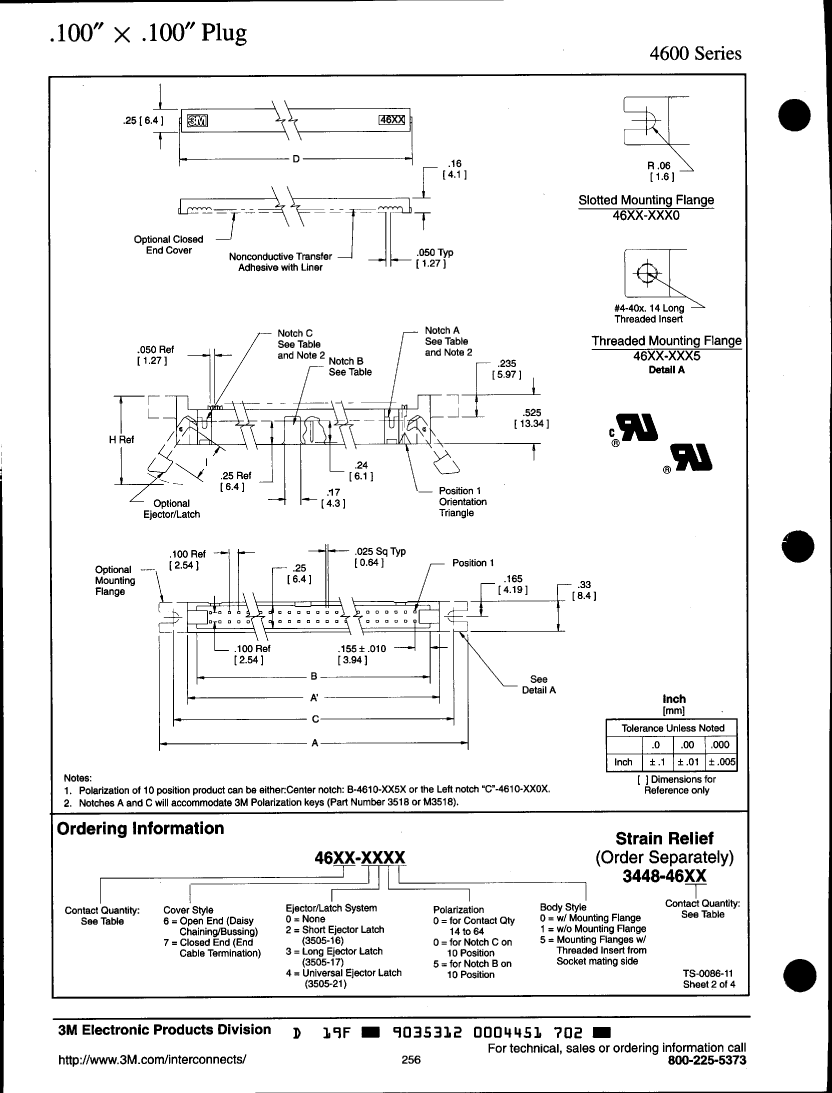

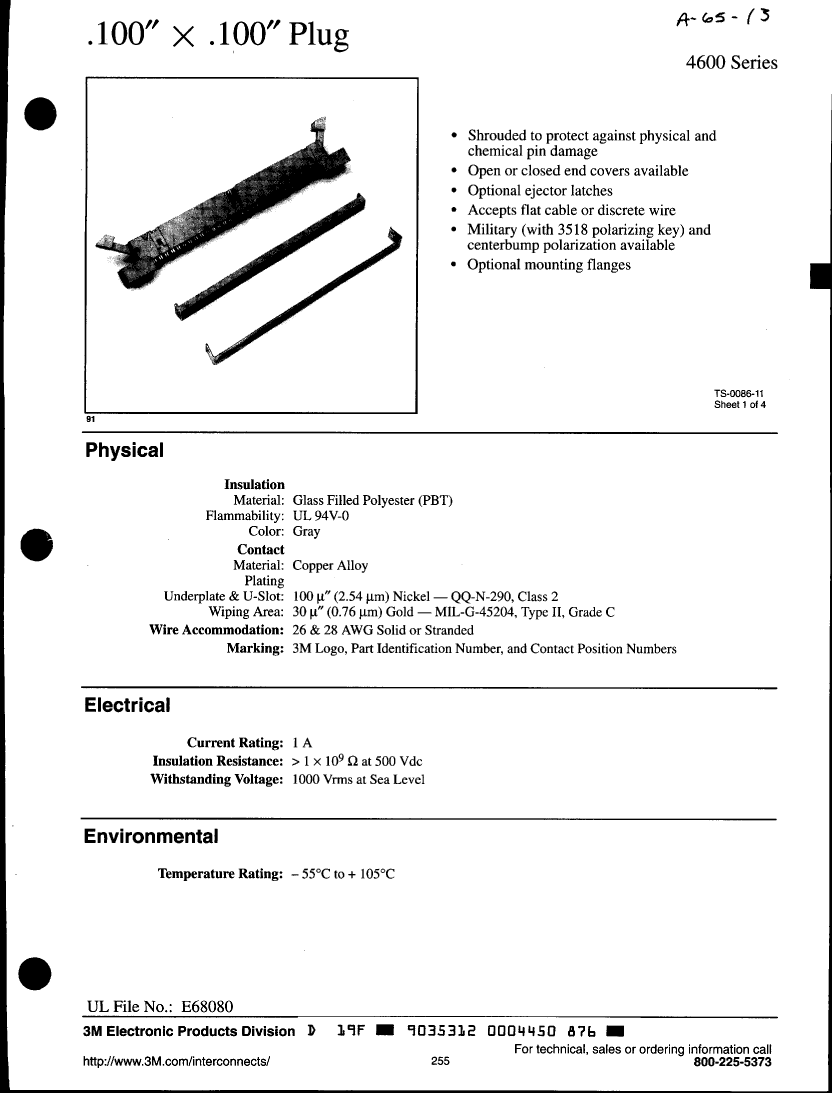

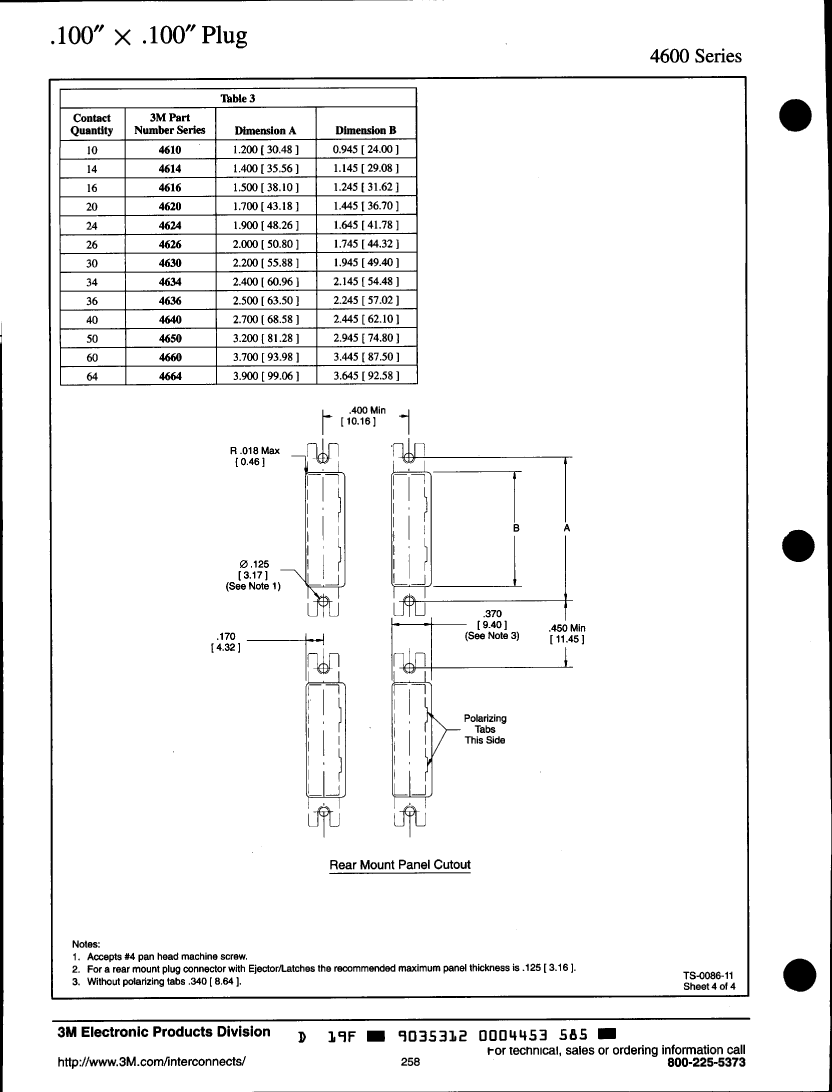

4660-7405 Overview

HEADER CONNECTOR,CABLE MNT,RECEPT,60 CONTACTS,PIN,0.1 PITCH,IDC TERMINAL,LATCH & EJECT,GRAY

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	UNIVERSAL EJECTOR LATCH
body width	0.331 inch
subject depth	0.525 inch
body length	4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	4600
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	60
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
