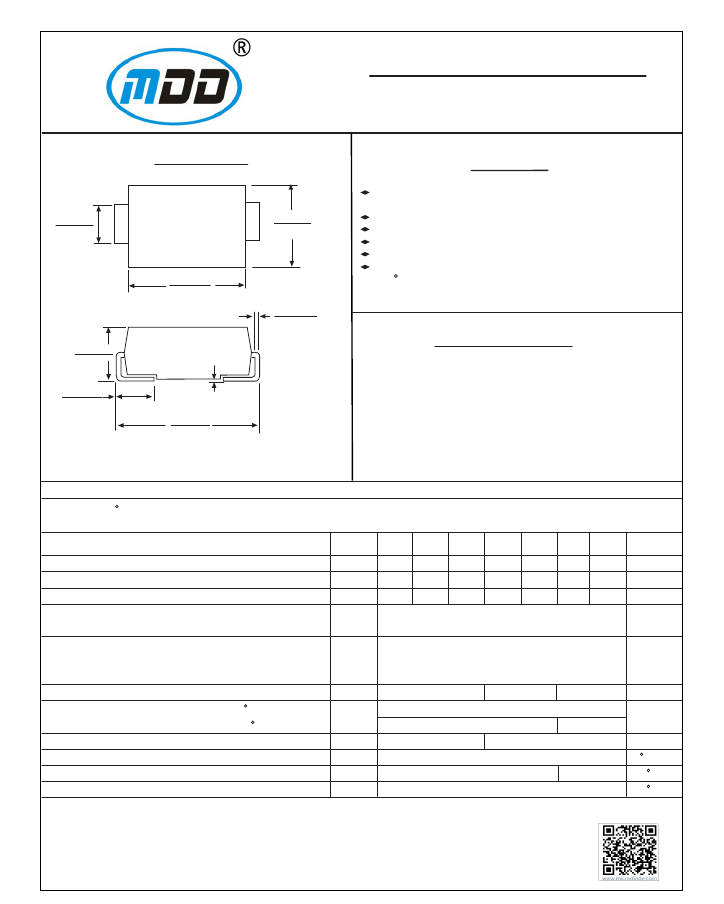

B320B THRU B3100B
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Reverse Voltage - 20 to 100 Volts
DO-214AA/SMB
Forward Current - 3.0 Amperes
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
250 C/10 seconds at terminals
0.087 (2.20)
0.071 (1.80)
0.155(3.94)
0.130(3.30)
0.180(4.57)
0.160(4.06)
0.012(0.305)
0.006(0.152)
MECHANICAL DATA
0.096(2.44)
0.084(2.13)
0.060(1.52)
0.030(0.76)
0.008(0.203)MAX.
0.220(5.59)
0.205(5.21)
Case:
JEDEC DO-214AA molded plastic body
Terminals:
leads solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight
:0.003 ounce, 0.093 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
MDD Catalog Number
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
L
(see fig.1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 3.0A
Maximum DC reverse current
T
A
=25 C
at rated DC blocking voltage
T
A
=100 C
Typical junction capacitance (NOTE 1)
Typical thermal resistance (NOTE 2)
Operating junction temperature range
Storage temperature range
SYMBOLS
B320B B330B B340B B350B B360B B380B B3100B
UNITS
VOLTS
VOLTS
VOLTS
Amps
V
RRM
V
RMS
V
DC
I
(AV)
20
14
20
30
21
30
40
28
40
50
35
50
3.0
60
42
60
80
56
80
100
70
100
I
FSM
V
F
I
R
C
J
R
θ
JA
T
J
,
T
STG
500
0.55
100.0
0.70
0.5
20
300
55.0
-50 to +125
-50 to +150
-50 to +150
10
0.85
Amps
Volts
mA
pF
C/W
C
C
Note:1.Measured
at 1MHz and applied reverse voltage of 4.0V D.C.
2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas
RATINGS AND CHARACTERISTIC CURVES B320B THRU B3100B
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
AMPERES
FIG. 1- FORWARD CURRENT DERATING CURVE
3.0
FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
100
2.4
Single Phase
Half Wave 60Hz
Resistive or
inductive Load
80
1.8
60
1.2
40
0.6
B320B-B
S360B
B3 80B-B3100B
S
20
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
0
0
25
50
75
100
125
150
175
0
1
10
100
AMBIENT TEMPERATURE, C
NUMBER OF CYCLES AT 60 Hz
50
T
J
=25 C
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
FIG. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
100
INSTANTANEOUS FORWARD
CURRENT,AMPERES
10.0
10
TJ=100 C
1
1
TJ=75 C
0.1
0.1
B3 20B-S340B
S
B3 50B-B360B
S
B3 80B-B3100B
S
0.01
TJ=25 C
0.001
0
20
40
60
80
100
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
PERCENT OF PEAK REVERSE VOLTAGE,%
FIG. 5-TYPICAL JUNCTION CAPACITANCE
TRANSIENT THERMAL IMPEDANCE,
C/W
INSTANTANEOUS FORWARD VOLEAGE,
VOLTS
FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE
100
JUNCTION CAPACITANCE, pF
2000
1000
T
J
=25 C
10
100
1
B3 20B-B340B
S
B3 60B-B3100B
S
0.1
0.01
0.1
1
10
100
10
0.1
1.0
10
100
REVERSE VOLTAGE,VOLTS
t,PULSE DURATION,sec.
The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)!
