SKM50GAL121D: DescriptionSEMITRANS M IGBT Modules; CategoryDiscrete semiconductor The transistor; File Size606KB，8 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SKM50GAL121D Overview

SEMITRANS M IGBT Modules

SKM50GAL121D Parametric

Parameter Name	Attribute value
Maker	SEMIKRON
package instruction	FLANGE MOUNT, R-PUFM-X7
Reach Compliance Code	unknow
Shell connection	ISOLATED
Maximum collector current (IC)	50 A
Collector-emitter maximum voltage	1200 V
Configuration	SINGLE WITH BUILT-IN DIODE
Gate emitter threshold voltage maximum	6.5 V
Gate-emitter maximum voltage	20 V
JESD-30 code	R-PUFM-X7
Number of components	1
Number of terminals	7
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	400 W
Maximum power dissipation(Abs)	400 W
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	250 ns
Nominal on time (ton)	80 ns
VCEsat-Max	3.5 V

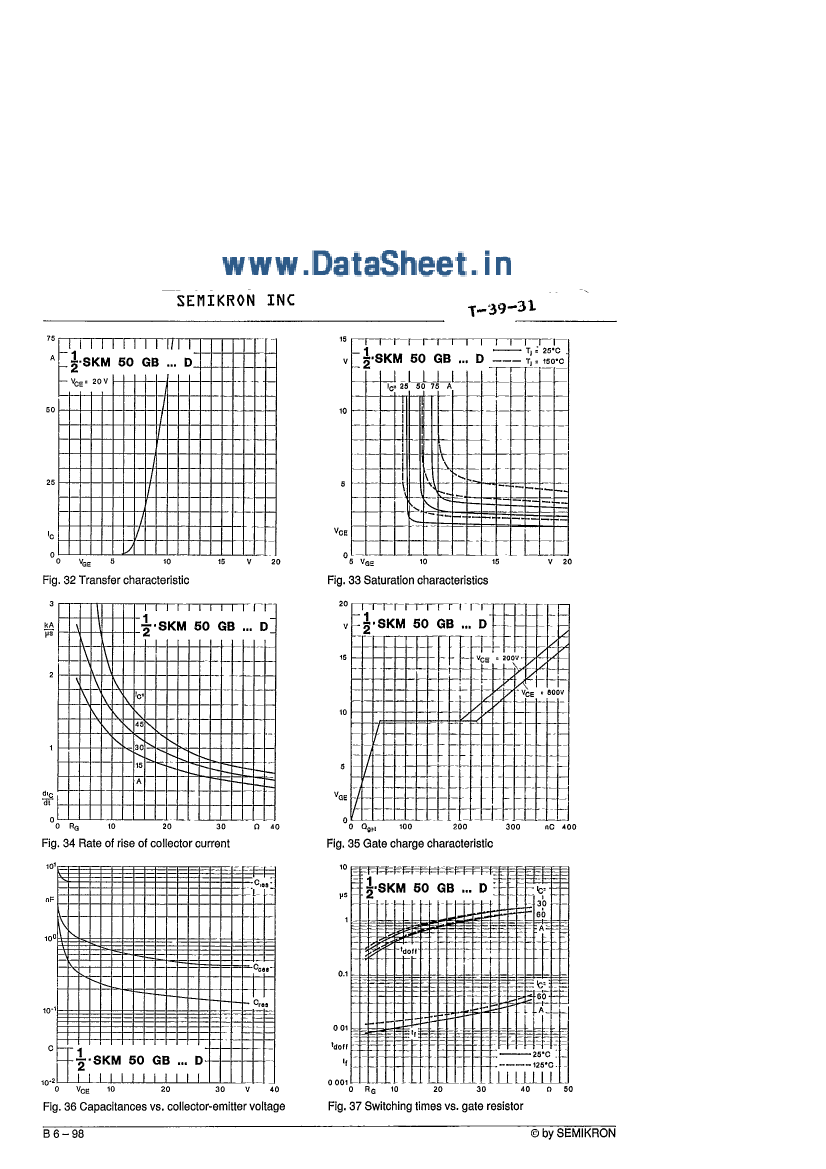

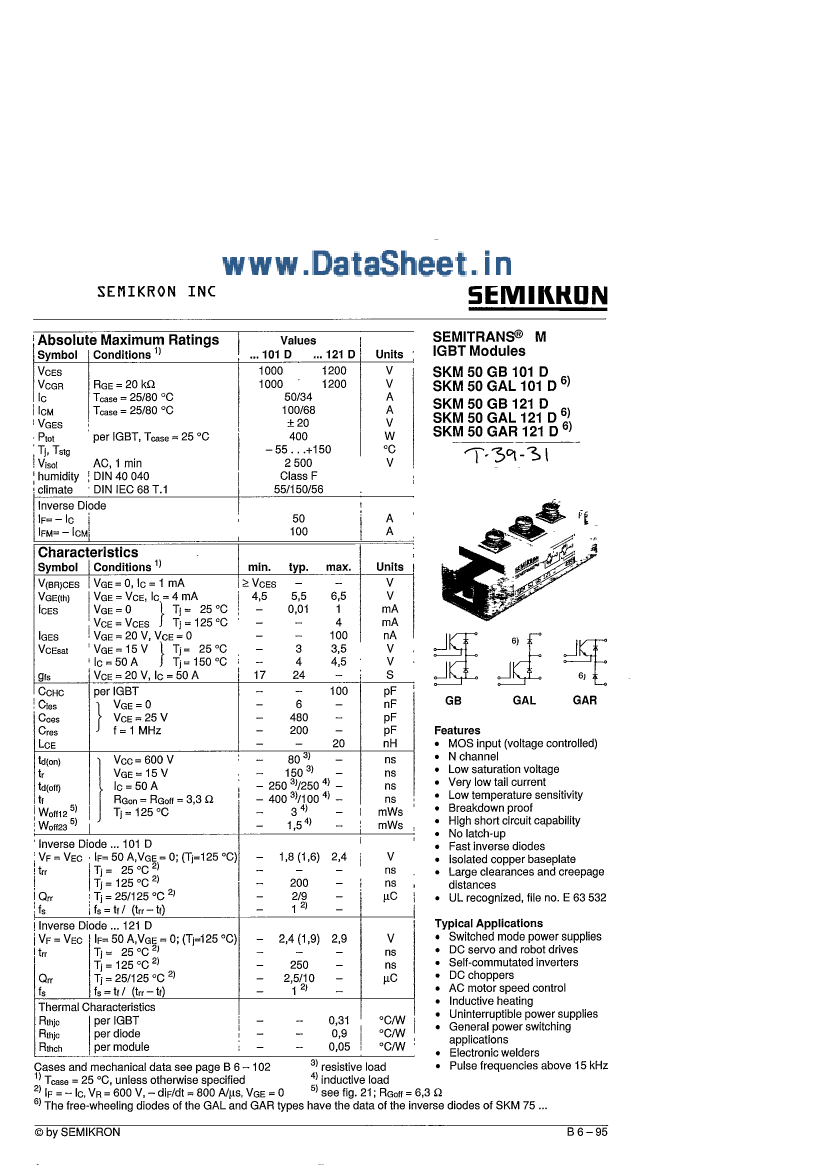

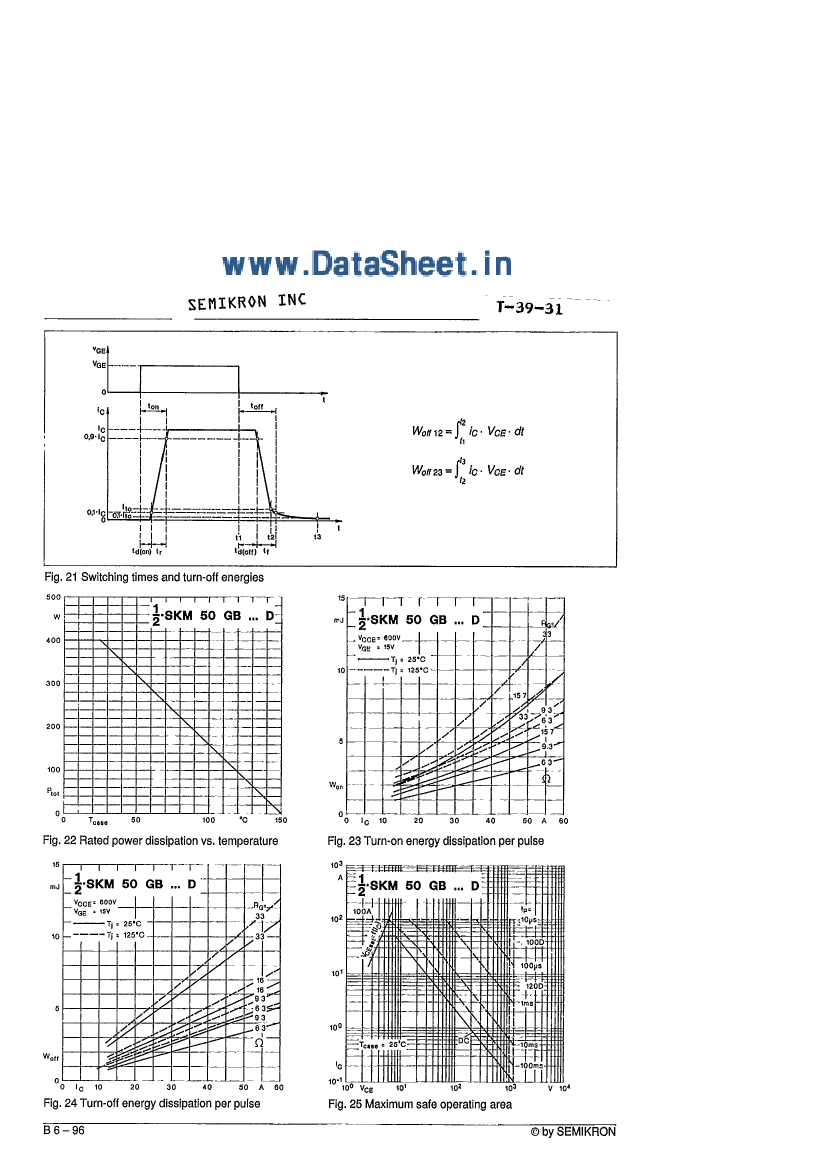

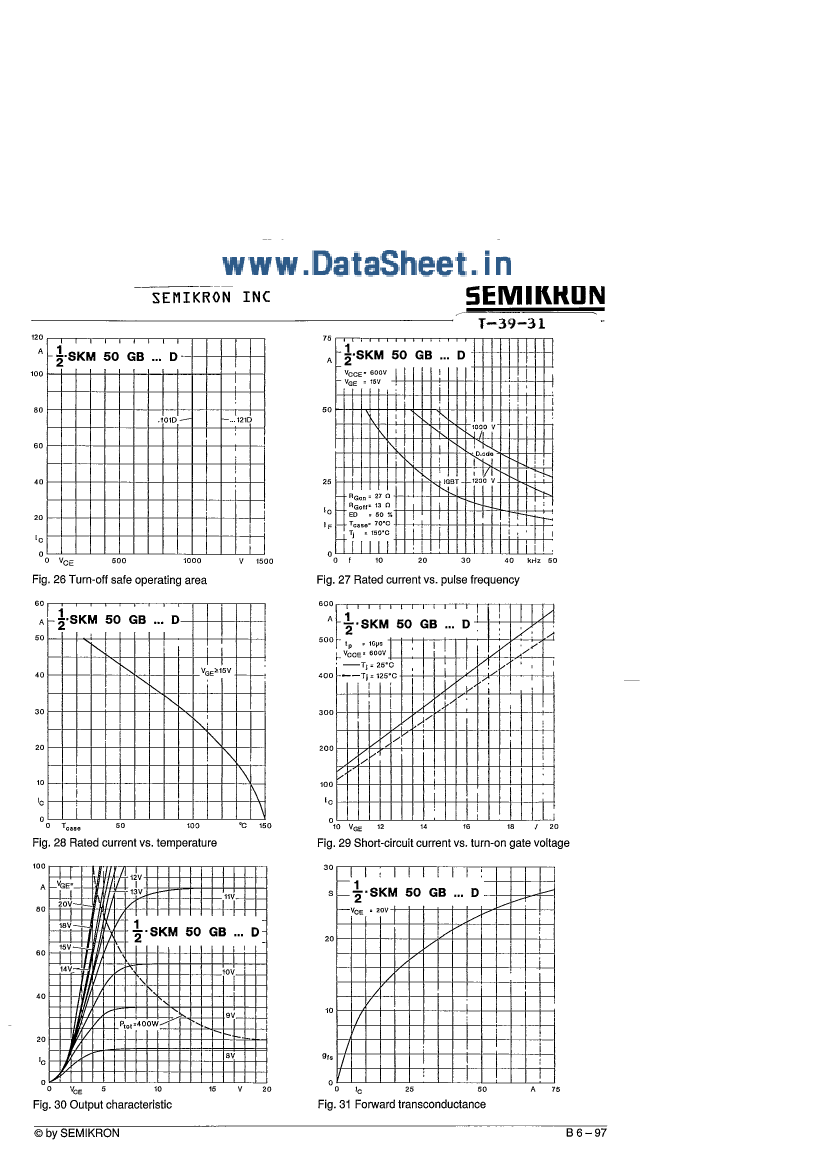

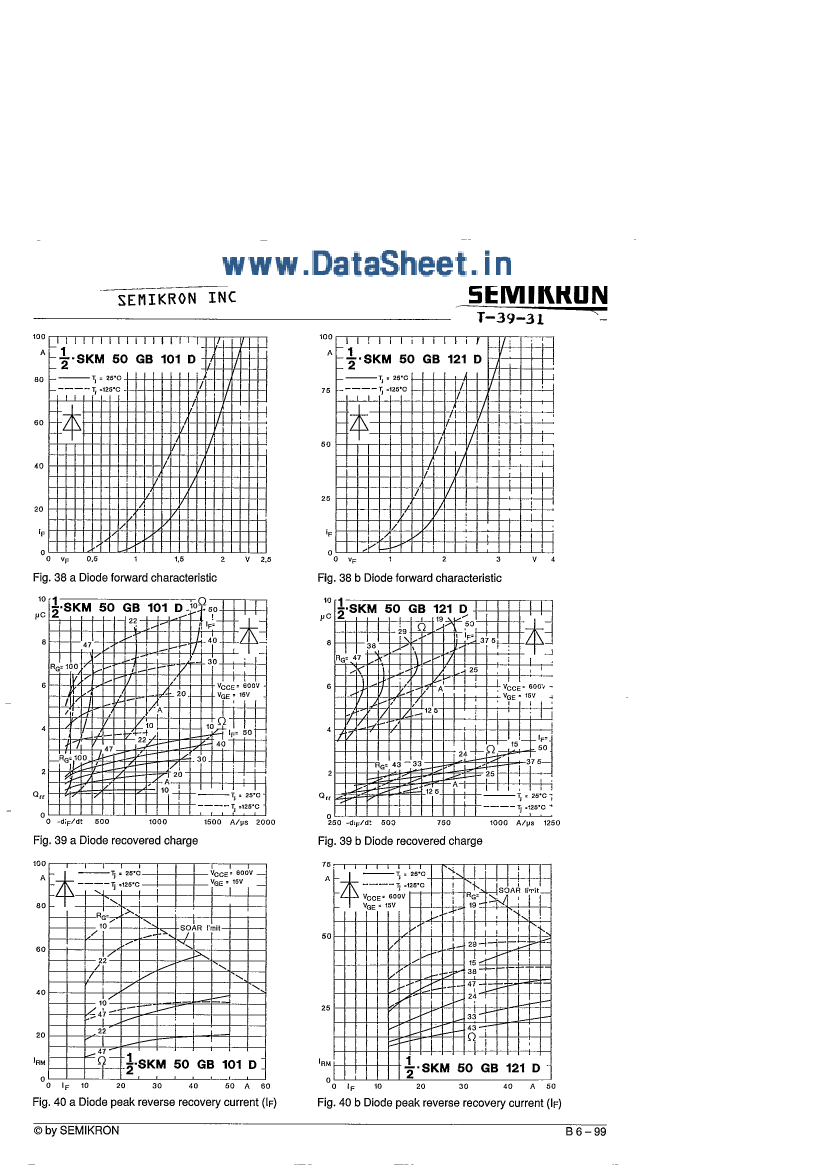

Preview

Download Datasheet

View All

SKM50GAL121D Related Products

	SKM50GAL121D	SKM50GB121D	SKM50GB101D	SKM50GAR121D	SKM50GAL101D
Description	SEMITRANS M IGBT Modules	SEMITRANS M IGBT Modules	SEMITRANS M IGBT Modules	SEMITRANS M IGBT Modules	SEMITRANS M IGBT Modules
Maker	SEMIKRON	SEMIKRON	-	SEMIKRON	SEMIKRON
package instruction	FLANGE MOUNT, R-PUFM-X7	FLANGE MOUNT, R-PUFM-X7	-	FLANGE MOUNT, R-PUFM-X7	FLANGE MOUNT, R-PUFM-X7
Reach Compliance Code	unknow	unknow	-	unknow	unknow
Shell connection	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED
Maximum collector current (IC)	50 A	50 A	-	50 A	50 A
Collector-emitter maximum voltage	1200 V	1200 V	-	1200 V	1000 V
Configuration	SINGLE WITH BUILT-IN DIODE	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE	-	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Gate emitter threshold voltage maximum	6.5 V	6.5 V	-	6.5 V	6.5 V
Gate-emitter maximum voltage	20 V	20 V	-	20 V	20 V
JESD-30 code	R-PUFM-X7	R-PUFM-X7	-	R-PUFM-X7	R-PUFM-X7
Number of components	1	2	-	1	1
Number of terminals	7	7	-	7	7
Maximum operating temperature	150 °C	150 °C	-	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	-	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	400 W	800 W	-	400 W	400 W
Maximum power dissipation(Abs)	400 W	400 W	-	400 W	400 W
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
surface mount	NO	NO	-	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	-	UPPER	UPPER
transistor applications	MOTOR CONTROL	MOTOR CONTROL	-	MOTOR CONTROL	MOTOR CONTROL
Transistor component materials	SILICON	SILICON	-	SILICON	SILICON
Nominal off time (toff)	250 ns	250 ns	-	250 ns	250 ns
Nominal on time (ton)	80 ns	80 ns	-	80 ns	80 ns
VCEsat-Max	3.5 V	3.5 V	-	3.5 V	3.5 V
