BT168DT/R: DescriptionSilicon Controlled Rectifier, 0.8 A, 400 V, SCR, TO-92, PLASTIC, SC-43, SOT-54 (TO-92) VARIANT, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size182KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Related ProductsFound20parts with similar functions to BT168DT/R

Download Datasheet Parametric View All

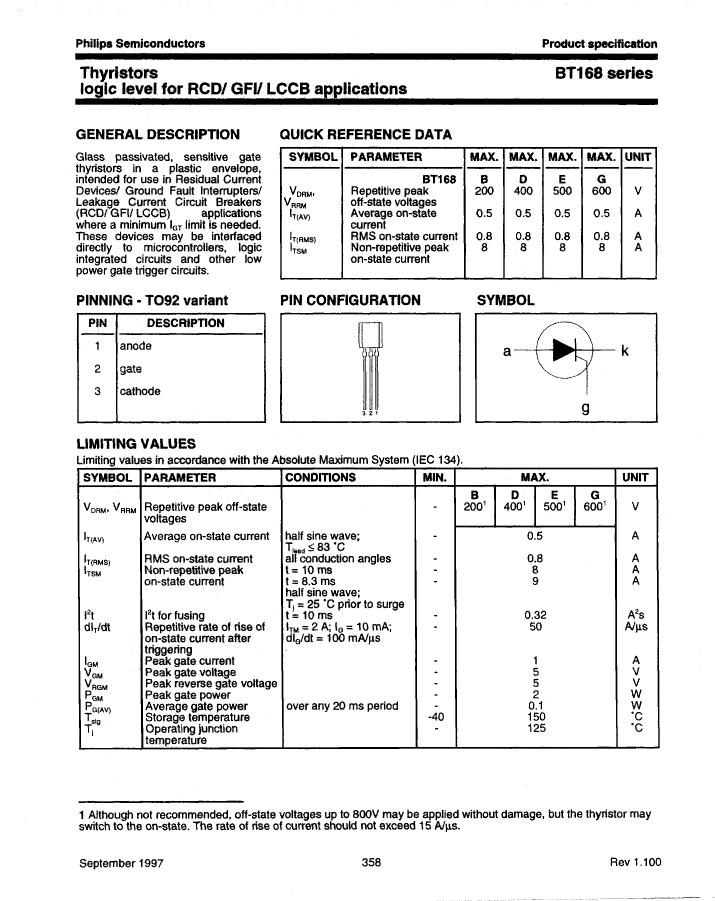

BT168DT/R Overview

Silicon Controlled Rectifier, 0.8 A, 400 V, SCR, TO-92, PLASTIC, SC-43, SOT-54 (TO-92) VARIANT, 3 PIN

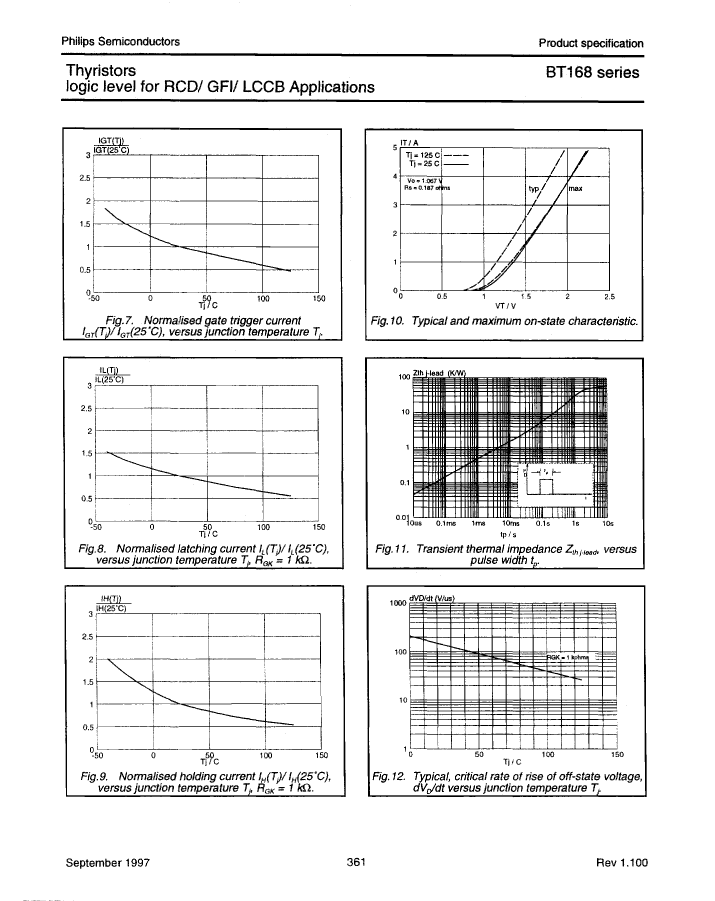

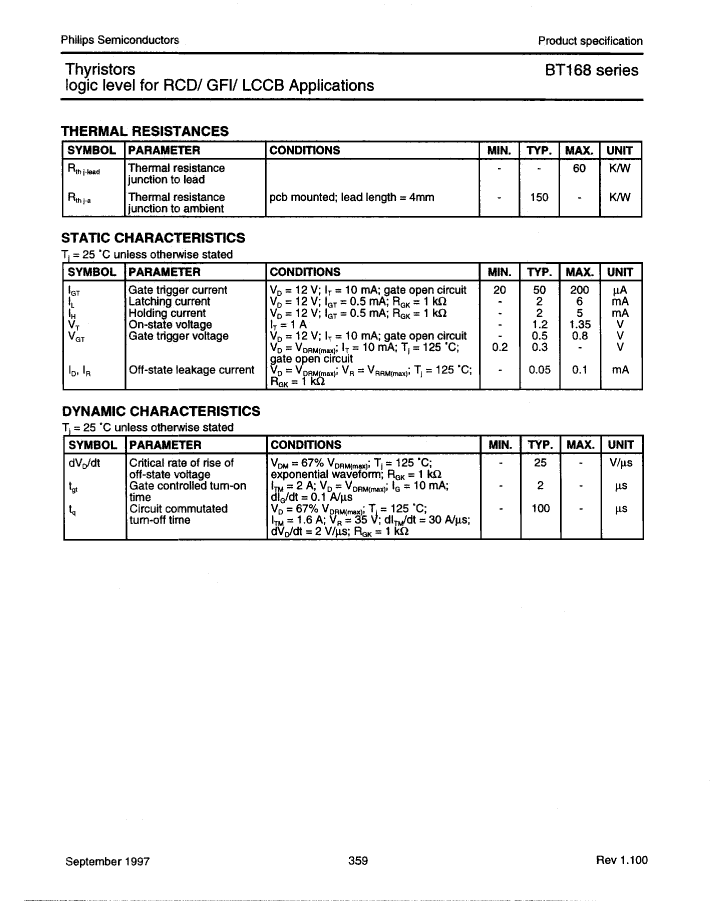

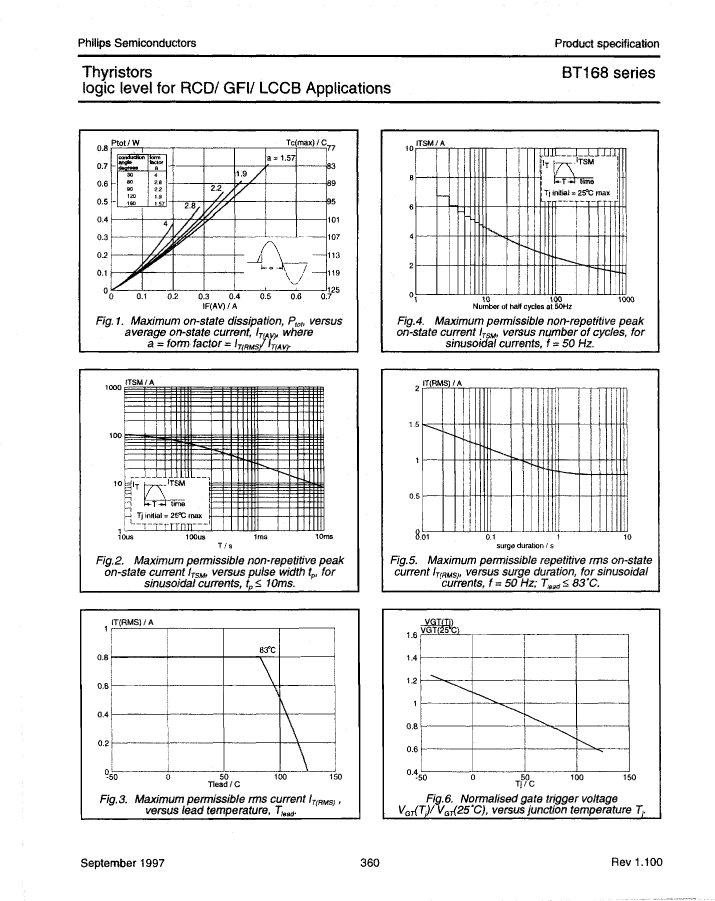

BT168DT/R Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	TO-92
package instruction	PLASTIC, SC-43, SOT-54 (TO-92) VARIANT, 3 PIN
Contacts	3
Reach Compliance Code	compli
Other features	SENSITIVE GATE
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	25 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	5 mA
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Maximum leakage current	0.1 mA
On-state non-repetitive peak current	8 A
Number of components	1
Number of terminals	3
Maximum on-state current	500 A
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum rms on-state current	0.8 A
Maximum repetitive peak off-state leakage current	100 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Trigger device type	SCR
Base Number Matches	1
