Atmel ATmega640/V-1280/V-1281/V-2560/V-2561/V
8-bit Atmel Microcontroller with 16/32/64KB In-System Programmable Flash
SUMMARY
Features
•
•
High Performance, Low Power Atmel
®
AVR
®
8-Bit Microcontroller
Advanced RISC Architecture
– 135 Powerful Instructions – Most Single Clock Cycle Execution
– 32 × 8 General Purpose Working Registers
– Fully Static Operation
– Up to 16 MIPS Throughput at 16MHz
– On-Chip 2-cycle Multiplier
High Endurance Non-volatile Memory Segments
– 64K/128K/256KBytes of In-System Self-Programmable Flash
– 4Kbytes EEPROM
– 8Kbytes Internal SRAM
– Write/Erase Cycles:10,000 Flash/100,000 EEPROM
– Data retention: 20 years at 85C/ 100 years at 25C
– Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
•
– Programming Lock for Software Security
•
•
•
Atmel
®
QTouch
®
library support
• Endurance: Up to 64Kbytes Optional External Memory Space
– Capacitive touch buttons, sliders and wheels
– QTouch and QMatrix acquisition
– Up to 64 sense channels
JTAG (IEEE
®
std. 1149.1 compliant) Interface
– Boundary-scan Capabilities According to the JTAG Standard
– Extensive On-chip Debug Support
– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
Peripheral Features
–
–
–
–
–
–
–
–
–
–
–
–
–
Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
Four 16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode
Real Time Counter with Separate Oscillator
Four 8-bit PWM Channels
Six/Twelve PWM Channels with Programmable Resolution from 2 to 16 Bits
(ATmega1281/2561, ATmega640/1280/2560)
Output Compare Modulator
8/16-channel, 10-bit ADC (ATmega1281/2561, ATmega640/1280/2560)
Two/Four Programmable Serial USART (ATmega1281/2561, ATmega640/1280/2560)
Master/Slave SPI Serial Interface
Byte Oriented 2-wire Serial Interface
Programmable Watchdog Timer with Separate On-chip Oscillator
On-chip Analog Comparator
Interrupt and Wake-up on Pin Change
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated Oscillator
External and Internal Interrupt Sources
Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,
and Extended Standby
54/86 Programmable I/O Lines (ATmega1281/2561, ATmega640/1280/2560)
64-pad QFN/MLF, 64-lead TQFP (ATmega1281/2561)

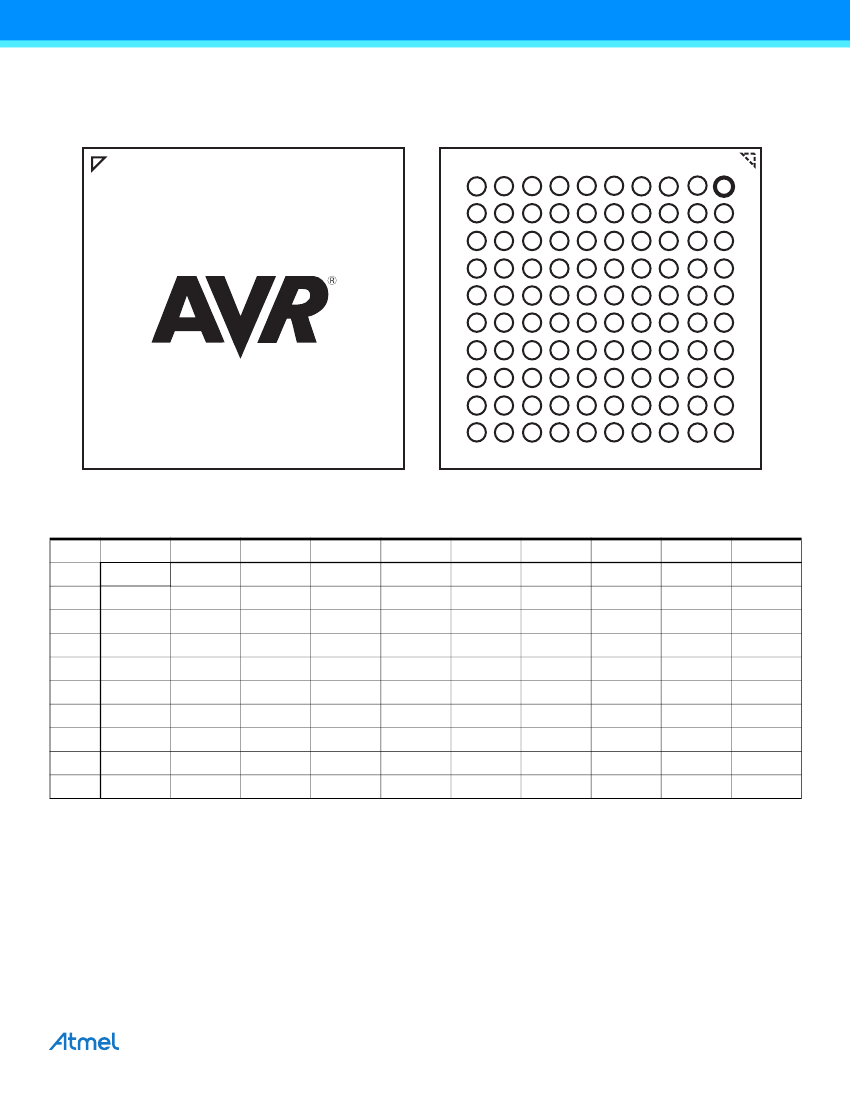

100-lead TQFP, 100-ball CBGA (ATmega640/1280/2560)
RoHS/Fully Green
•
Special Microcontroller Features
–
–
–
–
•
I/O and Packages
–
–
–
–
•
•
•
Temperature Range:
– -40C to 85C Industrial
Ultra-Low Power Consumption
– Active Mode: 1MHz, 1.8V: 500µA
– Power-down Mode: 0.1µA at 1.8V
Speed Grade:
– ATmega640V/ATmega1280V/ATmega1281V:
• 0 - 4MHz @ 1.8V - 5.5V, 0 - 8MHz @ 2.7V - 5.5V
– ATmega2560V/ATmega2561V:
• 0 - 2MHz @ 1.8V - 5.5V, 0 - 8MHz @ 2.7V - 5.5V
– ATmega640/ATmega1280/ATmega1281:
• 0 - 8MHz @ 2.7V - 5.5V, 0 - 16MHz @ 4.5V - 5.5V
– ATmega2560/ATmega2561:
• 0 - 16MHz @ 4.5V - 5.5V
2549QS–AVR–02/2014
2. Overview
The ATmega640/1280/1281/2560/2561 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced
RISC architecture. By executing powerful instructions in a single clock cycle, the
ATmega640/1280/1281/2560/2561 achieves throughputs approaching 1 MIPS per MHz allowing the system
designer to optimize power consumption versus processing speed.
2.1
Block Diagram
Block Diagram
PF7..0
VCC
Figure 2-1.
PK7..0
P
J7..0
PE7..0
RESET
Power
Supervision
POR/ BOD &
RESET
PORT F (8)
PORT K (8)
PORT J (8)
PORT E (8)
GND
Watchdog
Timer
Watchdog
Oscillator
JTAG
A/D
Converter
Analog
Comparator
USART 0
XTAL1
Oscillator
Circuits /
Clock
Generation
EEPROM
Internal
Bandgap reference
16 bit T/C 3
XTAL2
CPU
16 bit T/C 5
USART 3
P
A7..0
PORT A (8)
16 bit T/C 4
USART 1
PG5..0
PORT G (6)
XRAM
FLASH
SRAM
16 bit T/C 1
PC7..0
PORT C (8)
TWI
SPI
8 bit T/C 0
8 bit T/C 2
USART 2
NOTE:
Shaded parts only available
in the 100-pin version.
Complete functionality for
the ADC, T/C4, and T/C5 only
available in the 100-pin version.
PORT D (8)
PORT B (8)
PORT H (8)
PORT L (8)
PD7..0
PB7..0
PH7..0
PL7..0
The Atmel
®
AVR
®
core combines a rich instruction set with 32 general purpose working registers. All the 32 regis-
ters are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in
one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving
throughputs up to ten times faster than conventional CISC microcontrollers.
ATmega640/V-1280/V-1281/V-2560/V-2561/V [SUMMARY]
2549QS–AVR–02/2014
5
