TWR-5/1500-15/250-D48R datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> TWR-5/1500-15/250-D48R

TWR-5/1500-15/250-D48R: DescriptionDC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7; CategoryPower/power management The power supply circuit; File Size56KB，1 Pages; ManufacturerC&D

Download Datasheet Parametric Compare View All

TWR-5/1500-15/250-D48R Overview

DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7

TWR-5/1500-15/250-D48R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	C&D
Parts packaging code	MODULE
package instruction	,
Contacts	7
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	IMPROVED LOAD REGULATION FOR AUXILIARY OUTPUTS
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	18 V
Nominal input voltage	48 V
JESD-30 code	S-MDMA-P7
JESD-609 code	e0
Maximum load regulation	2%
Number of functions	1
Output times	3
Number of terminals	7
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.95 V
Nominal output voltage	5 V
Package body material	METAL
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Base Number Matches	1

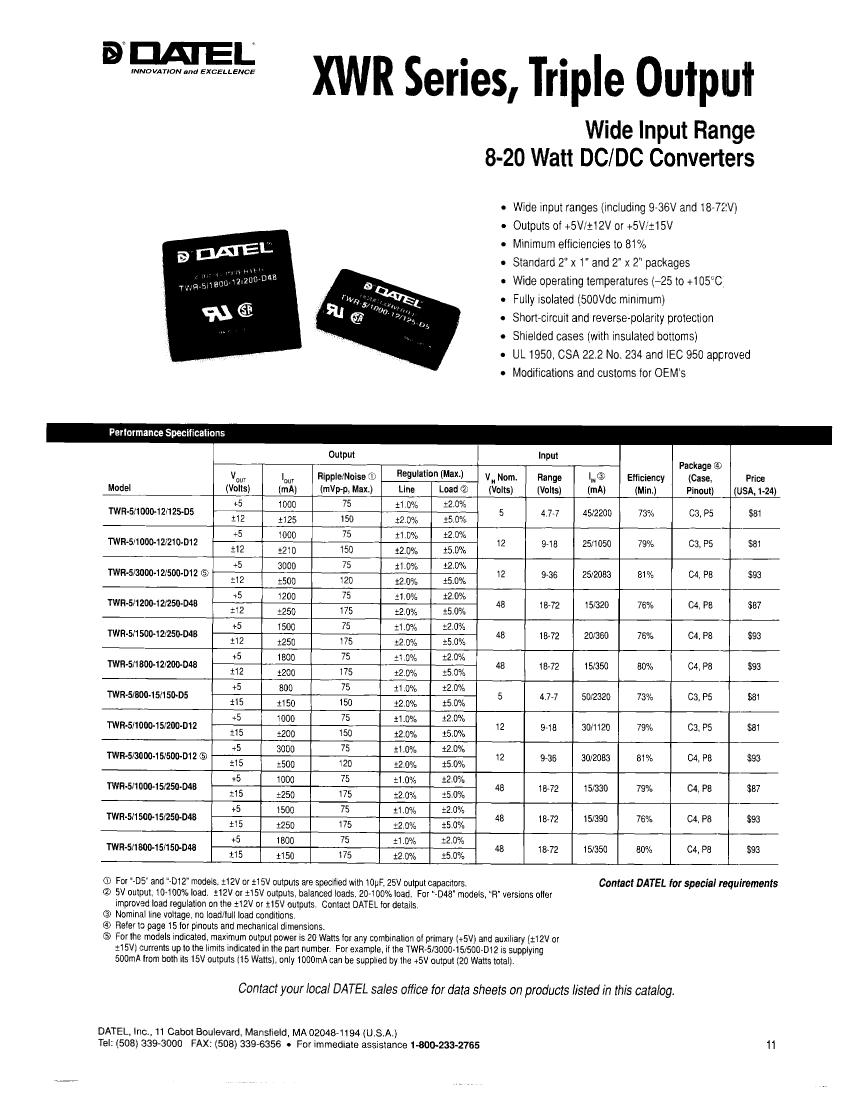

Preview

Download Datasheet

View All

TWR-5/1500-15/250-D48R Related Products

	TWR-5/1500-15/250-D48R	TWR-5/1500-12/250-D48R	TWR-5/1800-15/150-D48R	TWR-5/1800-12/200-D48R	TWR-5/1200-12/250-D48R
Description	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, 2 X 2 INCH, PACKAGE-7
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE
Contacts	7	7	7	7	7
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	IMPROVED LOAD REGULATION FOR AUXILIARY OUTPUTS	IMPROVED LOAD REGULATION FOR AUXILIARY OUTPUTS	IMPROVED LOAD REGULATION FOR AUXILIARY OUTPUTS	IMPROVED LOAD REGULATION FOR AUXILIARY OUTPUTS	IMPROVED LOAD REGULATION FOR AUXILIARY OUTPUTS
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	72 V	72 V	72 V	72 V
Minimum input voltage	18 V	18 V	18 V	18 V	18 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V
JESD-30 code	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7
Maximum load regulation	2%	2%	2%	2%	2%
Number of functions	1	1	1	1	1
Output times	3	3	3	3	3
Number of terminals	7	7	7	7	7
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	5.05 V	5.05 V	5.05 V	5.05 V	5.05 V
Minimum output voltage	4.95 V	4.95 V	4.95 V	4.95 V	4.95 V
Nominal output voltage	5 V	5 V	5 V	5 V	5 V
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Maker	C&D	-	-	C&D	C&D
JESD-609 code	e0	e0	e0	e0	-
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	-
Base Number Matches	1	1	1	-	-
