ZL30320

Combined Synchronous Ethernet and

IEEE1588 Timing over Packet Technology

Data Sheet

Features

•

Supports Hybrid Mode (using SyncE for frequency

synchronization and IEEE 1588 for phase

alignment)

Recovers and transmits network synchronization

over Ethernet, IP and MPLS Networks

Simultaneously supports both the Synchronous

Ethernet and the IEEE1588 industry standard timing

protocols

Capable of server, client and boundary clock

operation

Targeted for synchronization distribution to better

than ITU-T G.8261, G.823, G.824 and ANSI T1.101

synchronization interface standards

Average frequency accuracy better than ±10 ppb

Aligns to a low frequency input signal at server

(e.g., 1 Hz) with targeted accuracy better than ±1

μs

Recovers clocks from two independent servers, with

hitless switching between packet streams for

redundancy

Supports holdover if the server stream is lost

Accepts an input reference, and up to three

associated low frequency alignment or framing pulse

Generates up to two separate output clocks at

frequencies between 8 kHz and 100 MHz

•

October 2012

•

Ordering Information

ZL30320GKG

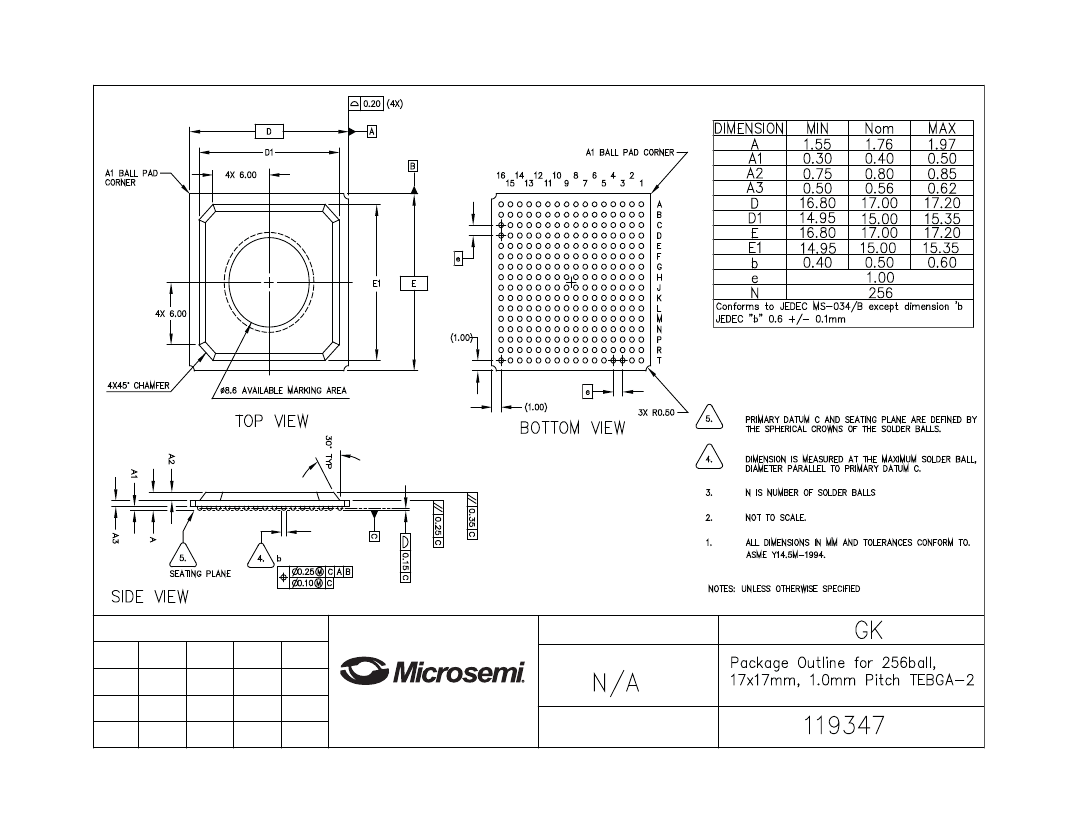

256 TEPBGA, 17 x 17 mm

ZL30320GKG2* 256 TEPBGA, 17 x 17 mm

* Pb Free Tin/Silver/Copper

-40°C to +85°C

Generates two separate Synchronous Ethernet

clocks to drive industry standard Ethernet PHY

devices at either 25 MHz or 125 MHz

Fully configurable solution, enabling performance

to be tailored to application/network requirements

Two independently configurable MAC interfaces,

supporting MII, RMII, GMII and TBI standards

Wire-speed Ethernet Bridge pass through function

between the MAC interfaces

Synchronous serial control interface

Full demonstration & evaluation platform available

•

ToP

Port M2

Network I/F

(GMII/TBI/MII/RMII)

osci

Master

Osc

osco

MAC

Ethernet Bridge

MAC

Port M1

Processor I/F

(GMII/TBI/MII/RMII)

Timestamp Engine

SSI

Access I/F

PLL

ref0

sync0

Input Ports

Ref

Monitors

APLL

ETH_CLK0

ETH_CLK1

DPLL

Synthesizer

p0_clk0

p0_clk1

p0_fp0

p0_fp1

Figure 1 - ZL30320 Functional Block Diagram

ZL30320

Applications

•

IEEE 1588 and Synchronous Ethernet timing

GSM and UMTS air interface synchronization over a packet network

Circuit Emulation Services over Packets

IP-PBX and VoIP Gateways

Video Conferencing

Broadband Video Distribution

Data Sheet

Description

Network infrastructures are gradually converging onto a packet-based architecture. With this convergence, there

are a significant number of synchronous applications that require accurate timing to be distributed over the packet

networks. Examples of precision timing sensitive applications that need the transport of synchronization over

packet networks include transport of TDM over packet networks, connections to 2 G and 3 G cellular base stations,

Voice over IP, IP PBXs, video-conferencing and broadband video.

There are two main ways to enable synchronization over a packet network, synchronizing the packet network itself,

as in the Synchronous Ethernet approach, or distributing the timing using the packets as in Microsemi’s Timing over

Packet (ToP) technology. The two techniques can also be combined to provide a very powerful hybrid solution.

Synchronous Ethernet delivers a very accurate frequency reference, but doesn’t address phase and time

synchronization. ToP can be used to supplement the excellent frequency distribution of Synchronous Ethernet with

accurate phase and time information. Alternatively, ToP can be used to extend the reach of the Synchronous

Ethernet reference across an asynchronous network, such as a LAN connected to a synchronous WAN.

Microsemi has combined both methods into a single device. The ZL30320 incorporates an extremely low-jitter

frequency synthesizer, capable of generating all the frequencies required for Synchronous Ethernet operation,

together with Microsemi’s patent-pending Timing over Packet (ToP) technology based on the industry-standard

IEEE1588

“PTP” (Precision Time Protocol). Not only can it function as a fully-featured Digital PLL, it also

supports the distribution of time, phase and frequency across both layer 2 and layer 3 networks, using both

Synchronous Ethernet and IEEE1588 protocols, either alone or in combination.

The ZL30320 is a member of a family of footprint-compatible devices offering the full range of features required for

timing and synchronization across the packet network. These devices facilitate design of a flexible card that can be

upgraded as required by simply placing another member of the same family.

The family members include:

ZL30310

Combined IEEE1588

ToP and Synchronous Ethernet, coupled with a GR-1244 Stratum 3E/3/4/4E

and GR-253 SONET and G.813 quality phase locked loop for timing card applications, plus a second

independent PLL for rate conversion or generation of additional derived clocks.

Combined IEEE1588

ToP and Synchronous Ethernet, coupled with a GR-1244 Stratum 3/4/4E and

GR-253 SEONET and G.813 quality phase locked loop for timing card applications, plus a second

independent PLL for rate conversion or generation of additional derived clocks.

Combined IEEE1588

ToP and Synchronous Ethernet, coupled with a GR1244 Stratum 3/4/4E and

G.813 Option 1 quality phase locked loop for timing card applications, plus a second independent PLL

for rate conversion or generation of additional derived clocks.

Combined IEEE1588

ToP and Synchronous Ethernet, coupled with two independent, flexible phase

locked loops for line card applications

Combined IEEE1588

ToP and Synchronous Ethernet for line card applications

Synchronous Ethernet line card device in a ToP compatible footprint, containing two independent DPLLs

ZL30312

ZL30314

ZL30316

ZL30320

ZL30321

Microsemi Corporation

ZL30320

The Microsemi device offers the following clock routing options:

Data Sheet

Input

clock reference

packet reference

clock and/or packet

reference

packet reference

clock

Output

Description

conventional PLL behaviour,

e.g., Synchronous Ethernet node

server behaviour,

e.g., IEEE1588 server

conventional PLL behaviour coupled with packet time server,

e.g., combined Synchronous Ethernet and IEEE1588 server

client behaviour,

e.g., IEEE1588 client

conventional PLL behaviour, coupled with packet time client,

either as fail-over from one to the other, or in combination

e.g., combined Synchronous Ethernet and IEEE1588 client

combination of client and boundary clock behaviour,

e.g., IEEE1588 boundary clock

packet stream

clock and/or packet

stream

clock

clock and/or packet

stream

When operating as a server, the Microsemi device locks onto the incoming clock reference as a conventional PLL,

filtering any jitter that may be present. It also synchronizes to any low-frequency alignment signal, e.g., an 8 kHz

TDM frame pulse, or a 1 Hz alignment input. The device delivers streams of packets, each containing a timestamp

indicating the precise time that the packet was launched into the network, relative to the acquired reference. It also

receives packets from clients, and returns a message indicating the exact time that the client message was

received at the server. Using this information, clients are able to align their own timebase with that of the server.

As a client, the Microsemi device can track two independent servers, and determine which one is providing the best

time reference. If either the primary reference or the network between the server and client fails, the device can

switch to the alternative reference without introducing a phase discontinuity. Alternatively, the client can switch to a

conventional clock reference.

The solution timing recovery algorithm continuously tracks the frequency offset and phase drift between the clocks

located at the server and the client nodes connected via the packet switched network. The algorithm is tolerant of

lost packets, and of packet delay variation caused by packet queuing, route changes and other effects. In the event

of a failure in the packet network, or the advent of severe congestion preventing or seriously delaying the delivery of

timing packets, the device will put the recovered clocks into holdover until the flow of timing packets is restored.

When the device is in holdover mode the drift of the local oscillator directly affects the accuracy of the output clocks.

When using ToP technology, the device is designed to meet ANSI standard T1.101 and ITU-T standards G.823 and

G.824 for synchronization distribution. It maintains a mean frequency accuracy of better than ±10 ppb and time

alignment of better than ±1

μs

when operated over a suitable network.

Microsemi Corporation

Information relating to products and services furnished herein by Microsemi Corporation or its subsidiaries (collectively “Microsemi”) is

believed to be reliable. However, Microsemi assumes no liability for errors that may appear in this publication, or for liability otherwise

arising from the application or use of any such information, product or service or for any infringement of patents or other intellectual

property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase

of product or service conveys any license, either express or implied, under patents or other intellectual property rights owned by

Microsemi or licensed from third parties by Microsemi, whatsoever. Purchasers of products are also hereby notified that the use of

product in certain ways or in combination with Microsemi, or non-Microsemi furnished goods or services may infringe patents or other

intellectual property rights owned by Microsemi.

This publication is issued to provide information only and (unless agreed by Microsemi in writing) may not be used, applied or

reproduced for any purpose nor form part of any order or contract nor to be regarded as a representation relating to the products or

services concerned. The products, their specifications, services and other information appearing in this publication are subject to

change by Microsemi without notice. No warranty or guarantee express or implied is made regarding the capability, performance or

suitability of any product or service. Information concerning possible methods of use is provided as a guide only and does not

constitute any guarantee that such methods of use will be satisfactory in a specific piece of equipment. It is the user’s responsibility to

fully determine the performance and suitability of any equipment using such information and to ensure that any publication or data used

is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These

products are not suitable for use in any medical and other products whose failure to perform may result in significant injury or death to

the user. All products and materials are sold and services provided subject to Microsemi’s conditions of sale which are available on

request.

For more information about all Microsemi products

visit our website at

www.microsemi.com

TECHNICAL DOCUMENTATION – NOT FOR RESALE

Microsemi Corporation (NASDAQ: MSCC) offers a comprehensive portfolio of semiconductor

solutions for: aerospace, defense and security; enterprise and communications; and industrial

and alternative energy markets. Products include high-performance, high-reliability analog and

RF devices, mixed signal and RF integrated circuits, customizable SoCs, FPGAs, and

complete subsystems. Microsemi is headquartered in Aliso Viejo, Calif. Learn more at

www.microsemi.com.

Microsemi Corporate Headquarters

One Enterprise, Aliso Viejo CA 92656 USA

Within the USA: +1 (949) 380-6100

Sales: +1 (949) 380-6136

Fax: +1 (949) 215-4996

Microsemi Corporation. All other trademarks and service marks are the property of their respective owners.
