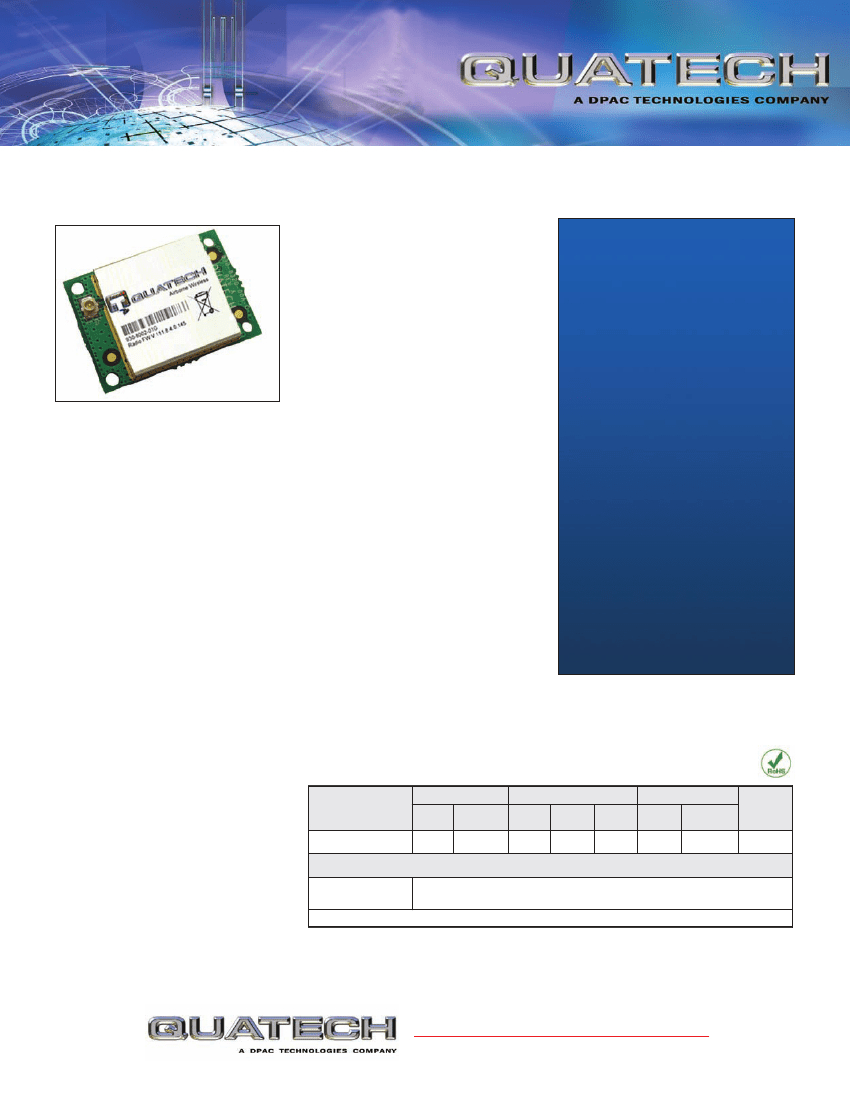

Embedded 802.11b/g SDIO-SPI Radio
WLRG-RA-DP600 Series - SDIO/SPI
Bluetooth Coexistence is provided via three
wire interface, and supports Packet Transfer
Arbitration (PTA) as specified in the
IEEE802.15.2 standard.
The Airborne Embedded 802.11b/g SDIO-
SPI Radio incorporates the most advanced
power save technology, enabling original
equipment manufacturers (OEMs) to utilize
intelligent power control to minimize peak
and overall power consumption and
maximize battery life.
Quatech provides unparalleled software
support to OEMs, including radio drivers for
Linux, Windows CE, Windows XP, Windows
Mobile 5.0/6.0 and other leading real-time
operating systems.
OEMs count on
Quatech’s
technical
expertise
and
experience to ease 802.11 radio integration
and meet their time-to-market goals.
KEY FEATURES
802.11b/g radio
SDIO v1.0 (1 & 4 bit), SPI (1 & 4 bit)
Based upon Marvell Libertas 88W8686
Chipset
30 pin high density SMT connector
Single U.FL RF connector for 802.11b/g
Supports WEP, WPA, WPA2 (Home and
Enterprise) and 802.1x Supplicants
Bluetooth Co-existence 3-wire interface
through main connector
Advanced Low power modes
High vibration mounting holes
Supports host downloaded radio
firmware
Driver supports for WinCE 5.0, Windows
Mobile 5.0/6.0, Linux 2.6 and other
embedded OS’s
Small form factor radio module
(29mm x 21mm x 6mm)
RoHS compliant
High Performance Embedded Radio
Airborne™ is a line of highly integrated
802.11 radios and modules. The Airborne
Embedded 802.11b/g SDIO-SPI Radio
delivers a high performance, integrated
solution for consumer and industrial wireless
applications using the latest IEEE 802.11b/g
platform. It delivers a cost and space
efficient solution, provided by a small profile
design and direct down SMT high density
connection to the system board.
Applications
Designed
specifically
with
power,
performance and flexibility in mind, the
Airborne™ family of radios are the wireless
choice for machine-to-machine (M2M),
Medical, Industrial and Mobile Enterprise
applications. Quatech supplies the highest
performance M2M WiFi radio products
available, these are backed with industry
leading support and product warranties.
Please contact Quatech for further details
and connect with reliability and performance.
Interoperable and Advanced Security
The Airborne Embedded 802.11b/g SDIO-
SPI Radio is a complete high-speed wireless
solution that uses the latest 802.11b/g
chipset from Marvell Libertas 88W8686. It
provides compatibility with the 802.11b
DSSS and 802.11g orthogonal frequency
division multiplexing (OFDM) standards. The
module includes integrated antenna
connectors that provide a direct connection
from the radio to the antenna. The module is
a true upgrade option - no soldered
connections are required. It can be
upgraded in the field or added to a managed
product configuration.
As the latest addition to the Airborne Radio
family the WLRG-RA-DP600 includes
support for full speed SDIO (1 & 4 bit) and
SPI, through the Quatech standard 30 pin
connector.
The WLRG-RA-DP600 family includes full
hardware and software support for
AES/CCMP, RC4, WEP, WPA and WPA2
encryption. Provision for enterprise level
EAP supplicants is fully supported. In
addition the module provides the latest
802.11 standards, including QoS and Transit
Power Control.
Model Selection Guide
WiFi
Model No.
Interface
SDIO
SPI
BT CoX*
Supply
RoHS
VBAT
VHIO
802.11b
802.11g
WLRG-RA-DP601
To evaluate all available features and receive evaluation tools, order below.
WLEG-RA-DP601
* Bluetooth Coexistence Support
802.11b/g SDIO/SPI Radio Evaluation Kit
WLRG-RA-DP601 radio, SDIO Adapter Card, Tools/Documentation CD, Drivers (Windows CE, XP and Linux)
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170
www.quatech.com

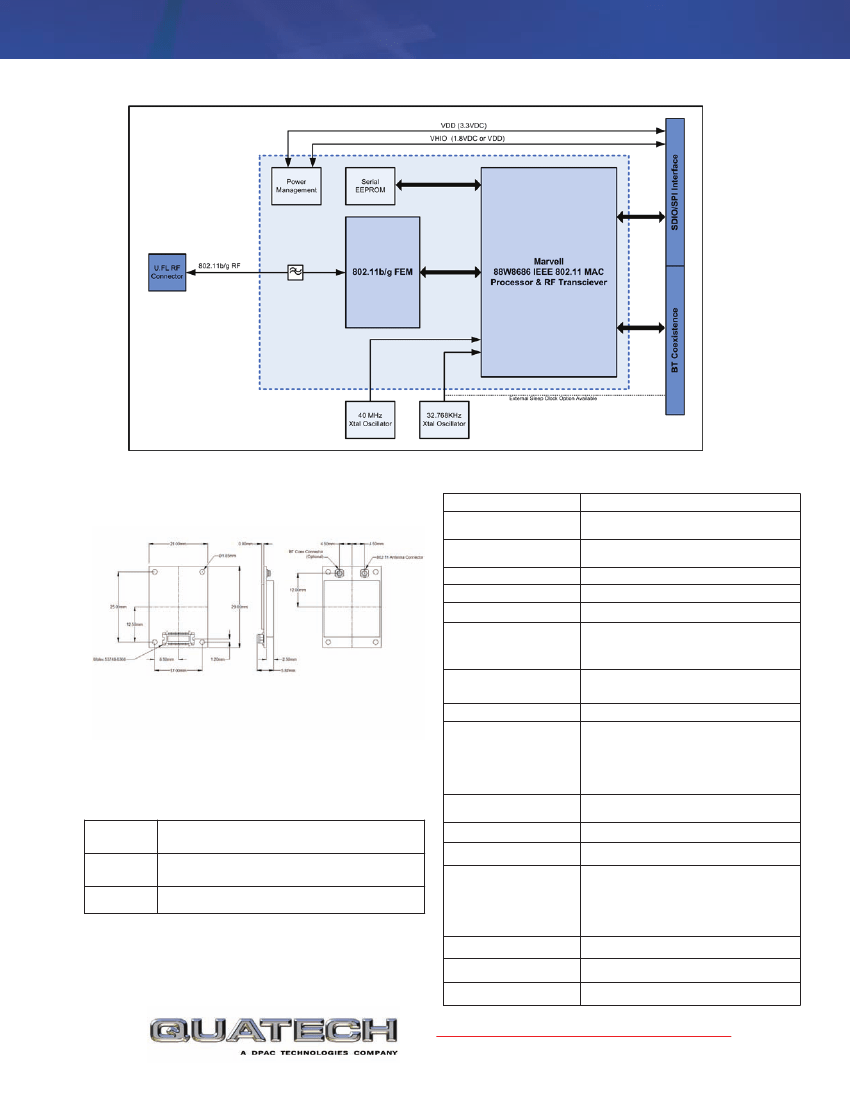

Block Diagram
Mechanical Outline
Specifications
Technology
Interfaces
Frequency
IEEE 802.11b/g, WiFi Compliant
SDIO v1.0 (1&4 bit), SPI (1 & 4 bit), Bluetooth
Coexistence
2.4-2.4835 GHz (US/Canada/Europe)
2.4-2.497 GHz (Japan)
DSSS, CCK, OFDM
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Infrastructure, ad-hoc
US/Canada - 11 channels
Europe - 13
France - 4 channels
Japan - 14 channels (13 channels for ‘g’)
802.11b - 11,5.5,2,1 Mbs
802.11g - 54,48,36,24,18,12,9,6 Mbs
CSMA/CA with ACK, RTS, CTS
-92dBm
-85dBm
-87dBm
-82dBm
-75dBm
-70dBm
@ 1Mb/s (802.11b)
@ 11Mb/s (802.11b)
@ 6Mb/s (802.11g)
@ 18Mb/s (802.11g)
@ 36Mb/s (802.11g)
@ 54Mb/s (802.11g)
Modulation Technology
Modulation Type
Network Access Modes
Channels
Wireless Data Rates
MAC
Sensitivity
Connectors
Security Protocols
053748-0308 (Molex)
0.50mm (.020") Pitch SlimStack™ Plug, Surface Mount, Dual Row,
Vertical, 3.00mm (.118") Stack Height, 30 Circuits
Antenna
Supply
Disabled, WEP 64 & 128 bit, WPA (TKIP), WPA (AES),
WPA2 (AES), 802.1x (EAP) Supplicant
U.FL coaxial connectors, 50 ohms, supports diversity
VDD=3.3VDC +/-10%, VHIO= 3.3VDC+/- 10% or 1.8
VDC+/- 10%
802.11g Tx mode current= 161 mA (Typ)
802.11g Rx mode current= 174 mA (Typ)
802.11b Tx mode current= 218 mA (Typ)
802.11b Rx mode current = 146mA (Typ)
IEEE Power Save (PSP) Mode = 6mA (Typ)
Power Down Mode= 160mA
Operating: -30°C to +85° C, Storage -50°C to + 125°C
30 Pin High density SMT Connector (Molex 53748-0308)
FCC Part 15 Class B Sub C Intentional Radiator, IOC
RSS-210 (Pending)
Radio Connector
052991-0308 (Molex)
Board Connector
0.50mm (.020") Pitch SlimStack™ Receptacle, Surface Mount, Dual
Row, Vertical, 3.00mm (.118") Stack Height, 30 Circuits
RF Connector
U.FL (Hirose)
Ultra Small Surface Mount Coaxial Connector
DC Characteristics
Operating and Storage Temp
Connector
Agency Approvals
