AM5TW-C Series
5 watt dc-dc converters
•
•
•
•
24 PIN DIP PACKAGE
PLASTIC ENCAPSULATED CASE
POWER MODULES FOR PCB MOUNTING
4:1 WIDE INPUT RANGE
•
•
•
REGULATED OUTPUT
LOW RIPPLE & NOISE
OPERATING TEMPERATURE : -25 … +71°C
GENERAL DESCRIPTION
Our AM5TW-C series is a family of cost effective 5W single and
dual output DC-DC converters. These shielded converters are
aluminum encapsulated on all six sides, have a non-conduc-
tive base & retain an anodized black DIP24 compatible
plastic case (31.8x20.3x10.2mm). The high performance
features of AM5TW-C series include current limit auto
recovery short circuit protection, tight line regulation and
high efficiency operation coefficient up to 78%.
These wide range devices operate over 4:1 input voltage
range, providing a continuously stable output voltage. Input
voltage range of 24 & 48VDC converts in output voltages
of 3.3, 5, 12, 15, 24, ±5, ±12 & ±15VDC. The normal oper-
ation is specified over the full operating temperature range
of -25°C to +71°C with no derating required. Cooling is
done by free air convection.
ELECTRICAL SPECIFICATIONS
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Input Specifications:
Voltage range
Filter
Isolation Specifications:
Rated voltage
Resistance
Capacitance
General Specifications:
Efficiency
Switching frequency
24VDC, 9~36VDC
48 VDC, 18~75VDC
p
(Pi) Network
1500VDC
>1000Mohms
1000pF, typ.
73% to 78%
300KHz, typ. 100% load
Physical Specifications:
Dimensions
31.8x20.3x10.2mm,
tolerance ±0.5mm
1.25x0.8x0.4inches
Weight
13g
Case material
Six-side shielded Aluminum
with Non-Conductive
base, Black Anodize
Output Specifications:
Voltage accuracy
Ripple
Noise
Short circuit protection
Over current protection
Environmental Specifications:
Operating temperature
-25°C …+71°C
Storage temperature
-55°C …+105°C
Case temperature
+95°C, max.
Humidity (non-condensing)
Up to 95%
Cooling
Free-air convection
±2%, max.
<0.2% Vout +20mVmax (Vp-p)
<0.5% Vout +50mVmax (Vp-p)
Current limit, auto-recovery
Works over 120% of rating
and recovers automatically
Line regulation (HL-LL) ±0.5%, typ.
Load regulation(10-100%) ±2%, typ.
Temperature coefficient ±0.02%/°C, typ.
MTBF: > 800,000 hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)
Specifications are subject to change without notification

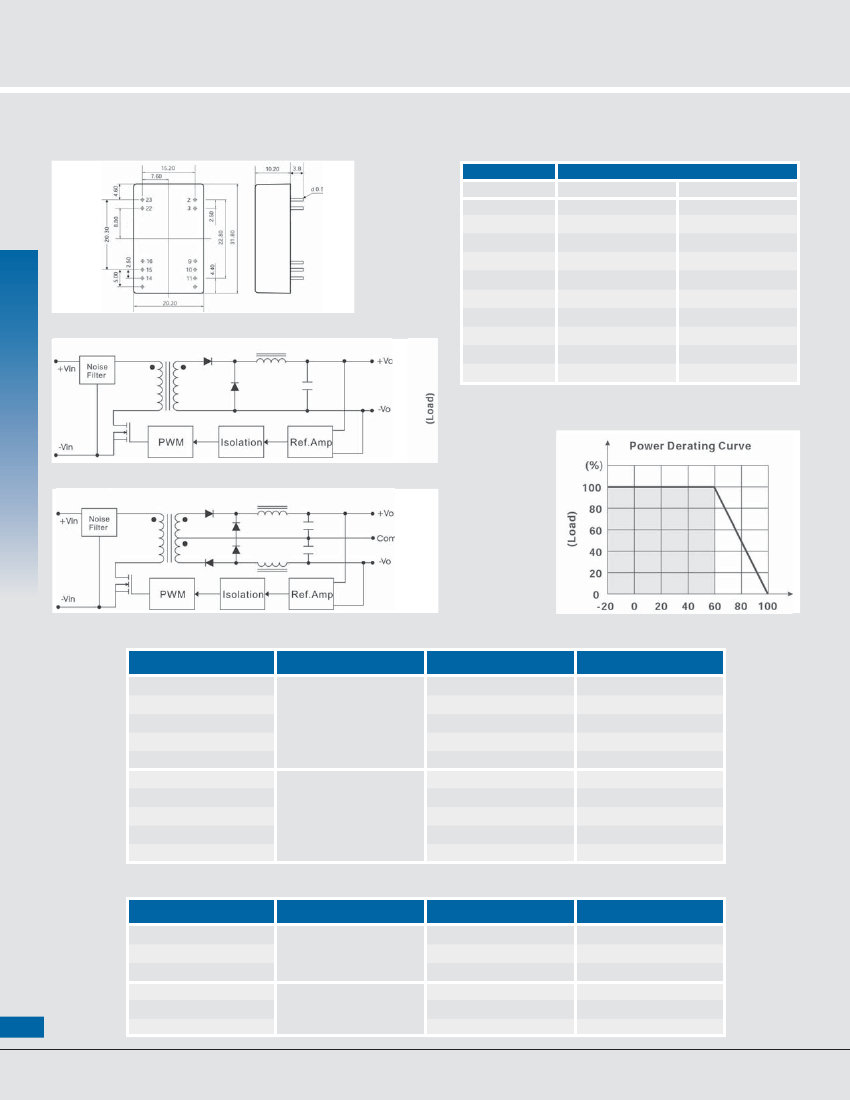

Continued on next page
