smart socket

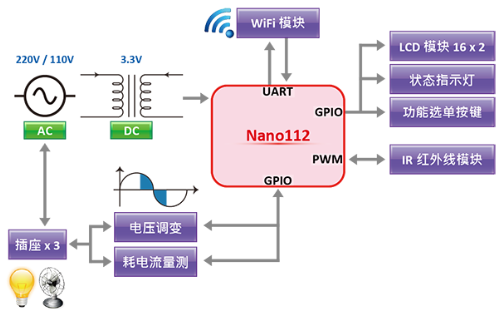

This solution uses a low-power microcontroller to integrate the Wi-Fi module, IR infrared module, and LCD module. It controls the schedule through APP, infrared rays, or buttons, and displays relevant information such as device current consumption on the screen.

Nuvoton Nano112 is based on excellent power consumption specifications (operating mode 150 μA / MHz, power-down mode 0.65 μA) and is suitable for many smart home devices. It also has an LCD driver for displaying socket-related information (device current consumption, voltage regulation amount value), and can be used with mobile APP to realize remote control and schedule management of each device using wireless modules such as Wi-Fi.

Common Wi-Fi modules can be implemented through UART or SPI interfaces, and use the PWM capture function to measure the received infrared rays, and use GPIO to control related indicator lights. All of the above can be achieved through ultra-low standby power consumption and many rich features. Peripheral, it is implemented by Nano112 with LCD driving capability.

• Ultra-low run and power-down mode power consumption (150 μA/MHz, 0.65 μA)

• Support LCD driver (4x36, 6x34)

• Wi-Fi remote control, infrared remote control

• Current consumption display of each socket

• Voltage adjustment for each socket device

• Supports timing function and schedule management APP

• Support socket usage UI management
