ST25DV04K based dynamic NFC/RFID tag IC expansion board for STM32 Nucleo

X-NUCLEO-NFC04A1

Overview

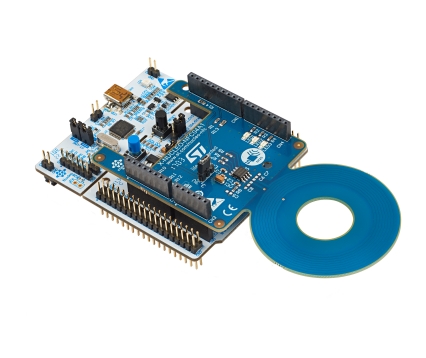

The X-NUCLEO-NFC04A1 dynamic NFC/RFID tag IC expansion board is based on the ST25DV04K NFC Type V/RFID tag IC with a dual interface 4 Kbits EEPROM that also features an I²C interface. It can be powered by the pin of Arduino connector or directly by the received carrier electromagnetic field.

The X-NUCLEO-NFC04A1 expansion board is compatible with the Arduino™ UNO R3 connector pin assignment and can easily be plugged onto any STM32 Nucleo board. Various expansion boards can also be stacked to evaluate different devices operating together with the dynamic NFC tag. The board also features an antenna with a 54 mm ISO 24.2 diameter, single layer, copper etched on PCB.

Main features

Expansion board based on the ST25DV04K dynamic NFC/RFID tag for STM32 Nucleo
Up to 4-Kbit memory with NDEF support
54 mm diameter, single layer circular antenna
Compatible with STM32 Nucleo boards
Equipped with Arduino™ UNO R3 connector
Self-powered or powered through the Arduino™ UNO R3 connectors

Three general purpose LEDs
Scalable solution, capable of cascading multiple boards for larger systems
Free comprehensive development firmware library and example for ST25DV04K, compatible with STM32Cube firmware
FCC and IC verified
RoHS compliant
