PD85004 based 4 W/860-960 MHz evaluation board

STEVAL-TDR019V1

Overview

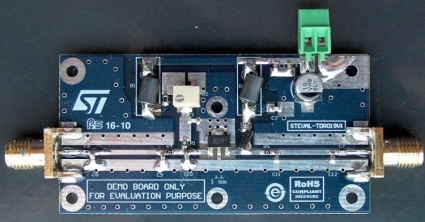

The STEVAL-TDR019V1 is a demonstration board using the PD85004 LDMOS transistor. It is designed for 2-way radio applications.

Main features

Excellent thermal stability
Frequency: 860 - 960 MHz
Supply voltage: 13.6 V
Output power: 4 W
Power gain: 17.4 ± 0.3 dB
Efficiency: 56 % - 65 %
Load mismatch: 20:1
BeO-free amplifier
